SMD High Frequency Power Inductors (TPUME) Unshielded

The DeMint (TPUME) latest devices offer the advantages of wirewound construction, and are designed with an iron core that features high saturation current and unshielded construction for high reilbility and great thermal stability.

DeMint Electronics has added new ranges of low-profile wire wound chip inductors, TPUME1206, TPUME1210L, TPUME1210, TPUME1812, and TPUME2220, for use in wireless communication equipments to increase flexibility of maximum height measurements with extended electrical characteristics.

The new (TPUME) series is designed to provide a good balance of performance and height within chip power miniature inductor offering. The TPUME1206 series is developed to have very compact footprint 3.2 mm x 2.3 mm with low profile 1.8 mm. The TPUME2220 series were developed to have a low DCR 0.039 ohm. Those TPUME family enables efficiency and flexibility.

All (TPUME) winding chip coils offer low DC resistance and large rated current. This is vital for computer product applications as it prevents energy dissipation from the chip inductor, improving the converter's overall efficiency.

The new ranges deliver a good size/performance ratio with low DC resistances from 0.039 Ω to 66.1 Ω. A wide range of inductances is also available from 1.0 μH to 2200 μH. The parts come with high rated currents up to 4 A, and feature magnetic unshielding as standard.

Custom parts are available on request. DeMint will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.

Download Complete Datasheet SMD High Frequency Power Inductors (TPUME) PDF.

Features :
  1. High reilbility, excellent thermal stability.
  2. Flat bottom surface ensures secure, reliable mounting.
  3. High frequency design, excellent Q values, excellent SRF.
  4. Provided in embossed carrier tape packaging for use with Automatic mounting machines.
Applications :
  1. Networking system, computer products and peripherals.
  2. Modems, mobile radios, cordless telephones, XDSL filter.
  3. Global positioning Systems, wireless communications equipment.
Dimensions & Configurations (TPUME) (Unit: mm)

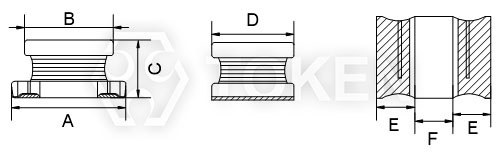

SMD power winding inductor (TPUME) Dimensions
SMD power winding inductor (TPUME) Dimensions (Unit: mm)
Part NO A±0.3 B±0.3 C±0.3 D Ref. E Ref. F Ref.
TPUME1206 3.2 2.3 1.8 1.6 0.9 1.3
TPUME1210L 3.2 2.5 1.55 2.5 0.9 1.3
TPUME1210 3.2 2.5 2.0 2.5 0.9 1.3
TPUME1812 4.5 3.6 2.6 3.2 1.6 1.3
TPUME2220 5.7 5.0 4.7 5.0 2.0 1.7
Electrical Specification (TPUME)
Inductance (µH) TPUME1206 TPUME1210L TPUME1210 TPUME1812 TPUME2220
Marking L (µH) DCR (Ω)
Max.		 IDC (A) DCR (Ω)
Max.		 IDC (A) DCR (Ω)
Max.		 IDC (A) DCR (Ω)
Max.		 IDC (A) DCR (Ω)
Max.		 IDC (A)
1R0 1.0 0.104 0.175 0.06 1.48 0.057 0.445 0.045 0.5 0.039 4.00
1R2 1.2 0.118 0.165 0.064 0.425 0.048 0.5 0.042 3.8
1R5 1.5 0.157 0.155 0.079 0.4 0.057 0.5 0.049 3.7
1R8 1.8 0.196 0.050 0.101 1.31 0.088 0.39 0.06 0.5
2R2 2.2 0.260 0.14 0.125 1.25 0.096 0.37 0.072 0.5 0.062 3.2
2R7 2.7 0.29 0.135 0.129 0.32 0.081 0.5 0.069 3
3R3 3.3 0.33 0.13 0.16 1.08 0.153 0.3 0.088 0.5 0.075 2.9
3R9 3.9 0.35 0.125 0.166 0.29 0.094 0.5 0.086 2.8
4R7 4.7 0.4 0.12 0.236 0.98 0.222 0.27 0.111 0.5 0.103 2.7
5R6 5.6 0.54 0.115 0.287 0.9 0.233 0.25 0.13 0.5 0.118 2.4
6R8 6.8 0.59 0.11 0.371 0.79 0.3 0.24 0.16 0.45 0.126 2.00
8R2 8.2 0.82 0.105 0.471 0.72 0.38 0.225 0.191 0.45 0.14 1.8
100 10 0.97 0.1 0.576 0.66 0.43 0.19 0.225 0.4 0.159 1.7
120 12 1.03 0.095 0.684 0.59 0.48 0.18 0.25 0.38 0.187 1.5
150 15 1.14 0.09 0.888 0.54 0.64 0.17 0.31 0.36 0.21 1.4
180 18 1.27 0.085 1.087 0.48 0.87 0.165 0.38 0.34 0.26 1.3
220 22 1.52 0.085 1.343 0.43 0.98 0.15 0.43 0.32 0.3 1.2
270 27 2.09 0.085 1.11 0.125 0.56 0.3 0.36 1.1
330 33 2.51 0.085 2.245 0.35 1.51 0.115 0.62 0.27 0.42 0.9
390 39 3.6 0.085 1.64 0.11 0.79 0.24 0.51 0.85
470 47 4.1 0.085 3.064 0.29 2.15 0.1 0.9 0.22 0.56 0.8
560 56 4.54 0.08 4.12 0.27 2.55 0.085 1.11 0.2 0.69 0.7
680 68 5.03 0.08 5.289 0.24 2.86 0.08 1.24 0.68 0.79 0.64
820 82 5.64 0.08 7.223 0.2 3.25 0.07 1.59 0.17 0.98 0.6
101 100 6.3 0.08 8.209 0.19 4.6 0.08 1.78 0.16 1.02 0.56
121 120 13.39 0.07 10.888 0.17 6.84 0.075 2.43 0.15 1.27 0.5
151 150 14.75 0.07 12.568 0.16 7.79 0.07 2.7 0.13 1.44 0.42
181 180 16.16 0.07 19.645 0.14 8.55 0.065 3.03 0.12 1.83 0.37
221 220 24.33 0.05 22.307 0.13 9.58 0.065 4.25 0.11 2.51 0.32
271 270 29.7 0.011 24.613 0.12 10.88 0.065 5.72 0.1 2.72 0.29
331 330 43.06 0.01 28.213 0.11 16.80 0.065 6.49 0.095 3.56 0.27
391 390 51 0.009 32.187 0.1 17.9 0.05 7.22 0.09 3.99 0.25
471 470 53.5 0.008 48.474 0.09 19.4 0.045 8.27 0.08 5.2 0.24
561 560 53.893 0.08 24.2 0.04 11.67 0.07 5.74 0.22
681 680 63.013 0.07 13.13 0.065 6.75 0.19
821 820 66.1 0.005 14.43 0.06 8.56 0.17
102 1000 19.37 0.05 9.56 0.15
122 1200 23.8 0.045 13.1 0.12
152 1500 26.5 0.04 14.8 0.1
182 1800 30.8 0.035 19.0 0.1
222 2200 48.8 0.03 20.3 0.09
Note:
  • Measuring Frequency. L: <100μH Above (100KHz/0.25v) L:>100μH Above (1KHz/0.25v).
  • IDC: The current when the inductance becomes 10% lower than its nominal value. (ta=20°C).
Order Codes (TPUME)
TPUME1206 - 1R0 M

Part Number
TPUME1206
TPUME1210L
TPUME1210
TPUME1812
TPUME2220

Inductance
1R0 1.00µH
100 10.00µH
101 100.00µH
102 1000.00µH
Tolerance
J ± 5%
K ± 10%
L ± 15%
M ± 20%
P ± 25%
N ± 30%
