  4. SMD Large Current Inductors TPSRH-74B/125B/127B Series

Large Current Inductors (TPSRH-74B/125B/127B) Shielded

DeMint four pin terminals flexible design Surface Mount Wirewound Inductor constructs with four terminal pin type which gives a flexible design as inductors or transformers (SEPIC, ZETA circuit, etc).

Provide wide inductance range from 2.5μH to 1000.0μH in parallel connection, low direct current resistance (DCR) down to 0.018Ω, and large current up to 14.9A. These devices are directly connected electrode on ferrite core with excellent property and high saturation for surface mounting.

DeMint enhances surface mount inductor (TPSRH) family series covering complete footprint with profile from 4.8 mm to 8.5 mm, inductance from 1.00 μH to 1000.00 μH, low DCR, and Rated Current uo to 10.0A.

DeMint (TPSRH74B/125B/127B) with wire wound and magnetically shielded construction offers a variety of characteristics and high performace. Customers can select the optimum characteristics by choosing from footprint, DCR, and a wide range of inductance values and tolerances with some types offering magnetic shielding.

The series is lead-free and RoHS compliant. Application of specific designs also available including different inductance and frequency specifications adjusted to requirements. Please contact our sales for more information.

Download Complete Datasheet Large Current Inductors (TPSRH) PDF.

Features :
  1. Power saving for low voltage power supply
  2. Four terminals choke coil available for DC-DC Converter of less than 3.3V input voitage.
Applications :
  1. Notebook size personal computer.(MPU driving power supply) Logic IC Power supply P.D.A..
Dimensions & Configurations (TPSRH-74B/125B/127B) (Unit: mm)
TPSRH74B

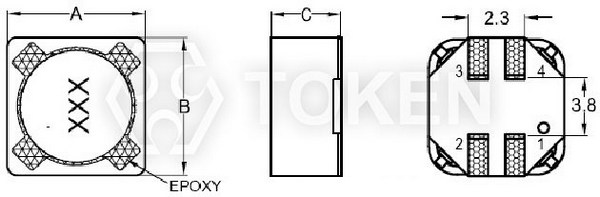

SMT Power Backlight Inductors (TPSRH74B) Dimensions
SMT Power Backlight Inductors (TPSRH74B) Dimensions
TPSRH125B
TPSRH127B

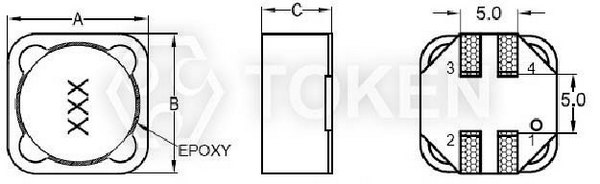

SMT Power Backlight Inductors (TPSRH74B) Dimensions
SMT Power Backlight Inductors (TPSRH74B) Dimensions
Electrical Schematic
SMT Power Backlight Inductors (TPSRH74B) Dimensions
Type A Max. B Max. C Max. I J H K
TPSRH74B 7.3±0.3 7.3±0.3 4.8 1.1 0.8 2.1 7.5
TPSRH125B 12.0±0.3 12.0±0.3 6.5 2.0 1.5 4.0 12.5
TPSRH127B 12.0±0.3 12.0±0.3 8.5 2.0 1.5 4.0 12.5
Note: Design as Customer's Requested Specifications.

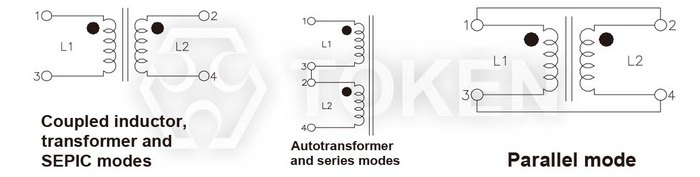

Winding Schematics (TPSRH74B)
PART NO Ieads connected in parallel Ieads connected in series
L
(µH)		 DCR
(OHM)
Max.		 Isat (A)
30%drop
typ		 SRF
MHz		 Irms
(A)		 L
(µH)		 DCR
(OHM)
Max.		 Isat (A)
30%drop
typ		 SRF
MHz		 Irms
(A)
TPSRH74B-2R5 2.5 0.018 6.30 55.0 4.33 10.0 0.072 3.15 17.60 2.17
TPSRH74B-3R3 3.3 0.022 5.40 43.0 4.09 13.2 0.088 2.70 12.90 2.05
TPSRH74B-4R7 4.7 0.026 4.60 35.0 3.48 18.8 0.102 2.30 9.80 1.74
TPSRH74B-5R6 5.6 0.032 4.20 32.0 3.14 22.4 0.126 2.10 8.48 1.57
TPSRH74B-6R8 6.8 0.035 3.90 30.0 2.97 27.2 0.140 1.95 7.92 1.49
TPSRH74B-8R2 8.2 0.043 3.50 27.0 2.87 32.8 0.172 1.75 7.10 1.44
TPSRH74B-100 10 0.050 3.00 22.0 2.49 40 0.20 1.50 5.75 1.24
TPSRH74B-120 12 0.060 2.70 20.0 2.28 48 0.24 1.35 5.18 1.14
TPSRH74B-150 15 0.070 2.40 18.0 2.18 60 0.28 1.20 4.59 1.09
TPSRH74B-180 18 0.085 2.30 15.0 1.91 72 0.34 1.15 3.80 0.95
TPSRH74B-220 22 0.110 2.10 13.5 1.68 88 0.44 1.05 3.38 0.84
TPSRH74B-270 27 0.125 1.90 12.0 1.57 108 0.50 0.95 2.98 0.79
TPSRH74B-330 33 0.150 1.70 11.0 1.51 132 0.60 0.85 2.68 0.76
TPSRH74B-390 39 0.190 1.50 10.0 1.27 156 0.76 0.75 2.40 0.64
TPSRH74B-470 47 0.21 1.40 9.50 1.22 188 0.84 0.70 2.23 0.61
TPSRH74B-560 56 0.27 1.30 8.70 1.16 224 1.08 0.65 2.16 0.58
TPSRH74B-680 68 0.32 1.20 7.30 1.02 272 1.28 0.60 1.73 0.51
TPSRH74B-820 82 0.36 1.10 6.20 0.95 328 1.44 0.55 1.35 0.49
TPSRH74B-101 100 0.45 0.98 5.50 0.89 400 1.80 0.49 1.18 0.45
TPSRH74B-121 120 0.56 0.90 4.50 0.78 480 2.24 0.45 1.10 0.39
TPSRH74B-151 150 0.675 0.80 4.00 0.68 600 2.70 0.40 0.82 0.34
TPSRH74B-181 180 0.83 0.73 3.80 0.61 720 3.32 0.36 0.72 0.32
TPSRH74B-221 220 1.10 0.66 3.50 0.59 880 4.40 0.33 0.63 0.30
TPSRH74B-271 270 1.30 0.60 3.30 0.51 1080 5.20 0.30 0.58 0.25
TPSRH74B-331 330 1.60 0.54 3.00 0.48 1320 6.40 0.27 0.53 0.24
TPSRH74B-391 390 2.10 0.50 2.80 0.45 1560 8.40 0.25 0.48 0.23
TPSRH74B-471 470 2.35 0.46 2.60 0.40 1880 9.40 0.23 0.42 0.20
TPSRH74B-561 560 2.65 0.42 2.50 0.37 2240 10.6 0.21 0.39 0.19
TPSRH74B-681 680 3.50 0.38 2.30 0.35 2720 14.0 0.19 0.34 0.18
TPSRH74B-821 820 3.90 0.35 2.20 0.30 3280 15.6 0.175 0.32 0.15
TPSRH74B-102 1000 5.40 0.31 2.00 0.28 4000 21.6 0.155 0.28 0.144
Remark:
DCR is for both windings . DC current at which the inductance drops 30% (typ) from its value without current . Inductance tolerance: 4.7μH～100μH tolerance can be done “M” 120μH～1000μH tolerance can be done “K” .
Note:
  • Inductance shown for coupled inductor and for two inductors connected in parallel .
  • Inductance is measured at 100KHz.0.1Vrms.0Adc on an Agilent/HP 4284ALC meter or equivalent .
  • DCR is for both windings when connected in parallel.DCR for each winding is twice the Value .
  • SRF measured using Agilent/HP E4991A or equivalent .
  • Current that causes a 40°C temperature rise from 25°C ambient .
Winding Schematics (TPSRH125B)
PART NO Ieads connected in parallel Ieads connected in series
L
(µH)		 DCR
(OHM)
Max.		 Isat (A)
30%drop
typ		 SRF
MHz		 Irms
(A)		 L
(µH)		 DCR
(OHM)
Max.		 Isat (A)
30%drop
typ		 SRF
MHz		 Irms
(A)
TPSRH125B-4R7 4.7 0.018 10.30 32.0 7.2 18.8 0.072 5.15 12.00 3.4
TPSRH125B-5R6 5.6 0.020 9.66 31.0 7.0 22.4 0.080 4.83 10.30 3.3
TPSRH125B-6R8 6.8 0.024 9.21 28.0 6.6 27.2 0.095 4.61 8.40 3.2
TPSRH125B-8R2 8.2 0.026 8.55 25.0 6.4 32.8 0.104 4.28 7.10 3.1
TPSRH125B-100 10 0.030 7.40 22.0 5.40 40.0 0.120 3.70 6.00 2.8
TPSRH125B-120 12 0.037 6.86 21.0 5.2 48.0 0.147 3.43 5.80 2.7
TPSRH125B-150 15 0.042 6.09 17.6 4.6 60 0.170 3.05 5.50 2.5
TPSRH125B-180 18 0.048 5.30 17.0 4.4 72 0.194 2.65 5.00 2.2
TPSRH125B-220 22 0.058 5.01 15.0 4.2 88 0.232 2.51 4.10 2.1
TPSRH125B-270 27 0.062 4.66 13.6 3.7 108 0.248 2.33 3.50 1.9
TPSRH125B-330 33 0.067 4.22 12.7 3.6 132 0.268 2.11 3.10 1.6
TPSRH125B-390 39 0.071 3.80 11.7 3.2 156 0.284 1.90 2.80 1.5
TPSRH125B-470 47 0.087 3.25 8.7 2.9 188 0.348 1.63 2.00 1.4
TPSRH125B-560 56 0.099 3.07 7.6 2.7 224 0.396 1.54 2.00 1.3
TPSRH125B-680 68 0.108 2.83 6.1 2.5 272 0.432 1.42 1.80 1.2
TPSRH125B-820 82 0.137 2.55 5.3 2.3 328 0.548 1.28 1.60 1.1
TPSRH125B-101 100 0.161 2.20 5.0 1.9 400 0.642 1.10 1.40 1.0
TPSRH125B-121 120 0.209 2.05 4.4 1.8 480 0.834 1.03 1.20 0.8
TPSRH125B-151 150 0.238 1.82 4.0 1.7 600 0.952 0.91 1.10 0.78
TPSRH125B-181 180 0.268 1.60 3.6 1.6 720 1.072 0.80 0.81 0.75
TPSRH125B-221 220 0.346 1.51 3.2 1.5 880 1.382 0.76 0.74 0.71
TPSRH125B-271 270 0.403 1.41 2.8 1.4 1080 1.61 0.71 0.63 0.65
TPSRH125B-331 330 0.545 1.28 2.5 1.2 1320 2.18 0.64 0.60 0.56
TPSRH125B-391 390 0.600 1.16 2.3 1.0 1560 2.40 0.58 0.52 0.50
TPSRH125B-471 470 0.795 1.00 2.1 0.86 1880 3.18 0.50 0.43 0.41
TPSRH125B-561 560 0.905 0.95 2.0 0.80 2240 3.62 0.48 0.36 0.38
TPSRH125B-681 680 1.030 0.88 1.8 0.74 2720 4.12 0.44 0.32 0.35
TPSRH125B-821 820 1.325 0.79 1.5 0.67 3280 5.30 0.40 0.27 0.32
TPSRH125B-102 1000 1.530 0.69 1.20 0.50 4000 6.12 0.35 0.23 0.29
Remark:
DCR is for both windings . DC current at which the inductance drops 30% (typ) from its value without current . Inductance tolerance: 4.7μH～100μH tolerance can be done “M” 120μH～1000μH tolerance can be done “K” .
Note:
  • Inductance shown for coupled inductor and for two inductors connected in parallel .
  • Inductance is measured at 100KHz.0.1Vrms.0Adc on an Agilent/HP 4284ALC meter or equivalent .
  • DCR is for both windings when connected in parallel.DCR for each winding is twice the Value .
  • SRF measured using Agilent/HP E4991A or equivalent .
  • Current that causes a 40°C temperature rise from 25°C ambient .
Winding Schematics (TPSRH127B)
PART NO Ieads connected in parallel Ieads connected in series
L
(µH)		 DCR
(OHM)
Max.		 Isat (A)
30%drop
typ		 SRF
MHz		 Irms
(A)		 L
(µH)		 DCR
(OHM)
Max.		 Isat (A)
30%drop
typ		 SRF
MHz		 Irms
(A)
TPSRH127B-4R7 4.7 0.019 14.90 32.0 7.4 18.8 0.076 7.70 12.0 3.6
TPSRH127B-5R6 5.6 0.023 13.40 25.0 7.2 22.4 0.092 6.60 10.4 3.5
TPSRH127B-6R8 6.8 0.024 13.10 24.0 6.9 27.2 0.096 6.40 9.5 3.4
TPSRH127B-8R2 8.2 0.025 10.80 18.0 6.6 32.8 0.100 5.60 7.2 3.3
TPSRH127B-100 10 0.029 10.50 16.5 6.2 40.0 0.116 5.40 6.6 3.2
TPSRH127B-150 15 0.036 9.10 11.8 5.8 60 0.144 4.30 5.0 2.7
TPSRH127B-180 18 0.040 8.00 10.5 5.5 72 0.158 3.90 3.8 2.5
TPSRH127B-220 22 0.048 6.80 9.0 5.2 88 0.190 3.50 3.4 2.2
TPSRH127B-270 27 0.060 6.50 8.4 4.7 108 0.240 .3.40 3.2 2.0
TPSRH127B-330 33 0.075 5.60 7.6 4.2 132 0.300 3.10 3.0 1.4
TPSRH127B-390 39 0.080 5.50 6.5 3.6 156 0.320 2.80 2.6 1.6
TPSRH127B-470 47 0.090 5.20 6.0 3.0 188 0.360 2.60 2.1 1.5
TPSRH127B-560 23 0.095 4.50 5.6 2.8 224 0.380 2.4 2.0 1.4
TPSRH127B-680 68 0.105 4.10 5.0 2.6 272 0.420 2.10 1.6 1.3
TPSRH127B-820 82 0.140 3.80 4.1 2.3 328 0.560 1.90 1.3 1.2
TPSRH127B-101 100 0.150 3.40 3.6 2.0 400 0.600 1.70 1.1 1.1
TPSRH127B-121 120 0.205 3.20 3.2 1.9 480 0.820 1.60 1.0 1.0
TPSRH127B-151 150 0.230 2.80 3.0 1.8 600 0.92 1.40 0.82 0.89
TPSRH127B-181 180 0.255 2.50 2.7 1.7 720 1.020 1.30 0.70 0.84
TPSRH127B-221 220 0.345 2.30 2.5 1.6 880 1.380 1.10 0.64 0.75
TPSRH127B-271 270 0.450 2.10 2.1 1.5 1080 1.80 1.00 0.55 0.71
TPSRH127B-331 330 0.510 1.90 2.0 1.3 1320 2.04 0.92 0.47 0.62
TPSRH127B-391 390 0.560 1.70 1.8 1.1 1560 2.24 0.84 0.41 0.53
TPSRH127B-471 470 0.765 1.60 1.6 0.87 1880 3.06 0.80 0.36 0.43
TPSRH127B-561 560 0.845 1.50 1.5 0.83 2240 3.38 0.73 0.31 0.40
TPSRH127B-681 680 1.145 1.30 1.4 0.76 2720 4.58 0.63 0.30 0.36
TPSRH127B-821 820 1.275 1.20 1.3 0.69 3280 5.10 0.58 0.24 0.33
TPSRH127B-102 1000 1.415 1.10 1.1 0.60 4000 5.66 0.56 0.20 0.30
Remark:
DCR is for both windings . DC current at which the inductance drops 30% (typ) from its value without current . Inductance tolerance: 4.7μH～100μH tolerance can be done “M” 120μH～1000μH tolerance can be done “K” .
Note:
  • Inductance shown for coupled inductor and for two inductors connected in parallel .
  • Inductance is measured at 100KHz.0.1Vrms.0Adc on an Agilent/HP 4284ALC meter or equivalent .
  • DCR is for both windings when connected in parallel.DCR for each winding is twice the Value .
  • SRF measured using Agilent/HP E4991A or equivalent .
  • Current that causes a 40°C temperature rise from 25°C ambient .
Order Codes (TPSRH-74B/125B/127B)
TPSRH74B - 6R8 N

Part Number
TPSRH74B
TPSRH125B
TPSRH127B

Inductance
2R5 2.50µH
100 10.00µH
101 100.00µH
102 1000.00µH
Tolerance
J ± 5%
K ± 10%
L ± 15%
M ± 20%
P ± 25%
N ± 30%
