High Current Power Inductors (TPSTP) Shielded
DeMint introduced the semi-shielded inductor series using magnetic epoxy resin as a magnetic shield. As its name suggests, the semi-shielded inductor is design to bridge the performance gap of shielded and non-shielded inductors by offering users an additional selection of inductor series.
To take the advantage of a shielded inductor is its low radiation which can be characterized from its lowest coupling factor among other type of inductors. Whereas the magnetic flux of its non-shielded counterpart is not confined to a given vicinity. These inductors experience the highest coupling factor.
DeMint Electronics has added those new generation portable products in new ranges of high-current chip inductors, TPSTP2110, TPSTP2112, TPSTP2114, and TPSTP2816, for use in DC-DC converter applications to increase flexibility of maximum height measurements with extended electrical characteristics.
The new ranges deliver a good size/performance ratio with compact packaging size is designed to save space, measuring 21mm x 14.5mm (TPSTP). A wide range of inductances is also available: 0.3μH to 33μH. The parts come with high rated currents, up to 35A, and feature magnetic shielding as standard. Operating temperature range is -55°C to +125°C.
Custom parts are available on request. DeMint will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.
Download Complete Datasheet High Current Power Inductors (TPSTP) PDF.
- Low Core Loss And High Efficiency Performance.
- Closed Magnetic Field Construction For High Density Board Assembly.
- Excellent high frequency characteristics.
- TV, VCR, Switching power sources, NC machines.
- Computes systems and Measuring instruments.

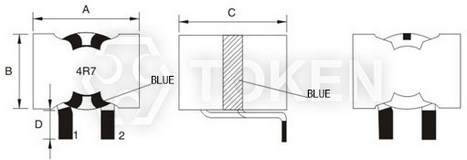

| Dimensions & Configurations (TPSTP) (Unit: mm) | ||||||
|
||||||
| ITEM | A | B | C | D | ||
| TPSTP2110 | 21.0±1.0 | 14.5±1.0 | 10.0±1.0 | 3.5±1.0 | ||
| TPSTP2112 | 21.0±1.0 | 14.5±1.0 | 12.0±1.0 | 3.5±1.0 | ||
| TPSTP2114 | 21.0±1.0 | 14.5±1.0 | 14.0±1.0 | 3.5±1.0 | ||
| TPSTP2816 | 21.0±1.0 | 14.5±1.0 | 16.0±1.0 | 3.5±1.0 | ||
| Electrical Specification (TPSTP2110) | |||||
| Part No | Inductance (µH) | Tolerance | Test Freq (KHz/V) | DCR (mΩ) Max | Heat Rating Current DC Amps. Idc (A) |
| TPSTP2110-R30 | 0.3 | M、N | 100/1 | 1.5 | 35 |
| TPSTP2110-R50 | 0.5 | M、N | 100/1 | 1.5 | 35 |
| TPSTP2110-R60 | 0.6 | M、N | 100/1 | 1.5 | 35 |
| TPSTP2110-R68 | 0.68 | M、N | 100/1 | 1.5 | 35 |
| TPSTP2110-R80 | 0.8 | M、N | 100/1 | 1.5 | 35 |
| TPSTP2110-1R0 | 1.0 | M、N | 100/1 | 1.5 | 35 |
| TPSTP2110-1R2 | 1.2 | M、N | 100/1 | 1.5 | 35 |
| TPSTP2110-2R0 | 2.0 | M、N | 100/1 | 1.5 | 35 |
| TPSTP2110-100 | 10.0 | M、N | 100/1 | 3.5 | 25 |
Rated DC current: it is either the inductance is 20% lower than its initial value. In D.C. saturation characteristics of Temperature Raise becomes Δt=40°C(Ta=20°C),whichever is lower.
Note:
- Test equipments L: Agilent HP4284A Precision LCR meter.
- Test equipments SRF: Agilent 4291B RF Impedance Analyzer.
- Test equipments DCR: CHEN HWA 502BC OHM METER.
- Electrical specifications at 25°C. Operating temperature: -55 to 125°C.
| Electrical Specification (TPSTP2112) | |||||
| Part No | Inductance (µH) | Tolerance | Test Freq (KHz/V) | DCR (mΩ) Max | Heat Rating Current DC Amps. Idc (A) |
| TPSTP2112-R60 | 0.6 | M、N | 100/1 | 1.8 | 25 |
| TPSTP2112-R68 | 0.68 | M、N | 100/1 | 1.8 | 25 |
| TPSTP2112-R80 | 0.8 | M、N | 100/1 | 1.8 | 25 |
| TPSTP2112-1R0 | 1.0 | M、N | 100/1 | 1.8 | 25 |
| TPSTP2112-1R2 | 1.2 | M、N | 100/1 | 1.8 | 25 |
| TPSTP2112-2R0 | 2.0 | M、N | 100/1 | 1.8 | 25 |
Rated DC current: it is either the inductance is 20% lower than its initial value. In D.C. saturation characteristics of Temperature Raise becomes Δt=40°C(Ta=20°C),whichever is lower.
Note:
- Test equipments L: Agilent HP4284A Precision LCR meter.
- Test equipments SRF: Agilent 4291B RF Impedance Analyzer.
- Test equipments DCR: CHEN HWA 502BC OHM METER.
- Electrical specifications at 25°C. Operating temperature: -55 to 125°C.
| Electrical Specification (TPSTP2114) | |||||
| Part No | Inductance (µH) | Tolerance | Test Freq (KHz/V) | DCR (mΩ) Max | Heat Rating Current DC Amps. Idc (A) |
| TPSTP2114-R80 | 0.8 | M、N | 100/1 | 2.2 | 21 |
| TPSTP2114-1R0 | 1.0 | M、N | 100/1 | 2.2 | 21 |
| TPSTP2114-1R2 | 1.2 | M、N | 100/1 | 2.2 | 21 |
| TPSTP2114-2R0 | 2.0 | M、N | 100/1 | 2.2 | 21 |
| TPSTP2114-4R0 | 4.0 | M、N | 100/1 | 2.2 | 21 |
Rated DC current: it is either the inductance is 20% lower than its initial value. In D.C. saturation characteristics of Temperature Raise becomes Δt=40°C(Ta=20°C),whichever is lower.
Note:
- Test equipments L: Agilent HP4284A Precision LCR meter.
- Test equipments SRF: Agilent 4291B RF Impedance Analyzer.
- Test equipments DCR: CHEN HWA 502BC OHM METER.
- Electrical specifications at 25°C. Operating temperature: -55 to 125°C.
| Electrical Specification (TPSTP2816) | |||||
| Part No | Inductance (µH) | Tolerance | Test Freq (KHz/V) | DCR (mΩ) Max | Heat Rating Current DC Amps. Idc (A) |
| TPSTP2816-2R2 | 2.2 | M、N | 100/1 | 2.0 | 20 |
| TPSTP2816-3R3 | 3.3 | M、N | 100/1 | 2.0 | 20 |
| TPSTP2816-4R7 | 4.7 | M、N | 100/1 | 2.0 | 20 |
| TPSTP2816-6R8 | 6.8 | M、N | 100/1 | 2.0 | 20 |
| TPSTP2816-100 | 10.0 | M、N | 100/1 | 2.0 | 20 |
| TPSTP2816-150 | 15.0 | M、N | 100/1 | 2.0 | 20 |
| TPSTP2816-220 | 22.0 | M、N | 100/1 | 2.0 | 20 |
| TPSTP2816-330 | 33.0 | M、N | 100/1 | 2.0 | 20 |
Rated DC current: it is either the inductance is 20% lower than its initial value. In D.C. saturation characteristics of Temperature Raise becomes Δt=40°C(Ta=20°C),whichever is lower.
Note:
- Test equipments L: Agilent HP4284A Precision LCR meter.
- Test equipments SRF: Agilent 4291B RF Impedance Analyzer.
- Test equipments DCR: CHEN HWA 502BC OHM METER.
- Electrical specifications at 25°C. Operating temperature: -55 to 125°C.
| Order Codes (TPSTP) | ||||||||||||||||||||||||||||||
| TPSTP2110 | - | 100 | M | |||||||||||||||||||||||||||
 | | | ||||||||||||||||||||||||||||
|
|
|
||||||||||||||||||||||||||||
