SMD Compact Power Toroidal Inductors (TPSTX) Shielded

DeMint Power Solutions has enhanced its toroidal surface-mount inductor portfolios with the addition of four new ranges (TPSTX-2P/2S/4P/4S) of RoHS compliant components.

This (TPSTX) Range of low EMI toroidal inductor is based on iron powder cores, for good suppression performance at high frequencies, high overload capability, low flux-leakage, economical pricing, and optimized for use as high frequency DC chokes.

These low cost surface-mount toroidal inductors meanwhile are designed for use in switching AC/DC power supplies and DC/DC converters. The (TPSTX) series offer low DC resistance and is available with current ratings up to 7.9 A IDC and inductance values that range from 0.49 uH to 1201.70 uH.

The height of TPSTX-2P and TPSTX-2S is 5.96 mm (Max.), and TPSTX-4P and TPSTX-4S is 7.00 mm (Max.). These low-profile design makes them ideal for use in designs where component height is restricted. The toroid core offers compact size with minimal external magnetic fields and is ideal for low voltage applications, particularly the latest generation of low voltage microprocessors.

Custom parts are available on request. Application of specific designs also available including different inductance and frequency specifications adjusted to requirements. Please contact our sales for more information.

Download Complete Datasheet SMD Compact Power Toroidal Inductors (TPSTX) PDF.

Features :
  1. Maximum power density.
  2. Closed magnetic circuit for lowest EMI.
  3. Toroidal with powdered iron cores & low cost.
Applications :
  1. Power Supply Applications.
  2. Output Ripple Current Filter.
  3. VGA Card.

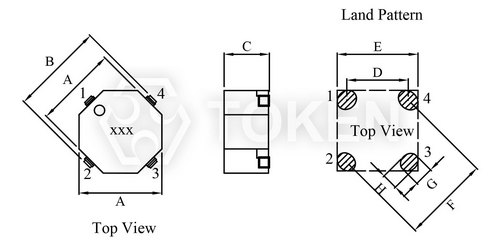

Power Toroidal Inductor Dimensions & Configurations (TPSTX-2P/2S/4P/4S) (Unit: mm)
Low EMI Toroidal (TPSTX-2P/2S/4P/4S) Dimensions
Low EMI Toroidal (TPSTX-2P/2S/4P/4S) Dimensions (Unit: mm)
Series & Parallel Graph
Series & Parallel Graph
Type A ± 0.5 B ± 0.5 C Max. D E F G H
TPSTX-2P 9.00 11.60 5.96 7.04 10.72 9.96 3.68 3.05
TPSTX-4P 11.40 14.40 7.00 8.84 12.50 12.50 4.06 3.05
TPSTX-2S 9.00 11.60 5.96 7.04 10.72 9.96 3.68 3.05
TPSTX-4S 11.40 14.40 7.00 8.84 12.50 12.50 4.06 3.05
Note: Design as Customer's Requested Specifications.
Electrical Characteristics (TPSTX-2P) Parallel Type
Part Number L (µH) ±20% L @ IDC (µH) Min. DCR (Ω) Max. IDC (A) Max.
TPSTX-2P-R47 0.54 0.42 0.006 5.90
TPSTX-2P-R68 0.85 0.64 0.008 5.40
TPSTX-2P-1 1.22 0.89 0.009 5.00
TPSTX-2P-2 2.18 1.56 0.014 3.90
TPSTX-2P-5 4.90 3.57 0.032 2.50
TPSTX-2P-8 7.65 5.31 0.040 2.30
TPSTX-2P-10 9.83 6.73 0.045 2.10
TPSTX-2P-15 14.99 10.51 0.085 1.60
TPSTX-2P-20 19.58 13.37 0.097 1.50
TPSTX-2P-25 24.79 16.60 0.109 1.40
TPSTX-2P-33 32.67 21.29 0.126 1.30
TPSTX-2P-50 49.10 35.31 0.306 0.82
TPSTX-2P-68 68.85 47.93 0.362 0.76
TPSTX-2P-100 99.14 69.56 0.541 0.62
TPSTX-2P-150 148.10 100.07 0.666 0.56
TPSTX-2P-200 201.59 138.49 0.951 0.46
TPSTX-2P-300 300.42 197.52 1.176 0.42
Note:
  • Test Freq.: 1KHz / 0.25V.
  • Operating Temp.: -40°C ~ +85°C.
Electrical Characteristics (TPSTX-2S) Series Type
Part Number L (µH) ±20% L @ IDC (µH) Min. DCR (Ω) Max. IDC (A) Max.
TPSTX-2S-2 2.18 1.69 0.024 2.95
TPSTX-2S-3 3.40 2.55 0.029 2.70
TPSTX-2S-5 4.90 3.57 0.034 2.50
TPSTX-2S-9 8.70 6.26 0.056 1.95
TPSTX-2S-20 19.58 14.26 0.128 1.25
TPSTX-2S-30 30.60 21.23 0.159 1.15
TPSTX-2S-40 39.30 26.92 0.179 1.05
TPSTX-2S-60 59.98 42.02 0.339 0.80
TPSTX-2S-80 78.34 53.48 0.387 0.75
TPSTX-2S-100 99.14 66.38 0.436 0.70
TPSTX-2S-130 130.70 85.17 0.503 0.65
TPSTX-2S-200 196.38 141.24 1.221 0.41
TPSTX-2S-280 275.40 191.71 1.447 0.38
TPSTX-2S-400 396.58 278.22 2.162 0.31
TPSTX-2S-600 592.42 400.27 2.661 0.28
TPSTX-2S-800 806.34 553.97 3.804 0.23
TPSTX-2S-1200 1201.70 790.08 4.703 0.21
Note:
  • Test Freq.: 1KHz / 0.25V.
  • Operating Temp.: -40°C ~ +85°C.
Electrical Characteristics (TPSTX-4P) Parallel Type
Part Number L (µH) ±20% L @ IDC (µH) Min. DCR (Ω) Max. IDC (A) Max.
TPSTX-4P-R47 0.49 0.37 0.005 7.90
TPSTX-4P-R68 0.76 0.56 0.006 7.20
TPSTX-4P-1 1.10 0.81 0.009 5.90
TPSTX-4P-2 1.95 1.42 0.014 4.60
TPSTX-4P-5 5.15 3.56 0.027 3.30
TPSTX-4P-8 7.81 5.15 0.033 3.00
TPSTX-4P-10 9.88 6.70 0.047 2.50
TPSTX-4P-15 14.76 9.52 0.057 2.30
TPSTX-4P-20 20.62 13.44 0.085 1.90
TPSTX-4P-25 25.65 17.17 0.116 1.60
TPSTX-4P-33 33.21 22.93 0.166 1.30
TPSTX-4P-50 48.80 32.21 0.202 1.20
TPSTX-4P-68 67.37 43.04 0.238 1.10
TPSTX-4P-100 99.09 69.54 0.565 0.72
TPSTX-4P-150 149.45 101.46 0.696 0.64
TPSTX-4P-200 200.11 131.37 0.810 0.60
TPSTX-4P-300 298.93 188.03 1.003 0.54
Note:
  • Test Freq.: 1KHz / 0.25V.
  • Operating Temp.: -40°C ~ +85°C.
Electrical Characteristics (TPSTX-4S) Series Type
Part Number L (µH) ±20% L @ IDC (µH) Min. DCR (Ω) Max. IDC (A) Max.
TPSTX-4S-2 1.95 1.49 0.019 3.95
TPSTX-4S-3 3.05 2.24 0.023 3.60
TPSTX-4S-4 4.39 3.24 0.034 2.95
TPSTX-4S-8 7.81 5.69 0.055 2.30
TPSTX-4S-20 20.62 14.23 0.107 1.65
TPSTX-4S-30 31.23 20.61 0.131 1.50
TPSTX-4S-40 39.53 26.79 0.187 1.25
TPSTX-4S-60 59.05 38.09 0.228 1.15
TPSTX-4S-80 82.47 53.76 0.337 0.95
TPSTX-4S-100 102.60 68.68 0.462 0.80
TPSTX-4S-130 132.86 91.72 0.663 0.65
TPSTX-4S-200 195.20 128.83 0.805 0.60
TPSTX-4S-270 269.50 172.16 0.952 0.55
TPSTX-4S-400 396.38 278.15 2.259 0.36
TPSTX-4S-600 597.80 405.83 2.784 0.32
TPSTX-4S-800 800.44 525.47 3.240 0.30
TPSTX-4S-1200 1195.72 752.13 4.011 0.27
Note:
  • Test Freq.: 1KHz / 0.25V.
  • Operating Temp.: -40°C ~ +85°C.
Parallel & Series Power Toroidal Inductors Order Codes (TPSTX-2P/2S/4P/4S)
TPSTX-2P-R47
Part Number
TPSTX-2P-R47
TPSTX-4P-R68
TPSTX-2S-800
TPSTX-4S-130
...
