High Current Inductors (TPSDS) Shielded

DeMint (TPSDS) SMD Wirewound Inductor packs low dcr, low profile, high current all in one. DeMint's new (TPSDS) power inductor series has improved and combined three key factors of low direct current resistance (DCR), high-current, and low-profile in one package.

This consists of the internal wound coil being packed tightly with magnetic iron powder and a shielded case that helps the inductor to produce a much lower audible noise.

DeMint SMT shielded power inductors (TPSDS) series conform to the RoHS directive and Lead-free. Application of specific designs also available including different inductance and frequency specifications adjusted to requirements. Please contact our sales for more information.

Download Complete Datasheet High Current Inductors (TPSDS) Shielded PDF.

Inductor Selection Overview :

  1. TPSDS0620:(6.3 x 6.2 x 2.0 mm); 1.00μH ~ 47.00μH; DCR 0.022Ω ~ 0.730Ω; IDC 3.50A ~ 0.50A.
  2. TPSDS0625:(6.3 x 6.2 x 2.5 mm); 1.00μH ~ 100.00μH; DCR 0.018Ω ~ 0.800Ω; IDC 3.48A ~ 0.33A.
  3. TPSDS0630:(6.3 x 6.2 x 3.0 mm); 1.00μH ~ 150.00μH; DCR 0.017Ω ~ 0.750Ω; IDC 3.59A ~ 0.31A.
  4. TPSDS0635:(6.3 x 6.2 x 3.5 mm); 2.00μH ~ 150.00μH; DCR 0.020Ω ~ 0.650Ω; IDC 3.00A ~ 0.37A.
  5. TPSDS104:(10.4 x 10.3 x 3.5 mm); 1.10μH ~ 120.00μH; DCR 0.011Ω ~ 0.460Ω; IDC 11.70A ~ 0.97A.
  6. TPSDS106:(10.4 x 10.3 x 6.8 mm); 1.10μH ~ 680.00μH; DCR 0.014Ω ~ 1.500Ω; IDC 7.00A ~ 0.47A.
  7. TPSDS126:(12.8 x 12.6 x 6.8 mm); 1.70μH ~ 680.00μH; DCR 0.010Ω ~ 1.120Ω; IDC 11.80A ~ 0.55A.
Features :
  1. Compact and thin
  2. Large Current and Low DCR
  3. Magnetically shielded construction
Applications :
  1. TV game, Computer devices
  2. Ideal for a variety of DC-DC converter inductor applications.
Dimensions & Configurations (TPSDS)

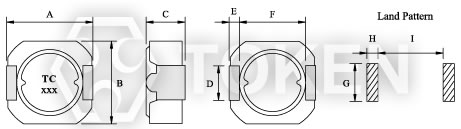

SMD High Current Inductor (TPSDS) Dimensions
SMD High Current Inductor (TPSDS) Dimensions
Type A(max) B(max) C(max) D ± 0.2 E(max) F G H I
TPSDS0620 6.3 6.2 2.0 2.0 0.6 4.6 2.6 1.0 4.6
TPSDS0625 6.3 6.2 2.5 2.0 0.6 4.6 2.6 1.0 4.6
TPSDS0630 6.3 6.2 3.0 2.0 0.6 4.6 2.6 1.0 4.6
TPSDS0635 6.3 6.2 3.5 2.0 0.6 4.6 2.6 1.0 4.6
TPSDS104 10.4 10.3 4.8 3.0 2.0 6.0 3.6 2.65 5.4
TPSDS106 10.4 10.3 6.8 3.0 2.0 6.0 3.6 2.65 5.4
TPSDS126 12.8 12.6 6.8 3.0 2.0 8.5 3.6 2.60 7.9
Note: Design as Customer's Requested Specifications.
Electrical Characteristics (TPSDS0620)
Part Number Inductance (µH) Test Freq. (KHz) DCR (Ω) (max) IDC (A) (max)
TPSDS0620 - 1R0N 1.00 100 0.022 3.50
TPSDS0620 - 1R5N 1.50 100 0.030 2.94
TPSDS0620 - 2R0N 2.00 100 0.040 2.47
TPSDS0620 - 3R3N 3.30 100 0.055 1.99
TPSDS0620 - 4R7N 4.70 100 0.070 1.59
TPSDS0620 - 6R2N 6.20 100 0.110 1.49
TPSDS0620 - 8R2N 8.20 100 0.140 1.25
TPSDS0620 - 100M 10.00 100 0.160 1.22
TPSDS0620 - 120M 12.00 100 0.200 0.99
TPSDS0620 - 150M 15.00 100 0.230 0.94
TPSDS0620 - 180M 18.00 100 0.260 0.83
TPSDS0620 - 220M 22.00 100 0.310 0.80
TPSDS0620 - 270M 27.00 100 0.390 0.65
TPSDS0620 - 330M 33.00 100 0.510 0.63
TPSDS0620 - 390M 39.00 100 0.570 0.55
TPSDS0620 - 470M 47.00 100 0.730 0.50
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=30% typ. at IDC.
Electrical Characteristics (TPSDS0625)
Part Number Inductance (µH) Test Freq. (KHz) DCR (Ω) (max) IDC (A) (max)
TPSDS0625 - 1R0N 1.00 100 0.018 3.48
TPSDS0625 - 1R5N 1.50 100 0.024 2.83
TPSDS0625 - 2R0N 2.00 100 0.032 2.44
TPSDS0625 - 3R3N 3.30 100 0.045 1.89
TPSDS0625 - 4R3N 4.30 100 0.055 1.65
TPSDS0625 - 6R2N 6.20 100 0.065 1.37
TPSDS0625 - 100M 10.00 100 0.095 1.07
TPSDS0625 - 120M 12.00 100 0.120 0.97
TPSDS0625 - 150M 15.00 100 0.150 0.87
TPSDS0625 - 180M 18.00 100 0.180 0.79
TPSDS0625 - 220M 22.00 100 0.210 0.71
TPSDS0625 - 270M 27.00 100 0.240 0.64
TPSDS0625 - 330M 33.00 100 0.280 0.58
TPSDS0625 - 390M 39.00 100 0.330 0.53
TPSDS0625 - 470M 47.00 100 0.390 0.48
TPSDS0625 - 560M 56.00 100 0.450 0.44
TPSDS0625 - 680M 68.00 100 0.560 0.40
TPSDS0625 - 820M 82.00 100 0.620 0.36
TPSDS0625 - 101M 100.00 100 0.800 0.33
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=30% typ. at IDC.
Electrical Characteristics (TPSDS0630)
Part Number Inductance (µH) Test Freq. (KHz) DCR (Ω) (max) IDC (A) (max)
TPSDS0630 - 1R0N 1.00 100 0.017 3.59
TPSDS0630 - 1R5N 1.50 100 0.021 2.93
TPSDS0630 - 2R2N 2.20 100 0.024 2.42
TPSDS0630 - 3R6N 3.60 100 0.033 1.89
TPSDS0630 - 4R7N 4.70 100 0.042 1.66
TPSDS0630 - 6R2N 6.20 100 0.050 1.45
TPSDS0630 - 100M 10.00 100 0.065 1.14
TPSDS0630 - 120M 12.00 100 0.072 1.04
TPSDS0630 - 150M 15.00 100 0.096 0.93
TPSDS0630 - 180M 18.00 100 0.103 0.85
TPSDS0630 - 220M 22.00 100 0.132 0.77
TPSDS0630 - 270M 27.00 100 0.160 0.70
TPSDS0630 - 330M 33.00 100 0.180 0.63
TPSDS0630 - 390M 39.00 100 0.200 0.58
TPSDS0630 - 470M 47.00 100 0.250 0.53
TPSDS0630 - 560M 56.00 100 0.300 0.48
TPSDS0630 - 680M 68.00 100 0.360 0.44
TPSDS0630 - 820M 82.00 100 0.450 0.40
TPSDS0630 - 101M 100.00 100 0.560 0.36
TPSDS0630 - 151M 150.00 100 0.750 0.31
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=30% typ. at IDC.
Electrical Characteristics (TPSDS0635)
Part Number Inductance (µH) Test Freq. (KHz) DCR (Ω) (max) IDC (A) (max)
TPSDS0635 - 2R0N 2.00 100 0.020 3.00
TPSDS0635 - 2R7N 2.70 100 0.025 2.69
TPSDS0635 - 3R3N 3.30 100 0.030 2.57
TPSDS0635 - 4R7N 4.70 100 0.035 2.08
TPSDS0635 - 6R2N 6.20 100 0.040 1.84
TPSDS0635 - 8R2N 8.20 100 0.055 1.54
TPSDS0635 - 100M 10.00 100 0.065 1.49
TPSDS0635 - 120M 12.00 100 0.072 1.28
TPSDS0635 - 150M 15.00 100 0.078 1.10
TPSDS0635 - 180M 18.00 100 0.098 1.05
TPSDS0635 - 220M 22.00 100 0.115 0.97
TPSDS0635 - 270M 27.00 100 0.150 0.82
TPSDS0635 - 330M 33.00 100 0.175 0.76
TPSDS0635 - 390M 39.00 100 0.200 0.70
TPSDS0635 - 470M 47.00 100 0.240 0.68
TPSDS0635 - 560M 56.00 100 0.300 0.60
TPSDS0635 - 680M 68.00 100 0.330 0.56
TPSDS0635 - 820M 82.00 100 0.420 0.47
TPSDS0635 - 101M 100.00 100 0.470 0.45
TPSDS0635 - 151M 150.00 100 0.650 0.37
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=30% typ. at IDC.
Electrical Characteristics (TPSDS104)
Part Number Inductance (µH) Test Freq. (KHz) DCR (Ω) (max) IDC (A) (max)
TPSDS104 - 1R1N 1.10 100 0.011 11.70
TPSDS104 - 1R8N 1.80 100 0.014 8.70
TPSDS104 - 2R7N 2.70 100 0.016 7.30
TPSDS104 - 3R9N 3.90 100 0.018 5.80
TPSDS104 - 5R1N 5.10 100 0.026 4.90
TPSDS104 - 6R8N 6.80 100 0.035 4.50
TPSDS104 - 8R2N 8.20 100 0.040 4.10
TPSDS104 - 100M 10.00 100 0.044 3.60
TPSDS104 - 120M 12.00 100 0.051 3.30
TPSDS104 - 150M 15.00 100 0.062 3.10
TPSDS104 - 180M 18.00 100 0.079 2.70
TPSDS104 - 220M 22.00 100 0.087 2.40
TPSDS104 - 270M 27.00 100 0.100 2.20
TPSDS104 - 330M 33.00 100 0.125 2.00
TPSDS104 - 390M 39.00 100 0.150 1.80
TPSDS104 - 470M 47.00 100 0.175 1.70
TPSDS104 - 560M 56.00 100 0.195 1.50
TPSDS104 - 680M 68.00 100 0.240 1.30
TPSDS104 - 820M 82.00 100 0.295 1.20
TPSDS104 - 101M 100.00 100 0.380 1.10
TPSDS104 - 121M 120.00 100 0.460 0.97
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=30% typ. at IDC.
Electrical Characteristics (TPSDS106)
Part Number Inductance (µH) Test Freq. (KHz) DCR (Ω) (max) IDC (A) (max)
TPSDS106 - 1R1N 1.10 100 0.014 7.00
TPSDS106 - 1R8N 1.80 100 0.018 6.50
TPSDS106 - 2R7N 2.70 100 0.020 6.00
TPSDS106 - 3R5N 3.50 100 0.022 5.60
TPSDS106 - 4R7N 4.70 100 0.024 5.20
TPSDS106 - 6R0N 6.00 100 0.026 4.80
TPSDS106 - 7R5N 7.50 100 0.030 4.20
TPSDS106 - 100M 10.00 100 0.035 4.00
TPSDS106 - 120M 12.00 100 0.040 3.50
TPSDS106 - 150M 15.00 100 0.050 3.20
TPSDS106 - 180M 18.00 100 0.060 3.00
TPSDS106 - 220M 22.00 100 0.065 2.60
TPSDS106 - 270M 27.00 100 0.075 2.20
TPSDS106 - 330M 33.00 100 0.095 2.00
TPSDS106 - 390M 39.00 100 0.110 1.90
TPSDS106 - 470M 47.00 100 0.135 1.80
TPSDS106 - 560M 56.00 100 0.145 1.70
TPSDS106 - 680M 68.00 100 0.155 1.60
TPSDS106 - 820M 82.00 100 0.185 1.50
TPSDS106 - 101M 100.00 100 0.220 1.40
TPSDS106 - 121M 120.00 100 0.255 1.30
TPSDS106 - 151M 150.00 100 0.280 1.10
TPSDS106 - 181M 180.00 100 0.350 1.00
TPSDS106 - 221M 220.00 100 0.460 0.85
TPSDS106 - 271M 270.00 100 0.600 0.70
TPSDS106 - 331M 330.00 100 0.700 0.60
TPSDS106 - 391M 390.00 100 0.860 0.55
TPSDS106 - 471M 470.00 100 1.100 0.53
TPSDS106 - 561M 560.00 100 1.250 0.50
TPSDS106 - 681M 680.00 100 1.500 0.47
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=30% typ. at IDC.
Electrical Characteristics (TPSDS126)
Part Number Inductance (µH) Test Freq. (KHz) DCR (Ω) (max) IDC (A) (max)
TPSDS126 - 1R7N 1.70 100 0.010 11.80
TPSDS126 - 2R7N 2.70 100 0.011 9.00
TPSDS126 - 3R9N 3.90 100 0.014 7.90
TPSDS126 - 5R6N 5.60 100 0.016 6.80
TPSDS126 - 7R5N 7.50 100 0.017 5.70
TPSDS126 - 100N 10.00 100 0.023 5.50
TPSDS126 - 120N 12.00 100 0.027 5.00
TPSDS126 - 150N 15.00 100 0.032 4.50
TPSDS126 - 180N 18.00 100 0.040 4.10
TPSDS126 - 220N 22.00 100 0.046 3.60
TPSDS126 - 270N 27.00 100 0.050 3.20
TPSDS126 - 330M 33.00 100 0.064 3.00
TPSDS126 - 390M 39.00 100 0.074 2.70
TPSDS126 - 470M 47.00 100 0.082 2.40
TPSDS126 - 560M 56.00 100 0.105 2.00
TPSDS126 - 680M 68.00 100 0.120 1.70
TPSDS126 - 820M 82.00 100 0.145 1.60
TPSDS126 - 101M 100.00 100 0.170 1.50
TPSDS126 - 121M 120.00 100 0.185 1.30
TPSDS126 - 151M 150.00 100 0.235 1.20
TPSDS126 - 181M 180.00 100 0.290 1.10
TPSDS126 - 221M 220.00 100 0.350 1.00
TPSDS126 - 271M 270.00 100 0.415 0.93
TPSDS126 - 331M 330.00 100 0.495 0.83
TPSDS126 - 391M 390.00 100 0.610 0.76
TPSDS126 - 471M 470.00 100 0.705 0.67
TPSDS126 - 561M 560.00 100 0.900 0.62
TPSDS126 - 681M 680.00 100 1.120 0.55
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C.
Inductance drop=30% typ. at IDC.
Order Codes (TPSDS)
TPSDS0620 - 1R1 N

Part Number
TPSDS0620, TPSDS0625,
TPSDS0630, TPSDS0635,
TPSDS104, TPSDS106, TPSDS126

Inductance
1R1 1.10µH
120 12.00µH
121 120.00µH
Tolerance
M 20%
N 30%
