Low Profile Low DCR Power Inductors (TPSDC) Shielded

To meet the electrical demands of next-generation products such as microprocessors, high-current dc/dc converters and telecom equipment, the (TPSDC) SMD Inductors from DeMint Electronic targets applications that require wide range inductance, lower DCR and high current.

DeMint TPSDC series of shielded, surface-mount wire-wound inductors features a profile ranging from 2.92 mm, 5.08 mm, to 7.62 mm, and is suited for use in low-profile DC-DC converters and switch-mode power supplies used in power telecommunications systems, industrial controls, and medical instrumentation.

All parts are magnetically shielded to avoid electromagnetic interference with surrounding circuitry. Electrical parameters include an inductance of 1.0 μH to 10000.00 μH, resistance of 0.021 ohms to 32.800 ohms, and a rated current of 0.02A to 8.00A. The inductors also operate from -40°C to +85°C.

The power shielded inductors are wound around a ferrite core and are particularly suitable for cost-critical mass applications and the surface-mounting capability. The TPSDC series conform to the RoHS directive and Lead-free. Custom parts are available on request for tighter tolerances. Application of shielded inductors specific designs also available including different inductance and frequency specifications adjusted to requirements.

Please contact our sales representative for more information.

Download Complete Datasheet Low Profile Low DCR Power Inductors (TPSDC) PDF.

Surface Mount Inductor Quick Selection (TPSDC)

Characteristics :

  1. Saturation Rated Current (IDC): The DC current when the inductance becomes 10% lower than its initial value. (Ta = 25°C).
  2. Temperature Rise Current (I rms): The actual current when temperature of coil becomes Δ40°C. (Ta = 25°C).
  3. Operating temperature range: -40°C ~ +85°C.

Features :

  1. TPS1608DC is specified to achieve longer battery life significantly in handheld communication devices.
  2. TPS3316DC and TPS5022DC designed for the higher current requirements of portable computers.
  3. TPS3316DC and TPS5022DC used LCP plastic base.
  4. TPS1608DC used ceramic base with gold-plating.
  5. Magnetically shielded against radiation.
  6. Compact Size and Thin.

Test Equipment :

  1. Inductance (L): HP4284A LCR meter.
  2. DeMint Current Resistance (DCR): Milli-ohm meter.
  3. Electrical specifications at 25°C.

Applications :

  1. Notebook, Personal Computers, Cellular Phone.
  2. Other Various Electronic Appliances.
  3. DC-DC converter, PDA.

TPSDC Quick Reference :

  1. TPS1608DC 1.0μH ~ 10000μH; 3.0A ~ 0.02A.
  2. TPS3316DC 1.0μH ~ 1000 μH; 5.0A ~ 0.17A.
  3. TPS5022DC 10 μH ~ 1000 μH; 3.9A ~ 0.53A.
  4. Test equipment: L: HP4284A LCR meter; DCR: Milli-ohm meter.
  5. Electrical specifications at 25°C.

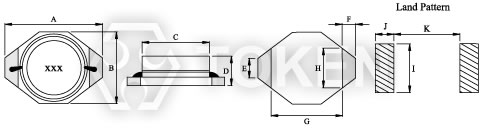

Dimensions & Configurations (TPS1608DC) (Unit: mm)
SMT Shielded Power Inductors (TPS1608DC) Dimensions
SMD Wirewound Inductors - TPS1608DC
SMT Shielded Power Inductors (TPS1608DC) Dimensions
SMD Shielded Power Inductors (TPS1608DC) Dimensions
Type A Max. B Max. C ± 0.3 D Max. E ± 0.3 F ± 0.3 G ± 0.3 H ± 0.3 I J K
TPS1608DC 6.60 4.45 4.00 2.92 1.27 1.02 4.32 2.50 3.56 1.40 4.06

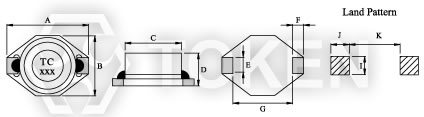

Dimensions & Configurations (TPS3316DC) (Unit: mm)
Wire-wound Inductors - TPS3316DC
Wire-wound Inductors - TPS3316DC
Shielded SMD Power Inductors (TPS3316DC) Dimensions
Shielded SMD Power Inductors (TPS3316DC) Dimensions
Type A Max. B Max. C ± 0.3 D Max. E ± 0.3 F ± 0.3 G ± 0.3 I J K
TPS3316DC 12.95 9.40 8.38 5.08 2.54 2.54 7.62 2.79 2.92 7.37

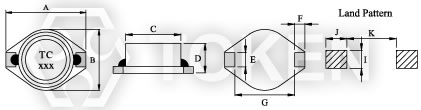

Dimensions & Configurations (TPS5022DC) (Unit: mm)
Shielded Wirewound Inductors - TPS5022DC
Shielded Wirewound Inductors - TPS5022DC
Shielded SMD Power Inductors (TPS5022DC) Dimensions
Shielded SMD Power Inductors (TPS5022DC) Dimensions
Type A Max. B Max. C ± 0.3 D Max. E ± 0.3 F ± 0.3 G ± 0.3 I J K
TPS5022DC 18.54 15.24 12.70 7.62 2.54 2.54 12.70 2.79 2.92 12.45
Electrical Characteristics (TPS1608DC)
Part Number Inductance (µH) Tolerance Test Condition DCR (Ω) Max. SRF (MHz) Ref. Q Min. IDC (A) Max.
L Q
TPS1608DC - 1R0M 1.00 M 100KHz, 0.1V 200KHz, 0.1V 0.040 250 30 3.00
TPS1608DC - 1R5M 1.50 M 100KHz, 0.1V 200KHz, 0.1V 0.045 125 30 2.80
TPS1608DC - 2R2M 2.20 M 100KHz, 0.1V 200KHz, 0.1V 0.050 120 40 1.80
TPS1608DC - 3R3M 3.30 M 100KHz, 0.1V 200KHz, 0.1V 0.055 120 40 1.60
TPS1608DC - 4R7M 4.70 M 100KHz, 0.1V 200KHz, 0.1V 0.060 105 40 1.40
TPS1608DC - 6R8M 6.80 M 100KHz, 0.1V 200KHz, 0.1V 0.065 50 40 1.20
TPS1608DC - 100M 10.00 M 100KHz, 0.1V 200KHz, 0.1V 0.075 38 40 1.00
TPS1608DC - 150M 15.00 M 100KHz, 0.1V 200KHz, 0.1V 0.090 33 40 0.80
TPS1608DC - 220M 22.00 M 100KHz, 0.1V 200KHz, 0.1V 0.110 25 40 0.70
TPS1608DC - 330M 33.00 M 100KHz, 0.1V 200KHz, 0.1V 0.190 20 40 0.60
TPS1608DC - 470M 47.00 M 100KHz, 0.1V 200KHz, 0.1V 0.230 20 40 0.50
TPS1608DC - 680M 68.00 M 100KHz, 0.1V 200KHz, 0.1V 0.290 15 40 0.40
TPS1608DC - 101M 100.00 K 100KHz, 0.1V 200KHz, 0.1V 0.480 10 40 0.30
TPS1608DC - 151M 150.00 K 100KHz, 0.1V 200KHz, 0.1V 0.590 9 40 0.26
TPS1608DC - 221M 220.00 K 100KHz, 0.1V 200KHz, 0.1V 0.770 6 40 0.22
TPS1608DC - 331M 330.00 K 100KHz, 0.1V 200KHz, 0.1V 1.400 5 40 0.20
TPS1608DC - 471M 470.00 K 100KHz, 0.1V 200KHz, 0.1V 1.800 4 40 0.19
TPS1608DC - 681M 680.00 K 100KHz, 0.1V 200KHz, 0.1V 2.200 3 40 0.18
TPS1608DC - 102M 1000.00 K 100KHz, 0.1V 200KHz, 0.1V 3.400 2 40 0.15
TPS1608DC - 152M 1500.00 K 100KHz, 0.1V 200KHz, 0.1V 4.200 2 50 0.12
TPS1608DC - 222M 2200.00 K 100KHz, 0.1V 200KHz, 0.1V 8.500 2 50 0.10
TPS1608DC - 332M 3300.00 K 100KHz, 0.1V 200KHz, 0.1V 11.000 1 50 0.08
TPS1608DC - 472M 4700.00 K 100KHz, 0.1V 200KHz, 0.1V 13.900 1 50 0.06
TPS1608DC - 682M 6800.00 K 100KHz, 0.1V 200KHz, 0.1V 25.000 1 50 0.04
TPS1608DC - 103M 10000.00 K 100KHz, 0.1V 200KHz, 0.1V 32.800 0.8 50 0.02
Note:
  • Test Freq.: 100KHz / 0.1V.
  • Current Max..... 30°C temperature rise.
  • Operating Temp.: -40°C ~ +85°C.
Electrical Characteristics (TPS3316DC)
Part Number Inductance (µH) Tolerance Test Condition DCR (Ω) Max. SRF (MHz) Ref. IDC (A) Max. IDC (A) Max.
TPS3316DC - 1R0M 1.00 M 100KHz, 0.1V 0.021 140 5.60 5.0
TPS3316DC - 1R5M 1.50 M 100KHz, 0.1V 0.022 120 5.20 4.5
TPS3316DC - 2R2M 2.20 M 100KHz, 0.1V 0.032 80 5.00 3.8
TPS3316DC - 3R3M 3.30 M 100KHz, 0.1V 0.039 70 3.90 3.3
TPS3316DC - 4R7M 4.70 M 100KHz, 0.1V 0.054 40 3.20 2.7
TPS3316DC - 6R8M 6.80 M 100KHz, 0.1V 0.075 38 2.80 2.2
TPS3316DC - 100M 10.00 M 100KHz, 0.1V 0.101 35 2.40 2.0
TPS3316DC - 150M 15.00 M 100KHz, 0.1V 0.150 25 2.00 1.5
TPS3316DC - 220M 22.00 M 100KHz, 0.1V 0.207 19 1.60 1.3
TPS3316DC - 330M 33.00 M 100KHz, 0.1V 0.334 15 1.40 1.1
TPS3316DC - 470M 47.00 M 100KHz, 0.1V 0.472 13 1.00 0.8
TPS3316DC - 680M 68.00 M 100KHz, 0.1V 0.660 10 0.9 0.7
TPS3316DC - 101M 100.00 M 100KHz, 0.1V 1.110 7 0.8 0.6
TPS3316DC - 151M 150.00 M 100KHz, 0.1V 1.550 6 0.6 0.5
TPS3316DC - 221M 220.00 M 100KHz, 0.1V 2.000 5 0.5 0.37
TPS3316DC - 102M 1000.00 M 100KHz, 0.1V 8.300 2 0.32 0.17
Note:
  • Test Freq.: 100KHz / 0.1V.
  • Current Max..... 30°C temperature rise.
  • Operating Temp.: -40°C ~ +85°C.
Electrical Characteristics (TPS5022DC)
Part Number Inductance (µH) Tolerance Test Condition DCR (Ω) Max. SRF (MHz) Ref. IDC (A) Max. IDC (A) Max.
TPS5022DC - 100M 10.00 M 100KHz, 0.1V 0.040 30 8.00 3.9
TPS5022DC - 150M 15.00 M 100KHz, 0.1V 0.048 20 7.00 3.4
TPS5022DC - 220M 22.00 M 100KHz, 0.1V 0.059 18 6.00 3.1
TPS5022DC - 330M 33.00 M 100KHz, 0.1V 0.075 14 5.00 2.8
TPS5022DC - 470M 47.00 M 100KHz, 0.1V 0.097 10 4.00 2.4
TPS5022DC - 680M 68.00 M 100KHz, 0.1V 0.138 9.0 3.00 2.0
TPS5022DC - 101M 100.00 M 100KHz, 0.1V 0.207 7.0 2.40 1.7
TPS5022DC - 151M 150.00 M 100KHz, 0.1V 0.293 6.0 2.10 1.3
TPS5022DC - 221M 220.00 M 100KHz, 0.1V 0.470 5.0 1.90 1.1
TPS5022DC - 331M 330.00 M 100KHz, 0.1V 0.780 4.0 1.10 0.86
TPS5022DC - 471M 470.00 M 100KHz, 0.1V 1.080 3.0 1.10 0.73
TPS5022DC - 681M 680.00 M 100KHz, 0.1V 1.400 2.5 0.96 0.64
TPS5022DC - 102M 1000.00 M 100KHz, 0.1V 2.010 2.0 0.80 0.53
Note:
  • Test Freq.: 100KHz / 0.1V.
  • Current Max..... 30°C temperature rise.
  • Operating Temp.: -40°C ~ +85°C.
Order Codes (TPS1608DC, TPS3316DC, TPS5022DC)
TPS1608DC - 100 M

Part Number
TPS1608DC
TPS3316DC
TPS5022DC

Inductance
1R0 1.00µH
100 10.00µH
101 100.00µH
Tolerance
K ± 10%
L ± 15%
M ± 20%
N ± 30%
