Low DCR Low-Profile Power Inductors (TPSH) Shielded
Like many components in the industry, power wirewound inductors are being impacted by the trend toward smaller electronic devices with enhanced functionality requiring increased density of components on the board.
DeMint introduces low-profile, high-current inductor in case size. The TPSH series offers designers a high-current solution using a larger part, without exceeding a profile of 1.1 mm on either side of the PC board.
The miniaturization of battery-powered devices also requires more compact circuit-board designs, and therefore smaller but more-effective inductor designs. DeMint (TPSH) offers an inductance range from 1.0 μH to 1000.0 μH, and DCR from 0.009Ω to 19.110Ω,.
The (TPSH) inductor serves as a high-performing, space-saving and power-saving solution for low-profile, high-current power supplies and point of load (POL) converters; distributed power systems; voltage regulator module (VRM) and DC-to-DC converter applications in end products including next-generation mobile devices; notebooks, desktop computers, personal multimedia devices, automotive systems, servers, graphic cards, portable gaming devices, and personal navigation systems; and field-programmable gate arrays (FPGAs).
This wire-wound inductor handles high transient current spikes without hard saturation. Packaged in an RoHS-compliant, 100 % lead (Pb)-free shielded, composite construction that reduces buzz noise to ultra-low levels, the new device is specified for an operating temperature range of -25°C to +125°C, with high resistance to mechanical shock, thermal shock, moisture, and vibration.
Custom parts are available on request. DeMint will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.
Download Complete Datasheet Low DCR Low-Profile Power Inductors (TPSH) PDF.
Features :
- Various high power inductors are superior to be high Saturation for surface mounting..
- Excellent solderabillity and high heat resistance.
- Magnerically shielded construction.
Applications :
- Power supply for VCRS; OA equipment Digital camera, LCD television set notebook PC, portable communication Equipments, DC/DC converters, etc..

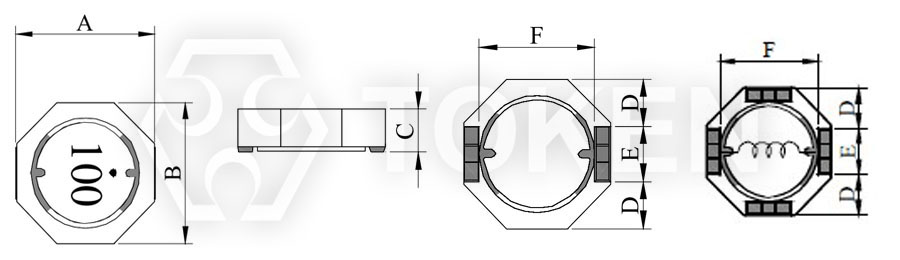

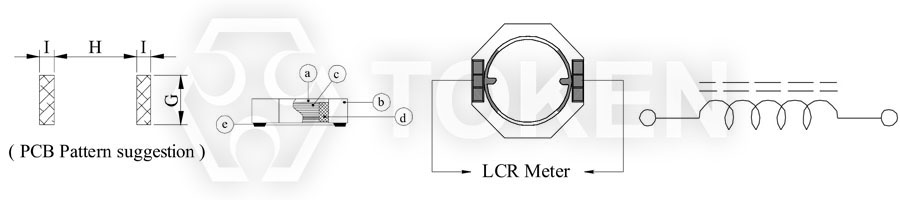

| Dimensions & Configurations (TPUME) (Unit: mm) | ||||||||||
|
||||||||||
|
||||||||||
| Type | A ± 0.3 | B ± 0.3 | C ± 0.3 | D | E | F | G | H | I | |
| TPSH6011 | 6.20 | 6.50 | 1.10 | 2.15 | 2.20 | 4.90 | 2.40 | 4.90 | 1.10 | |
| TPSH6011 | 6.20 | 6.50 | 1.10 | 2.15 | 2.20 | 4.90 | 2.40 | 4.90 | 1.10 | |
| TPSH6013 | 6.20 | 6.50 | 1.40 | 2.15 | 2.20 | 4.90 | 2.40 | 4.90 | 1.10 | |
| TPSH6018 | 6.20 | 6.50 | 1.80 | 2.15 | 2.20 | 4.90 | 2.40 | 4.90 | 1.10 | |
| TPSH6025 | 6.20 | 6.50 | 2.50 | 2.15 | 2.20 | 4.90 | 2.40 | 4.90 | 1.10 | |
| TPSH8028 | 6.20 | 6.50 | 2.50 | 2.15 | 2.20 | 4.90 | 2.40 | 4.90 | 1.10 | |
| TPSH8030 | 8.00 | 8.00 | 2.80 | 2.50 | 2.80 | 6.00 | 3.20 | 5.80 | 2.00 | |
| TPSH8040 | 8.00 | 8.00 | 3.80 | 2.40 | 3.20 | 6.40 | 3.40 | 6.20 | 1.40 | |
| TPSH8043 | 6.20 | 6.50 | 2.50 | 2.15 | 2.20 | 4.90 | 2.40 | 4.90 | 1.10 | |
| TPSH8045 | 8.00 | 8.00 | 4.30 | 2.50 | 3.00 | 6.00 | 3.20 | 5.80 | 1.40 | |
| TPSH8058 | 8.00 | 8.00 | 5.80 | 2.40 | 3.20 | 6.40 | 3.40 | 6.20 | 1.40 | |
| TPSH1028 | 10.0 | 10.0 | 2.80 | 3.40 | 3.20 | 7.40 | 4.00 | 7.20 | 1.80 | |
| TPSH1030 | 10.0 | 10.0 | 2.80 | 3.00 | 4.00 | 8.20 | 4.20 | 8.20 | 1.40 | |
| TPSH1038 | 10.0 | 10.0 | 3.80 | 3.40 | 3.20 | 7.40 | 4.00 | 7.20 | 1.80 | |
| TPSH1040 | 10.0 | 10.0 | 3.80 | 3.00 | 4.00 | 8.20 | 4.20 | 8.20 | 1.40 | |
| TPSH1050 | 10.0 | 10.0 | 4.80 | 3.00 | 4.00 | 8.20 | 4.20 | 8.20 | 1.40 | |
| TPSH1065 | 10.0 | 10.0 | 6.60 | 3.00 | 4.00 | 8.20 | 4.20 | 8.20 | 1.40 | |
Note: Design as Customer's Requested Specifications.
| Electrical Characteristics (TPSH6011) | |||||||||
| Part NO | Inductance (µH) |
Q Ref. |
TEST Freq. | DCR (mΩ) | SRF (MHz) TYP. |
Irms (mA) TYP. |
Isat (mA) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH6011-1R4 | 1.4 ± 30% | 8 | 100K | 7.96M | 30 | 40 | 140 | 2600 | 1800 |
| TPSH6011-2R7 | 2.7 ± 30% | 8 | 100K | 7.96M | 48 | 62 | 100 | 2200 | 1450 |
| TPSH6011-4R7 | 4.7 ± 30% | 8 | 100K | 7.96M | 66 | 86 | 70 | 1800 | 1100 |
| TPSH6011-6R8 | 6.8 ± 30% | 7 | 100K | 7.96M | 105 | 136 | 55 | 1400 | 900 |
| TPSH6011-100 | 10.0 ± 30% | 12 | 100K | 2.52M | 170 | 220 | 45 | 1100 | 720 |
| TPSH6011-150 | 15.0 ± 30% | 10 | 100K | 2.52M | 240 | 320 | 32 | 950 | 620 |
| TPSH6011-220 | 22.0 ± 30% | 10 | 100K | 2.52M | 300 | 390 | 26 | 800 | 480 |
| TPSH6011-330 | 33.0 ± 30% | 10 | 100K | 2.52M | 430 | 560 | 22 | 680 | 380 |
| TPSH6011-470 | 47.0 ± 30% | 10 | 100K | 2.52M | 650 | 850 | 20 | 550 | 320 |
| TPSH6011-680 | 68.0 ± 30% | 12 | 100K | 2.52M | 920 | 1200 | 18 | 460 | 280 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH6013) | |||||||||
| Part NO | Inductance (µH) |
Q Ref. |
TEST Freq. | DCR (mΩ) | SRF (MHz) TYP. |
Irms (mA) TYP. |
Isat (mA) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH6013-1R0 | 1.0 ± 30% | 12 | 100K | 7.96M | 28 | 36 | 100 | 3200 | 2900 |
| TPSH6013-1R5 | 1.5 ± 30% | 10 | 100K | 7.96M | 32 | 40 | 90 | 3000 | 2400 |
| TPSH6013-2R2 | 2.2 ± 30% | 10 | 100K | 7.96M | 40 | 50 | 80 | 2500 | 2100 |
| TPSH6013-3R3 | 3.3 ± 30% | 10 | 100K | 7.96M | 45 | 60 | 70 | 2350 | 1750 |
| TPSH6013-4R2 | 4.2 ± 30% | 10 | 100K | 7.96M | 58 | 75 | 55 | 2100 | 1500 |
| TPSH6013-6R4 | 6.4 ± 30% | 10 | 100K | 7.96M | 85 | 110 | 45 | 1700 | 1300 |
| TPSH6013-100 | 10.0 ± 30% | 14 | 100K | 2.52M | 132 | 156 | 35 | 1400 | 1100 |
| TPSH6013-150 | 15.0 ± 30% | 12 | 100K | 2.52M | 180 | 235 | 26 | 1100 | 800 |
| TPSH6013-220 | 22.0 ± 30% | 12 | 100K | 2.52M | 260 | 325 | 22 | 950 | 720 |
| TPSH6013-330 | 33.0 ± 30% | 10 | 100K | 2.52M | 400 | 500 | 18 | 780 | 580 |
| TPSH6013-470 | 47.0 ± 30% | 10 | 100K | 2.52M | 540 | 675 | 14 | 660 | 500 |
| TPSH6013-680 | 68.0 ± 30% | 10 | 100K | 2.52M | 720 | 900 | 10 | 600 | 400 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH6018) | |||||||||
| Part NO | Inductance (µH) |
Q Ref. |
TEST Freq. | DCR (mΩ) | SRF (MHz) TYP. |
Irms (mA) TYP. |
Isat (mA) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH6018-1R2 | 1.2 ± 30% | 8 | 100K | 7.96M | 19 | 25 | 130 | 3600 | 2800 |
| TPSH6018-1R8 | 1.8 ± 30% | 8 | 100K | 7.96M | 22 | 28 | 90 | 3000 | 2300 |
| TPSH6018-3R3 | 3.3 ± 30% | 8 | 100K | 7.96M | 28 | 39 | 60 | 2500 | 1700 |
| TPSH6018-4R7 | 4.7 ± 30% | 8 | 100K | 7.96M | 32 | 42 | 50 | 2200 | 1400 |
| TPSH6018-6R8 | 6.8 ± 30% | 8 | 100K | 7.96M | 46 | 60 | 40 | 1900 | 1200 |
| TPSH6018-100 | 10.0 ± 30% | 12 | 100K | 2.52M | 68 | 88 | 30 | 1700 | 1000 |
| TPSH6018-150 | 15.0 ± 30% | 12 | 100K | 2.52M | 100 | 130 | 24 | 1500 | 800 |
| TPSH6018-220 | 22.0 ± 30% | 14 | 100K | 2.52M | 145 | 190 | 18 | 1200 | 650 |
| TPSH6018-330 | 33.0 ± 30% | 10 | 100K | 2.52M | 195 | 255 | 16 | 1000 | 580 |
| TPSH6018-470 | 47.0 ± 30% | 12 | 100K | 2.52M | 315 | 410 | 14 | 800 | 460 |
| TPSH6018-680 | 68.0 ± 30% | 12 | 100K | 2.52M | 455 | 600 | 12 | 620 | 360 |
| TPSH6018-101 | 100.0 ± 30% | 20 | 100K | 2.52M | 550 | 715 | 9 | 550 | 340 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH6025) | |||||||||
| Part NO | Inductance (µH) |
Q Ref. |
TEST Freq. | DCR (mΩ) | SRF (MHz) TYP. |
Irms (mA) TYP. |
Isat (mA) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH6025-2R2 | 2.2 ± 30% | 8 | 100K | 7.96M | 18.5 | 24 | 65 | 3400 | 2350 |
| TPSH6025-3R3 | 3.3 ± 30% | 8 | 100K | 7.96M | 21.0 | 27 | 50 | 3200 | 2000 |
| TPSH6025-4R7 | 4.7 ± 30% | 8 | 100K | 7.96M | 27.0 | 35 | 42 | 2700 | 1550 |
| TPSH6025-6R8 | 6.8 ± 30% | 8 | 100K | 7.96M | 32.0 | 42 | 36 | 2400 | 1300 |
| TPSH6025-8R2 | 8.2 ± 30% | 8 | 100K | 7.96M | 40.0 | 52 | 30 | 2200 | 1250 |
| TPSH6025-100 | 10.0 ± 30% | 12 | 100K | 2.52M | 44.0 | 57 | 25 | 2000 | 1050 |
| TPSH6025-150 | 15.0 ± 30% | 12 | 100K | 2.52M | 66.0 | 86 | 22 | 1800 | 920 |
| TPSH6025-220 | 22.0 ± 30% | 12 | 100K | 2.52M | 100 | 130 | 18 | 1600 | 700 |
| TPSH6025-330 | 33.0 ± 30% | 12 | 100K | 2.52M | 140 | 12 | 65 | 1200 | 640 |
| TPSH6025-470 | 47.0 ± 30% | 12 | 100K | 2.52M | 190 | 250 | 10 | 1000 | 480 |
| TPSH6025-680 | 68.0 ± 30% | 10 | 100K | 2.52M | 280 | 500 | 7 | 700 | 350 |
| TPSH6025-101 | 100.0 ± 30% | 24 | 100K | 796K | 385 | 500 | 7 | 700 | 370 |
| TPSH6025-221 | 220.0 ± 30% | 20 | 100K | 796K | 950 | 1250 | 4 | 420 | 240 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH8028) | |||||||||
| Part NO | Inductance (µH) |
Q Ref. |
TEST Freq. | DCR (mΩ) | SRF (MHz) TYP. |
Irms (A) TYP. |
Isat (A) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH8028-3R3 | 3.3 ± 30% | 12 | 100K | 7.96M | 60.0 | 17.5 | 23.0 | 3.60 | 3.50 |
| TPSH8028-4R7 | 4.7 ± 30% | 15 | 100K | 7.96M | 50.0 | 20.0 | 26.0 | 3.70 | 3.20 |
| TPSH8028-6R8 | 6.8 ± 30% | 13 | 100K | 7.96M | 40.0 | 34.0 | 45.0 | 2.80 | 2.50 |
| TPSH8028-100 | 10.0 ± 30% | 22 | 100K | 2.52M | 25.0 | 45.0 | 85.0 | 2.00 | 1.70 |
| TPSH8028-150 | 15.0 ± 30% | 20 | 100K | 2.52M | 20.0 | 66.0 | 130.0 | 1.60 | 1.50 |
| TPSH8028-220 | 22 ± 30% | 22 | 100K | 2.52M | 15.0 | 147.0 | 185.0 | 1.30 | 1.10 |
| TPSH8028-470 | 47.0 ± 30% | 14 | 100K | 2.52M | 12.0 | 177.0 | 230.0 | 1.20 | 1.00 |
| TPSH8028-680 | 68 ± 30% | 23 | 100K | 2.52M | 9.0 | 317.0 | 390.0 | 0.85 | 0.80 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH8030) | |||||||||
| Part NO | Inductance (µH) |
Q Ref. |
TEST Freq. | DCR (mΩ) | SRF (MHz) TYP. |
Irms (A) TYP. |
Isat (A) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH8030-3R3 | 3.3 ± 30% | 12 | 100K | 7.96M | 55.0 | 15.6 | 22.0 | 5.00 | 4.60 |
| TPSH8030-4R7 | 4.7 ± 30% | 10 | 100K | 7.96M | 42.0 | 22.6 | 30.0 | 4.60 | 3.80 |
| TPSH8030-6R8 | 6.8 ± 30% | 10 | 100K | 7.96M | 30.0 | 34.5 | 46.0 | 3.60 | 3.20 |
| TPSH8030-100 | 10.0 ± 30% | 18 | 100K | 2.52M | 25.0 | 47.3 | 60.0 | 3.00 | 2.60 |
| TPSH8030-150 | 15.0 ± 30% | 18 | 100K | 2.52M | 20.0 | 75.0 | 100.0 | 2.20 | 2.00 |
| TPSH8030-220 | 22.0 ± 30% | 18 | 100K | 2.52M | 16.0 | 105.0 | 130.0 | 2.00 | 1.75 |
| TPSH8030-330 | 33.0 ± 30% | 16 | 100K | 2.52M | 12.0 | 205.0 | 260.0 | 1.45 | 1.25 |
| TPSH8030-470 | 47.0 ± 30% | 16 | 100K | 2.52M | 12.0 | 205.6 | 260.0 | 1.45 | 1.25 |
| TPSH8030-680 | 68.0 ± 30% | 16 | 100K | 2.52M | 9.0 | 25.6 | 315.0 | 1.25 | 0.96 |
| TPSH8030-101 | 100.0 ± 30% | 24 | 100K | 0.796M | 7.0 | 415.0 | 520.0 | 0.85 | 0.75 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH8040) | |||||||||
| Part NO | Inductance (µH) |
Q Ref. |
TEST Freq. | DCR (mΩ) | SRF (MHz) TYP. |
Irms (A) TYP. |
Isat (A) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH8040-3R3 | 3.3 ± 30% | 12 | 100K | 7.96M | 40.0 | 13.8 | 18.0 | 6.00 | 5.00 |
| TPSH8040-4R2 | 4.2 ± 30% | 12 | 100K | 7.96M | 32.0 | 16.5 | 22.0 | 5.30 | 4.60 |
| TPSH8040-6R2 | 6.2 ± 30% | 10 | 100K | 7.96M | 28.0 | 25.0 | 32.0 | 4.20 | 4.00 |
| TPSH8040-100 | 10.0 ± 30% | 22 | 100K | 2.52M | 20.0 | 33.0 | 42.0 | 3.70 | 2.90 |
| TPSH8040-150 | 15.0 ± 30% | 20 | 100K | 2.52M | 18.0 | 55.0 | 70.0 | 2.80 | 2.50 |
| TPSH8040-220 | 22.0 ± 30% | 22 | 100K | 2.52M | 15.0 | 88 | 11.0 | 2.20 | 2.05 |
| TPSH8040-330 | 33.0 ± 30% | 22 | 100K | 2.52M | 12.0 | 115.0 | 150.0 | 1.90 | 1.75 |
| TPSH8040-470 | 47.0 ± 30% | 20 | 100K | 2.52M | 10.0 | 150.0 | 190.0 | 1.55 | 1.45 |
| TPSH8040-680 | 68.0 ± 30% | 18 | 100K | 2.52M | 8.0 | 205.0 | 260.0 | 1.35 | 1.10 |
| TPSH8040-101 | 100.0 ± 30% | 25 | 100K | 0.796M | 6.0 | 325.0 | 410.0 | 1.05 | 0.95 |
| TPSH8040-151 | 150.0 ± 30% | 18 | 100K | 0.796M | 5.0 | 445.0 | 560.0 | 0.90 | 0.77 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH8043) | |||||||||
| Part NO | Inductance (µH) |
Q Ref. |
TEST Freq. | DCR (mΩ) | SRF (MHz) TYP. |
Irms (A) TYP. |
Isat (A) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH8043-1R0 | 1.0 ± 30% | 15 | 100K | 7.96M | 70.0 | 8.1 | 10.0 | 6.60 | 7.50 |
| TPSH8043-2R2 | 2.2 ± 30% | 15 | 100K | 7.96M | 65.0 | 11.2 | 15.0 | 5.40 | 5.20 |
| TPSH8043-3R3 | 3.3 ± 30% | 12 | 100K | 7.96M | 54.0 | 12.5 | 17.0 | 5.10 | 4.50 |
| TPSH8043-3R9 | 3.9 ± 30% | 15 | 100K | 7.96M | 42.0 | 14.6 | 19.0 | 4.80 | 4.00 |
| TPSH8043-4R7 | 4.7 ± 30% | 13 | 100K | 7.96M | 36.0 | 17.0 | 22.0 | 4.60 | 3.60 |
| TPSH8043-100 | 10.0 ± 30% | 27 | 100K | 2.52M | 20.0 | 30.0 | 40.0 | 3.50 | 2.70 |
| TPSH8043-150 | 15.0 ± 30% | 26 | 100K | 2.52M | 15.0 | 46.0 | 60.0 | 2.70 | 2.00 |
| TPSH8043-220 | 22.0 ± 30% | 24 | 100K | 2.52M | 12.0 | 72.5 | 95.0 | 2.20 | 1.70 |
| TPSH8043-330 | 33.0 ± 30% | 21 | 100K | 2.52M | 11.0 | 100.0 | 130.0 | 1.70 | 1.40 |
| TPSH8043-470 | 47.0 ± 30% | 21 | 100K | 2.52M | 9.0 | 120.0 | 150.0 | 1.50 | 1.20 |
| TPSH8043-680 | 68.0 ± 30% | 20 | 100K | 2.52M | 7.0 | 192.0 | 250.0 | 1.20 | 1.00 |
| TPSH8043-101 | 100 ± 30% | 50 | 100K | 0.796M | 6.0 | 287.0 | 370.0 | 1.00 | 0.80 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH8045) | |||||||||
| Part NO | Inductance (µH) |
Q Ref. |
TEST Freq. | DCR (mΩ) | SRF (MHz) TYP. |
Irms (A) TYP. |
Isat (A) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH8045-3R5 | 3.5 ± 30% | 12 | 100K | 7.96M | 45.0 | 18.8 | 25.0 | 5.00 | 5.00 |
| TPSH8045-4R7 | 4.7 ± 30% | 10 | 100K | 7.96M | 30.0 | 22.0 | 27.5 | 4.60 | 4.40 |
| TPSH8045-6R2 | 6.2 ± 30% | 10 | 100K | 7.96M | 23.0 | 28.5 | 36.0 | 4.20 | 3.80 |
| TPSH8045-100 | 10.0 ± 30% | 16 | 100K | 2.52M | 18.0 | 35.8 | 48.0 | 3.50 | 3.30 |
| TPSH8045-220 | 22.0 ± 30% | 18 | 100K | 2.52M | 12.0 | 94.0 | 122.0 | 2.25 | 2.15 |
| TPSH8045-330 | 33.0 ± 30% | 14 | 100K | 2.52M | 8.0 | 118.0 | 150.0 | 2.00 | 1.80 |
| TPSH8045-470 | 47.0 ± 30% | 12 | 100K | 2.52M | 6.0 | 215.0 | 270.0 | 1.45 | 1.40 |
| TPSH8045-680 | 68.0 ± 30% | 8 | 100K | 2.52M | 4.0 | 320.0 | 400.0 | 1.25 | 1.20 |
| TPSH8045-101 | 100.0 ± 30% | 20 | 100K | 0.70M | 3.0 | 400.0 | 500.0 | 1.00 | 0.92 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH8058) | |||||||||
| Part NO | Inductance (µH) |
Q Ref. |
TEST Freq. | DCR (mΩ) | SRF (MHz) TYP. |
Irms (A) TYP. |
Isat (A) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH8058-3R9 | 3.9 ± 30% | 8 | 100K | 7.96M | 45.0 | 12.0 | 16.0 | 6.50 | 4.50 |
| TPSH8058-5R2 | 5.2 ± 30% | 8 | 100K | 7.96M | 35.0 | 14.0 | 17.5 | 5.80 | 3.90 |
| TPSH8058-6R8 | 6.8 ± 30% | 8 | 100K | 7.96M | 30.0 | 16.0 | 20.0 | 5.50 | 4.00 |
| TPSH8058-100 | 10.0 ± 30% | 20 | 100K | 2.52M | 14.0 | 42.0 | 52.0 | 3.40 | 1.80 |
| TPSH8058-220 | 22.0 ± 30% | 20 | 100K | 2.52M | 14.0 | 42.0 | 52.0 | 3.40 | 1.80 |
| TPSH8058-330 | 33.0 ± 30% | 16 | 100K | 2.52M | 10.0 | 58.0 | 72.0 | 2.70 | 1.60 |
| TPSH8058-470 | 47.0 ± 30% | 12 | 100K | 2.52M | 7.0 | 80.0 | 10.0 | 2.30 | 1.50 |
| TPSH8058-680 | 68.0 ± 30% | 16 | 100K | 2.52M | 6.0 | 100.0 | 130.0 | 2.00 | 1.20 |
| TPSH8058-101 | 100.0 ± 30% | 22 | 100K | 0.796M | 5.0 | 124.0 | 160.0 | 1.70 | 0.90 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH1028) | |||||||
| Part NO | Inductance (µH) |
Q Ref. |
SRF (MHz) TYP. |
DCR (mΩ) | Irms (A) TYP. |
Isat (A) TYP. |
|
| TYP. | MAX. | ||||||
| TPSH1028-1R0 | 1.0 ± 30% | 14 | 100 | 4.9 | 6.5 | 7.00 | 8.00 |
| TPSH1028-1R5 | 1.5 ± 30% | 12 | 80 | 7.3 | 10.0 | 6.50 | 6.50 |
| TPSH1028-2R2 | 2.2 ± 30% | 12 | 65 | 11.0 | 15.0 | 5.30 | 4.80 |
| TPSH1028-3R3 | 3.3 ± 30% | 14 | 55 | 15.0 | 20.0 | 4.60 | 4.30 |
| TPSH1028-4R7 | 4.7 ± 30% | 12 | 40 | 16.5 | 3.0 | 4.50 | 3.80 |
| TPSH1028-6R8 | 6.8 ± 30% | 12 | 30 | 25.0 | 33.0 | 3.50 | 3.00 |
| TPSH1028-8R2 | 8.2 ± 30% | 12 | 28 | 28.5 | 37.0 | 3.30 | 2.70 |
| TPSH1028-100 | 10.0 ± 30% | 20 | 25 | 40.0 | 53.0 | 2.80 | 2.40 |
| TPSH1028-150 | 15.0 ± 30% | 26 | 22 | 69.0 | 90.0 | 2.00 | 2.00 |
| TPSH1028-220 | 22.0 ± 30% | 26 | 16 | 104.0 | 135.0 | 1.60 | 1.40 |
| TPSH1028-330 | 33.0 ± 30% | 24 | 12 | 139.0 | 180.0 | 1.25 | 1.20 |
| TPSH1028-470 | 47.0 ± 30% | 20 | 11 | 167.0 | 230.0 | 1.30 | 1.10 |
| TPSH1028-560 | 56.0 ± 30% | 22 | 10 | 208.0 | 270.0 | 1.10 | 1.00 |
| TPSH1028-680 | 68.0 ± 30% | 20 | 9 | 232.0 | 300.0 | 1.00 | 0.90 |
| TPSH1028-820 | 82.0 ± 30% | 20 | 8 | 323.0 | 420.0 | 0.90 | 0.85 |
| TPSH1028-101 | 100.0 ± 30% | 20 | 7 | 365.0 | 470.0 | 0.85 | 0.80 |
| TPSH1028-121 | 120.0 ± 30% | 18 | 6 | 428.0 | 560.0 | 0.65 | 0.70 |
| TPSH1028-151 | 150.0 ± 30% | 18 | 5 | 518.0 | 680.0 | 0.70 | 0.65 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH1030) | |||||||
| Part NO | Inductance (µH) |
Q Ref. |
SRF (MHz) TYP. |
DCR (mΩ) | Irms (A) TYP. |
Isat (A) TYP. |
|
| TYP. | MAX. | ||||||
| TPSH1030-4R7 | 4.7 ± 30% | 14 | 36 | 25.0 | 32.5 | 4.20 | 4.40 |
| TPSH1030-6R2 | 6.2 ± 30% | 12 | 30 | 32.0 | 42.0 | 3.80 | 3.90 |
| TPSH1030-100 | 10.0 ± 30% | 16 | 26 | 44.0 | 58.0 | 3.00 | 3.10 |
| TPSH1030-150 | 15.0 ± 30% | 16 | 22 | 73.0 | 95.0 | 2.60 | 2.55 |
| TPSH1030-220 | 22.0 ± 30% | 16 | 18 | 110.0 | 145.0 | 2.00 | 2.10 |
| TPSH1030-330 | 33.0 ± 30% | 12 | 14 | 150.0 | 195.0 | 1.70 | 1.74 |
| TPSH1030-470 | 47.0 ± 30% | 14 | 12 | 210.0 | 270.0 | 1.40 | 1.35 |
| TPSH1030-680 | 68.0 ± 30% | 14 | 10 | 285.0 | 370.0 | 1.20 | 1.22 |
| TPSH1030-101 | 100.0 ± 30% | 14 | 8.5 | 395.0 | 520.0 | 1.10 | 1.02 |
| TPSH1030-151 | 150.0 ± 30% | 12 | 5.5 | 640.0 | 840.0 | 0.85 | 0.84 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH1038) | |||||||
| Part NO | Inductance (µH) |
Q Ref. |
SRF (MHz) TYP. |
DCR (mΩ) | Irms (A) TYP. |
Isat (A) TYP. |
|
| TYP. | MAX. | ||||||
| TPSH1038-1R5 | 1.5 ± 30% | 14 | 65 | 5.2 | 7.5 | 7.20 | 7.00 |
| TPSH1038-2R2 | 2.2 ± 30% | 12 | 55 | 7.7 | 10.5 | 6.80 | 6.50 |
| TPSH1038-3R5 | 3.5 ± 30% | 14 | 35 | 11.5 | 15.0 | 5.50 | 5.50 |
| TPSH1038-5R0 | 5.0 ± 30% | 12 | 30 | 14.5 | 22.0 | 4.60 | 4.80 |
| TPSH1038-6R2 | 6.2 ± 30% | 12 | 25 | 16.5 | 24.0 | 4.00 | 4.20 |
| TPSH1038-100 | 10.0 ± 30% | 24 | 20 | 25.0 | 35.0 | 3.80 | 3.60 |
| TPSH1038-150 | 15.0 ± 30% | 24 | 16 | 37.0 | 50.0 | 2.80 | 2.70 |
| TPSH1038-220 | 22.0 ± 30% | 20 | 12 | 55.8 | 75.0 | 2.20 | 2.30 |
| TPSH1038-330 | 33.0 ± 30% | 22 | 10 | 86.0 | 112.0 | 1.80 | 1.80 |
| TPSH1038-470 | 47.0 ± 30% | 22 | 8 | 121.0 | 160.0 | 1.65 | 1.60 |
| TPSH1038-680 | 68.0 ± 30% | 24 | 6 | 220.0 | 300.0 | 1.30 | 1.10 |
| TPSH1038-101 | 100.0 ± 30% | 24 | 6 | 220.0 | 300.0 | 1.30 | 1.10 |
| TPSH1038-151 | 150.0 ± 30% | 20 | 5 | 358.0 | 476.0 | 0.90 | 0.80 |
| TPSH1038-221 | 220.0 ± 30% | 22 | 4 | 565.0 | 740.0 | 0.65 | 0.65 |
| TPSH1038-331 | 330.0 ± 30% | 20 | 3 | 773.0 | 1000.0 | 0.55 | 0.52 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH1040) | |||||||
| Part NO | Inductance (µH) |
Q Ref. |
SRF (MHz) TYP. |
DCR (mΩ) | Irms (A) TYP. |
Isat (A) TYP. |
|
| TYP. | MAX. | ||||||
| TPSH1040-5R0 | 5.0 ± 30% | 12 | 28.0 | 17.5 | 23.0 | 5.20 | 4.70 |
| TPSH1040-6R2 | 6.2 ± 30% | 12 | 24.0 | 21.5 | 28.0 | 4.70 | 4.30 |
| TPSH1040-100 | 10.0 ± 30% | 16 | 22.0 | 32.0 | 42.0 | 4.40 | 3.80 |
| TPSH1040-150 | 15.0 ± 30% | 18 | 16.0 | 60.0 | 78.0 | 2.90 | 2.80 |
| TPSH1040-220 | 22.0 ± 30% | 16 | 12.0 | 75.0 | 98.0 | 2.55 | 2.48 |
| TPSH1040-330 | 33.0 ± 30% | 16 | 10.0 | 110.0 | 140.0 | 2.05 | 2.00 |
| TPSH1040-470 | 47.0 ± 30% | 16 | 8.0 | 170.0 | 22.0 | 1.62 | 1.56 |
| TPSH1040-680 | 68.0 ± 30% | 16 | 7.0 | 245.0 | 320.0 | 1.45 | 1.40 |
| TPSH1040-101 | 100.0 ± 30% | 14 | 6.0 | 320.0 | 415.0 | 1.18 | 1.14 |
| TPSH1040-221 | 220.0 ± 30% | 14 | 4.0 | 760.0 | 950.0 | 0.78 | 0.72 |
| TPSH1040-331 | 330.0 ± 30% | 14 | 2.5 | 1080.0 | 1350.0 | 0.62 | 0.60 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH1050) | |||||||
| Part NO | Inductance (µH) |
Q Ref. |
SRF (MHz) TYP. |
DCR (mΩ) | Irms (A) TYP. |
Isat (A) TYP. |
|
| TYP. | MAX. | ||||||
| TPSH1050-4R7 | 4.7 ± 30% | 13 | 34.0 | 14.5 | 19.0 | 5.20 | 5.10 |
| TPSH1050-100 | 10.0 ± 30% | 16 | 20.0 | 26.0 | 34.0 | 4.40 | 3.80 |
| TPSH1050-220 | 22.0 ± 30% | 16 | 10.0 | 58.0 | 76.0 | 2.90 | 2.70 |
| TPSH1050-330 | 33.0 ± 30% | 14 | 8.5 | 70.0 | 90.0 | 2.70 | 2.10 |
| TPSH1050-470 | 47.0 ± 30% | 14 | 7.0 | 100.0 | 130.0 | 2.10 | 1.80 |
| TPSH1050-680 | 68.0 ± 30% | 14 | 6.5 | 144.0 | 186.0 | 1.75 | 1.45 |
| TPSH1050-101 | 100.0 ± 30% | 16 | 5.0 | 198.0 | 260.0 | 1.50 | 1.25 |
| TPSH1050-151 | 150.0 ± 30% | 16 | 4.0 | 330.0 | 430.0 | 1.15 | 1.05 |
| TPSH1050-221 | 220.0 ± 30% | 14 | 3.5 | 470.0 | 610.0 | 0.95 | 0.88 |
| TPSH1050-331 | 330.0 ± 30% | 11 | 2.5 | 690.0 | 900.0 | 0.84 | 0.70 |
| TPSH1050-471 | 470.0 ± 30% | 11 | 1.9 | 1050.0 | 1350.0 | 0.65 | 0.55 |
| TPSH1050-681 | 680.0 ± 30% | 11 | 1.6 | 1350.0 | 1760.0 | 0.56 | 0.48 |
| TPSH1050-102 | 1000.0 ± 30% | 30 | 1.4 | 2120.0 | 2760.0 | 0.47 | 0.40 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Electrical Characteristics (TPSH1065) | |||||||
| Part NO | Inductance (µH) |
Q Ref. |
SRF (MHz) TYP. |
DCR (mΩ) | Irms (A) TYP. |
Isat (A) TYP. |
|
| TYP. | MAX. | ||||||
| TPSH1065-4R2 | 4.2 ± 30% | 14 | 45 | 18.0 | 23.0 | 5.60 | 7.00 |
| TPSH1065-6R5 | 6.5 ± 30% | 13 | 28 | 28.0 | 35.0 | 5.00 | 7.00 |
| TPSH1065-100 | 10.0 ± 30% | 14 | 20 | 33.0 | 41.0 | 4.90 | 4.00 |
| TPSH1065-220 | 22.0 ± 30% | 16 | 12 | 58.0 | 73.0 | 3.80 | 2.80 |
| TPSH1065-330 | 33.0 ± 30% | 10 | 7 | 93.0 | 120.0 | 2.70 | 2.40 |
| TPSH1065-470 | 47.0 ± 30% | 10 | 6 | 165.0 | 210.0 | 2.10 | 2.10 |
| TPSH1065-680 | 68.0 ± 30% | 8 | 5 | 195.0 | 250.0 | 1.85 | 1.75 |
| TPSH1065-101 | 100.0 ± 30% | 13 | 4 | 234.0 | 290.0 | 1.80 | 1.40 |
Note:
- Measuring Frequency. L: 100KHz/0.25v.
- IDC:The current when the inductance becomes 35% lower than its nominal value. and temperature rise 40°C Δt = 40°C (ta = 20°C).
| Order Codes (TPSH) | ||||||||||||||||||||||||||||||||||||||||||||||||||
| TPSH6011 | - | 1R0 | M | |||||||||||||||||||||||||||||||||||||||||||||||
 | | | ||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||
