Through Hole Chokes and Inductors (TCPC)

Through Hole Chokes and Inductors (TCPC)

Direct Chokes and Inductors are available lot of dimensions to choose. Direct TCPC series structure with epoxy resin encapsulated mould sealed and are available with vertical and horizontal type. The TCPC features with small size, high Q value, low cost, high self-resonance frequency, high availability of a large induced current, small magnetic flux leakage.

The TCPC is suotable for display monitors, camera, microwave ovens, lighting equipment, mobile phones, broadband modems, game consoles, color TV, VCR, notebook computers, inkjet printers, photocopying machines, automotive electronics products.

Direct will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.

Download complete specification (TCPC) PDF.

Features :
  1. High rated current for high current circuits.
  2. Have lot of dimensions to choose.
Applications :
  1. Switching Regulators, Power amplifiers.
  2. Power Suppliers, Typewriter, Car Electronics.

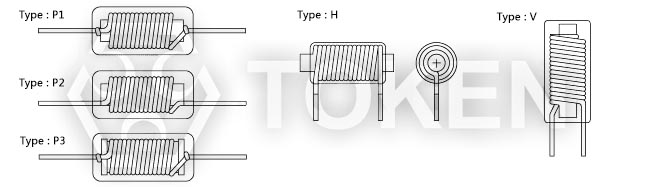

Vertical and Horizontal Choke (TCPC) Dimensions
Vertical and Horizontal Choke (TCPC) Dimensions
TCPC 0513 H - 100 K

Part Number
TCPC
Core Dimension
Diameter & Length
Type
P1
P2
P3
H
V

Inductance
1R0 1.0µH
100 10.0µH
Tolerance
J 5%
K 10%
L 15%
M 20%
N 30%
Y min
