Ceramic Filters 4.5 MHz~6.5 MHz (LTS MCB/MDB)

Direct (LTS MCB/MDB) Ceramic Filter is suitable for Multiplex Sound TV in America. Direct series ceramic filters low spurious for TV/VCR stage LTS MCB/MDB series use thickness shear vibration mode and is compatible Murata SFSH MCB/MDB. Features with excellent spurious characteristics within Video Signal Band, and 3 types bandwidths prepared to respond customer requests. LTS MCB/MDB is suitable for Multiplex Sound TV in America.

The LTS MCB/MDB series conform to the RoHS directive and Lead-free. This filter low spurious for TV/VCR stage LTS MCB/MDB series can be customed designs and tighter tolerances available on request.

Application of filter specific designs also available including different piezo band-pass devices and Q specifications adjusted to frequency requirements. Direct filters can supply you high performance, high quality and stability.

With dimensions max (10 x 8.0 x 4.0 mm), Insert Loss max 6dB, and Spurious Attenuation (0~fo) min 30dB, The LTS MCB/MDB has excellent spurious characteristics within Video Signal Band. Nominal Center Frequency (fo) is available with 4.500kHz, 5.500kHz, 6.000kHz, and 6.500kHz.

Custom parts are available on request. Direct will also produce devices outside these specifications to meet specific customer requirements,
please contact our sales for more information.

Download complete PDF Ceramic Filters 4.5 MHz~6.5 MHz (LTS MCB/MDB).

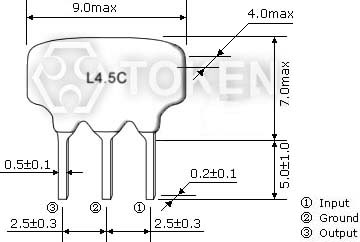

Dimensions (Unit: mm) (LTS MCB/MDB)
(LTS MCB/MDB) Dimensions
(LTS MCB/MDB) Dimensions
Technical Characteristics (LTS MCB/MDB)
(LTS MCB/MDB) Technical Characteristics
(LTS MCB/MDB) Technical Characteristics
Part
Number
Nominal Center
Frequency (fo) (MHz)
3dB Band Width
(kHz) min
20dB Band Width
(kHz) max
Insert Loss
(dB) max
Spurious Attenuation
(0~fo) (dB) min
Input/Output
Impedance(Ω)
LTS4.5MCB 4.500 fo±60 600 6.0 30 1000
LTS4.5MDB 4.500 fo±70 750 6.0 30 1000
LTS5.5MCB 5.500 fo±60 600 6.0 30 600
LTS5.5MDB 5.500 fo±80 750 6.0 30 600
LTS6.0MCB 6.000 fo±60 600 6.0 30 470
LTS6.0MDB 6.000 fo±80 750 6.0 30 470
LTS6.5MCB 6.500 fo±70 650 6.0 30 470
LTS6.5MDB 6.500 fo±80 800 6.0 30 470
Test Circuit (LTS MCB/MDB)
(LTS MCB/MDB) Test Circuit
(LTS MCB/MDB) Test Circuit
Order Codes (LTS MCB/MDB)
LTS4.5MCB P
Part Number
Package
