Double Trap Filters (XT MW)

Direct (XT MW) are Murata Double Trap Filters TPWA Series Compatible. Trap filter is a ceramic filter passes only particular frequency. To the contrary, Band Eliminate Filter (B. E. F.) which blocks or attenuates particular frequency is called trap.

Sound trap for TV set is one of the famous example of B. E. F. In TV set, video signal is used in picture amplitude circuit after video signal detection block, ceramic resonator is insert here and trap circuit is formed in order to eliminate sound signal involved in video signal.

Direct Double Trap Filter (XT MW) Series consist of 2 wafers with 2 trap frequencies. Recommended for Multi standard set. Features with good performance of attenuation and space saving with 3-terminal type. The characteristic of a three-terminal ceramic trap equals two two-terminal ceramic trap. Three-terminal ceramic trap has a monolith structure formed from 2 ceramic resonators.

Full line products meet RoHS compliant. Direct will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information. Download Three-Terminal Double Trap Filters (XT MW) Datasheet PDF (293KB).

(XT MW) Double Trap Filter Quick Selection :
  1. Dimensions (Unit: mm): 10.0 max x 8.0 max x 4.0 max.
  2. XT4.47MW Cener Frequency f01:4.500MHz; Cener Frequency f02:4.724MHz; 30db min @f01& f02; 50(kHz)min@f01 30dB Att BW
  3. XT4.60MW Cener Frequency f01:4.500MHz; Cener Frequency f02:6.000MHz; 30db min @f01& f02; 50(kHz)min@f01 30dB Att BW
  4. XT5.57MW Cener Frequency f01:5.500MHz; Cener Frequency f02:5.742MHz; 30db min @f01& f02; 50(kHz)min@f01 30dB Att BW
  5. XT5.60MW Cener Frequency f01:5.500MHz; Cener Frequency f02:6.000MHz; 30db min @f01& f02; 50(kHz)min@f01 30dB Att BW
  6. XT5.65MW Cener Frequency f01:5.500MHz; Cener Frequency f02:6.500MHz; 30db min @f01& f02; 50(kHz)min@f01 30dB Att BW
  7. XT6.65MW Cener Frequency f01:6.000MHz; Cener Frequency f02:6.500MHz; 30db min @f01& f02; 70(kHz)min@f01 30dB Att BW
Dimensions (XT MW)
(XT MW) Dimensions
(XT MW) Dimensions

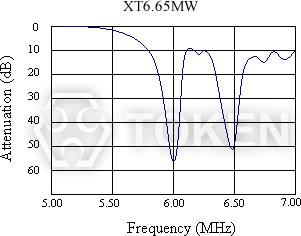

Characteristics (XT MW)
(XT MW) Characteristics
(XT MW) Characteristics
Part
Number
Center Frequency
(fo1)(MHz)
Center Frequency
(fo2)(MHz)
Attenuation
(at fo1) (dB)min
Attenuation
(at fo2) (dB)min
30dB Attenuation BW
(fo1)(kHz)min
XT4.47MW 4.500 4.724 30 30 50
XT4.60MW 4.500 6.000 30 30 50
XT5.57MW 5.500 5.742 30 30 50
XT5.60MW 5.500 6.000 30 30 50
XT5.65MW 5.500 6.500 30 30 50
XT6.65MW 6.000 6.500 30 30 70

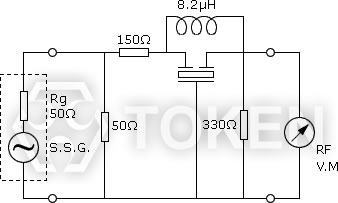

Test Circuit (XT MW)
 (XT MW) Test Circuit
(XT MW) Test Circuit
Order Codes (XT MW)
XT4.47MW P
Part Number
Package
