Radio Cassette Recorder Ceramic Filters (LTA)

For Radio Cassette Recorder Ceramic Filters. Direct ceramic filters for radio-cassette recorder (LTA) series are designed to address the needs of standard radio cassette recorder requirements.

Recommend for use in low cost products where economically, efficient designs are critical. The nominal frequency tolerance is ±2KHz.

Direct ceramic (LTA) filters conform to the RoHS directive.

Ceramic (LTA) filter for radio cassette recorder can be customed designs and tighter tolerances available on request.

Application of specific designs also available including different piezo band-pass devices and Q specifications adjusted to frequency requirements.

Download complete PDF Radio Cassette Recorder Ceramic Filters (LTA).

Dimensions (Unit: mm) (LTA)
(LTA) Dimensions
(LTA) Dimensions
Technical Characteristics (LT)
(LTA) Technical Characteristics
(LTA) Technical Characteristics
Part
Number
Center Frequency
(fo)(kHz)
Insertion Loss
(dB)max
6dB Band Width
(kHz)min
Spurious Attenuation
(fo±100kHz)(dB)min
Selectivity ±9kHz
off (dB)min
Pass Band Ripple
(dB)max
Input/Output
Impedance (Ω)
LT450A 450±2 3 8 12 11 1 2
LT455A 455±2 3 8 12 11 1 2
LT465A 465±2 3 8 12 11 1 2
Center Frequency (fo) is available in a range of 450kHz ~ 470kHz.
The nominal frequency tolerance is ± 2kHz.

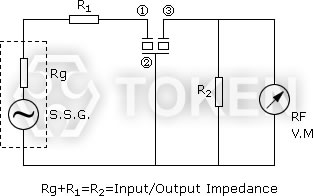

Test Circuit (LT)
(LT) Test Circuit
(LT) Test Circuit
Order Codes (LT)
LT455A P
Part Number
Package
