Trap Filters (XT MJ)

Direct (XT MJ) for Chrominance Carrier is Murata Trap Filter TPS MJ Series Compatible. (XT MJ) Series are band reject device used for video and sound IF attenuation. The 2 terminal (XT MJ) Series can be used to attenuate either the sound signal in B/W receivers or the chroma signal in video.
Download (XT MJ) datasheet, PDF (291KB)

(XT MJ) Trap Filter Quick Selection :
  1. Dimensions (Unit: mm): 10.0 max x 10.0 max x 5.0 max.
  2. XT3.58MJ Cener Frequency f0:3.58MHz; 20db min @f0; 20(kHz)min@20dB Att BW
  3. XT4.43MJ Cener Frequency f0:4.43MHz; 20db min @f0; 40(kHz)min@20dB Att BW
  4. XT4.5MJ Cener Frequency f0:4.5MHz; 20db min @f0; 40(kHz)min@20dB Att BW
  5. XT5.74MJ Cener Frequency f0:5.74MHz; 20db min @f0; 40(kHz)min@20dB Att BW
  6. XT5.5MJ Cener Frequency f0:5.5MHz; 20db min @f0; 40(kHz)min@20dB Att BW
  7. XT6.0MJ Cener Frequency f0:6.0MHz; 20db min @f0; 40(kHz)min@20dB Att BW
  8. XT6.5MJ Cener Frequency f0:6.5MHz. 20db min @f0; 40(kHz)min@20dB Att BW
Filter Features :
  1. RoHS Compliant.
  2. TV SIF stage use.
  3. Low insertion loss.
  4. Wide bandwidth Ceramic Trap.
  5. Excellent spurious suppression characteristics.
Dimensions (Unit: mm) (XT MJ)
Dimensions (XT MJ) for Chrominance Carrier
Dimensions (XT MJ) for Chrominance Carrier

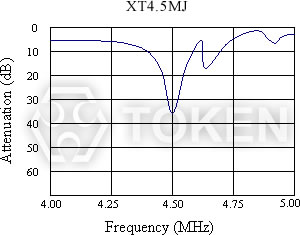

Characteristics (XT MJ)
XT MJ Characteristics
XT MJ Characteristics
Part Number Center Frequency (fo1)(MHz) Attenuation (at fo1)(dB)min 20dB Attenuation BW (fo1)(kHz)min
XT3.58MJ 3.580 20 20
XT4.43MJ 4.430 20 40
XT4.5MJ 4.500 20 40
XT5.5MJ 5.500 20 40
XT5.74MJ 5.742 20 40
XT6.0MJ 6.000 20 40
XT6.5MJ 6.500 20 40

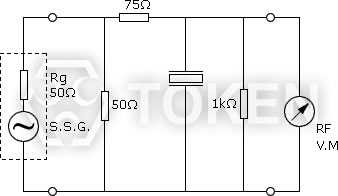

Test Circuit (XT MJ)
 (XT MJ) Test Circuit
(XT MJ) Test Circuit
Order Codes (XT MJ)
XT3.58MJ P
Part Number
Package
