Ceramic Filters (LT10.7M)

Direct (LT10.7M) ceramic filters are compatible with Murata SFELF10M7. Direct LT10.7M series are monolithic devices which utilize the energy-trapped thickness vibration-mode. This principle of operation is based upon the fact that an excellent resonating element with low spurious vibration can be obtained by adhering to certain theoretical parameters of design. These parameters include the physical dimensions of the peizo element, the electrode pattern, and the associated mass loading effect of the electrodes.

Direct categorizes the LT 10.7 family according to rank of center frequency. This ranking indicates that a given LT 10.7 will be marked with one of the colors listed in the following chart and will exhibit the center frequency in Technical Characteristics Table.

The (LT10.7M) offers three series: LT10.7M for FM Receiver (Compatible Murata SFELF10M7), LT10.7M A10 Insertion Loss 2.5±2.0 db ~ 4.5±2.0 db (Compatible Murata SFELF10M7 A10), and LT10.7M Wide Band-width 950 kHz at 20dB/Narrow Band-width 95 kHz at 20dB (Compatible Murata Filter SFELF10M7 DBS Receiver).

(LT10.7M) Narrow Band-width series features stable low spurious and temperature characteristics. This series is suitable for European car-audio or AM up conversion use that needs narrow band characteristics are stable. LT10.7M Wide Band-width series are specified to make up conventional ceramic filters which wider band characteristics not obtained.

Custom parts are available on request. Direct will also produce devices outside these specifications to meet specific customer requirements,
please contact our sales for more information.

Download complete PDF Ceramic Filters (LT10.7M).

Benefit Features :
  1. Change in center frequency is typically within ±30ppm/°C at -20°C to +80°C.
  2. Various band widths are available for applications in wide to narrow bands.
  3. Low loss, favorable waveform symmetry, and high selectivity.
  4. These miniature filters have high mechanical strength.
  5. Excellent shape factor of frequency response.
  6. Small dispersion and stable characteristics.
  7. Good waveform symmetry.
  8. High reliability.

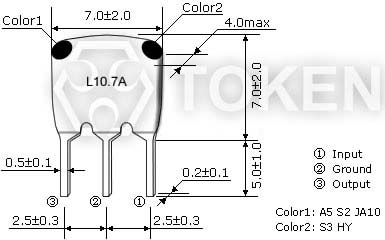

Dimensions (Unit: mm) (LT10.7M)
Dimensions
LT10.7Mxx Serial W*H: 7.0±2.0*7.0±2.0 mm
LT10.7MFP W*H: 10.0±2.0*10.0±2.0 mm
Technical Characteristics (LT10.7M) For FM Receiver (Murata SFE10M7 FM-IF Compatible)
Part Number 3dB Band Width (kHz) 20dB Band Width (kHz) max Insertion Loss (dB) max Spurious Attenuation (9-12MHz)(dB)min
LT10.7MA5 280±50 650 6 30
LT10.7MS2 230±50 600 6 40
LT10.7MS3 180±40 520 7 40

Input/Ouput Impedance: 330Ω


Technical Characteristics (LT10.7M A10) Low Insertion Loss (Murata SFE10M7 A10 Compatible)
Part Number 3dB Band Width (kHz) 20dB Band Width (kHz) max Insertion Loss (dB) Spurious Attenuation (9-12MHz)(dB)min
LT10.7MA5A10 280±50 590 2.5±2.0 30
LT10.7MS2A10 230±50 520 3.0±2.0 35
LT10.7MS3A10 180±40 470 3.5±1.5 35
LT10.7MJA10 150±40 360 4.5±2.0 35

Input/Ouput Impedance: 330Ω


Technical Characteristics (LT10.7M) Wide/Narrow Band-width (Murata SFE10M7 DBS Receiver Compatible)
Part Number 3dB Band Width (kHz) 20dB Band Width (kHz) max Insertion Loss (dB) Spurious Attenuation (9-12MHz)(dB)min
LT10.7MA19 350min 950 3.0±2.0 20
LT10.7MA20 330±50 680 4.0±2.0 30
LT10.7MHY 110±30 350 7.0±2.0 30
LT10.7MFP 20min 95 6.0max 24(10.7±1.0MHz)

Input/Ouput Impedance: 470Ω(MA19), 330Ω(MA20,MHY), 600Ω(MFP)

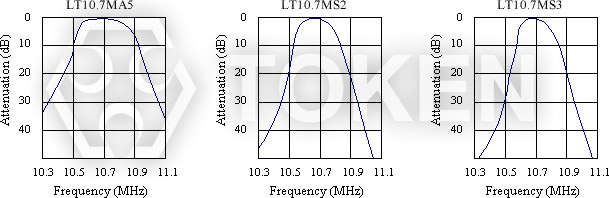

Characteristics (LT10.7M)
(LT10.7M) Characteristics
(LT10.7M) Characteristics

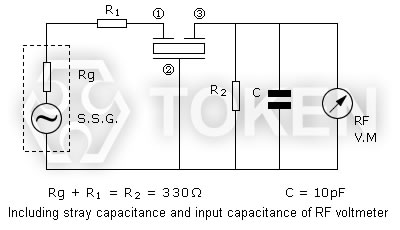

Matching Conditions & Test Circuit (LT10.7M)
(LT10.7M) Test Circuit
(LT10.7M) Test Circuit
Standard Marking Color (LT10.7M)
Center Frequency Color
D:10.64MHz±30kHz Black
B:10.67MHz±30kHz Blue
A:10.70MHz±30kHz Red
C:10.73MHz±30kHz Orange
E:10.76MHz±30kHz White
Order Codes (LT10.7M)
LT10.7MA5 - A P

Part Number
LT10.7MA5
LT10.7MS2
LT10.7MS3
LT10.7MA5A10
LT10.7MS2A10
LT10.7MS3A10
LT10.7MJA10
LT10.7MA19
LT10.7MA20
LT10.7MHY
LT10.7MFP

Center Frequency color code
A 10.70MHz±30KHz Red
B 10.67MHz±30KHz Blue
C 10.73MHz±30KHz Orange
D 10.64MHz±30KHz Black
E 10.76MHz±30KHz White
Package
P Bulks
TB Tab Box
