Large Current Low DCR Inductors (TC1213)

DeMint Develops High-Efficiency Coiled Power Inductors with Large Current and Low DCR. DeMint has announced a wire-wound power inductor designed for use in the Mother Board of PC and Notebook and various other power devices. The TC1213, measures only 14.0 x 14.5 mm, with a maximum height of 9.5 mm.

Most conventional DC-DC converters use inductors with cores made of relatively expensive metallic materials. By contrast, this product, with a ferrite material, realizes the same DC bias characteristics and other performance features as same-size inductors made with more expensive materials. The TC1213 offers customers much greater design freedom with large current and low DCR by meeting the need to replace power inductors.

Full line products meet RoHS compliant. DeMint will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.

Download complete specification (TC1213) PDF (345KB).

Features :
  1. Large Current and Low DCR.
Applications :
  1. Mother Board of PC.
  2. Mother Board of Notebook.
Configurations & Dimensions (Unit: mm) (TC1213)

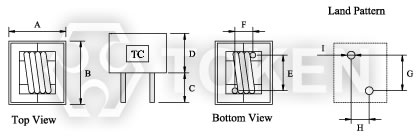

High Current Wirewounds (TC1213) Dimensions
High Current Wirewounds (TC1213) Dimensions
Type A(max) B(max) C ± 1.0 D(max) E(Ref.) F(Ref.) G H I
TC1213 14.0 14.5 5.0 9.5 7.0 5.0 7.5 5.5 1.8
TC1213A 14.0 14.5 5.0 9.5 7.0 5.0 7.5 5.5 1.8
TC1213B 14.5 14.5 5.0 9.5 7.0 5.0 7.5 5.5 1.8
Note: Design as Customer's Requested Specifications.
Electrical Characteristics (TC1213)
Part Number Inductance(µH) Test Freq.(KHz) DCR (Ω)(max) Peak Current (A) (max) Irms (A)(max)
TC1213 - R68N 0.68 100 0.0015 40.00 20.00
TC1213A - R33N 0.33 100 0.0015 40.00 20.00
TC1213B - 1R0N 1.00 100 0.0015 35.00 20.00
Note: Test Freq.: 100KHz / 0.1V.
Operating Temp.: -40°C ~ +85°C
Inductance drop = 10% typ. at Peak Current.
ΔT=40°C rise at Irms.
Order Codes (TC1213)
TC1213B - 1R0 N

Part Number
TC1213
TC1213A
TC1213B

Inductance
R68 0.68µH
1R0 1.00µH
Tolerance
N 30%
