Fixed Inductors (TCAL)
DeMint fixed inductors meet the needs of a variety of manufacturing methods. DeMint (TCAL) fixed inductor utilizes the latest winding technology with special core material, sturdy construction, outer layer of epoxy resin processing, high Q value and self-resonance frequency, wide inductance range, high reliability, and low price.
The (TCAL) series is ideal for consumer electronics such as digital set-top boxes (DVB), digital video disc players (DVD), video cassette recorders (VCR), television (TV), computers, audio equipment, mobile communications, telephone, and various general-purpose electronic applications.
DeMint highly efficient automated production processes offer a full range of high-quality inductors products suitable for automatic plug-in operation. The (TCAL) provides 0204,0307,0410, and 0510 size varieties of different forming, such as Normal & Short Form, F Forming, U Forming, Pana Forming, and bulk products to meet the needs of a variety of manufacturing methods.
DeMint (TCAL) through hole inductors are full line confirming with RoHS specifications, Pb-free standards. Provide a complete inductor size and full range inductance, and custom parts are available on request. DeMint will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information. Download complete specification (TCAL) PDF (425KB).
- TV, VCR.
- Computer Devices
- Electronics products.
- Communication equipment.
- Low Cost.
- Coating epoxy resin that ensures the humidity resistance to be long life.

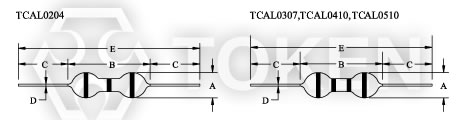

| Normal Form & Short Form (TCAL) | ||||||
|
||||||
| Type | Φ A(max) | B(max) | C ± 3.0 | Φ D ± 0.05 | E ± 1.5 | |
| TCALN0204 | 2.8 | 5.0 | 29.5 | 0.50 | 62.5 | |
| TCALS0204 | 2.8 | 5.0 | 16.0 | 0.50 | 36.5 | |
| TCALN0307 | 3.0 | 7.0 | 28.0 | 0.50 | 62.5 | |
| TCALS0307 | 3.0 | 7.0 | 15.0 | 0.50 | 36.5 | |
| TCALN0410 | 4.0 | 10.0 | 26.0 | 0.65 | 62.5 | |
| TCALS0410 | 4.0 | 10.0 | 14.0 | 0.65 | 36.5 | |
| TCALN0510 | 5.0 | 10.0 | 26.0 | 0.65 | 62.5 | |
| TCALS0510 | 5.0 | 10.0 | 14.0 | 0.65 | 36.5 | |

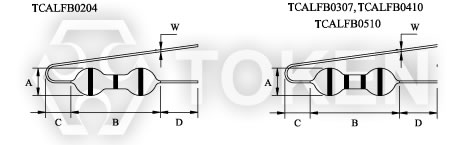

| F Forming (TCAL) | |||||
|
|||||
| Sym. | TCALFB0204 | TCALFB0307 | TCALFB0410 | TCALFB0510 | |
| A (max) | 2.80 | 3.00 | 4.00 | 5.00 | |
| B (max) | 5.00 | 7.00 | 10.00 | 10.00 | |
| C (max) | 6.00 | 6.00 | 6.00 | 6.00 | |
| D (min) | 3.60 | 3.60 | 4.00 | 4.00 | |
| W ± 0.05 | 0.50 Φ | 0.50 Φ | 0.65 Φ | 0.65 Φ | |

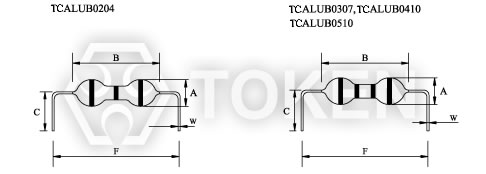

| U Forming (TCAL) | |||||
|
|||||
| Sym. | TCALUB0204 | TCALUB0307 | TCALUB0410 | TCALUB0510 | |
| A (max) | 2.80 | 3.00 | 4.00 | 5.00 | |
| B (max) | 5.00 | 7.00 | 10.00 | 10.00 | |
| C (min) | 3.60 | 3.60 | 3.60 | 3.60 | |
| F | 6 ~ 15 | 10 ~ 20 | 12.5 ~ 20 | 12.5 ~ 20 | |
| W ± 0.05 | 0.50 Φ | 0.50 Φ | 0.65 Φ | 0.65 Φ | |

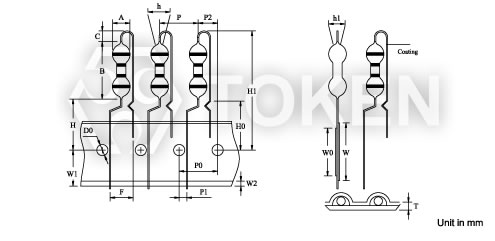

| Pana Forming (TCAL 0307 Series) | ||||||||||
|
||||||||||
| A | B | C | D0 | F | H | H0 | H1 | h | h1 | |
| 3.00 (max) | 7.00 (max) | 3.00 +0.00 -1.00 |
4.00±0.3 | 5.00 +0.80 -0.20 |
19.00 +1.00 -0.30 |
16.00 ±0.5 |
28.50 (max) | 0.00 ±2.0 (±5°) |
0.00 ±2.0 (±5°) |
|
| P | P0 | P1 | P2 | T | W | W0 | W1 | W2 | ||
| 12.7±1.0 | 12.7±0.3 | 3.85±0.7 | 6.35±1.3 | 0.7±0.2 | 18.00 +1.00 -0.50 |
13.00±1.0 | 9.00 +0.75 -0.50 |
4.00 (max) | ||

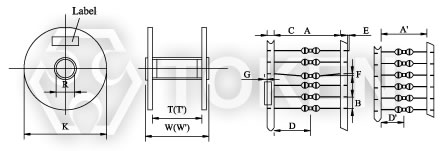

| Dimensions of Tape & Reel Axial Lead Type (TCAL) | ||||||
|
||||||
| Sym. | Dimensions | Sym. | Dimensions | Sym. | Dimensions | |
| A | 52.00 ± 1.50 | E | 0.00 ± 0.50 | T' | 45.00 ± 0.50 | |
| A' | 26.00 ± 1.50 | F | 1.00 (max) | W | 76.00 ± 0.50 | |
| B | 5.00 ± 0.50 | G | 1.00 (max) | W' | 50.00 ± 0.50 | |
| C | 6.00 ± 1.00 | K | 355.00 ± 0.50 | |||
| D | 26.00 ± 0.50 | R | 15.00 ± 0.50 | |||
| D' | 13.00 ± 0.50 | T | 71.00 ± 0.50 | |||
| Packing Unit for Reel Axial Lead Type (TCAL) | ||||
| Item | TCAL0204 | TCAL0307 | TCAL0410 | TCAL0510 |
| Q' TY/ Reel | 5,000 PCS | 5,000 PCS | 5,000 PCS | 3,000 PCS |
| GW/Reel (Approx.) | 1.4 Kgm | 1.6 Kgm | 2.0 Kgm | 2.0 Kgm |
| Q' TY/CTN. | 25,000 PCS | 25,000 PCS | 25,000 PCS | 15,000 PCS |
| NW/CTN. (Approx.) | 7.0 Kgm | 8.0 Kgm | 10.0 Kgm | 10.0 Kgm |
| GW/CTN. (Approx.) | 8.0 Kgm | 9.0 Kgm | 11.0 Kgm | 11.0 Kgm |
| Carton Size (mm) | 397 × 397 × 479 | 397 × 397 × 479 | 397 × 397 × 479 | 397 × 397 × 479 |

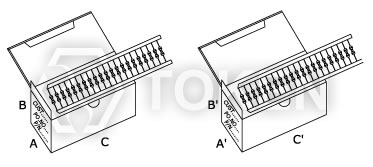

| Dimensions of Ammo Box Axial Lead Type (TCAL) | ||||||
|
||||||
| Sym. | Dimensions | Sym. | Dimensions | Sym. | Dimensions | |
| A | 74.00 ± 0.30 | B | 108.00 ± 0.30 | C | 260.00 ± 0.30 | |
| A' | 48.00 ± 0.30 | B' | 105.00 ± 0.30 | C' | 255.00 ± 0.30 | |
| Packing Unit for Box Axial Lead Type (TCAL) | ||||
| Item | TCAL0204 | TCAL0307 | TCAL0410 | TCAL0510 |
| Q' TY / Ammo Box | 3,000 PCS | 3,000 PCS | 2,000 PCS | 1,500 PCS |
| GW / Box(Approx.) | 0.8 KGM | 0.9 KGM | 1.0 KGM | 0.7 KGM |
| Q' TY / CTN. | 30,000 PCS | 30,000 PCS | 20,000 PCS | 10,000 PCS |
| NW / CTN. (Approx.) | 6.0 Kgm | 7.0 Kgm | 8.0 Kgm | 5.0 Kgm |
| GW / CTN.(Approx.) | 8.0 Kgm | 9.0 Kgm | 10.0 Kgm | 7.0 Kgm |
| Carton Size (mm) | 438 × 295 × 270 | 438 × 295 × 270 | 438 × 295 × 270 | 438 × 295 × 270 |
| Packing Unit for Bulk Axial Lead Type (TCAL) | ||||
| Item | TCAL0204 | TCAL0307 | TCAL0410 | TCAL0510 |
| Q' TY / Bag | 1,000 PCS | 1,000 PCS | 1,000 PCS | 500 PCS |
| GW / Bag (Approx.) | 0.1 Kgm | 0.15 Kgm | 0.3 Kgm | 0.3 Kgm |
| Order Codes (TCAL) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCAL | N | TR | 0204 | - | R10 | M | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
