Nickel Core Integrated Inductor (TCDU)
An integrated circuit structure is provided with (TCDU) inductor formed of a high magnetic susceptibility nickel metal core coil. The Nickel Core Integrated Inductor (TCDU) measure high current rating up to DC 33 Amp., frequency high up to 1.0MHz with low DC resistance. Three compact sizes are available, 8.5mm x 8.5mm, 10.2mm x 10.2mm, and 11.5mm x 11.5mm. Making them ideally for today's DC/DC converter in distributed power systems or VRM, and motherboards for laptop and desdtop computers applications.
The (TCDU) inductors are RoHS compliant and meet standard requirements. Custom parts are available on request. Token will also produce devices outside these specifications to meet specific customer requirements, contact our sales for more information.
Download complete specification Nickel Core Integrated Inductor (TCDU) PDF.
- Ultra low cost.
- Shielded construotion.
- High current rating up to DC 33 Amp.
- High frequency range up to 1.0MHz.
- Very low DC resistance.
- All lead-free.(RoHS).
- Motherboards for laptop and desdtop computers.
- DC/DC converter in distributed power systems or VRM Applications. Inductor for general purpose use.
| Configurations & Dimensions (Unit: mm) (TCDU0806/0809/1009/1103) | ||

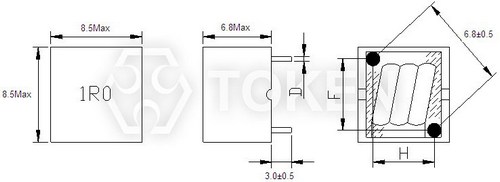

| TCDU0806 |
|
 |

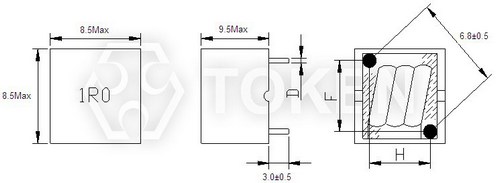

| TCDU0809 |
|
 |

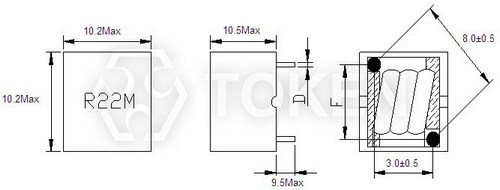

| TCDU1009 |
|
 |

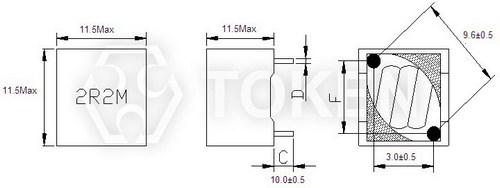

| TCDU1109 |
|
 |
| Electrical Characteristics (TCDU0806) | |||||
| Part No | L (µH) | DCR (mΩ) | Isat (A) | Irms (A) | |
| ±20% | TYP | MAX | TYP | TYP | |
| TCDU0806-1R0M | 1.00 | 2.50 | 2.70 | 12.0 | 12.0 |
- Inductance tested at 100KHz , 0.1V.
- Inductance drop = 10% typ. at rated isat.
- Δ T = 40 °C rise typ. at irms.
- Operating temperature range -40 °C to +125 °C.
- Electrical specifitions at +25 °C.
| Electrical Characteristics (TCDU0809) | |||||
| Part No | L (µH) | DCR (mΩ) | Isat (A) | Irms (A) | |
| ±20% | TYP | MAX | TYP | TYP | |
| TCDU0806-2R2M | 2.20 | 4.60 | 5.00 | 13.0 | 10.0 |
- Inductance tested at 100KHz , 0.1V.
- Inductance drop = 10% typ. at rated isat.
- Δ T = 40 °C rise typ. at irms.
- Operating temperature range -40 °C to +125 °C.
- Electrical specifitions at +25 °C.
| Electrical Characteristics (TCDU1009) | |||||
| Part No | L (µH) | DCR (mΩ) | Isat (A) | Irms (A) | |
| ±20% | TYP | MAX | TYP | TYP | |
| TCDU1009-R22M | 0.22 | 0.53 | 0.65 | 50.0 | 33.0 |
| TCDU1009-R36M | 0.36 | 0.70 | 0.90 | 50.0 | 33.0 |
| TCDU1009-R47M | 0.47 | 0.70 | 0.90 | 30.0 | 26.0 |
| TCDU1009-R50M | 0.50 | 0.70 | 0.90 | 30.0 | 26.0 |
| TCDU1009-R56M | 0.56 | 0.70 | 0.90 | 30.0 | 26.0 |
| TCDU1009-R80M | 0.80 | 1.28 | 1.56 | 30.0 | 20.0 |
| TCDU1009-1R0M | 1.00 | 1.28 | 1.56 | 30.0 | 20.0 |
| TCDU1009-2R2M | 2.20 | 4.00 | 3.10 | 18.0 | 13.0 |
- Inductance tested at 100KHz , 0.1V.
- Inductance drop = 10% typ. at rated isat.
- Δ T = 40 °C rise typ. at irms.
- Operating temperature range -40 °C to +125 °C.
- Electrical specifitions at +25 °C.
| Electrical Characteristics (TCDU1109) | |||||
| Part No | L (µH) | DCR (mΩ) | Isat (A) | Irms (A) | |
| ±20% | TYP | MAX | TYP | TYP | |
| TCDU1109-R22M | 0.22 | 0.50 | 0.75 | 40.0 | 30.0 |
| TCDU1109-R56M | 0.56 | 1.00 | 1.30 | 40.0 | 28.0 |
| TCDU1109-1R0M | 1.00 | 1.20 | 1.50 | 28.0 | 24.0 |
| TCDU1109-1R2M | 1.20 | 1.20 | 1.50 | 26.0 | 22.0 |
| TCDU1109-2R2M | 2.00 | 2.30 | 3.00 | 25.0 | 18.0 |
- Inductance tested at 100KHz , 0.1V.
- Inductance drop = 10% typ. at rated isat.
- Δ T = 40 °C rise typ. at irms.
- Operating temperature range -40 °C to +125 °C.
- Electrical specifitions at +25 °C.
| Order Codes (TCDU) | ||||||||||||||||||||||||||||||||||||
| TCDU | 1109 | - | R22 | M | ||||||||||||||||||||||||||||||||
 | | | | |||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||
