Choke Coil Inductors Radial (TCRS)

DeMint TCRS series structure with magnetic shielded construction design and protect by UL or PVC Heat-shrinkable tube. The TCRS features with small size, space savings, wide inductance range, high Q value, low cost, high availability of a large induced current, high self-resonance frequency, small magnetic flux leakage and so on.

Choke coils, also known as: Choke, differential mode inductors, is used to limit the alternating current through the coil, high-frequency and low frequency choke coils.

The TCRS is idael for notebook computers, inkjet printers, photocopying machines, color TV, VCR, camera, microwave ovens, display monitors, mobile phones, broadband modems, game consoles, lighting equipment, automotive electronics products.

DeMint will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information. Download complete specification Magnetic Shielded Construction (TCRS) PDF.

Features :
  1. Magnetic shielded construction.
  2. Ideal for use as an inductor for high current power supplies in all types of electronic instruments.
Applications :
  1. Notebook, Inkjet printer, Copying machine,
  2. Display monitor, Cellular phone, ADSL modem,
  3. Gaming machine, Color TV, Video tape recorder,
  4. Microwave oven, Lighting and Car electronics.

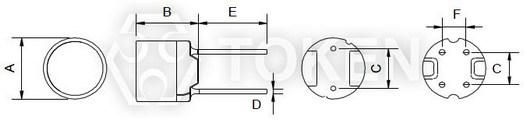

Configurations & Dimensions (Unit: mm) (TCRS)
(TCRS) Configurations & Dimensions(TCRS) Configurations & Dimensions
(TCRS) Configurations & Dimensions
Part NO A±1.0 B±1.0 C D(Ref) E(Ref) F(Ref)
TCRS0606 6.0 6.5 4.0 0.5 15 FIG1
TCRS0807 7.8 7.5 5.0 0.7 15 FIG1
TCRS1008 10 8.5 5.0 0.7 15 FIG1(4.0±0.3)
TCRS1010 10 10.5 5.0 0.7 15 FIG1(4.0±0.3)
Note: Design as Customer's Requested Specifications.
Electrical Characteristics (TCRS)
MARKING Inductance
(μH) 		TCRS0606 TCRS0807 TCRS1008 TCRS1010
DCR(Ω)
Max 		IDC (A) DCR(Ω)
Max 		IDC (A) DCR(Ω)
Max 		IDC (A) DCR(Ω)
Max 		IDC (A)
100 10         0.05 2.80 0.023 3.51
120 12         0.06 2.50 0.024 3.24
150 15         0.07 2.30 0.036 2.88
180 18         0.08 2.10 0.039 2.61
220 22 0.13 0.96 0.08 1.6 0.09 2.00 0.042 2.34
270 27 0.18 0.87 0.10 1.4 0.10 1.76 0.045 2.16
330 33 0.21 0.78 0.14 1.3 0.11 1.60 0.057 1.89
390 39 0.26 0.72 0.15 1.2 0.12 1.38 0.076 1.80
470 47 0.29 0.66 0.17 1.1 0.14 1.28 0.10 1.62
560 56 0.33 0.60 0.19 0.99 0.15 1.20 0.11 1.44
680 68 0.36 0.55 0.21 0.89 0.16 1.00 0.15 1.35
820 82 0.39 0.50 0.27 0.81 0.18 0.96 0.16 1.26
101 100 0.54 0.45 0.32 0.74 0.20 0.92 0.19 1.08
121 120 0.62 0.41 0.36 0.67 0.24 0.80 0.21 0.99
151 150 0.72 0.37 0.51 0.60 0.35 0.73 0.23 0.90
181 180 0.88 0.34 0.57 0.55 0.40 0.64 0.26 0.82
221 220 0.99 0.30 0.76 0.50 0.54 0.61 0.29 0.74
271 270 1.52 0.27 0.86 0.45 0.76 0.56 0.36 0.67
331 330 1.69 0.25 0.97 0.41 0.86 0.50 0.51 0.61
391 390 1.85 0.23 1.28 0.37 0.93 0.44 0.69 0.55
471 470 2.85 0.21 1.44 0.34 1.23 0.41 0.98 0.51
561 560 3.21 0.19 1.62 0.31 1.34 0.38 1.10 0.46
681 680 3.60 0.17 2.07 0.28 1.53 0.34 1.20 0.42
821 820 4.87 0.16 2.33 0.26 2.10 0.32 1.30 0.38
102 1000 5.56 0.14 2.72 0.23 2.30 0.28 1.50 0.35
122 1200     3.98 0.21
152 1500     4.50 0.19
182 1800     6.81 0.17
222 2200     7.56 0.16
272 2700     8.54 0.14
332 3300     9.74 0.13
392 3900     12.9 0.12
472 4700     14.7 0.11
562 5600     20.4 0.099
682 6800     23.0 0.089
822 8200     30.6 0.081
103 10000     35.0 0.074
Note:
  • Test Freq.: 1KHz / 0.25V.
  • Operating Temp.: -40°C ~ +85°C.
  • Inductance drop = 10% typ. at IDC.
Order Codes (TCRS)
TCRS 0606 - 220 M

Part Number
TCRS
Size
0606 6.0×6.5mm
0807 7.8×7.5mm
1008 10.0×8.5mm
1010 10.0×10.5mm

Inductance
220 22.00µH
101 100.00µH
102 1000.00µH
103 10000.00µH
Tolerance
J ±5%
K ±10%
L ±15%
M ±20%
N ±30%
Y min
