Choke coils, also known as: Choke, differential mode inductors, is used to limit the alternating current through the coil, high-frequency and low frequency choke coils.
DeMint (TCRC) series structure with open magnetic circuit design and protect by UL or PVC Heat-shrinkable tube. The (TCRC) features with small size, high Q value, low cost, high self-resonance frequency, high availability of a large induced current, small magnetic flux leakage and so on.
The power choke (TCRC) is idael for notebook computers, inkjet printers, photocopying machines, display monitors, mobile phones, broadband modems, game consoles, color TV, VCR, camera, microwave ovens, lighting equipment, automotive electronics products.
DeMint will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information. Download complete specification Open Magnetic Circuit Design (TCRC) PDF.

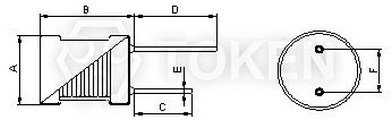

Configurations & Dimensions (Unit: mm) (TCRC) | |||||||
| |||||||
Part NO | A±1.0 | B±1.0 | C | D(Ref) | E(Ref) | F(Ref) | |
TCRC0304 | 3.5 | 6.0 | 12 | 15 | 0.5 | 1.3 | |
TCRC0406 | 4.5 | 7.0 | 12 | 15 | 0.6 | 2.0 | |
TCRC0507 | 5.5 | 9.0 | 12 | 15 | 0.6 | 2.5 | |
TCRC0608 | 6.5 | 10.0 | 12 | 15 | 0.6 | 3.0 | |
TCRC0810 | 8.5 | 12.0 | 12 | 15 | 0.6 | 5.0 | |
TCRC0912 | 9.5 | 14.0 | 12 | 15 | 0.6 | 5.0 |
Electrical Characteristics (TCRC) | |||||||||||||
MARKING |
Inductance (μH) |
TCRC0304 | TCRC0406 | TCRC0507 | TCRC0608 | TCRC0810 | TCRC0912 | ||||||
DCR
(Ω) Max |
Isat (mA) |
DCR
(Ω) Max |
Isat (mA) |
DCR
(Ω) Max |
Isat (mA) |
DCR
(Ω) Max |
Isat (mA) |
DCR
(Ω) Max |
Isat (mA) |
DCR
(Ω) Max |
Isat (mA) |
||
1R0 | 1.0 | 0.10 | 1000 | 0.10 | 1400 | 0.014 | 3500 | 0.02 | 3400 | ||||
1R2 | 1.2 | 0.10 | 1000 | 0.12 | 1200 | 0.02 | 3400 | ||||||
1R5 | 1.5 | 0.10 | 900 | 0.15 | 1200 | 0.02 | 3000 | 0.02 | 3400 | ||||
1R8 | 1.8 | 0.10 | 800 | 0.17 | 1100 | 0.03 | 3300 | ||||||
2R2 | 2.2 | 0.10 | 700 | 0.20 | 1100 | 0.02 | 2500 | 0.03 | 3000 | ||||
2R7 | 2.7 | 0.20 | 700 | 0.20 | 1300 | 0.04 | 3000 | ||||||
3R3 | 3.3 | 0.20 | 650 | 0.22 | 1300 | 0.03 | 2000 | 0.04 | 3000 | ||||
3R9 | 3.9 | 0.20 | 500 | 0.24 | 1300 | 0.05 | 2900 | ||||||
4R7 | 4.7 | 0.30 | 450 | 0.26 | 800 | 0.04 | 1700 | 0.05 | 2900 | ||||
5R6 | 5.6 | 0.30 | 400 | 0.28 | 800 | 0.06 | 2600 | ||||||
6R8 | 6.8 | 0.30 | 350 | 0.30 | 800 | 0.06 | 1300 | 0.06 | 2500 | ||||
8R2 | 8.2 | 0.40 | 350 | 0.35 | 800 | 0.06 | 2000 | ||||||
100 | 10 | 0.50 | 300 | 0.46 | 700 | 0.08 | 1000 | 0.09 | 1300 | 0.10 | 1600 | 0.04 | 2800 |
120 | 12 | 0.60 | 300 | 0.48 | 600 | 0.10 | 950 | 0.10 | 1100 | 0.10 | 1400 | 0.04 | 2700 |
150 | 15 | 0.60 | 300 | 0.55 | 600 | 0.11 | 900 | 0.11 | 1050 | 0.10 | 1300 | 0.05 | 2300 |
180 | 18 | 0.70 | 290 | 0.65 | 500 | 0.11 | 800 | 0.12 | 1000 | 0.11 | 1200 | 0.06 | 2100 |
220 | 22 | 0.80 | 270 | 0.72 | 500 | 0.12 | 700 | 0.12 | 960 | 0.13 | 1100 | 0.07 | 2000 |
270 | 27 | 0.90 | 270 | 0.78 | 400 | 0.14 | 600 | 0.17 | 920 | 0.14 | 1000 | 0.10 | 1700 |
330 | 33 | 2.00 | 260 | 0.87 | 400 | 0.16 | 550 | 0.19 | 880 | 0.16 | 900 | 0.12 | 1500 |
390 | 39 | 2.00 | 250 | 0.90 | 400 | 0.18 | 500 | 0.22 | 860 | 0.16 | 800 | 0.12 | 1400 |
470 | 47 | 3.00 | 180 | 0.98 | 400 | 0.20 | 500 | 0.23 | 830 | 0.16 | 700 | 0.13 | 1300 |
560 | 56 | 3.00 | 170 | 1.50 | 320 | 0.22 | 450 | 0.29 | 810 | 0.22 | 700 | 0.14 | 1200 |
680 | 68 | 3.00 | 170 | 1.90 | 300 | 0.30 | 450 | 0.37 | 750 | 0.23 | 600 | 0.15 | 1000 |
820 | 82 | 4.00 | 160 | 2.50 | 300 | 0.34 | 400 | 0.39 | 740 | 0.27 | 500 | 0.16 | 900 |
101 | 100 | 4.00 | 150 | 3.00 | 200 | 0.36 | 400 | 0.44 | 710 | 0.29 | 400 | 0.25 | 700 |
121 | 120 | 4.00 | 150 | 3.80 | 200 | 0.44 | 350 | 0.64 | 680 | 0.33 | 400 | 0.28 | 700 |
151 | 150 | 5.00 | 130 | 4.50 | 200 | 0.52 | 300 | 0.73 | 600 | 0.46 | 350 | 0.32 | 700 |
181 | 180 | 5.00 | 130 | 5.00 | 200 | 0.65 | 300 | 0.83 | 540 | 0.51 | 350 | 0.47 | 600 |
221 | 220 | 8.00 | 100 | 5.80 | 200 | 0.75 | 250 | 0.92 | 450 | 0.62 | 300 | 0.53 | 500 |
271 | 270 | 9.00 | 90 | 6.50 | 150 | 0.10 | 240 | 1.3 | 420 | 0.65 | 250 | 0.60 | 450 |
331 | 330 | 10.0 | 90 | 7.00 | 150 | 1.3 | 200 | 1.5 | 400 | 0.79 | 250 | 0.85 | 400 |
391 | 390 | 10.0 | 80 | 7.70 | 150 | 1.4 | 180 | 1.8 | 370 | 0.91 | 200 | 0.95 | 350 |
471 | 470 | 11.0 | 80 | 8.00 | 120 | 1.6 | 160 | 2.3 | 340 | 1.2 | 180 | 1.1 | 350 |
561 | 560 | 15.0 | 70 | 8.50 | 120 | 2.0 | 160 | 3.0 | 280 | 1.2 | 160 | 1.2 | 300 |
681 | 680 | 23.0 | 50 | 9.50 | 120 | 2.3 | 140 | 3.25 | 250 | 1.5 | 140 | 1.3 | 250 |
821 | 820 | 26.0 | 50 | 15 | 100 | 2.7 | 130 | 4.16 | 230 | 1.7 | 140 | 1.4 | 200 |
102 | 1000 | 29.00 | 50 | 17 | 100 | 3.1 | 120 | 4.55 | 210 | 2.0 | 120 | 2.0 | 200 |
122 | 1200 | 33.0 | 40 | 20 | 80 | 4.6 | 110 | 5.20 | 200 | 2.3 | 100 | 2.3 | 180 |
152 | 1500 | 37.0 | 40 | 22 | 80 | 5.3 | 100 | 7.54 | 180 | 2.9 | 80 | 2.9 | 150 |
182 | 1800 | 41.0 | 40 | 25 | 70 | 6.2 | 90 | 7.54 | 160 | 3.5 | 80 | 3.3 | 120 |
222 | 2200 | 46.0 | 30 | 26 | 60 | 6.8 | 80 | 8.32 | 150 | 4.2 | 70 | 4.5 | 110 |
272 | 2700 | 51.0 | 30 | 46 | 40 | 10 | 60 | 9.62 | 130 | 5.1 | 60 | 5.5 | 90 |
332 | 3300 | 50 | 30 | 12 | 60 | 10.92 | 130 | 6.1 | 60 | 5.7 | 80 | ||
392 | 3900 | 54 | 30 | 13 | 55 | 16.12 | 100 | 7.8 | 50 | 6.5 | 80 | ||
472 | 4700 | 60 | 30 | 15 | 55 | 17.81 | 85 | 11 | 50 | 7.2 | 60 | ||
562 | 5600 | 65 | 30 | 22 | 50 | 20.0 | 70 | 11 | 45 | 9.5 | 50 | ||
682 | 6800 | 72 | 30 | 25 | 45 | 27.3 | 65 | 14 | 45 | 11 | 50 | ||
822 | 8200 | 80 | 20 | 28 | 45 | 31.2 | 60 | 15 | 40 | 13 | 50 | ||
103 | 10000 | 95 | 10 | 35 | 35 | 39.0 | 58 | 20 | 35 | 16 | 40 | ||
123 | 12000 | 45 | 30 | 42.9 | 56 | 24 | 35 | 18 | 40 | ||||
153 | 15000 | 52 | 30 | 65.0 | 53 | 28 | 35 | 21 | 40 | ||||
183 | 18000 | 58 | 30 | 72.8 | 50 | 42 | 30 | 23 | 40 | ||||
223 | 22000 | 80 | 20 | 82.55 | 46 | 43 | 30 | 33 | 35 | ||||
273 | 27000 | 90 | 20 | 95.42 | 42 | 55 | 25 | 37 | 35 | ||||
333 | 33000 | 135 | 15 | 135.2 | 38 | 65 | 25 | 42 | 35 | ||||
393 | 39000 | 150 | 15 | 154.7 | 37 | 87 | 25 | 45 | 30 | ||||
473 | 47000 | 170 | 15 | 172.9 | 35 | 98 | 25 | 52 | 30 |
Order Codes (TCRC) | |||||||||||||||||||||||||||||||||||||||||||||||||||||
TCRC | U | 0304 | - | 1R0 | M | ||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
