Communication Ceramic Filters (LTM 455/450 U/W)

DeMint communication ceramic filter is Murata CFUM/WM 455/450 compatible. DeMint ceramic filters for communication LTM 455/450 U/W series are miniaturized versions of the Murata CFU/CFWS lines.

These compact, highly selective characteristics are recommended for use in applications ranging from two-way radio to auxiliary filters in high class transceivers.

These ultra-miniature versions consume approximately 40% less volume while still offering the same high performance filter characteristics. Download complete (LTM 455/450) Communication Ceramic Filter Datasheet PDF (291KB).

Benefit Features :
  1. LTM 455 EU Dimensions: (6.5 x 6.5 x 6.2 mm).
  2. LTM 455 EW Dimensions: (6.5 x 9.5 x 6.2 mm).
  3. Center Frequency: 455kHz (450kHz is also available).
  4. Input / Output Impedance: 1000Ω ~ 2000Ω.
  5. Insertion Loss (dB) max: 4db, 6db.
  6. Pass Band Ripple (dB) max: 2db.
Dimensions (Unit: mm) (LTM 455/450 U/W)
(LTM 455 EU) Dimensions
(LTM 455 EU) Dimensions

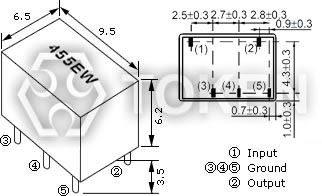

(LTM 455 EW) Dimensions
(LTM 455 EW) Dimensions
Technical Characteristics (LTM 455/450 U/W)

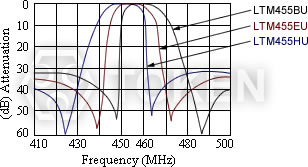

(LTM 455 U) Characteristics
(LTM 455 U) Characteristics

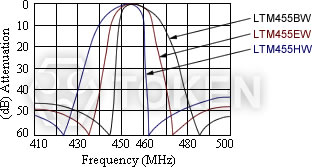

(LTM 455 W) Characteristics
(LTM 455 W) Characteristics
Part Number Center Frequency (kHz) Insertion Loss (dB) max Pass Band Ripple (dB) max 6dB Band Width (kHz) min 40dB Band Width (kHz) max LTM455 U 50dB Band Width (kHz) max LTM455 W Spurious Attenuation fo±100kHz (dB) min Input / Output Impedance (Ω)
LTM455 U LTM455 W
LTM455AU LTM455AW 455±2.0 4 2 ±17.5 ±40 ±35 28 40 1000
LTM455BU LTM455BW 455±2.0 4 2 ±15 ±30 ±30 28 40 1500
LTM455CU LTM455CW 455±2.0 4 2 ±12.5 ±24 ±24 28 40 1500
LTM455DU LTM455DW 455±1.5 4 2 ±10 ±20 ±20 28 40 1500
LTM455EU LTM455EW 455±1.5 6 2 ±7.5 ±15 ±15 28 40 1500
LTM455FU LTM455FW 455±1.5 6 2 ±6 ±12.5 ±12.5 28 40 2000
LTM455GU LTM455GW 455±1.5 6 2 ±4.5 ±10 ±10 28 40 2000
LTM455HU LTM455HW 455±1.0 6 2 ±3 ±9 ±9 28 40 2000
LTM455IU LTM455IW 455±1.0 6 2 ±2 ±7.5 ±7.5 28 40 2000
LTM455HTU LTM455HTW 455±1.0 6 2 ±3 ±9 ±9 35 60 2000
Center frequency 450kHz is also available.
Test Circuit (LTM 455/450 U/W)

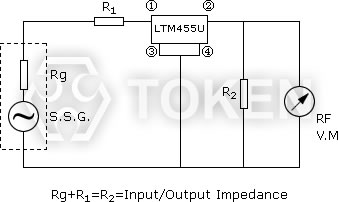

(LTM455U) Test Circuit
(LTM455U) Test Circuit

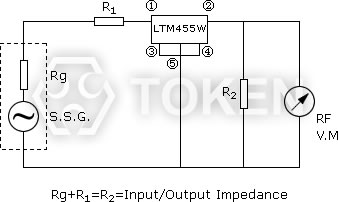

(LTM455W) Test Circuit
(LTM455W) Test Circuit
Order Codes (LTM 455/450 U/W)
LTM455BU P
Part Number
Package
