Ceramic Filters 4.5 MHz~6.5 MHz (LTS MCB/MDB)

DeMint (LTS MCB/MDB) Ceramic Filter is suitable for Multiplex Sound TV in America. DeMint series ceramic filters low spurious for TV/VCR stage LTS MCB/MDB series use thickness shear vibration mode and is compatible Murata SFSH MCB/MDB. Features with excellent spurious characteristics within Video Signal Band, and 3 types bandwidths prepared to respond customer requests. LTS MCB/MDB is suitable for Multiplex Sound TV in America.

The LTS MCB/MDB series conform to the RoHS directive and Lead-free. This filter low spurious for TV/VCR stage LTS MCB/MDB series can be customed designs and tighter tolerances available on request.

Application of filter specific designs also available including different piezo band-pass devices and Q specifications adjusted to frequency requirements. DeMint filters can supply you high performance, high quality and stability.

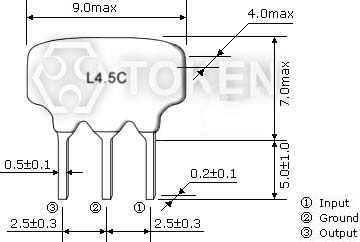

With dimensions max (10 x 8.0 x 4.0 mm), Insert Loss max 6dB, and Spurious Attenuation (0~fo) min 30dB, The LTS MCB/MDB has excellent spurious characteristics within Video Signal Band. Nominal Center Frequency (fo) is available with 4.500kHz, 5.500kHz, 6.000kHz, and 6.500kHz.

Custom parts are available on request. DeMint will also produce devices outside these specifications to meet specific customer requirements,
please contact our sales for more information.

Download complete PDF Ceramic Filters 4.5 MHz~6.5 MHz (LTS MCB/MDB).
