Ceramic Communication Filters (LT 455/450 U/W)

DeMint Ceramic Filters Address the G.D.T. Characteristics for Communication (Murata CF, SF Compatible). DeMint ceramic filters for communication LT 455/450 U/W series are 4-element and 6-element devices connected in ladder form. These highly selective filters are designed to address the G.D.T. characteristics required in digital communications.

The excellent G.D.T. characteristics allow these filters to be utilized in areas such as the mobile cellular markets as well as a variety of stereo applications. (Also available in 450kHz version.)

Custom parts are available on request. DeMint will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information. Download complete (LT 455/450 U/W) Ceramic Communication Filter Datasheet PDF (323KB).

Benefit Features :
  1. LT455 EU Dimensions: (7.0 x 8.0 x 8.0 mm).
  2. LT455 EW Dimensions: (7.0 x 11.0 x 8.0 mm).
  3. Center frequency: 450kHz, 455kHz.
  4. Pass Band Ripple (dB) max: 2 db.
  5. Insertion Loss (dB) max: 4 db, 6 db.
  6. Input / Output Impedance: 1000Ω ~ 2000Ω.
Dimensions (Unit: mm) (LT 455/450 U/W)
(LT 455 EU) Dimensions
(LT 455 EU) Dimensions

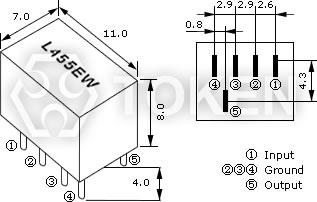

(LT 455 EW) Dimensions
(LT 455 EW) Dimensions
Technical Characteristics (LT 455/450 U/W)

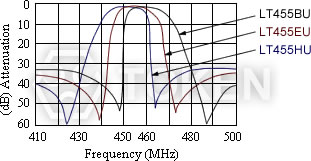

(LT 455 U) Characteristics
(LT 455 U) Characteristics

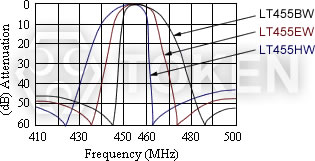

(LT 455 W) Characteristics
(LT 455 W) Characteristics
Part Number Center Frequency (kHz) Insertion Loss (dB) max Pass Band Ripple (dB) max 6dB Band Width (kHz) min 40dB Band Width (kHz) max (LT455 U) 50dB Band Width (kHz) max (LT455 W) Spurious Attenuation fo±100kHz (dB) min Input / Output Impedance (Ω)
(LT455 U) (LT455 W)
LT455AU LT455AW 455±2.0 4 2 ±17.5 ±40 ±35 28 40 1000
LT455BU LT455BW 455±2.0 4 2 ±15 ±30 ±30 28 40 1500
LT455CU LT455CW 455±2.0 4 2 ±12.5 ±24 ±24 28 40 1500
LT455DU LT455DW 455±1.5 4 2 ±10 ±20 ±20 28 40 1500
LT455EU LT455EW 455±1.5 6 2 ±7.5 ±15 ±15 28 40 1500
LT455FU LT455FW 455±1.5 6 2 ±6 ±12.5 ±12.5 28 40 2000
LT455GU LT455GW 455±1.5 6 2 ±4.5 ±10 ±10 28 40 2000
LT455HU LT455HW 455±1.0 6 2 ±3 ±9 ±9 28 40 2000
LT455IU LT455IW 455±1.0 6 2 ±2 ±7.5 ±7.5 28 40 2000
LT455HTU LT455HTW 455±1.0 6 2 ±3 ±9 ±9 35 60 2000
Center frequency 450kHz is also available.
Test Circuit (LT 455/450 U/W)
(LT 455 U) Test Circuit
(LT 455 U) Test Circuit

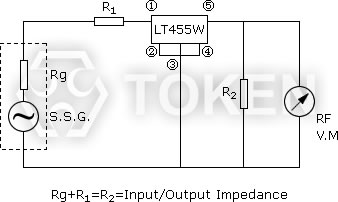

(LT 455 W) Test Circuit
(LT 455 W) Test Circuit
Order Codes (LT 455/450 U/W)
LT455BU P
Part Number
Package
