Trap Filters (XT MJ)

DeMint (XT MJ) for Chrominance Carrier is Murata Trap Filter TPS MJ Series Compatible. (XT MJ) Series are band reject device used for video and sound IF attenuation. The 2 terminal (XT MJ) Series can be used to attenuate either the sound signal in B/W receivers or the chroma signal in video.
Download (XT MJ) datasheet, PDF (291KB)

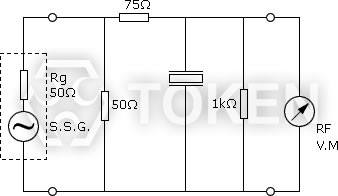

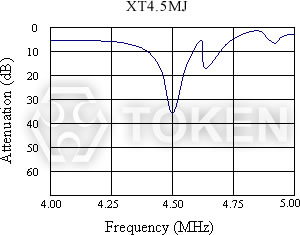

(XT MJ) Trap Filter Quick Selection :

1. Dimensions (Unit: mm): 10.0 max x 10.0 max x 5.0 max.
2. XT3.58MJ Cener Frequency f₀:3.58MHz; 20db min @f₀; 20(kHz)min@20dB Att BW
3. XT4.43MJ Cener Frequency f₀:4.43MHz; 20db min @f₀; 40(kHz)min@20dB Att BW
4. XT4.5MJ Cener Frequency f₀:4.5MHz; 20db min @f₀; 40(kHz)min@20dB Att BW
5. XT5.74MJ Cener Frequency f₀:5.74MHz; 20db min @f₀; 40(kHz)min@20dB Att BW
6. XT5.5MJ Cener Frequency f₀:5.5MHz; 20db min @f₀; 40(kHz)min@20dB Att BW
7. XT6.0MJ Cener Frequency f₀:6.0MHz; 20db min @f₀; 40(kHz)min@20dB Att BW
8. XT6.5MJ Cener Frequency f₀:6.5MHz. 20db min @f₀; 40(kHz)min@20dB Att BW

Filter Features :

1. RoHS Compliant.
2. TV SIF stage use.
3. Low insertion loss.
4. Wide bandwidth Ceramic Trap.
5. Excellent spurious suppression characteristics.
