Visible Light Sensor RoHS Compliant (PT-IC-AC) Plate Edge
DeMint providing optimized light sensing solutions to enhance system efficiency and ease-of-design.
(PT-IC-AC) visible light sensor is a silicon NPN epitaxial planar phototransistor in a T-1 package. It is sensitive to visible light much like the human eye and has peak sensitivity at 520nm ~ 580nm.
The spectral response of the integrated light sensor with a very low dark current that are optimized for sensing low level light signals. So it ignores light such as infrared which emits energy but does not aid vision. This eliminates the need for an Infrared filter required with competitor light sensors.
The (PT-IC-AC) Plate Edge IR visible light detector using high quality chip packaging and processing super-plated infrared filter membrane on chip surface, so this sensor can fully filter infrared interference. It is no need to add the casing and extra filter and effective filtering out the effect of light reflection due to infrared emission on security products.
By selecting the accuracy of chips, under strict management of production process, (PT-IC-AC) visible light sensors finished batch consistency uniform. The consistency is 3 to 5 times higher on comparison of similar photosensitive devices. The precision can be controlled as narrow as 10%. Fully meet the customer requirements for starting the LUX value. DeMint taking the advantage of temperature compensation internal process on the chip, (PT-IC-AC) features one times higher temperature resistance than other similar products while working on high temperature environment.
Download complete specification Visible Light Sensor RoHS Compliant (PT-IC-AC) Plate Edge PDF.
- Simulate the human eye, peak wavelength 550nm.
- Built-in infrared filter, can be anti-infrared interference.
- Good batch consistency, completely solve the infrared light start too early.
- Fast response, stable performance, aging at +85°C/ 65% humidity for 1000 Hr.
- The starting point does not drift. Nice appearance.
- Replace the traditional CDS photoresistor.
- Cadmium and lead free with RoHS compliant.
- Dedicated to infrared monitoring products.
- When control the infrared light, it is no need to add extra casing and filter on low illumination.
- For the convenience of installation in all kinds of products in any position, different sizes are available upon request.
- DeMint offers various option of the bright current/dark current (bright resistance/dark resistance) to costume the most products.

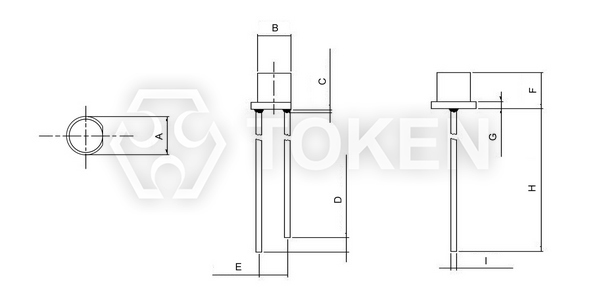

| Dimensions & Configurations (Unit: mm) (PT-IC-AC-PE-550) Plate Edge | ||||||||||
|
||||||||||
| Part NO. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | |
| PT-IC-AC-3-PE-550 | 4.05 ± 0.20 | 3.00 ± 0.20 | 1.50 Max. | 1.50 ± 0.5 | 2.54 ± 0.20 | 3.85 ± 0.20 | 0.75 ± 0.20 | 25.4 Min. | 0.50 ± 0.20 | |
| PT-IC-AC-5-PE-550 | 5.80 ± 0.20 | 5.00 ± 0.20 | 1.50 Max. | 1.50 ± 0.50 | 2.54 ± 0.20 | 5.30 ± 0.20 | 1.00 ± 0.20 | 25.4 Min. | 0.50 ± 0.50 | |
- The epoxy resin highest: 1.5mm max.
- Product images, plastic color of apperence, and all other information is for reference only, goods in-kind prevail.
- Short Lead—Collector Long Lead—Emitter.

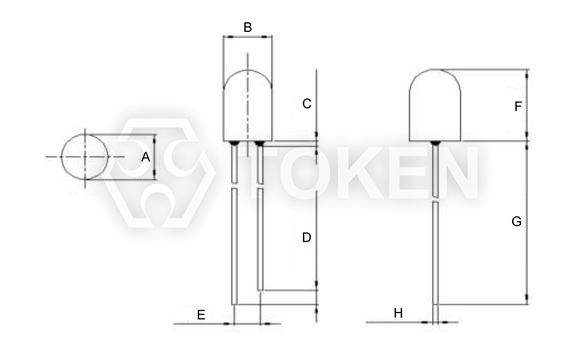

| Dimensions & Configurations (Unit: mm) (PT-IC-AC-5-BN-520) Bullet None | |||||||||
|
|||||||||
| Part NO. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | |
| PT-IC-AC-5-BN-520 | 5.00 ± 0.20 | 5.00 ± 0.20 | 1.50 Max. | 2.00 ± 0.5 | 2.54 ± 0.20 | 7.00 ± 0.20 | 14.00 Min. | 0.50 ± 0.20 | |
- The epoxy resin highest: 1.5mm max.
- Product images, plastic color of apperence, and all other information is for reference only, goods in-kind prevail.
- Short Lead—Collector Long Lead—Emitter.

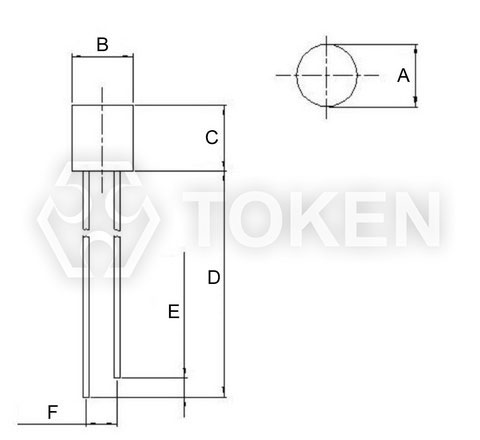

| Dimensions & Configurations (Unit: mm) (PT-IC-AC-5-PN-580) Plate None | |||||||
|
|||||||
| Part NO. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | |
| PT-IC-AC-5-PN-580 | 5.00 ± 0.20 | 5.00 ± 0.20 | 5.30 ± 0.20 | 14.0 Min. | 2.00 ± 0.50 | 2.54 ± 0.20 | |
- The epoxy resin highest: 1.5mm max.
- Product images, plastic color of apperence, and all other information is for reference only, goods in-kind prevail.
- Short Lead—Collector Long Lead—Emitter.
| Electro-Optical Characteristics (Ta=25°C) (PT-IC-AC-3-PE-550) Plate Edge | ||||||
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Peak Wavelength | λp | \ | - | 550 | - | nm |
| Spectral Response Range | λ | \ | 400 | - | - | nm |
| Operating Voltage | Vcc | \ | - | 5 | - | V |
| Photo Current | IL(1) | Vcc=5V Ev=10Lux |
7 | 13 | 18 | μA |
| IL(2) | Vcc=5V Ev=30Lux |
21 | 39 | 54 | μA | |
| IL(3) | Vcc=5V Ev=100Lux |
70 | 130 | 180 | μA | |
| Collector Dark Current | Id | Vcc=5V/85°C Ev=0Lux |
- | - | 0.8 | μA |
| Rise Time | tr | Vcc=5V Ev=30Lux RL=1000Ω |
4.5 | ms | ||
| Fall Time | tf | 4.5 | ||||
| Electro-Optical Characteristics (Ta=25°C) (PT-IC-AC-5-PE-550) Plate Edge | ||||||
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Peak Wavelength | λp | \ | - | 550 | - | nm |
| Spectral Response Range | λ | \ | 400 | - | - | nm |
| Operating Voltage | Vcc | \ | - | 5 | - | V |
| Photo Current | IL(1) | Vcc=5V Ev=10Lux |
7 | 13 | 18 | μA |
| IL(2) | Vcc=5V Ev=30Lux |
20 | 39 | 54 | μA | |
| IL(3) | Vcc=5V Ev=100Lux |
70 | 130 | 180 | μA | |
| Collector Dark Current | Id | Vcc=5V/85°C Ev=0Lux |
- | - | 0.8 | μA |
| Rise Time | tr | Vcc=5V Ev=30Lux RL=1000Ω |
4.5 | ms | ||
| Fall Time | tf | 4.5 | ||||
Absolute maximum ratings (Ta=25°C) (PT-IC-AC-3-PE-550) & (PT-IC-AC-5-PE-550) Plate Edge
| Absolute maximum ratings (Ta=25°C) (PT-IC-AC-3-PE-550) & (PT-IC-AC-5-PE-550) Plate Edge | ||||
| Parameter | Symbol | Value | Unit | |
| Operating Voltage | Vcc | Min. | Max. | V |
| 1 | 10 | V | ||
| Power Dissipation | Pc | 70 | mW | |
| Operating Temperature Range | Topr | -25 ~ +85 | °C | |
| Storage Temperature | Tstg | -40 ~ +100 | °C | |
| Electro-Optical Characteristics (Ta=25°C) (PT-IC-AC-5-BN-520) Bullet None | ||||||
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Peak Wavelength | λp | \ | - | 520 | - | nm |
| Spectral Response Bandwidth | λ | \ | 400 | - | 700 | nm |
| Operating Voltage | Vcc | \ | - | 5 | - | V |
| Photo Current | IL(1) | Vcc=5V Ev=10Lux |
4 | 8 | 12 | μA |
| IL(2) | Vcc=5V Ev=30Lux |
12 | 24 | 36 | μA | |
| IL(3) | Vcc=5V Ev=100Lux |
40 | 80 | 120 | μA | |
| Collector Dark Current | Id | Vcc=5V/85°C Ev=0Lux |
- | - | 0.8 | μA |
| IR Receiving Current | IL(4) | Vce=5V/850nm IR LED Ee=1mW/cm2 |
- | - | 0.05 | μA |
| Rise Time | tr | Vcc=5V RL=1000Ω |
4.5 | ms | ||
| Fall Time | tf | 4.5 | ||||
| Absolute maximum ratings (Ta=25°C) (PT-IC-AC-5-BN-520) Bullet None | |||
| Parameter | Symbol | Value | Unit |
| Collector-Emitter Breakdown Voltage | VCEO | 60 | V |
| Emitter-Base Breakdown Voltage | VECO | 7 | V |
| Power Dissipation | PC | 50 | mW |
| Operating Temperature Range | Topr | -25 ~ +85 | °C |
| Storage Temperature | Tstg | -40 ~ +100 | °C |
| Electro-Optical Characteristics (Ta=25°C) (PT-IC-AC-5-PN-580) Plate None | ||||||
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Peak Wavelength | λp | \ | - | 580 | - | nm |
| Spectral Response Bandwidth | λ | \ | 400 | - | 700 | nm |
| Operating Voltage | Vcc | \ | - | 5 | - | V |
| Photo Current | IL(1) | Vcc=5V Ev=10Lux |
1.5 | 3.5 | 5.5 | μA |
| IL(2) | Vcc=5V Ev=30Lux |
4.5 | 10.5 | 16.5 | μA | |
| IL(3) | Vcc=5V Ev=100Lux |
15 | 35 | 55 | μA | |
| Collector Dark Current | ID | Vcc=5V/85°C Ev=0Lux |
- | - | 0.8 | μA |
| IR Receiving Current | IL(4) | Vcc=5V/850nm ir LED Ee=1mW/cm2 |
- | - | 0.05 | μA |
| Rise Time | tr | Vcc=5V RL=1000Ω |
4.5 | ms | ||
| Fall Time | tf | 4.5 | ||||
| Absolute maximum ratings (Ta=25°C) (PT-IC-AC-5-PN-580) Plate None | ||||
| Parameter | Symbol | Value | Unit | |
| Operating Voltage | Vcc | Min. | Max. | V |
| 1 | 10 | V | ||
| Operating Temperature Range | Topr | -25 ~ +85 | °C | |
| Storage Temperature | Tstg | -40 ~ +100 | °C | |
| Soldering Temperature | Tsol | 260 | °C | |
