Visible Light Sensor of Security Infrared Filter (PT-IC-GC) Plate Edge

Visible Light Sensor of Infrared Filter (PT-IC-GC-3-PE-520)

Infrared filtration film for advanced plating technology on DeMint Visible Security Light Sensor.

Visible light sensors are used to detect light or illumination using a manner similar to the human eye. They are typically used in industrial lighting, consumer electronics, and vehicle systems, where they allow settings to be adjusted automatically in response to changing ambient light conditions. By turning on, turning off, or adjusting features, visible light sensors can conserve battery power or provide extra safety while eliminating the need for manual adjustments.

The (PT-IC-GC) family using high quality chip packaging and processing super-plated infrared filter membrane on chip surface, so this sensor can fully filter infrared interference. It is no need to add the casing and extra filter and effective filtering out the effect of light reflection due to infrared emission on security products.

By selecting the accuracy of chips, under strict management of production process, (PT-IC-GC) visible light sensors finished batch consistency uniform. The consistency is 3 to 5 times higher on comparison of similar photosensitive devices. The precision can be controlled as narrow as 10%. Fully meet the customer requirements for starting the LUX value. DeMint taking the advantage of temperature compensation internal process on the chip, (PT-IC-GC) features one times higher temperature resistance than other similar products while working on high temperature environment.

Download complete specification Visible Light Sensor of Security Infrared Filter (PT-IC-GC) PDF.

Features :
  1. Simulate the human eye, peak wavelength 520nm.
  2. Using super 82 layer coating process on the Chip. 100% Filter infrared interference.
  3. Good batch consistency, completely solve the infrared light start too early.
  4. Fast response, stable performance, aging at +85°C/65% humidity for 1000 Hr.
  5. The starting point does not drift. Nice appearance.
Applications :
  1. Replace the traditional CDS photoresistor.
  2. Cadmium and lead free with RoHS compliant.
  3. Dedicated to infrared monitoring products.
  4. When control the infrared light, it is no need to add extra casing and filter on low illumination.
Customization :
  1. For the convenience of installation in all kinds of products in any position, different sizes are available upon request.
  2. DeMint offers various option of the bright current/dark current (bright resistance/dark resistance) to costume the most products.
Dimensions & Configurations (Unit: mm) PT-IC-GC Plate Edge

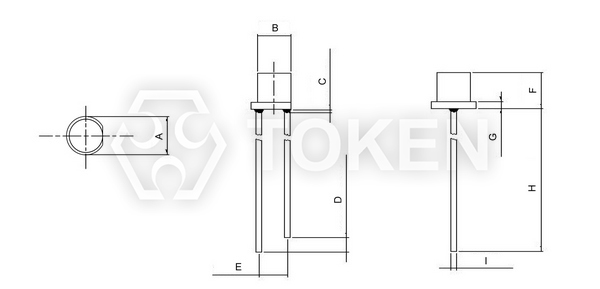

Visible Light Sensor (TPT-3-PE) Dimensions
Visible Light Sensor (TPT-3-PE) Dimensions
Part NO. A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm)
PT-IC-GC-3-PE-520 4.00 ± 0.20 3.00 ± 0.20 1.50 Max. 1.50 ± 0.50 2.54 ± 0.20 4.20 ± 0.20 0.75 ± 0.20 25.4 Min. 0.50 ± 0.20
PT-IC-GC-5-PE-520 5.80 ± 0.20 5.00 ± 0.20 1.50 Max. 1.50 ± 0.50 2.54 ± 0.20 5.30 ± 0.20 1.00 ± 0.20 25.4 Min. 0.50 ± 0.50
Remark:
  • The epoxy resin highest: 1.5mm max.
  • Product images, plastic color of apperence, and all other information is for reference only, goods in-kind prevail.
  • Short Lead—Collector     Long Lead—Emitter.
Electro-Optical Characteristics (Ta=25°C) PT-IC-GC-3-PE-520
Parameter Symbol Condition Min. Typ. Max. Unit
Peak Wavelength λp \ - 520 - nm
Spectral Response Bandwidth λ \ 400 - 700 nm
Operating Voltage Vcc \ - 5 - V
Photo Current IL(1) Vcc=5V
Ev=10Lux
1.2 2.5 3.6 μA
IL(2) Vcc=5V
Ev=30Lux
3.6 7.5 10.8 μA
IL(3) Vcc=5V
Ev=100Lux
12 25 36 μA
Collector Dark Current ID Vcc=5V/85°C
Ev=0Lux
- - 0.8 μA
IR Receiving Current IL(4) Vcc=5V/850nm IR LED
Ee=1mW/cm2
- - 0.2 μA
Rise Time tr Vcc=5V
RL=1000Ω
4.5 ms
Fall Time tf 4.5

Electro-Optical Characteristics (Ta=25°C) PT-IC-GC-5-PE-520
Parameter Symbol Condition Min. Typ. Max. Unit
Peak Wavelength λp \ - 520 - nm
Spectral Response Bandwidth λ \ 400 - 700 nm
Operating Voltage Vcc \ - 5 - V
Photo Current IL(1) Vcc=5V
Ev=10Lux
2 3.5 6 μA
IL(2) Vcc=5V
Ev=30Lux
6 10.5 18 μA
IL(3) Vcc=5V
Ev=100Lux
20 35 60 μA
Collector Dark Current ID Vcc=5V/85°C
Ev=0Lux
- - 0.8 μA
IR Receiving Current IL(4) Vcc=5V/850nm IR LED
Ee=1mW/cm2
- - 0.3 μA
Rise Time tr Vcc=5V
Ev=30Lux
RL=1000Ω
4.5 ms
Fall Time tf 4.5

Absolute maximum ratings (Ta=25°C) PT-IC-GC
Parameter Symbol Value Unit
Operating Voltage Vcc Min. Max. V
1 10 V
Operating Temperature Range Topr -25 ~ +85 °C
Storage Temperature Tstg -40 ~ +100 °C
Soldering Temperature Tsol 260 °C

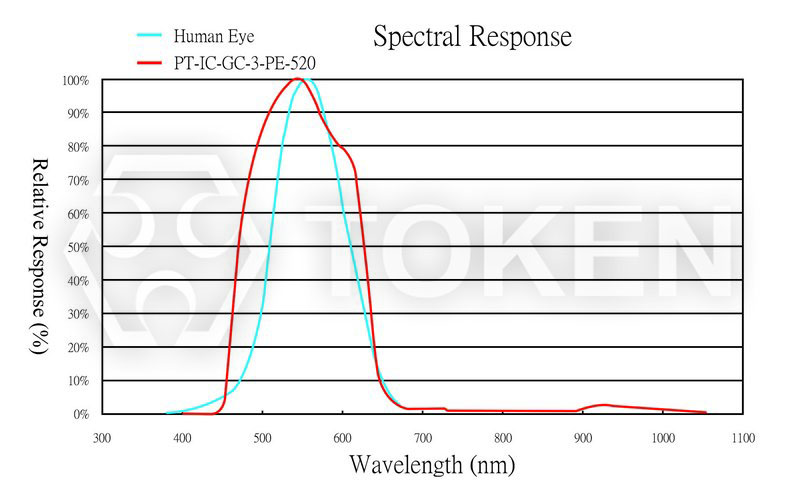

Relative Spectral Sensitivity vs. Wavelength PT-IC-GC-3-PE-520
Relative Spectral Sensitivity vs. Wavelength PT-IC-GC-3-PE-520

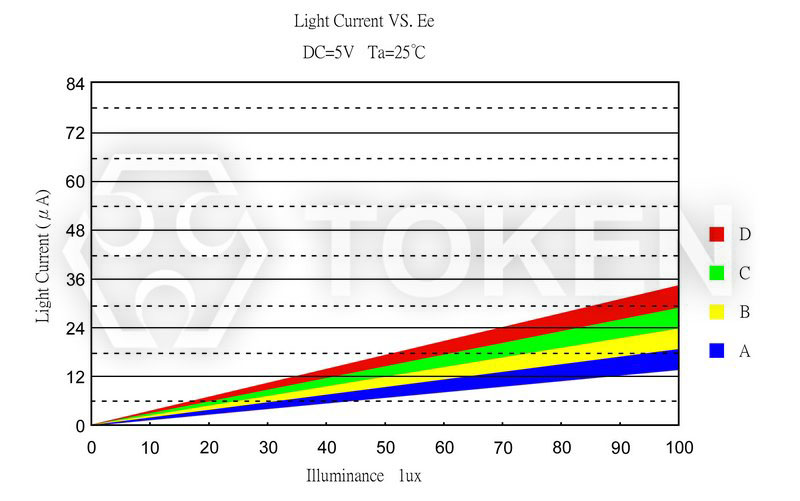

Photo Current vs. Illuminance PT-IC-GC-3-PE-520
Photo Current vs. Illuminance PT-IC-GC-3-PE-520

Dark Current vs. Ambient Temperature PT-IC-GC-3-PE-520
Dark Current vs. Ambient Temperature PT-IC-GC-3-PE-520

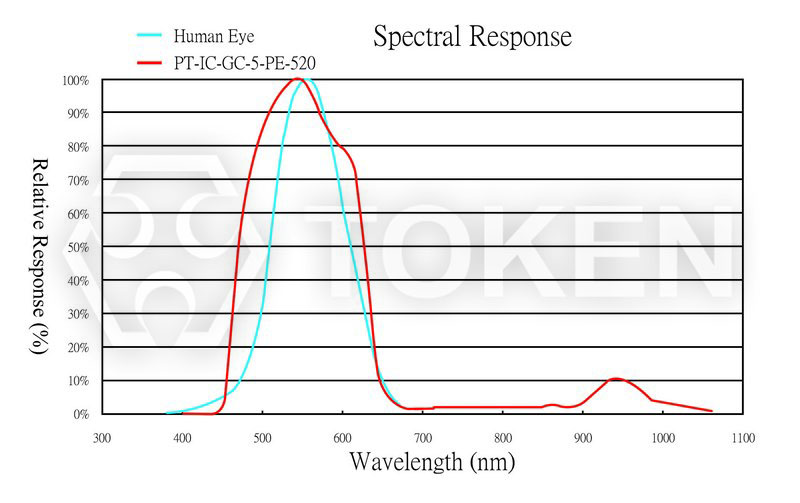

Relative Spectral Sensitivity vs. Wavelength PT-IC-GC-5-PE-520
Relative Spectral Sensitivity vs. Wavelength PT-IC-GC-5-PE-520

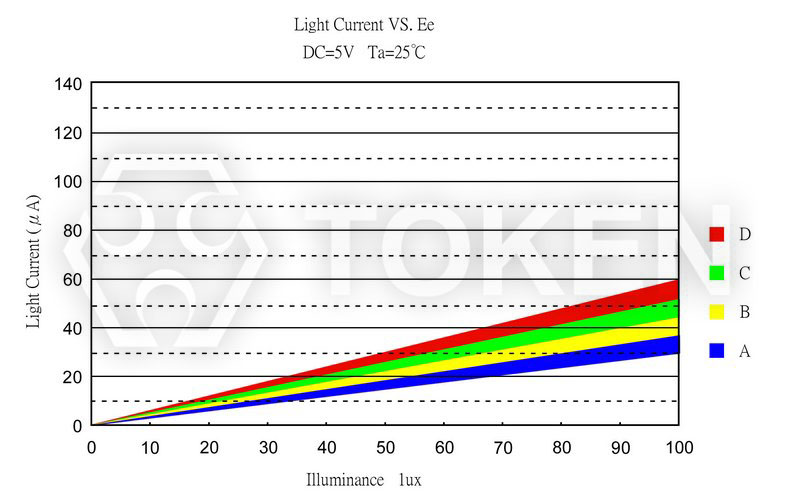

Photo Current vs. Illuminance PT-IC-GC-5-PE-520
Photo Current vs. Illuminance PT-IC-GC-5-PE-520

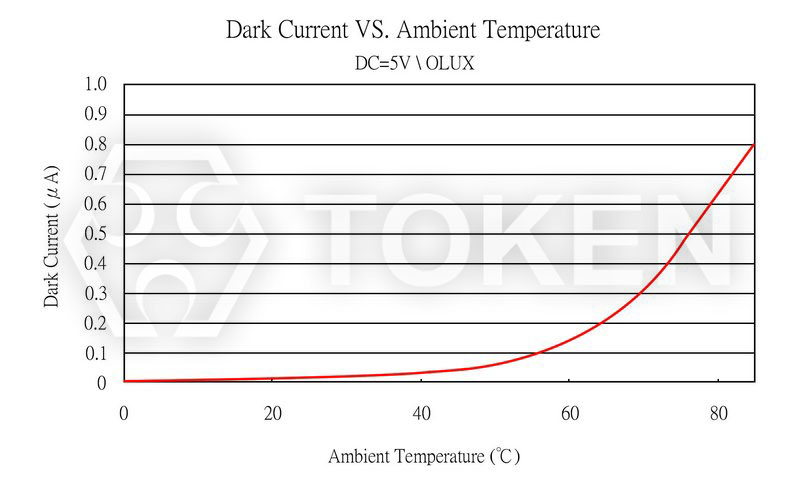

Dark Current vs. Ambient Temperature PT-IC-GC-5-PE-520
Dark Current vs. Ambient Temperature PT-IC-GC-5-PE-520

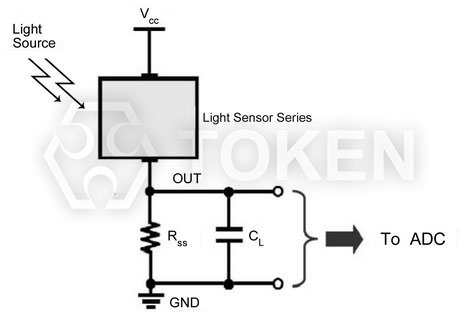

Photo Current Measurement Method - 3PE520GCIC
Photo Current Measurement Method - 3PE520GCIC

Visible Light Sensor (PT-IC-GC) Precaution Usage :

  1. The light source : Select 590nm LED Surface light source.

Mounting :

  1. While packages are on one circuit board, avoid mismatching in the thermal expansion of each component, generate cracks in the package and break the bonding wire.

Soldering :

  1. Do not immerse plastic parts in tin tank.
  2. During soldering, when adding thermal stress in a moisture absorbing state, moisture evaporates, swells and generates stress to the internal package.
  3. To avoid swellings and cracks in the surface of the package, followsoldering conditions below.
  4. Wave soldering method: 120°C < 60s、260°C < 5s.
  5. Manual soldering: 260°C < 5s、340°C < 3s.

Lead-forming and cuttings :

  1. Before soldering, perform lead forming at normal temperature.
  2. While forming or cutting the lead, stay the area at a distance of 5 mm or greater from the root of the lead.
  3. Avoid mounting which may cause force on the root of the lead.

Storage :

The sensor is incorporated in the transparent resin package. Because of its sensitivity to humidity, the package is moisture-proof. When storing the sensor, do as instructed below.
  1. Quickly use after opening. (within 2 days, below 30 °C/60 % R.H.).
  2. Once unpacked, use within three months, or keeping within a moisture-proof method, which include maintaining within a moisture-proof container with silica gels, is suggested for longterm safe-keeping.
  3. Very bad storage conditions may deteriorate solderability or characteristics, and defect the appearance. Recommended conditions of the storage place, temperature 0°C to 30 °C, humidity below 60% R.H. (Avoid freezingand dew condensation).

Cleaning :

  1. Do not wash with water to avoid corrosion.
  2. Under any circumstance, the cleaning time should be within 1 minute of normal temperature.
  3. Alcohol is recommended as a cleaning agent when cleaning products.
  4. If you use other cleaning agents, you need to confirm whether the cleaning agent will corrode the epoxy body.
  5. Freon can not be used as a cleaning agent.
  6. When cleaning products with ultrasonic cleaning, ultrasonic power and time should be less than 300W and 30 seconds, respectively.
  7. PCB and product can not touch the oscillator. Can not make the product on the PCB resonance.
  8. This model is static sensitive devices, so static electricity and surges can damage the product.
  9. To all the equipment, machines, tables, and the ground must be anti-static ground.
  10. Requires the use of anti-static wrist strap wear.
Order Codes (PT-IC-GC)
PT - IC - GC - 3 - PE - 520

Part Number
PT

Chip Type
IC

Lens Color
GC Dark Green

Size
3 mm
5 mm

Shape
Plate Edge

Spectral Bandwidth
520 520 nm
