Visible Light Detector for Security Lighting

Add To Inquiry Page

Visible Light Detector for Security Lighting (PT-A6) Plate Edge

Visible Light Detector for Security Lighting (PT-A6-BC-3-PE-520)

DeMint Visible Light Detector for Security Lighting with Near Human Eye Photopic Response.

Photodiodes do not react to light in the same manner as human eyes do. A persons eye is insensitive to infra-red (a wave length more than 780nm) and also to ultra-violet light (a wave length under 380nm). A typical plastic photodiode, however, senses light at any wave length between 300nm and 1100nm. This means that the designer’s first challenge is to remove the IR and UV components from the sensor’s output.

The (PT-A6) Visible Light Detector family using high quality chip packaging and processing super-plated infrared filter membrane on chip surface, so this sensor can fully filter infrared interference. It is no need to add the casing and extra filter and effective filtering out the effect of light reflection due to infrared emission on security products.

By selecting the accuracy of chips, under strict management of production process, (PT-A6) visible light sensors finished batch consistency uniform. The consistency is 3 to 5 times higher on comparison of similar photosensitive devices. The precision can be controlled as narrow as 10%. Fully meet the customer requirements for starting the LUX value. DeMint taking the advantage of temperature compensation internal process on the chip, (PT-A6) features one times higher temperature resistance than other similar products while working on high temperature environment.

Download complete specification Visible Light Detector for Security Lighting (PT-A6) Plate Edge PDF.

Features :

Simulate the human eye, peak wavelength 520nm.
Using super 82 layer coating process on the Chip. 100% Filter infrared interference
Good batch consistency, completely solve the infrared light start too early.
Fast response, stable performance, aging at +85°C/65% humidity for 1000 Hr.
The starting point does not drift. Nice appearance.

Applications :

Replace the traditional CDS photoresistor.
Cadmium and lead free with RoHS compliant.
Dedicated to infrared monitoring products.
When control the infrared light, it is no need to add extra casing and filter on low illumination.

Customization :

For the convenience of installation in all kinds of products in any position, different sizes are available upon request.
DeMint offers various option of the bright current/dark current (bright resistance/dark resistance) to costume the most products.

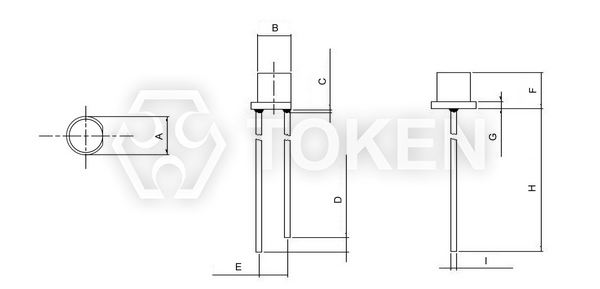

Dimensions & Configurations (Unit: mm) (PT-A6-BC-3-PE-520) Plate Edge

Plate Edge Visible Light Detector (PT-A6-BC-3-PE-520) Dimensions

Plate Edge Visible Light Detector
(PT-A6-BC-3-PE-520)

Part NO.

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

F (mm)

G (mm)

H (mm)

I (mm)

PT-A6-BC-3-PE-520

4.05 ± 0.20

3.00 ± 0.20

1.50 Max.

1.50 ± 0.50

2.54 ± 0.20

3.85 ± 0.20

0.75 ± 0.20

25.4 Min.

0.50 ± 0.20

Remark:

The epoxy resin highest: 1.5mm max.
Product images, plastic color of apperence, and all other information is for reference only, goods in-kind prevail.
Short Lead—Collector Long Lead—Emitter.

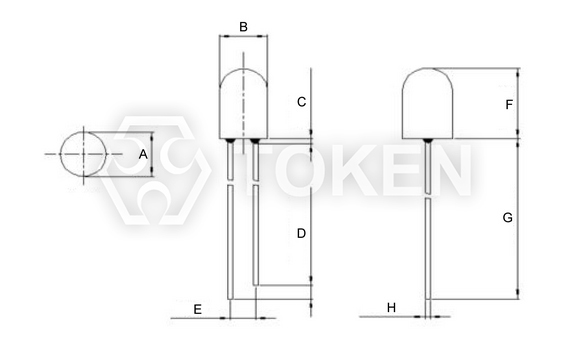

Dimensions & Configurations (Unit: mm) (PT-A6-AC-5-BN-520) Bullet None

Visible Light Sensor Bullet None (PT-A6-AC-5-BN-520) Dimensions

Visible Light Sensor / Phototransistor (PT-A6-AC-5-BN-520) Bullet None Dimensions

Phototransistor Plate None
(PT-A6-AC-5-BN-520)

Part NO.

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

F (mm)

G (mm)

H (mm)

PT-A6-AC-5-BN-520

5.00 ± 0.20

1.50 Max.

2.00 ± 0.5

2.54 ± 0.20

7.00 ± 0.20

14.00 Min.

0.50 ± 0.20

Remark:

The epoxy resin highest: 1.5mm max.
Product images, plastic color of apperence, and all other information is for reference only, goods in-kind prevail.
Short Lead—Collector Long Lead—Emitter.

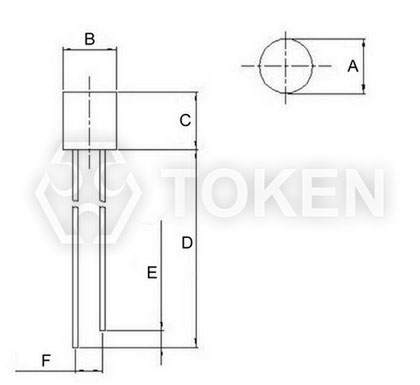

Dimensions & Configurations (Unit: mm) (PT-A6-AC-5-PN-580) Plate None

Visible Light Sensor Plate None (PT-A6-AC-5-PN-580) Dimensions

Phototransistor Plate None
(PT-A6-AC-5-PN-580)

Part NO.

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

F (mm)

PT-A6-AC-5-PN-580

5.00 ± 0.20

5.30 ± 0.20

14.0 Min.

2.00 ± 0.50

2.54 ± 0.20

Remark:

The epoxy resin highest: 1.5mm max.
Product images, plastic color of apperence, and all other information is for reference only, goods in-kind prevail.
Short Lead—Collector Long Lead—Emitter.

Electro-Optical Characteristics (Ta=25°C) PT-A6-BC-3-PE-520
Parameter	Symbol	Condition	Min.	Typ.	Max.	Unit
Peak Wavelength	λ_p	\	-	520	-	nm
Spectral Response Bandwidth	λ	\	400	-	700	nm
Collector-Emitter Breakdown Voltage	B_vceo	I_ce=100µA E_e=0m^W/cm²	60	-	-	V
Emitter-Base Breakdown Voltage	B_veco	I_ce=100µA E_e=0m^W/cm²	7	-	-	V
Collector-Emitter Saturation Voltage	V_ce (sat)	I_ce=2mA E_e=1m^W/cm²	-	-	1.0	V
Photo Current	I_L(1)	V_ce=5V E_v=10Lux	3	7	12	μA
	I_L(2)	V_ce=5V E_v=30Lux	9	21	36	μA
	I_L(3)	V_ce=5V E_v=100Lux	30	70	120	μA
Collector Dark Current	I_ceo	V_ce=5V E_v=0Lux	-	-	0.2	μA
IR Receiving Current	I_L(4)	V_ce=5V/850nm IR LED E_e=1m^W/cm²	-	-	0.3	μA
Rise Time	t_r	V_ce=5V I_ce=1mA RL=1000Ω	40			μs
Fall Time	t_f	V_ce=5V I_ce=1mA RL=1000Ω	60			μs

Electro-Optical Characteristics (Ta=25°C) PT-A6-AC-5-BN-520
Parameter	Symbol	Condition	Min.	Typ.	Max.	Unit
Peak Wavelength	λ_p	\	-	520	-	nm
Spectral Response Bandwidth	λ	\	400	-	700	nm
Collector-Emitter Breakdown Voltage	B_vceo	I_ce=100µA E_e=0m^W/cm²	60	-	-	V
Emitter-Base Breakdown Voltage	B_veco	I_ce=100µA E_e=0m^W/cm²	7	-	-	V
Collector-Emitter Saturation Voltage	V_ce (sat)	I_ce=2mA E_e=1m^W/cm²	-	-	1.0	V
Photo Current	I_L(1)	V_cc=5V E_v=10Lux	5	14	22	μA
	I_L(2)	V_cc=5V E_v=30Lux	15	42	66	μA
	I_L(3)	V_cc=5V E_v=100Lux	50	140	220	μA
Collector Dark Current	I_ceo	V_ce=5V E_v=0Lux	-	-	0.2	μA
IR Receiving Current	I_L(4)	V_ce=5V/850nm IR LED E_e=1m^W/cm²	-	-	0.5	μA
Rise Time	t_r	V_cc=5V I_ce=1mA RL=1000Ω	40			μs
Fall Time	t_f	V_cc=5V I_ce=1mA RL=1000Ω	60			μs

Electro-Optical Characteristics (Ta=25°C) PT-A6-AC-5-PN-580
Parameter	Symbol	Condition	Min.	Typ.	Max.	Unit
Peak Wavelength	λ_p	\	-	580	-	nm
Spectral Response Bandwidth	λ	\	400	-	700	nm
Collector-Emitter Breakdown Voltage	B_vceo	I_ce=100µA E_e=0m^W/cm²	60	-	-	V
Emitter-Base Breakdown Voltage	B_veco	I_ce=100µA E_e=0m^W/cm²	7	-	-	V
Collector-Emitter Saturation Voltage	V_ce (sat)	I_ce=2mA E_e=1m^W/cm²	-	-	1.0	V
Photo Current	I_L(1)	V_cc=5V E_v=10Lux	2.5	6	10	μA
	I_L(2)	V_cc=5V E_v=30Lux	7.5	18	30	μA
	I_L(3)	V_cc=5V E_v=100Lux	25	60	100	μA
Collector Dark Current	I_ceo	V_ce=5V E_v=0Lux	-	-	0.2	μA
IR Receiving Current	I_L(4)	V_ce=5V/850nm IR LED E_e=1m^W/cm²	-	-	0.3	μA
Rise Time	t_r	V_cc=5V I_ce=1mA RL=1000Ω	40			μs
Fall Time	t_f	V_cc=5V I_ce=1mA RL=1000Ω	60			μs

Absolute maximum ratings (Ta=25°C) PT-A6
Parameter	Symbol	Value	Unit
Collector-Emitter Voltage	V_CEO	60	V
Emitter-Collector-Voltage	V_ECO	7	V
Power Dissipation	P_C	50	m^W
Operating Temperature Range	T_opr	-25 ~ +85	°C
Storage Temperature	T_stg	-40 ~ +100	°C

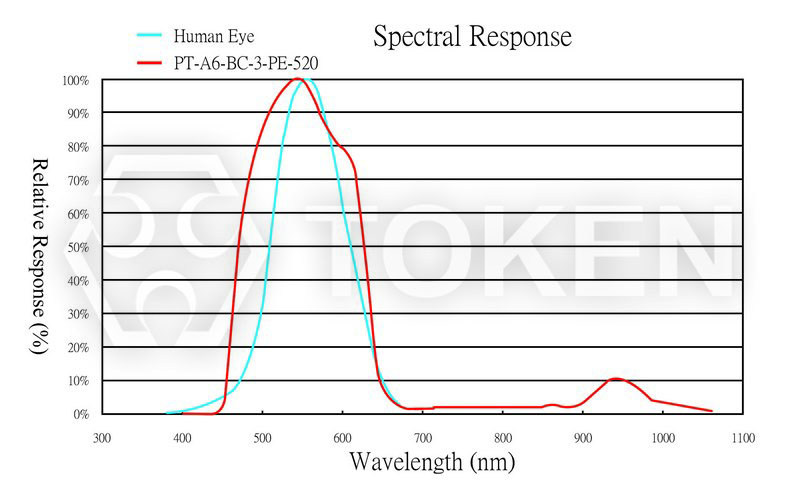

Relative Spectral Sensitivity vs. Wavelength PT-A6-BC-3-PE-520

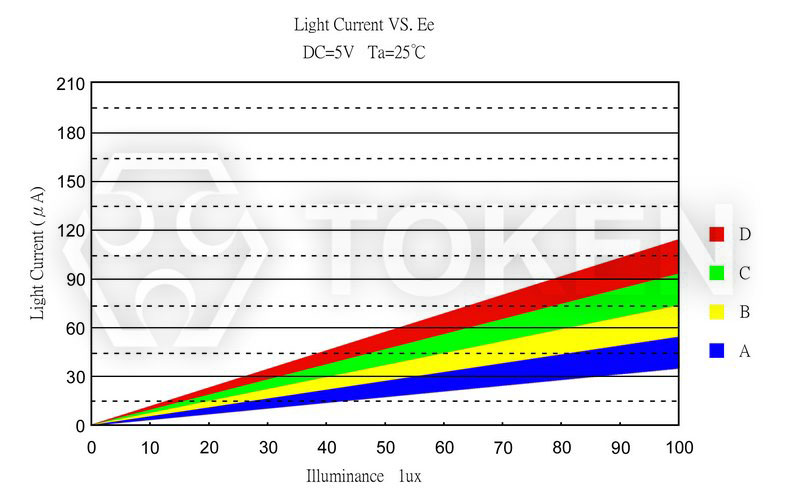

Photo Current vs. Illuminance PT-A6-BC-3-PE-520

Dark Current vs. Ambient Temperature PT-A6-BC-3-PE-520

Relative Spectral Sensitivity vs. Wavelength (PT-A6-AC-5-BN-520) Bullet None

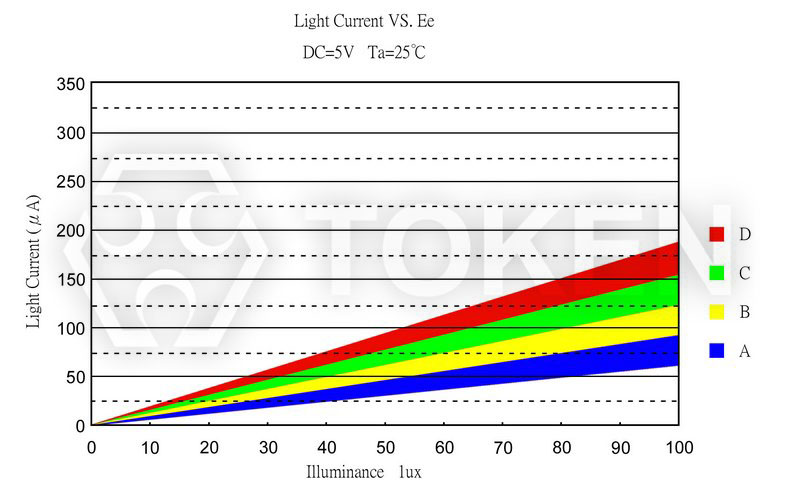

Photo Current vs. Illuminance (PT-A6-AC-5-BN-520) Bullet None

Dark Current vs. Ambient Temperature (PT-A6-AC-5-BN-520) Bullet None

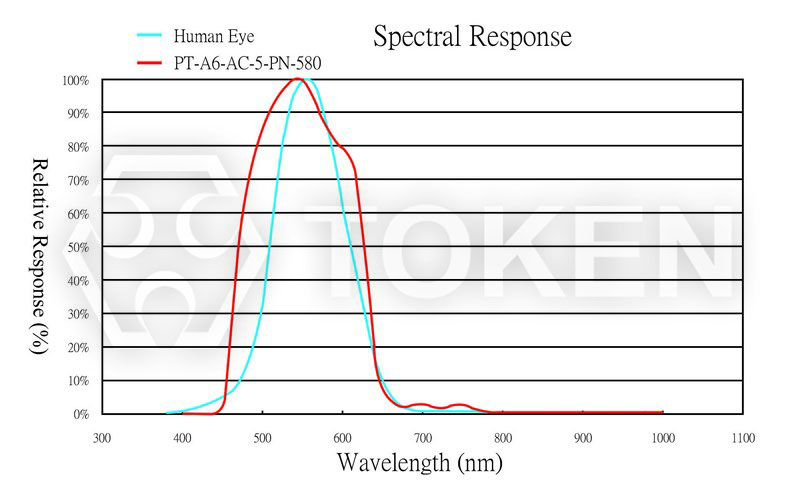

Relative Spectral Sensitivity vs. Wavelength (PT-A6-AC-5-PN-580) Plate None

Photo Current vs. Illuminance (PT-A6-AC-5-PN-580) Plate None

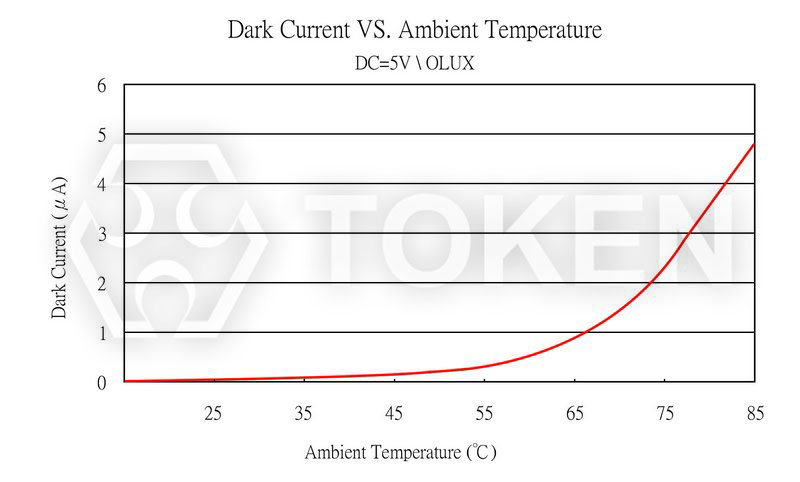

Dark Current vs. Ambient Temperature (PT-A6-AC-5-PN-580) Plate None

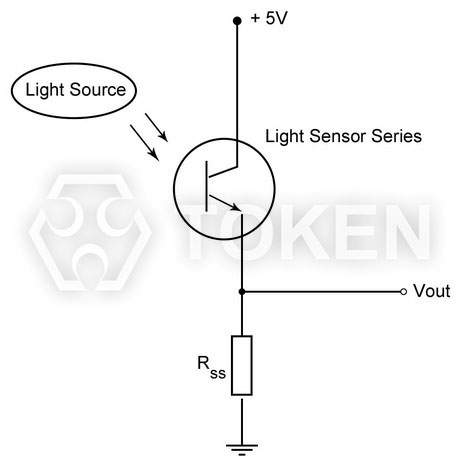

Photo Current Measurement Method - 3PE520BCA6

Visible Light Detector (TPT3PE) Precaution Usage :

The light source : Select 590nm LED Surface light source.

Mounting :

While packages are on one circuit board, avoid mismatching in the thermal expansion of each component, generate cracks in the package and break the bonding wire.

Soldering :

Do not immerse plastic parts in tin tank.
During soldering, when adding thermal stress in a moisture absorbing state, moisture evaporates, swells and generates stress to the internal package.
To avoid swellings and cracks in the surface of the package, followsoldering conditions below.
Wave soldering method: 120°C < 60s、260°C < 5s.
Manual soldering: 260°C < 5s、340°C < 3s.

Lead-forming and cuttings :

Before soldering, perform lead forming at normal temperature.
While forming or cutting the lead, stay the area at a distance of 5 mm or greater from the root of the lead.
Avoid mounting which may cause force on the root of the lead.

Storage :

The sensor is incorporated in the transparent resin package. Because of its sensitivity to humidity, the package is moisture-proof. When storing the sensor, do as instructed below.

Quickly use after opening. (within 2 days, below 30 °C/60 % R.H.).
Once unpacked, use within three months, or keeping within a moisture-proof method, which include maintaining within a moisture-proof container with silica gels, is suggested for longterm safe-keeping.
Very bad storage conditions may deteriorate solderability or characteristics, and defect the appearance. Recommended conditions of the storage place, temperature 0°C to 30 °C, humidity below 60% R.H. (Avoid freezingand dew condensation).

Cleaning :

Do not wash with water to avoid corrosion.
Under any circumstance, the cleaning time should be within 1 minute of normal temperature.
Alcohol is recommended as a cleaning agent when cleaning products.
If you use other cleaning agents, you need to confirm whether the cleaning agent will corrode the epoxy body.
Freon can not be used as a cleaning agent.
When cleaning products with ultrasonic cleaning, ultrasonic power and time should be less than 300W and 30 seconds, respectively.
PCB and product can not touch the oscillator. Can not make the product on the PCB resonance.
This model is static sensitive devices, so static electricity and surges can damage the product.
To all the equipment, machines, tables, and the ground must be anti-static ground.
Requires the use of anti-static wrist strap wear.

Order Codes (PT-A6)

560

Part Number
PT

Chip Type
A6

Lens Color
BC	Dark Blue
AC	Water Clear

Size
3	3 mm
5	5 mm

Shape
PE	Plate Edge
PN	Plate None
BN	Bullet None

Spectral Bandwidth
560	560 nm
580	580 nm
