DeMint (NTK) High Voltage Resistor Network Dividers can be customised to order.
RoHS-compliant resistor network, high-value high-voltage resistors and potential dividers in a wide variety of configurations are now available from DeMint Electronics as custom versions of its standard ranges of resistive products.
This advanced film resistor technology provides the performance characteristics required by the precision input signal circuits of both bench-type and laboratory digital instruments. In addition to requiring less board space, these compact voltage network dividers deliver higher performance than selected discrete resistor sets and thin-film dividers.
Manufactured using advance thick-film technology from existing tooling ensures fast turnaround of samples prior to low to medium volume in-house production. These custom dividers are ideal for high performance voltage division applications in medical equipment, laboratory equipment, analytical instruments, etc. The custom high voltage network divider can be supplied in various packages and packaging materials including glass, epoxy resin, silicon options.
By applying this technology to the low-profile, single-in-line package configuration, the Type (NTK) Custom SIP Resistor Networks are available with a combination of features. which include: Low TCR 250 ppm/°C (100 ppm/°C or tighter upon request), operating temperature range -55°C ~ +125°C (higher temperature upon request), flat style, non-inductive, low noise, and also custom divider design.
For complete information on quantity price and delivery, contact our Sales Office.
Download complete PDF Network High Voltage Dividers (NTK).

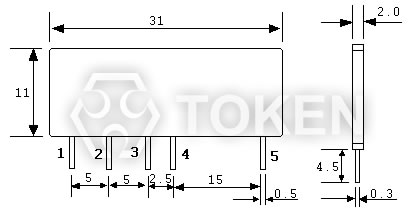

Electrical Parameters (NTK-A) | |||||||
|
|||||||
Type | PIN | Resistance Value (Ω) | Resistance Tolerance | Pressure parameters | Rated Power (W) | ||
NTK-A | 1 ~ 2 | R1 | 30M | K (±10%) | 4KV Min. | 0.6W Min. | |
2 ~ 3 | R2 | 30M | K (±10%) | 4KV Min. | 0.6W Min. | ||
3 ~ 4 | R3 | 1M | J (±5%) | 500V Min. | 0.3W Min. | ||
4 ~ 5 | R4 | 800M | K (±10%) | 10KV Min. | 1W Min. |

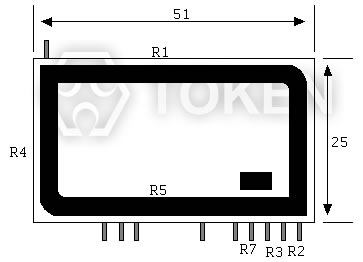

Electrical Parameters (NTK-B) | |||||||
|
|||||||
Type | Serial Number | Resistance Value (Ω) | Rated Power | Resistance Tolerance | Temperature Coefficient | Operating Voltage | |
NTK-B | R1 | 52M | 5W | ±5% | ±250PPM/°C | 8500V | |
R2 | 10K | - | - | ||||
R3 | 10K | - | - | ||||
R4 | 16M2 | 4W | 4200V | ||||
R5 | 17M3 | 3W | 4400V | ||||
R6 | 3M3 | 1W | 800V | ||||
R7 | 8K | - | - |
