Precision High-Voltage High Value Resistor (HI82) Radial-Lead

The high performance high-voltage applications require the use of high voltage resistors in applications with long-term stability and good temperature coefficient. DeMint Electronics has introduced ultra-stable high-precision HI82 high voltage resistors to meet these needs.

DeMint's unique precision full film and serpentine transfer pattern (serpentine patterns design), using a specifical high speed fine-line thick film dispensing system, developed a series of high voltage application resistor components with excellent performance.Especially in smaller sizes and higher resistance-value components.

Through the use of alloy ruthenium paste material, and 95% high aluminum planar ceramic chip, DeMint can control the manufacture of very precise precision and stabilize the performance parameters of important high-voltage operating temperature range. (HI82) thick film resistor combined with close tracking design, with low current noise, linear current voltage, low TCR, high temperature durability, wide resistance range, long-term stability, and low-cost advantages.

DeMint HI82 ultra-precision high-voltage resistors conform with RoHS and lead-free standards and provide more competitive prices and fast delivery service. For technical specifications and special applications, please contact your DeMint's sales representative.

Download complete specification Planar Precision High-Voltage High-Value Resistors (HI82) Radial-Lead PDF.

(HI82) Family Members :

(HI82D) Precision High-Voltage High-Value Resistor series, resistance range from 1mΩ to 10TΩ, precision tolerance from 30% to 0.25%, rated power has 1w/1.2w/3w selectable.
(HI82H) Conventional Precision High-Voltage High Resistance Resistor series, various precision tolerance 1%/2%/5%/10%/20%/30%/50% available, four kinds of rated power 0.5w/0.7/1w/2w selectable, resistance from 1MΩ to 1TΩ.
(HI82T) High Power Voltage Resistor series, maximum operating voltage up to 35KV, 30W high rated power to 0.125W, resistance range from 1Ω to 500MΩ, tolerance range 0.5% to 5%.

Features :

High voltage thick film precision technology resistor.
Resistance up to 10TΩ. Low TCR, low VCR.
Radial leads, variable lead spacing by bending.
Climatic protection by silicone coating

Applications :

Impulse voltage generators,
Arc furnace damping, Energy research,
Pulse modulators, Radar Pulse-forming networks,
Capacitor crowbar circuits, High voltage snubber circuits,

Composition Structure

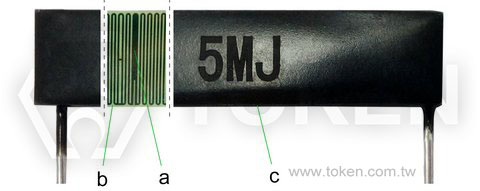

High Voltage Resistor Construction (HI82)

Membrane Material (a)

Ruthenium Paste

Base Material (b)

95% Aluminum Oxide, Al₂O₃

Encapsulating Material (c)

High Temperature Silicone Resin

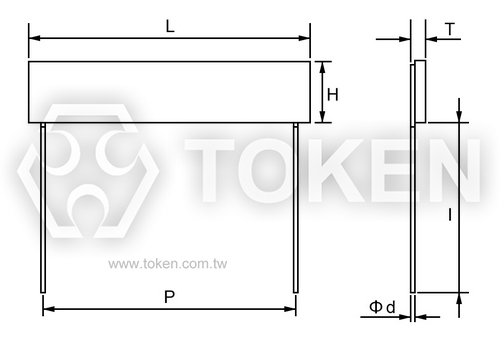

Ultra-precision high value voltage Resistor Dimensions (Unit: mm)

Ultra-precision high value voltage Resistor Dimensions (Unit: mm)

HI82D Ultra-precision high-voltage high-value resistor

Part Number

L ±1mm

H ±1mm

T ±0.5mm

P ±2mm

I ±3mm

d ±0.1mm

HI82D-1W

30.0

6.0

1.4

27.5

0.4

HI82D-1BW

40.0

6.0

1.4

37.8

0.4

HI82D-3W

50.0

12.5

1.4

47.8

0.4

Note:

L = Length, H = Width, T = Thickness, I = Length of steel wire, d = Wire diameter。
P = Standard lead spacing ( Other spacing possible by bending )。

HI82H Conventional precision high-voltage high-resistance resistor
Part Number	L ±1mm	H ±1mm	T ±0.5mm	P ±2mm	I ±3mm	d ±0.1mm
HI82H-05W	3.2	2.5	0.9	2.0	20	0.4
HI82H-07W	3.8	5.0	1.0	2.5	20	0.4
HI82H-1W	6.3	3.5	1.0	5.5	20	0.4
HI82H-2W	10.2	5.1	1.0	9.5	20	0.4
Note: L = Length, H = Width, T = Thickness, I = Length of steel wire, d = Wire diameter。 P = Standard lead spacing ( Other spacing possible by bending )。

HI82T High-power voltage resistor
Part Number	L ± 1mm	H ± 1mm	T ± 0.5mm	P ± 2mm	I ± 3mm	d ± 0.1mm
HI82T-0125W	8	3.5	2	5.7	10	0.6
HI82T-025W	10	5	2	7.7	10	0.6
HI82T-04W	25	5	2	22.5	20	0.6
HI82T-05W	35	5	2	32	20	0.6
HI82T-1W	30	8	2	27	20	0.6
HI82T-2SW	25	10	2	22	20	0.6
HI82T-2NW	22	18	2	19	20	0.6
HI82T-2BW	45	10	3	41.5	20	0.8
HI82T-3W	60	10	3	56.5	20	0.8
HI82T-5W	80	20	4	76.5	40	1.0
HI82T-10W	97	23	4	93.5	40	1.0
HI82T-20W	100	35	4	96.5	40	1.0
HI82T-30W	100	48	4	96.5	40	1.0
Note: L = Length, H = Width, T = Thickness, I = Length of steel wire, d = Wire diameter。 P = Standard lead spacing ( Other spacing possible by bending )。

Technical Characteristics - (HI82D)
Part Number	Power Rating P₇₀(W)	Working Voltage Max. (V)	Resistance Range (Ω)	Tolerance (%)	TCR⁽¹⁾ (ppm/°C)	VCR⁽²⁾ (ppm/V)
HI82D-1W	1.0	10KV	1M - 100M	0.25/0.5/5/10	25/50/100	2ppm/V
			100M - 1G	1/2/5/10/20	50/100/250	5ppm/V
			1G - 100G	5/10/20/30	250/500	20ppm/V
			100G - 1T	5/10/20/30	500/1000	100ppm/V
HI82D-1BW	1.2	20KV	1M - 100M	0.25/0.5/5/10	25/50/100	1ppm/V
			100M - 1G	1/2/5/10/20	50/100/250	2ppm/V
			1G - 100G	5/10/20/30	250/500	10ppm/V
			100G - 1T	5/10/20/30	500/1000	50ppm/V
HI82D-3W	3.0	30KV	1M - 100M	0.25/0.5/5/10	25/50/100	1ppm/V
			100M - 1G	1/2/5/10/20	25/50/100	1ppm/V
			1G - 100G	5/10/20/30	100/250	5ppm/V
			100G - 1T	5/10/20/30	250/500	25ppm/V
			1T - 10T	10/20/30	500/1000	100ppm/V

Note:

⁽¹⁾ TCR 25/50: Temperature range +25°C ~ +85°C； ⁽²⁾ The voltage coefficient is measured between 10V and 100V.
Operating Voltage = √ ( P * R ) , or Max. Operating Voltage listed in above table whichever is lower.
Optional specifications on request.

Environmental Characteristic
Continuous operating voltage	V = √ ( P * R ) , or Max. Operating Voltage listed in above table whichever is lower.
Measuring voltage	Standard measuring voltage is 10V (50V for values >1G). Different voltages on request.
TCR ppm/°C	Temperature range +25°C ~ +125°C
	TCR25/50
	Values above 1G: +25°C ~ +85°C.
Operating temp. range	-55°C ~ +125°C
Climatic category to EN 60068-1	55/125/56
Humidity-/contact protection	Lacquer coating. Resistant to most solvents. Isopropyl alcohol recommended for cleaning; Do not use acetone or methylene choloride. Avoid mechanical stress to coating.
Stability: Storage 125°C/1000Hrs	≤10G	>10G
	<1%	<2%
Stability at Max. voltage/1000Hrs	≤10G	>10G
	<1%	<2%

Technical Characteristics - (HI82H)
Part Number	Power Rating P₇₀(W)	Working Voltage Max. (V)		Resistance Range (Ω)	Tolerance (%)	TCR⁽¹⁾ (ppm/°C)	VCR⁽²⁾ (ppm/V)
Part Number	Power Rating P₇₀(W)	trimmed	untrimmed	Resistance Range (Ω)	Tolerance (%)	TCR⁽¹⁾ (ppm/°C)	VCR⁽²⁾ (ppm/V)
HI82H-05W	0.5	300	1000	1M - 100M	1/2/5/10	TC25/50/100	<50ppm/V
				>100M - 500M	2/5/10/20	TC50/100/250	<100ppm/V
				>500M - 1G	5/10/20	TC100/250	<100ppm/V
				>1G - 10G	5/10/20/30	TC250/500	<500ppm/V
				>10G - 100G	5/10/20/30	TC500/1000	<1000ppm/V
				>100G - 1T	-	-	-
HI82H-07W	0.7	300	500	1M - 100M	2/5/10	TC50/100	<50ppm/V
				>100M - 500M	5/10/20	TC100/250	<100ppm/V
				>500M - 1G	5/10/20	TC100/250	<100ppm/V
				>1G - 10G	10/20/30	TC250/500	<500ppm/V
				>10G - 100G	10/20/30	TC500/1000	<1000ppm/V
				>100G - 1T	-	-	-
HI82H-1W	1.0	1200	2500	1M - 100M	1/.../10	TC25/50/100	<10ppm/V
				>100M - 500M	1/2/5/10/20	TC25/50/100	<25ppm/V
				>500M - 1G	1/2/5/10/20	TC100/250	<25ppm/V
				>1G - 10G	2/5/10/20	TC100/250	<100ppm/V
				>10G - 100G	5/10/20/30	TC250/500	<250ppm/V
				>100G - 1T	10/20/30/50	TC500/1000	<500ppm/V
HI82H-2W	2.0	4000	6000	1M - 100M	1/.../10	TC25/50/100	<5ppm/V
				>100M - 500M	1/2/5/10/20	TC25/50/100	<10ppm/V
				>500M - 1G	1/2/5/10/20	TC25/50/100	<10ppm/V
				>1G - 10G	2/5/10/20	TC50/100	<25ppm/V
				>10G - 100G	5/10/20/30	TC100/250	<100ppm/V
				>100G - 1T	5/10/20/30	TC250/500	<250ppm/V

Note:

⁽¹⁾ TCR 25/50: Temperature range +25°C ~ +85°C； ⁽²⁾ The voltage coefficient is measured between 10V and 100V.
Operating Voltage = √ ( P * R ) , or Max. Operating Voltage listed in above table whichever is lower.
Optional specifications on request.

Environmental Characteristic
Continuous Operating Voltage	V = √ ( P * R ) , or Max. Operating Voltage listed in above table whichever is lower.
Measuring Voltage	Standard measuring voltage is 10V (50V for values >1G). Different voltages on request.
TCR ppm/°C	Temperature range +25°C ~ +125°C
	TCR25/50
	Values above 1G: +25°C ~ +85°C.
Operating Temperature Range	-55°C ~ +125°C
Climatic Category to EN 60068-1	55/125/56
Humidity-/Contact Protection	Lacquer coating. Resistant to most solvents. Isopropyl alcohol recommended for cleaning; Do not use acetone or methylene choloride. Avoid mechanical stress to coating.
Stability: Storage 125°C/1000Hrs.	≤1G	≤10G	>10G
	<1%	<2%	<5%
Stability at Max. voltage/1000Hrs.	≤1G	≤10G	>10G
	<0.5%	<1%	<2%
