Pagination: 2/2
| Technical Characteristics - (HI82T) | |||||
| Part Number | Power Rating P75(W) | Working Voltage Max. (V) | Resistance Range (Ω) | Tolerance (%) | TCR |
| HI82T-0125W | 1/8W | 2KV | 1 ~ 500M | ±0.5% ~ ±5% | ±100ppm/°C |
| HI82T-025W | 1/4W | 4KV | 1 ~ 500M | ||
| HI82T-04W | 2/5W | 10KV | 1 ~ 500M | ||
| HI82T-05W | 1/2W | 15KV | 1 ~ 500M | ||
| HI82T-1W | 1W | 15KV | 1 ~ 500M | ||
| HI82T-2SW | 2W | 20KV | 1 ~ 500M | ||
| HI82T-2NW | 2W | 20KV | 1 ~ 500M | ||
| HI82T-2BW | 2W | 20KV | 1 ~ 500M | ||
| HI82T-3W | 3W | 25KV | 1 ~ 500M | ||
| HI82T-5W | 5W | 30KV | 1 ~ 500M | ||
| HI82T-10W | 10W | 35KV | 1 ~ 500M | ||
| HI82T-20W | 20W | 35KV | 1 ~ 500M | ||
| HI82T-30W | 30W | 35KV | 1 ~ 500M | ||
Note:
- TCR @25°C (25°C ~ +105°C). TCR ±15ppm/°C on request.
- Operating Voltage = √ ( P * R ) , or Max. Operating Voltage listed in above table whichever is lower.
- Optional specifications on request.
| Environmental Characteristic | |||
| Continuous Operating Voltage | V = √ ( P * R ) , or Max. Operating Voltage listed in above table whichever is lower. | ||
| Measuring Voltage | Standard measuring voltage is 10V (50V for values >1G). Different voltages on request. |
||
| TCR ppm/°C | Temperature range +25°C~+105°C | ||
| TCR 25/50 | |||
| Values above 1G: +25°C~+105°C. | |||
| Operating Temperature Range | -55°C ~ +225°C | ||
| Climatic Category to EN 60068-1 | 55/125/56 | ||
| Insulation withstand voltage | 1000VDC | ||
| Insulation resistance | ≥ 10GΩ | ||
| Humidity-/Contact Protection | Lacquer coating. Resistant to most solvents. Isopropyl alcohol recommended for cleaning; Do not use acetone or methylene choloride. Avoid mechanical stress to coating. |
||
| Stability: Storage 125°C/1000Hrs. | ≤1G | ≤10G | >10G |
| <1% | <2% | <5% | |
| Stability at Max. voltage/1000Hrs. | ≤1G | ≤10G | >10G |
| <0.5% | <1% | <2% | |

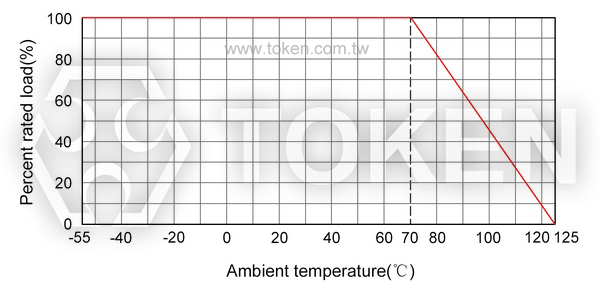

| Power Derating Curve - (HI82D & HI82H) | |
|

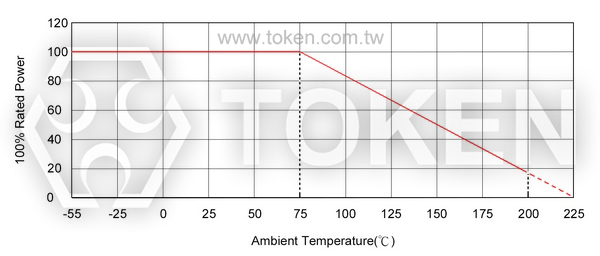

| Power Derating Curve - (HI82T) | |
|
Advance Technique of Non-Inductive & Serpentine Pattern (HI82)
Non-Inductive Performance:
- HI82 Non-Inductive Design which uses a serpentine resistive pattern that offers for zigzagging lines to carry current in opposite directions,
thereby achieving maximum neutralization of flux fields over the entire length of the resistor.
- This efficient non-inductive construction without derating of any performance advantages is ideal for applications where high frequency is required.
Serpentine Pattern Screen Printing Design:
- Type High Voltage HI82 Precision Resistors combine DeMint's Non-Inductive serpentine pattern, high thru-put screen printed silicone coating.
- The alignment of the gap in the serpentine resistor pattern with the gap in the coating pattern provides a complete encapsulation of the resistor element.
- The cap and lead assemblies are pressed onto the resistor core, finishing the resistor and providing rugged terminal attachment.
| Order Codes (HI82) - Ultra-Precision High-Voltage High Value Resistors | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HI82D | 1W | 1G | F | E | ||||||||||||||||||||||||||||||||||||||||||||||||||
 | | | | | ||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Order Codes (HI82H) - Conventional Precision High-Voltage High-Resistance Resistors | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HI82H | 2W | 1G | F | E | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| | | | | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Order Codes (HI82T) - High-Power Voltage Resistors | ||||||||||||||||||||||||||||||||||||||||||
| HI82T | 30W | 500M | F | E | ||||||||||||||||||||||||||||||||||||||
| | | | | ||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||
Note: If no requirements for TCR, (HI82D), (HI82H) and (HI82T) measuring voltage and taping are given, the standard value(highest value in table) will be supplied, measuring voltage of 10V.
