Precision High-Megohm High-Value Chip Resistors (HM)

Add To Inquiry Page

Token (HM) non-magnetic chip resistor providing high resistance value and high-temperature application performance.

Token non-magnetic SMD resistor (HM) series, applied to the field of medical high magnetic fields, such as electronic circuits located in magnetic resonance (MRI) and computed tomography (CT), or in the extreme environment of oil and gas industries, such as downhole instruments for oil wells, or flight control in aerospace applications.

(HM) SMD Resistor series its junction area does not contain nickel, they are made of metal alloy PtAg, can be used as thick film slurry, suitable for roll coating or impregnation process to the packaging chipset parts area. The standard SMD soldering process can also be used in the bonding process of silver conductive epoxy resins. The bonding technology of conductive epoxy resin is mainly used in the case of welding technology can not be applied, such as the temperature sensitive component which is affected by the high welding temperature, or the semiconductor without cladding on the same board. PtAg terminals are suitable for high temperature welding applications, which can be higher than the 155°c of typical soldering.

Similarly, (HM) chip resistors do not contain organic materials, no tin or tin lead layer, and resistance and conductive layer at 850°c high-temperature sintering, so the resistor chip will not have a substantial change, and has a stable electrical characteristics. The terminal material also affects the VCR (the voltage coefficient of the resistor), which is an important characteristic of the high-voltage resistor, and lower VCR is also designed for the Token of the non-magnetic SMD resistor.

Token non-magnetic thick flim chip resistor (HM) series, it consists of two main categories: (HMM) Precision High Value Chips and (HMS) Conventional Precision Megohm Chips. Sizes are 0402, 0603, 0805, 1206, 1210, 2512, and 4020 available. Resistance range from 100KΩ to the highest value 10TΩ. Operating voltage can reach 6000V. Precision tolerance has 0.25%/0.5%/1%/2%/5%/10%/20%/30% alternative. The temperature coefficient is low to 25ppm/°c. The voltage factor VCR can be specified within the range, from low to 25ppm/v.

(HM) chips compliant with RoHS and lead-free standards. Provide more competitive prices and fast delivery services. For technical requirements and special applications outside the specification, please contact the business representative of the Token Electronics.

Download complete specification Precision High-Megohm High Value Chips (HM) PDF.

Features :

Non-magnetic.
Non-standard values available.
Low temperature and voltage dependency.
Contact areas PtAg for glueing and soldering.
Untrimmed for higher working voltage up to 6000V.

Packaging :

Halogen-free, compiant to RoHS directive 2002/95/EC.
Bilk in plastic bags or tubes - MOQ 100 pieces.
Blister tape IEC60286-3 - MOQ 1000 pieces.
Reel diameter 180mm or 330mm.

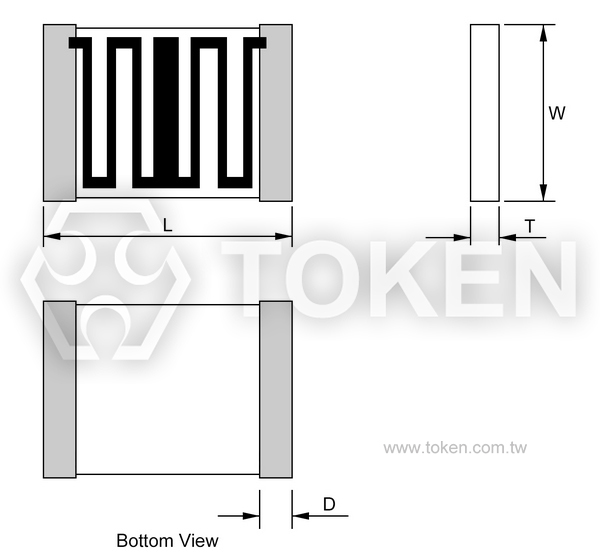

Precision Non-magnetic Chip Dimensions (Unit: mm)

Precision Non-magnetic Chip Dimensions (Unit: mm)

(HMM) Precision High Value Chip Resistors

Part Number

L (mm)

W (mm)

T (mm)

D (mm)

HMM-0805

2.00^+0.15/-0.05

1.25^+0.15/-0.05

0.40^+0.15/-0.05

0.30^+0.20/-0.10

HMM-1206

3.20^+0.15/-0.05

1.50^+0.20/-0.05

0.40^+0.15/-0.05

0.30^+0.20/-0.10

HMM-1210

3.20^+0.15/-0.05

2.50^+0.20/-0.05

0.50^+0.15/-0.05

0.80^±0.20

HMM-2010

5.10^+0.15/-0.05

2.50^+0.20/-0.05

0.60^+0.20/-0.10

1.20^±0.20

HMM-2512

6.30^+0.15/-0.05

3.50^+0.20/-0.05

0.60^+0.15/-0.05

0.90^±0.20

HMM-4020

10.20^+0.20/-0.05

5.10^+0.20/-0.05

0.60^+0.20/-0.10

0.90^±0.20

Note: L = Length, H = Width, T = Thickness, D = width of wrap around。

(HMS) Conventional Precision Megohm Chip Resistors
Part Number	L (mm)	W (mm)	T (mm)	D (mm)
HMS-0402	1.04^±0.05	0.50^±0.05	0.30^±0.05	0.10^+0.10/-0.05
HMS-0603	1.50^+0.15/-0.05	0.80^+0.15/-0.05	0.40^+0.15/-0.05	0.20^+0.20/-0.10
HMS-0805	2.00^+0.15/-0.05	1.25^+0.15/-0.05	0.40^+0.15/-0.05	0.30^+0.20/-0.10
HMS-1206	3.20^+0.15/-0.05	1.50^+0.20/-0.05	0.40^+0.15/-0.05	0.30^+0.20/-0.10
HMS-1210	3.20^+0.15/-0.05	2.50^+0.20/-0.05	0.50^+0.15/-0.05	0.80^±0.20
HMS-2512	6.30^+0.15/-0.05	3.50^+0.20/-0.05	0.60^+0.15/-0.05	0.90^±0.20
HMS-4020	10.20^+0.15/-0.05	5.10^+0.20/-0.05	0.60^+0.15/-0.05	0.90^±0.20
Note: L = Length, H = Width, T = Thickness, D = width of wrap around。

Technical Characteristics - (HMM)
Part Number	Power Rating P₇₀(mW)	Working Voltage (V)		Resistance Range (Ω)	Tolerance (%)	TCR⁽²⁾ (ppm/°C)	VCR⁽³⁾ (ppm/V)
Part Number	Power Rating P₇₀(mW)	trimmed	untrimmed	Resistance Range (Ω)	Tolerance (%)	TCR⁽²⁾ (ppm/°C)	VCR⁽³⁾ (ppm/V)
HMM-0805	125	200	600	100K - 100M	0.5/1/5/10	TC25/50/100	<50ppm/V
				>100M - 1G	2/5/10/20	TC50/100/250	<250ppm/V
				>1G - 10G	5/10/20	TC100/250	<500ppm/V
				>10G - 100G	10/20/30	TC1000/2000	<1000ppm/V
				>100G - 1T	-	-	-
				>1T - 10T	-	-	-
HMM-1206	250	600	1000	100K - 100M	0.5/1/2/5/10	TC25/50/100	<50ppm/V
				>100M - 1G	2/5/10/20	TC50/100/250	<100ppm/V
				>1G - 10G	5/10/20	TC100/250	<250ppm/V
				>10G - 100G	10/20/30	TC500/1000	<1000ppm/V
				>100G - 1T	10/20/30	TC1000/2000	<2000ppm/V
				>1T - 10T	-	-	-
HMM-1210	350	1000	1200	100K - 100M	0.5/1/2/5/10	TC25/50/100	<25ppm/V
				>100M - 1G	1/2/5/10/20	TC25/50/100	<50ppm/V
				>1G - 10G	2/5/10/20	TC50/100	<100ppm/V
				>10G - 100G	5/10/20/30	TC500/1000	<500ppm/V
				>100G - 1T	5/10/20/30	TC500/1000	<1000ppm/V
				>1T - 10T	-	-	-
HMM-2010	500	1500	2000	100K - 100M	0.5/1/2/5/10	TC25/50/100	<25ppm/V
				>100M - 1G	1/2/5/10/20	TC25/50/100	<50ppm/V
				>1G - 10G	2/5/10/20	TC50/100	<100ppm/V
				>10G - 100G	5/10/20/30	TC250/500	<500ppm/V
				>100G - 1T	5/10/20/30	TC500/1000	<1000ppm/V
				>1T - 10T	-	-	-
HMM-2512	1000⁽¹⁾	2000	3000	100K - 100M	0.5/1/2/5/10	TC25/50/100	<10ppm/V
				>100M - 1G	1/2/5/10/20	TC25/50/100	<25ppm/V
				>1G - 10G	2/5/10/20	TC500/100	<100ppm/V
				>10G - 100G	5/10/20/30	TC250/500	<250ppm/V
				>100G - 1T	5/10/20/30	TC500/1000	<500ppm/V
				>1T - 10T	10/20/30	TCR VCR	on request
HMM-4020	1500⁽¹⁾	4000	6000	100K - 100M	0.25/.../10	TC25/50/100	<10ppm/V
				>100M - 1G	0.5/.../20	TC25/50/100	<10ppm/V
				>1G - 10G	1/2/5/10/20	TC25/50/100	<25ppm/V
				>10G - 100G	2/5/10/20/30	TC250/500	<100ppm/V
				>100G - 1T	5/10/20/30	TC500/1000	<250ppm/V
				>1T - 10T	10/20/30	TCR VCR	on request

Note:

⁽¹⁾ At continuous power dissipation the dimensions of solder-pads have to secure sufficient heat-conduction.
⁽²⁾ TCR 25/50: Temperature range +25°C ~ +85°C； ⁽³⁾ VCR: Typical values.
Lower values of tolerance, TCR and VCR on request and agreement.

Environmental Characteristic
Temperature range	-55°C ~ +155°C
Climatic category acc. to IEC 60068	55/155/56
Max. soldering temperature acc. IEC60068 T2-20, Ta Meth.1⁽⁴⁾	235°C 5s
Max. soldering temperature acc. IEC60068 T2-20, Tb Meth.1A	260°C 10s
Long term stability	<1G	<10G	≥10G
Storage 125°C/1000h	<0.5%	<1%	<2%
Load life 70°C/1000h	<0.25%	<0.5%	<1%

Note:

⁽⁴⁾ Up to 6 months after shipment resp, at storage in Nitrogen.
Data not specified according CECC 40401-802.

Technical Characteristics - (HMS)
Part Number	Power Rating P₇₀(mW)	Working Voltage (V)		Resistance Range (Ω)	Tolerance (%)	TCR⁽²⁾ (ppm/°C)	VCR⁽³⁾ (ppm/V)
Part Number	Power Rating P₇₀(mW)	trimmed	untrimmed	Resistance Range (Ω)	Tolerance (%)	TCR⁽²⁾ (ppm/°C)	VCR⁽³⁾ (ppm/V)
HMS-0402	50	30	90	1M - 100M	5/10/20	TC100/250	<500ppm/V
				>100M - 500M	5/10/20	TC250/500	<1000ppm/V
				>500M - 1G	5/10/20	TC250/500	<1000ppm/V
				>1G - 10G	10/20/30	TC1000/2000	<2000ppm/V
				>10G - 100G	-	-	-
				>100G - 1T	-	-	-
HMS-0603	75	75	200	1M - 100M	1/5/10/20	TC100/250	<250ppm/V
				>100M - 500M	2/5/10/20	TC100/250	<250ppm/V
				>500M - 1G	5/10/20	TC250/500	<500ppm/V
				>1G - 10G	5/10/20/30	TC500/1000	<2000ppm/V
				>10G - 100G	10/20/30	TC1000/2000	<5000ppm/V
				>100G - 1T	-	-	-
HMS-0805	125	100	300	1M - 100M	1/5/10/20	TC50/100	<100ppm/V
				>100M - 500M	2/5/10/20	TC100/250	<250ppm/V
				>500M - 1G	5/10/20	TC250/500	<250ppm/V
				>1G - 10G	5/10/20	TC500/1000	<1000ppm/V
				>10G - 100G	10/20/30	TC1000/2000	<2000ppm/V
				>100G - 1T	10/20/30	TC3000	<5000ppm/V
HMS-1206	250	200	600	1M - 100M	1/5/10/20	TC25/50/100	<100ppm/V
				>100M - 500M	2/5/10/20	TC50/100/250	<100ppm/V
				>500M - 1G	5/10/20	TC100/250	<250ppm/V
				>1G - 10G	5/10/20	TC500/1000	<1000ppm/V
				>10G - 100G	10/20/30	TC1000/2000	<2000ppm/V
				>100G - 1T	10/20/30	TC3000	<5000ppm/V
HMS-1210	350	300	900	1M - 100M	1/5/10/20	TC25/50/100	<50ppm/V
				>100M - 500M	2/5/10/20	TC50/100/250	<100ppm/V
				>500M - 1G	5/10/20	TC100/250	<100ppm/V
				>1G - 10G	5/10/20	TC250/500	<500ppm/V
				>10G - 100G	5/10/20	TC500/1000	<1000ppm/V
				>100G - 1T	5/10/20/30	TC1000/2000	<2000ppm/V
HMS-2512	1000⁽¹⁾	1000	2000	1M - 100M	1/.../20	TC25/50/100	<10ppm/V
				>100M - 500M	1/5/10/20	TC25/50/100	<25ppm/V
				>500M - 1G	1/5/10/20	TC100/250	<25ppm/V
				>1G - 10G	2/5/10/20	TC250/500	<100ppm/V
				>10G - 100G	5/10/20	TC250/500	<250ppm/V
				>100G - 1T	5/10/20	TC500/1000	<500ppm/V
HMS-4020	1500⁽¹⁾	4000	6000	1M - 100M	1/.../10	TC25/50/100	<5ppm/V
				>100M - 500M	0.5/1/5/10/20	TC25/50/100	<10ppm/V
				>500M - 1G	1/5/10/20	TC25/50/100	<10ppm/V
				>1G - 10G	2/5/10/20	TC50/100	<25ppm/V
				>10G - 100G	5/10/20/30	TC100/250	<100ppm/V
				>100G - 1T	5/10/20/30	TC250/500	<250ppm/V

Note:

⁽¹⁾ At continuous power dissipation the dimensions of solder-pads have to secure sufficient heat-conduction.
⁽²⁾ TCR 25/50: Temperature range +25°C ~ +85°C； ⁽³⁾ VCR mesdured between 10V and 100V.
Lower values of tolerance, TCR and VCR on request and agreement.

Environmental Characteristic
Temperature range	-55°C ~ +155°C
Climatic category acc. to IEC 60068	55/155/56
Max. soldering temperature acc. IEC60068 T2-20, Ta Meth.1⁽⁴⁾	235°C 5s
Max. soldering temperature acc. IEC60068 T2-20, Tb Meth.1A	260°C 10s
Long term stability	<1G	<10G	≥10G
Storage 125°C/1000h	<1%	<2%	<5%
Load life 70°C/1000h	<0.5%	<1%	<2%

Note:

⁽⁴⁾ Up to 6 months after shipment resp, at storage in Nitrogen.
Data not specified according CECC 40401-802.

Order Codes (HMM) - Precision High Value Chip Resistors

HMM

0805

Part Number

HMM

Rated Power (W)
0805	125mW
1206	250mW
1210	350mW
2010	500mW
2512	1000mW
4020	1500mW

Resistance Value (Ω)
1M1	1.1MΩ
110M	110MΩ
1G5	1.5GΩ
10G	10GΩ
1T	1TΩ
10T	10TΩ

Resistance Tolerance (%)
C	±0.25%
D	±0.5%
F	±1%
G	±2%
J	±5%
K	±10%
M	±20%
N	±30%

TCR (ppm/°C)
C	±25ppm/°C
D	±50ppm/°C
E	±100ppm/°C
L	±250ppm/°C
I	±500ppm/°C
R	±1000ppm/°C
S	±2000ppm/°C

Order Codes (HMS) - Conventional Precision Megohm Chip Resistors

HMS

0402

Part Number

HMS

Rated Power (W)
0402	50mW
0603	75mW
0805	125mW
1206	250mW
1210	350mW
2512	1000mW
4020	1500mW

Resistance Value (Ω)
1M1	1.1MΩ
110M	110MΩ
1G5	1.5GΩ
10G	10GΩ
1T	1TΩ

Resistance Tolerance (%)
D	±0.5%
F	±1%
G	±2%
J	±5%
K	±10%
M	±20%
N	±30%

TCR (ppm/°C)
C	±25ppm/°C
D	±50ppm/°C
E	±100ppm/°C
L	±250ppm/°C
I	±500ppm/°C
R	±1000ppm/°C
S	±2000ppm/°C
T	±3000ppm/°C

Note:
If no requirements for TCR, measuring voltage and taping are given, the standard value (highest value in table) will be supplied, measuring voltage of 10V is used and packaging is bulk.
