TO-220 snubber Power Film bleeder resistors (RMG30)

TO-220 Power Resistors take on transistor outlines.

A wide range of TO-style power film resistors that are designed for use in power electronic circuits such as snubbers, current limiting, bleeder, current sensing and other power resistor applications, is available from Direct Components.

Their compact heatsink-mountable construction ensures that they are ideal for high-power-density applications, and the noninductive form allows these TO-style resistors to operate at up to 30 Watt at 25°C case temperature.

RMG30 Series values as low as 0.05Ω make them particularly suited for current sensing applications with Pb-free Terminations Meet RoHS Requirments.

The resistance range of these resistors is from 0.05Ω to 10KΩ and tolerances are standard at 1% for most resistance values, although 5% tolerances are available.

Many standard values are available from Direct. Contact us with your specific needs. Download PDF Specification TO-220 bleeder Power Film snubber resistors (RMG30).

Features :
  1. Isolated Case, Non Inductive, TO-220 Style Power Package.
  2. Single Screw Mounting to Heat Sink, Molded Case for Protection and Easy to Mount.
  3. 30 Watt at 25°C Case Temperature Heat Sink Mounted.
Applications :
  1. Gate Resistors in Power Supplies, Terminal Resistance in RF Power Amplifiers.
  2. UPS, Snubbers, Voltage Regulation, Low Energy Pulse Loading, Load and Dumping Resistors in CRT Monitors.
Dimensions (Unit: mm) (RMG30) TO220
TO-220 Style Resistor (RMG30)
TO-220 Style Resistor (RMG30)
Type W H T T1 T2 B B1 C D D1 G R
RMG30 10.15
Electrical Characteristics Specifications (RMG30) TO220
Resistance Range Resistance Tolerance TCR(PPM/°C)
0.05Ω~1Ω ±5.00%
2Ω~5Ω ±1.00%
5Ω~10Ω ±1.00%
11Ω~10KΩ ±0.50%
Operating Voltage: 350V Max. Dielectric Strength: 1800VAC. Insulation Resistance: 10GΩmin.
Working Temperature Range: -65°C to +150°C. Resistance Value < 1Ω is Available
Environmental Characteristics (RMG30) TO220
Test Item Specification Test Method
Temperature Coefficient of Resistance 10Ω and above, ±50ppm/°C
1Ω and 10Ω, (±100ppm)/°C
Referenced to 25°C, ΔR taken at +105°C
Short Time Overload Δ R±0.3% 2 times rated power with applied voltage not to exceed 1.5 times maximum continuous operating voltage for 5 seconds.
Load Life Δ R±1.0% MIL-R-39009,2,000 hours at rated power.
Humidity (Steady State) Δ R±0.5% MIL-STD-202F, Method 103B
40°C, 90~95%RH, RCWV 1.5hours ON, 0.5hours OFF. total 1000~1048 hours.
Thermal Shock Δ R±0.3% MIL-STD-202, Method 107G.
-65°C~150°C,100 cycle
Terminal Strength Δ R±0.2% MIL-STD-202, Method 211, Cond.A(Pull Test) 2.4N.
Vibration, High Frequency Δ R±0.2% MIL-STD-202, Method 204, Cond.D.
Lead Material: Tinned Copper. Maximum Torque: 0.9 Nm.
Without Heat Sink, When in Free Air at 25°C, the RMG30 is Rated for 2.25W.
The Case Temperature is to be used for the Definition of the Applied Power Limit.
The Case Temperature Measurement Must be Made with a Thermocouple Contacting the Center of the Component Mounted on the Designed Heat Sink.
Thermal Grease Should be Applied Properly.
Power Derating Curve (RMG30) TO220

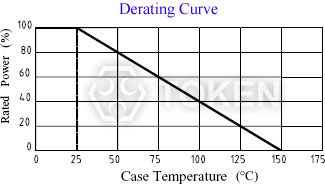

TO-220 Resistors (RMG30) Power Derating Curve
TO-220 Resistors (RMG30) Power Derating Curve
Order Codes (RMG30) TO220
RMG 30 J P D 10R
Part Number
Power Rating (W)
Resistance Tolerance (%)
D ±0.5%
F ±1%
G ±2%
J ±5%
K ±10%
T Tube
P Bulk
D ±50PPM/°C
E ±100PPM/°C
F ±200PPM/°C
- No specified
Resistance (Ω)
0R1 0.1Ω
10R 10Ω
1K 1KΩ
10K 10KΩ
