绕线大电流电感器 功率型 (TPSPA)
德铭特电子 TPSPA 功率型电感系列封装于坚固贴面中，具有高饱和电流和低直流阻抗 (DCR)。提供六个行业标准的尺寸 (4.2 mm x 4.4 mm)，(5.2 mm x 5.4 mm)，(6.6 mm x 7.15 mm)，(10.1 mm x 11.15 mm)，(12.6 mm x 13.65 mm)，及 (17.15 mm x 17.15 mm)，厚度只有 1.2 mm to 7.0 mm。采用先进磁芯材料，工作温度范围 -25°C to +125°C。
这些高饱和电流电感适用于电压调节器模块应用，如桌上型、笔记型电脑，负载点转换器，工作站和伺服器，DC-DC 应用，以及高功率，高密度，高环境温度的应用。
德铭特电子 TPSPA 提供高峰值饱和电流和最大工作电流额定值，具有处理微处理器明显饱和余量的高电流要求。TPSPA 系列可提供饱和电流 (Isat) 范围从 2.0A 到 75A，额定电流 (Idc) 从 1.0A 到 43A，典型直流阻抗 (Typical DCR) 从 0.5mΩ 到 300.0mΩ，最大直流阻抗 (Max DCR) 从 0.65mΩ 到 350mΩ，这些特性可使铜损耗降低，并最大限度地提高了组件性能和系统效率。
德铭特可以生产超出这些规格的电感器，可根据要求提供定制。TPSPA 产品符合 RoHS 标准，无铅焊接技术及 100% 无铅，请联系我们的销售部门以了解更多信息。
更多闭磁式大电流电感器 (TPSPA) 选型。
或下载 PDF 版本: 绕线大电流电感器 (TPSPA)。
特性 :
- 良好的磁屏蔽。
- 低高度： 1.2mm ~ 7.0mm。
- 耐大电流（额定电流）： 1.0 ~ 42.0 安培。
- 高频率（最高至 1MHz）。
用途 :
- 直流对直流转换器。
- 电源分配系统或 VRM 应用。
- 薄型板上电源供应交换模组。
- 笔记型电脑，PC 显示卡，VGA 模组。
| SMT 大电流功率型 (TPSPA) 结构图及规格尺寸 | ||||||
|
||||||
| 型号 | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | |
| TPSPA0420 | 4.2 ± 0.25 | 4.4 ± 0.35 | 2.0 Max. | 0.8 ± 0.3 | 1.5 ± 0.3 | |
| TPSPA0518 | 5.2 ± 0.25 | 5.4 ± 0.35 | 1.8 Max. | 1.0 ± 0.3 | 2.3 ± 0.3 | |
| TPSPA0530 | 5.2 ± 0.25 | 5.4 ± 0.35 | 3.0 Max. | 1.0 ± 0.3 | 2.3 ± 0.3 | |
| TPSPA0612 | 6.6 ± 0.25 | 7.15 ± 0.35 | 1.2 Max. | 1.5 ± 0.3 | 3.0 ± 0.3 | |
| TPSPA0615 | 6.6 ± 0.25 | 7.15 ± 0.35 | 1.5 Max. | 1.5 ± 0.3 | 3.0 ± 0.3 | |
| TPSPA0618 | 6.6 ± 0.25 | 7.15 ± 0.35 | 1.8 Max. | 1.5 ± 0.3 | 3.0 ± 0.3 | |
| TPSPA0624 | 6.6 ± 0.25 | 7.15 ± 0.35 | 2.4 Max. | 1.5 ± 0.3 | 3.0 ± 0.3 | |
| TPSPA0630 | 6.6 ± 0.25 | 7.15 ± 0.35 | 3.0 Max. | 1.5 ± 0.3 | 3.0 ± 0.3 | |
| TPSPA0650 | 6.6 ± 0.25 | 7.15 ± 0.35 | 5.0 Max. | 1.5 ± 0.3 | 3.0 ± 0.3 | |
| TPSPA1030 | 10.1 ± 0.25 | 11.15 ± 0.35 | 3.0 Max. | 2.0 ± 0.5 | 3.0 ± 0.5 | |
| TPSPA1040 | 10.85 ± 0.35 | 10.00 ± 0.3 | 4.0 Max. | 3.3 ± 0.5 | 2.0 ± 0.5 | |
| TPSPA1050 | 10.1 ± 0.25 | 11.15 ± 0.35 | 5.0 Max. | 2.0 ± 0.5 | 3.0 ± 0.5 | |
| TPSPA1335 | 12.6 ± 0.2 | 13.65 ± 0.35 | 3.5 Max. | 2.5 ± 0.5 | 3.8 ± 0.5 | |
| TPSPA1350 | 12.6 ± 0.2 | 13.65 ± 0.35 | 5.0 Max. | 2.5 ± 0.5 | 3.8 ± 0.5 | |
| TPSPA1360 | 12.6 ± 0.2 | 13.65 ± 0.35 | 6.0 Max. | 2.5 ± 0.5 | 3.8 ± 0.5 | |
| TPSPA1365 | 12.6 ± 0.2 | 13.65 ± 0.35 | 6.5 Max. | 2.5 ± 0.5 | 3.8 ± 0.5 | |
| TPSPA1770 | 17.15 Max. | 17.15 ± 0.35 | 7.0 Max. | 2.5 ± 0.5 | 12.0 ± 0.5 | |
| SMT 大电流功率型 (TPSPA1030) 电性表 | ||||
| 产品料号 | 电感值 (µH) @ (0A) ±20% |
直流阻抗 (mΩ) @25°C | 额定电流 Idc (A) | 饱和电流 Isat (A) |
| (Max) | ||||
| TPSPA1030-R33M | 0.33 | 1.6 | 23.0 | 32.0 |
| TPSPA1030-R36M | 0.36 | 1.6 | 23.0 | 28.0 |
| TPSPA1030-R47M | 0.47 | 2.5 | 23.0 | 26.0 |
| TPSPA1030-R56M | 0.56 | 3.0 | 22.0 | 24.0 |
| TPSPA1030-R68M | 0.68 | 3.4 | 21.0 | 23.0 |
| TPSPA1030-1R0M | 1.00 | 6.0 | 15.0 | 21.0 |
| TPSPA1030-1R5M | 1.50 | 7.5 | 12.0 | 18.0 |
| TPSPA1030-2R2M | 2.20 | 9.0 | 11.0 | 14.0 |
| TPSPA1030-3R3M | 3.30 | 16.0 | 9.0 | 12.0 |
| TPSPA1030-4R7M | 4.70 | 22.5 | 7.0 | 10.0 |
| TPSPA1030-5R6M | 5.60 | 30.0 | 6.0 | 10.0 |
| TPSPA1030-6R8M | 6.80 | 35.0 | 5.5 | 7.5 |
| TPSPA1030-8R2M | 8.20 | 45.0 | 5.0 | 7.0 |
| TPSPA1030-100M | 10.00 | 55.0 | 4.5 | 6.5 |
| TPSPA1030-150M | 15.00 | 65.0 | 4.0 | 5.0 |
| TPSPA1030-220M | 22.00 | 99.0 | 3.0 | 4.0 |
| TPSPA1030-330M | 33.00 | 145.0 | 2.0 | 3.0 |
注:
- 测试频率 @ 100KHZ / 1.0V .
- Idc (Irms): 从 25°C 环境温度升高至 40°C 的电流.
- IsatDC: 电感从起始电流 = 0 至下降 30% 的直流电流.

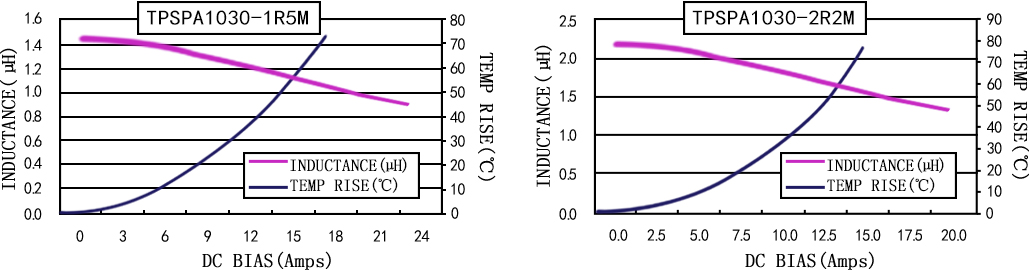

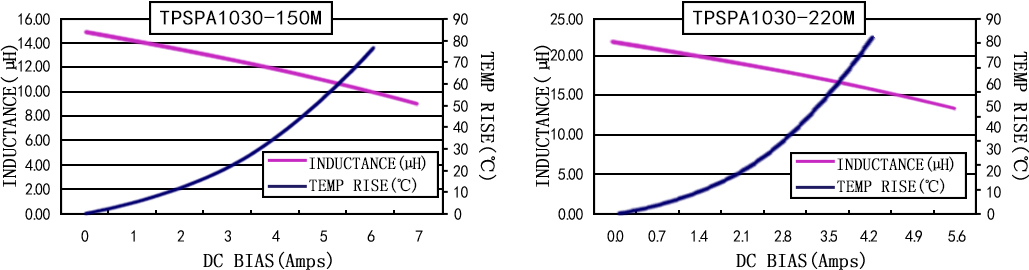

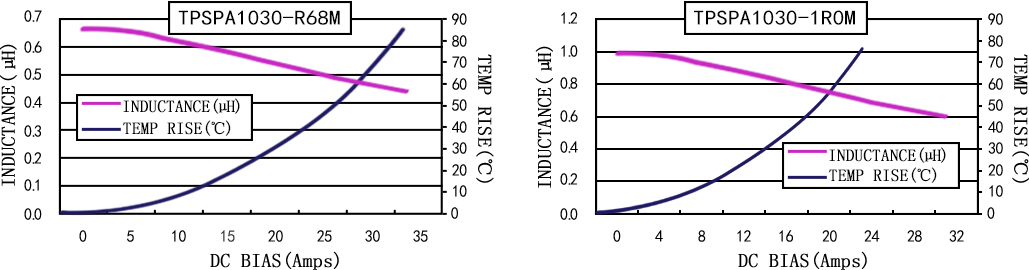

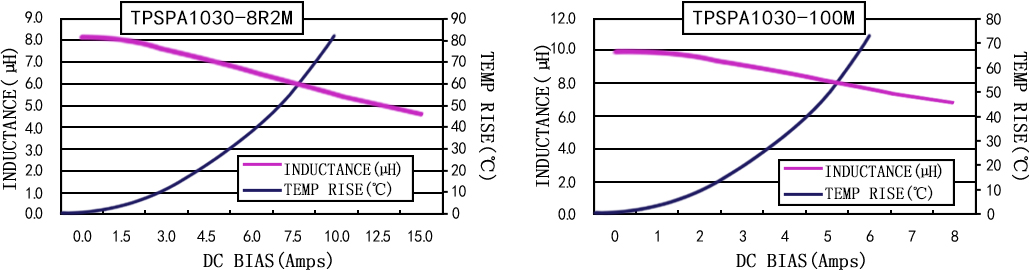

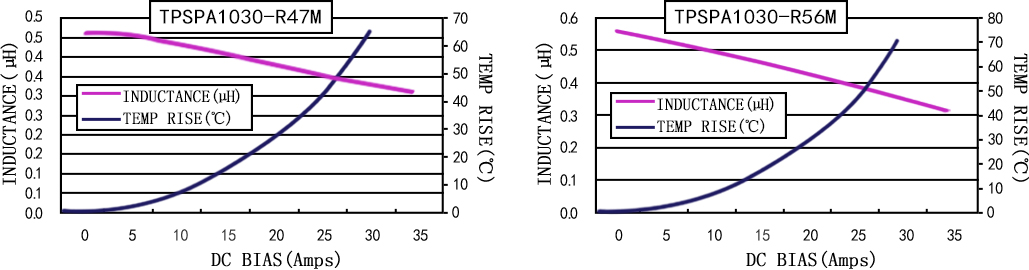

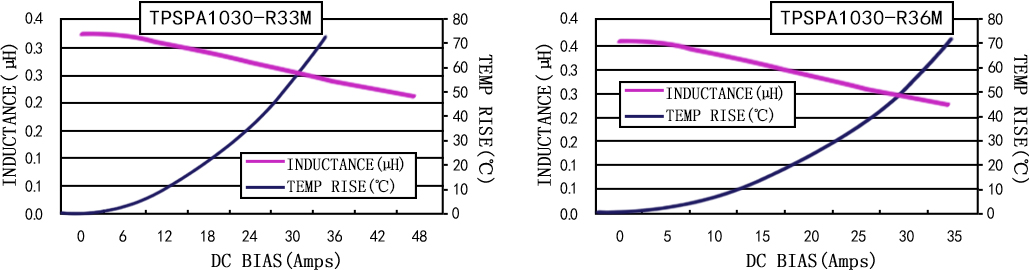

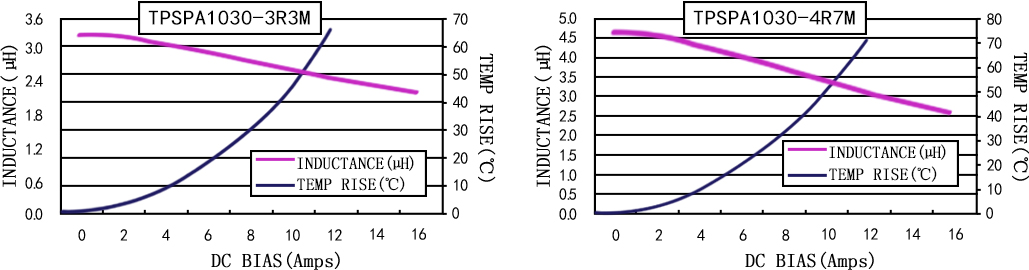

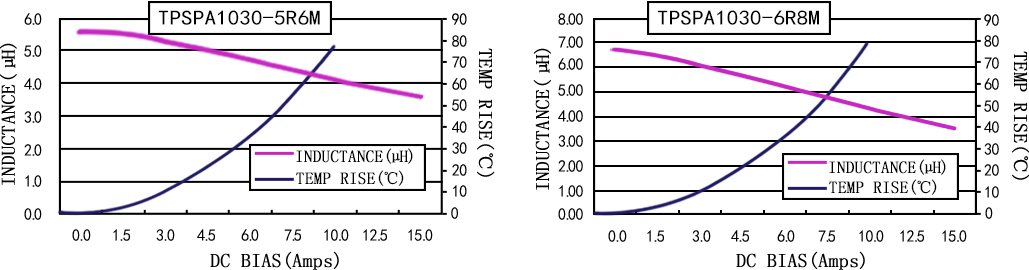

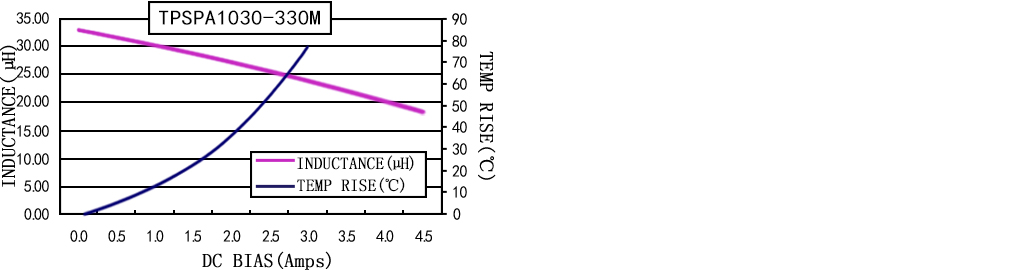

| 电流特性 TPSPA1030-∗∗∗M 系列 | |
|
| SMT 大电流功率型 (TPSPA1040) 电性表 | ||||
| 产品料号 | 电感值 (µH) @ (0A) ±20% |
直流阻抗 (mΩ) @25°C | 额定电流 Idc (A) | 饱和电流 Isat (A) |
| (Max) | ||||
| TPSPA1040-R15M | 0.15 | 0.65 | 40.0 | 75.0 |
| TPSPA1040-R22M | 0.22 | 1.0 | 35.0 | 60.0 |
| TPSPA1040-R33M | 0.33 | 1.2 | 25.0 | 51.0 |
| TPSPA1040-R36M | 0.36 | 1.2 | 25.0 | 50.0 |
| TPSPA1040-R39M | 0.39 | 1.2 | 25.0 | 45.0 |
| TPSPA1040-R47M | 0.47 | 1.68 | 24.0 | 35.0 |
| TPSPA1040-R56M | 0.56 | 1.8 | 23.5 | 33.0 |
| TPSPA1040-R68M | 0.68 | 2.4 | 23.0 | 30.0 |
| TPSPA1040-1R0M | 1.00 | 3.3 | 18.0 | 28.0 |
| TPSPA1040-1R5M | 1.50 | 4.2 | 15.0 | 24.0 |
| TPSPA1040-1R8M | 1.80 | 5.8 | 13.0 | 15.0 |
| TPSPA1040-2R0M | 2.00 | 6.9 | 12.0 | 14.0 |
| TPSPA1040-2R2M | 2.20 | 7.0 | 12.0 | 18.0 |
| TPSPA1040-3R3M | 3.30 | 11.8 | 10.0 | 16.0 |
| TPSPA1040-4R7M | 4.70 | 20.0 | 8.5 | 13.0 |
| TPSPA1040-5R6M | 5.60 | 23.0 | 8.0 | 11.0 |
| TPSPA1040-6R8M | 6.80 | 25.0 | 7.0 | 10.0 |
| TPSPA1040-8R2M | 8.20 | 27.0 | 6.0 | 9.0 |
| TPSPA1040-100M | 10.00 | 30.0 | 5.5 | 8.5 |
| TPSPA1040-120M | 12.00 | 42.0 | 5.0 | 8.0 |
| TPSPA1040-150M | 15.00 | 45.0 | 4.5 | 7.0 |
| TPSPA1040-220M | 22.00 | 66.0 | 4.0 | 5.5 |
| TPSPA1040-330M | 33.00 | 92.0 | 3.5 | 5.0 |
| TPSPA1040-470M | 47.00 | 145.0 | 3.3 | 3.5 |
| TPSPA1040-680M | 68.00 | 205.0 | 2.3 | 3.0 |
| TPSPA1040-820M | 82.00 | 280.0 | 2.0 | 3.0 |
| TPSPA1040-101M | 100.00 | 300.0 | 1.5 | 2.0 |
注:
- 测试频率 @ 100KHZ / 1.0V .
- Idc (Irms): 从 25°C 环境温度升高至 40°C 的电流.
- IsatDC: 电感从起始电流 = 0 至下降 30% 的直流电流.

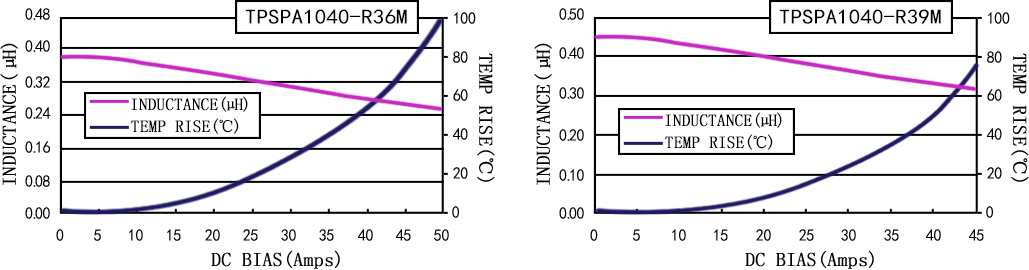

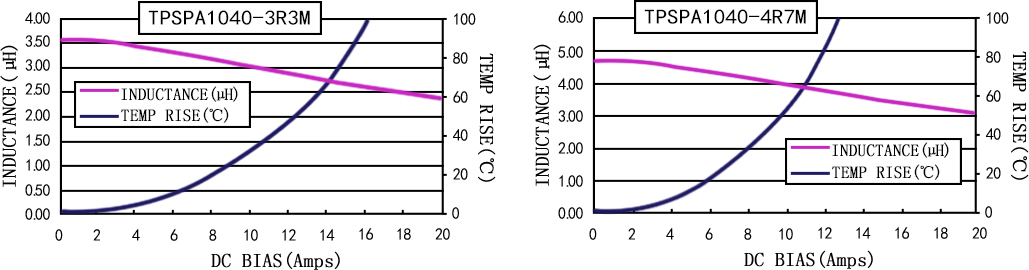

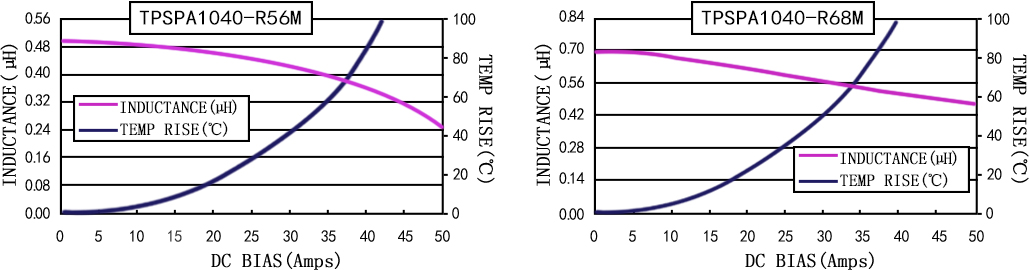

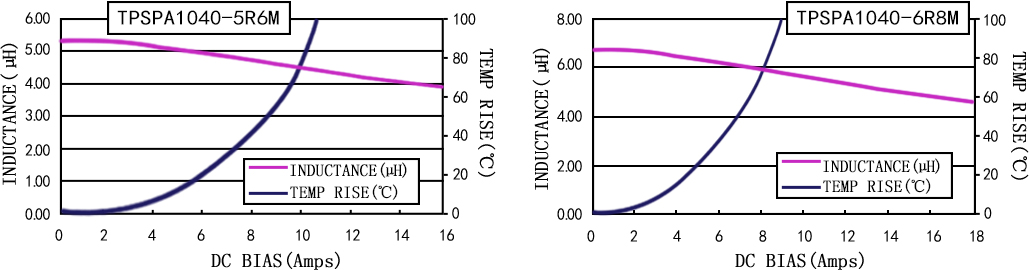

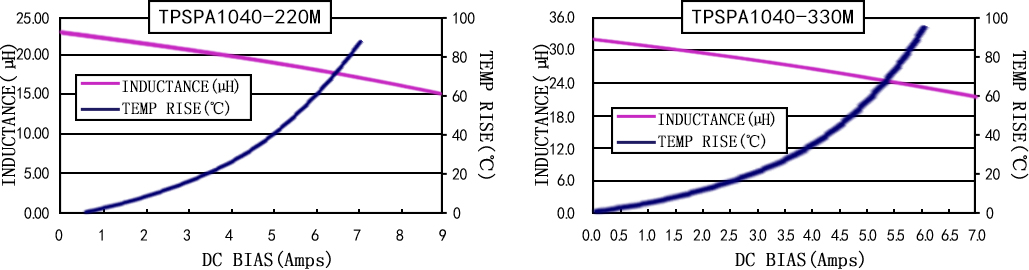

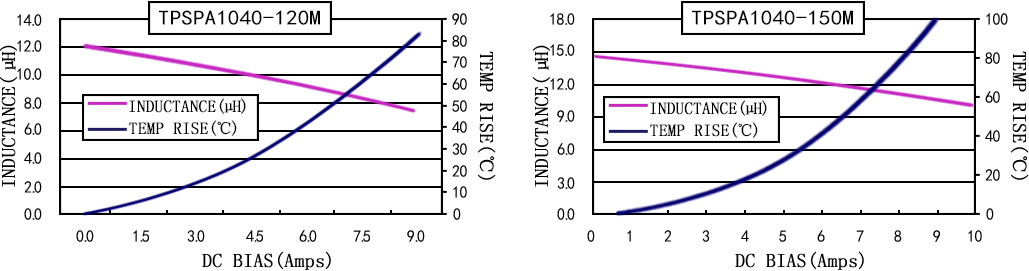

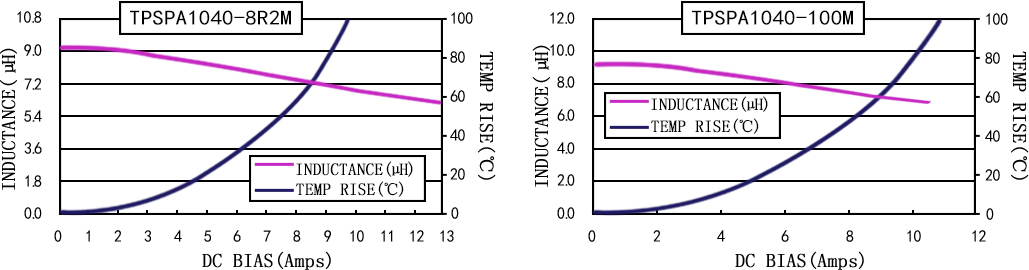

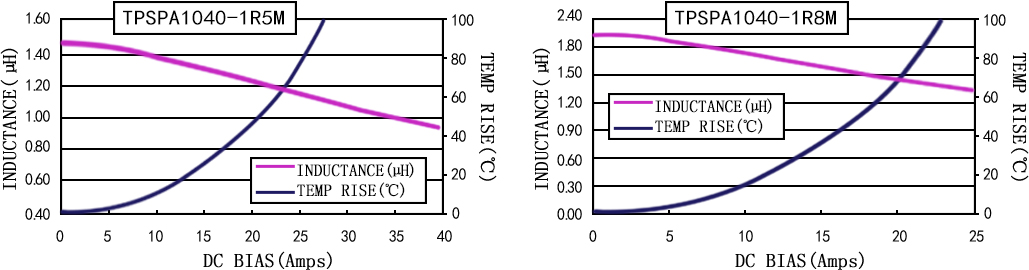

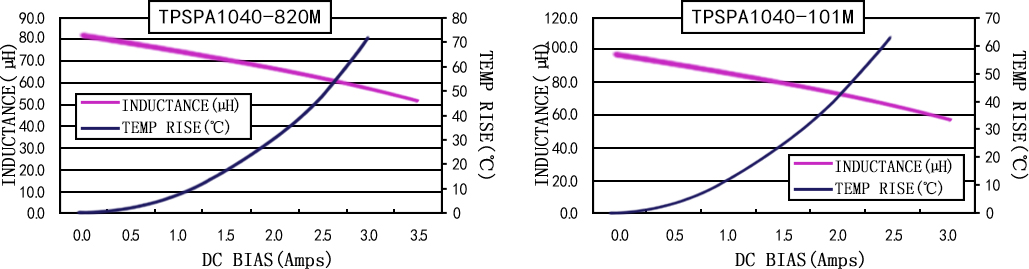

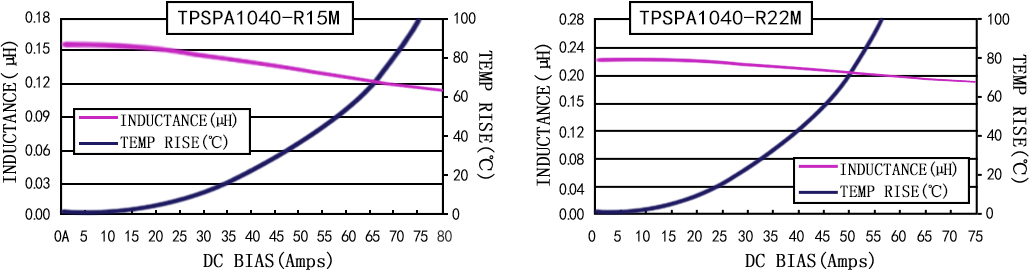

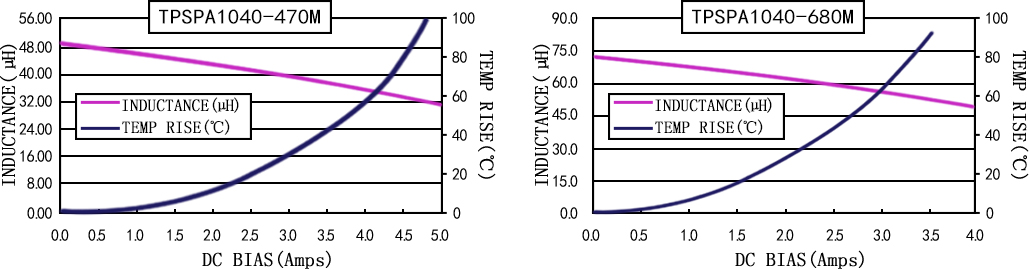

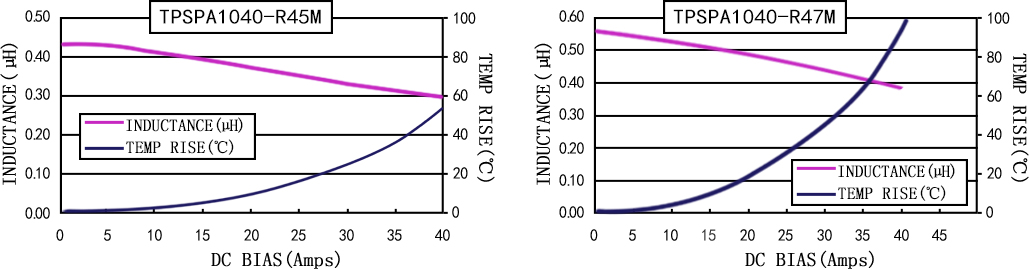

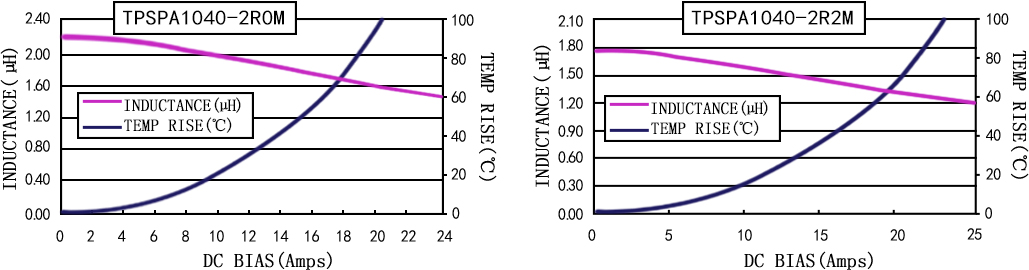

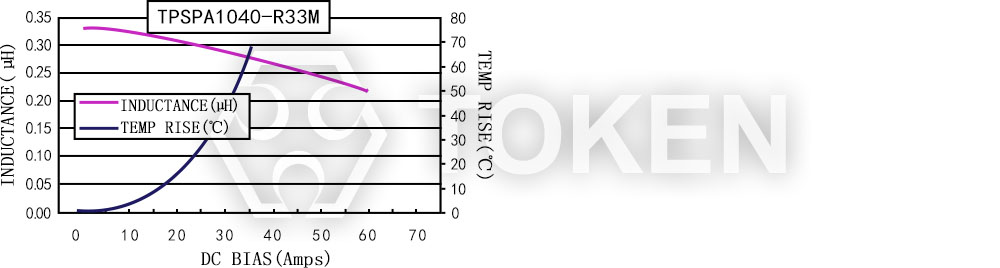

| 电流特性 TPSPA1040-∗∗∗M 系列 | |
|
| SMT 大电流功率型 (TPSPA1050) 电性表 | ||||
| 产品料号 | 电感值 (µH) @ (0A) ±20% |
直流阻抗 (mΩ) @25°C | 额定电流 Idc (A) | 饱和电流 Isat (A) |
| (Max) | ||||
| TPSPA1050-R22M | 0.22 | 0.8 | 37.0 | 60.0 |
| TPSPA1050-R26M | 0.26 | 1.0 | 35.0 | 60.0 |
| TPSPA1050-1R0M | 1.00 | 2.6 | 19.0 | 29.0 |
| TPSPA1050-1R2M | 1.20 | 3.1 | 18.0 | 28.0 |
| TPSPA1050-1R5M | 1.50 | 3.8 | 16.0 | 25.0 |
| TPSPA1050-2R2M | 2.20 | 6.0 | 13.0 | 20.0 |
| TPSPA1050-3R3M | 3.30 | 11.8 | 10.0 | 18.0 |
| TPSPA1050-4R7M | 4.70 | 15.0 | 9.0 | 15.0 |
| TPSPA1050-6R8M | 6.80 | 18.5 | 8.5 | 14.0 |
| TPSPA1050-100M | 10.00 | 28.0 | 6.0 | 10.0 |
| TPSPA1050-220M | 22.00 | 50.0 | 5.5 | 6.0 |
| TPSPA1050-330M | 33.00 | 76.0 | 4.5 | 5.0 |
注:
- 测试频率 @ 100KHZ / 1.0V .
- Idc (Irms): 从 25°C 环境温度升高至 40°C 的电流.
- IsatDC: 电感从起始电流 = 0 至下降 30% 的直流电流.

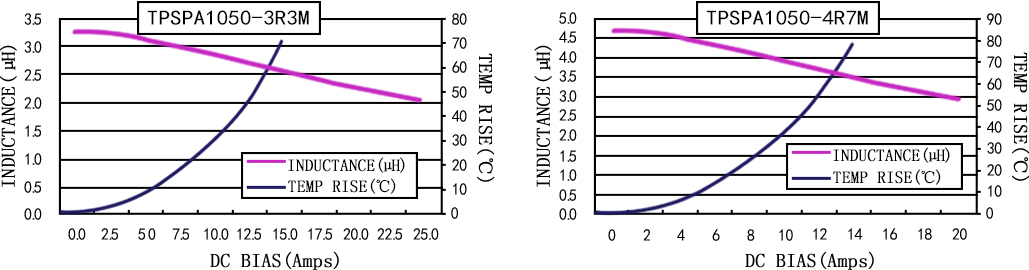

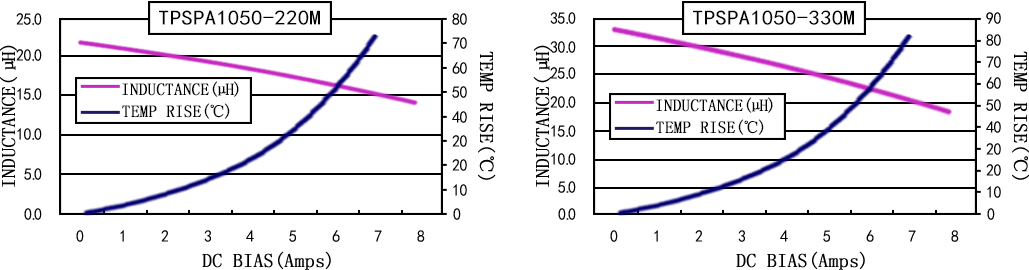

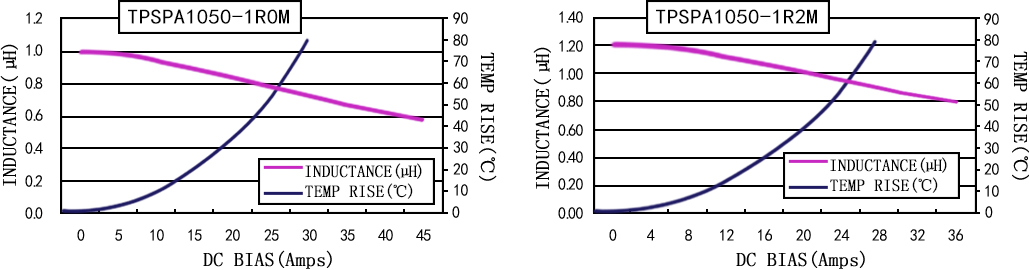

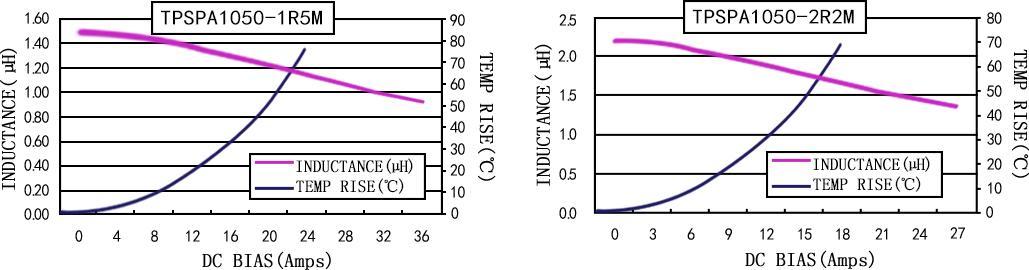

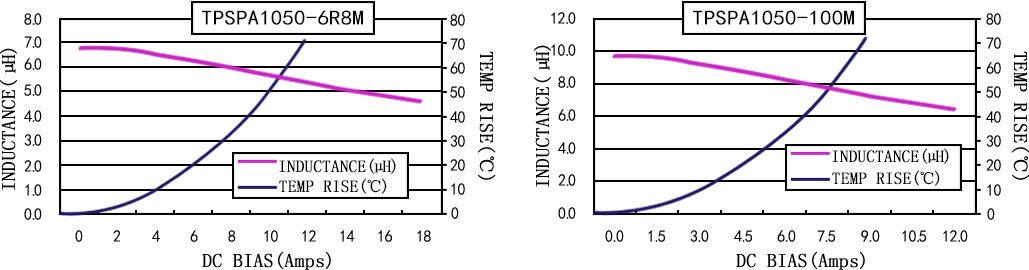

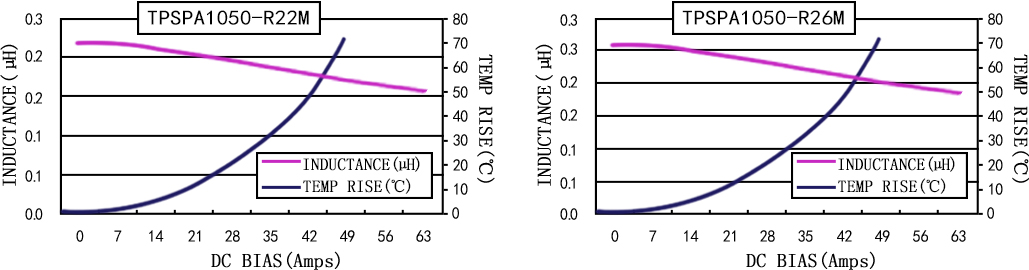

| 电流特性 TPSPA1050-∗∗∗M 系列 | |
|
| SMT 大电流功率型 (TPSPA1335) 电性表 | ||||
| 产品料号 | 电感值 (µH) @ (0A) ±20% |
直流阻抗 (mΩ) @25°C | 额定电流 Idc (A) | 饱和电流 Isat (A) |
| (Max) | ||||
| TPSPA1335-R15M | 0.15 | 0.85 | 39.0 | 60.0 |
| TPSPA1335-R22M | 0.22 | 1.3 | 38.0 | 57.0 |
| TPSPA1335-R33M | 0.33 | 1.5 | 36.5 | 52.0 |
| TPSPA1335-R39M | 0.39 | 1.5 | 34.0 | 50.0 |
| TPSPA1335-R47M | 0.47 | 2.0 | 32.0 | 47.0 |
| TPSPA1335-R56M | 0.56 | 2.2 | 29.0 | 43.0 |
| TPSPA1335-R68M | 0.68 | 2.5 | 28.0 | 41.0 |
| TPSPA1335-R82M | 0.82 | 3.0 | 25.0 | 36.0 |
| TPSPA1335-1R0M | 1.00 | 3.5 | 24.0 | 29.0 |
| TPSPA1335-1R5M | 1.50 | 5.5 | 19.0 | 27.0 |
| TPSPA1335-2R2M | 2.20 | 8.0 | 16.0 | 19.0 |
| TPSPA1335-3R3M | 3.30 | 12.0 | 13.0 | 14.0 |
| TPSPA1335-4R7M | 4.70 | 18.0 | 9.0 | 12.0 |
| TPSPA1335-5R6M | 5.60 | 22.0 | 8.0 | 8.0 |
| TPSPA1335-6R8M | 6.80 | 25.0 | 7.0 | 7.0 |
| TPSPA1335-8R2M | 8.20 | 30.0 | 6.5 | 6.0 |
| TPSPA1335-100M | 10.00 | 35.0 | 6.0 | 4.0 |
注:
- 测试频率 @ 100KHZ / 1.0V .
- Idc (Irms): 从 25°C 环境温度升高至 40°C 的电流.
- IsatDC: 电感从起始电流 = 0 至下降 30% 的直流电流.

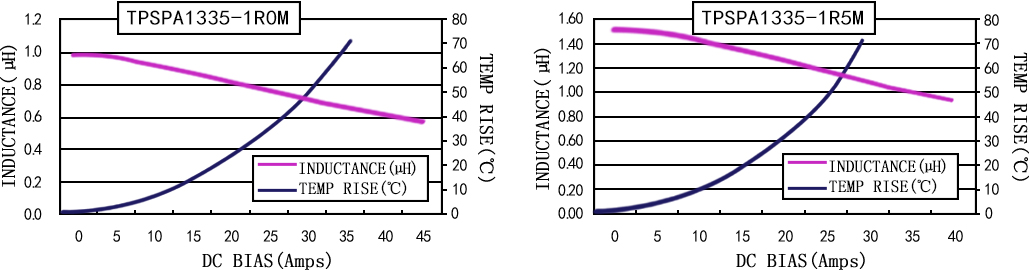

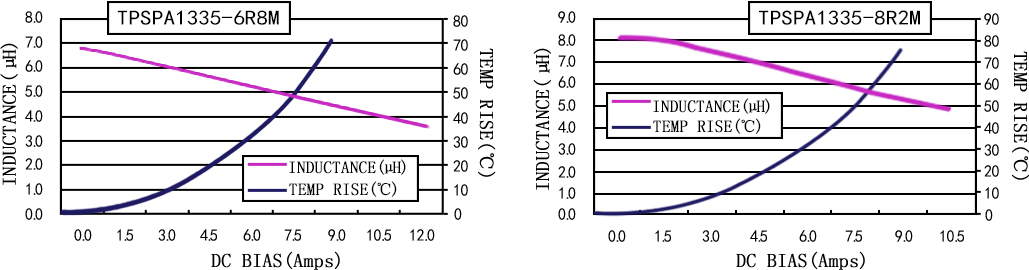

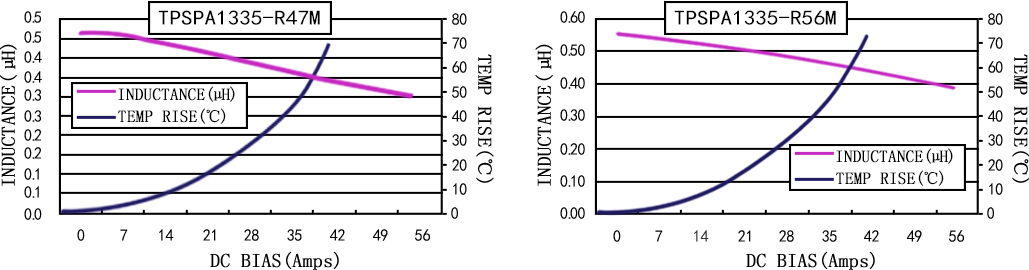

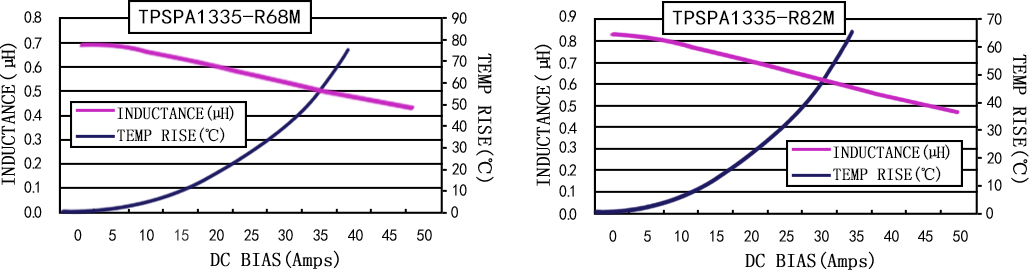

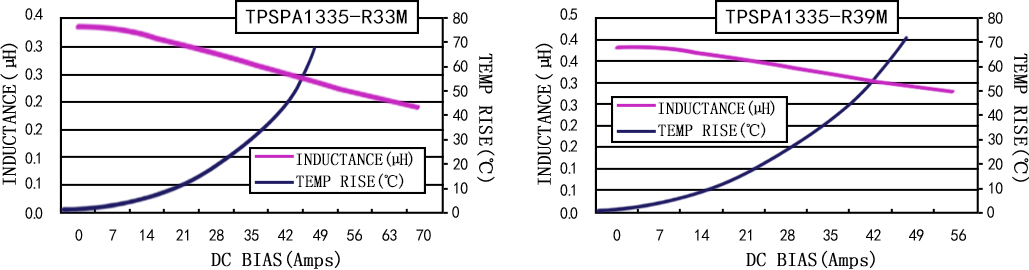

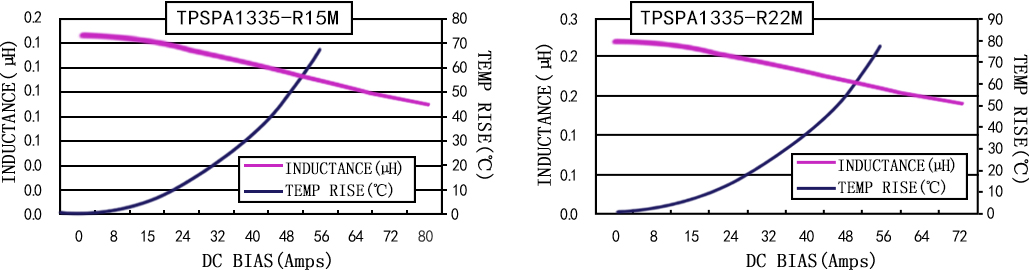

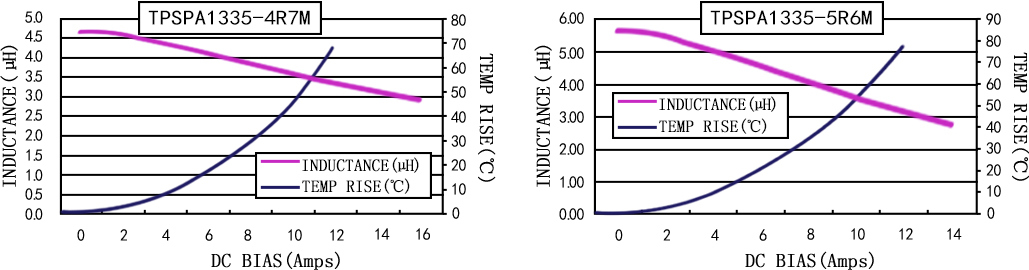

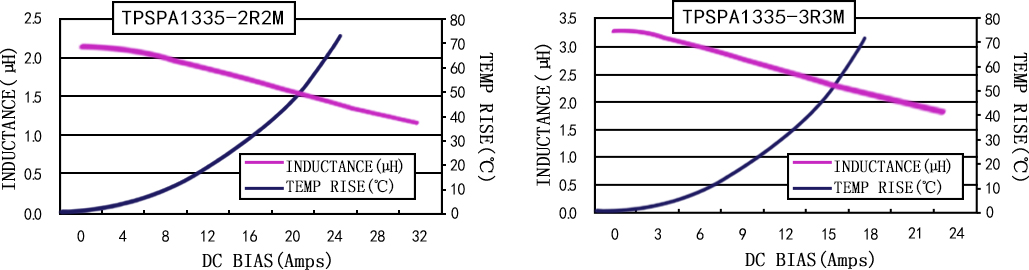

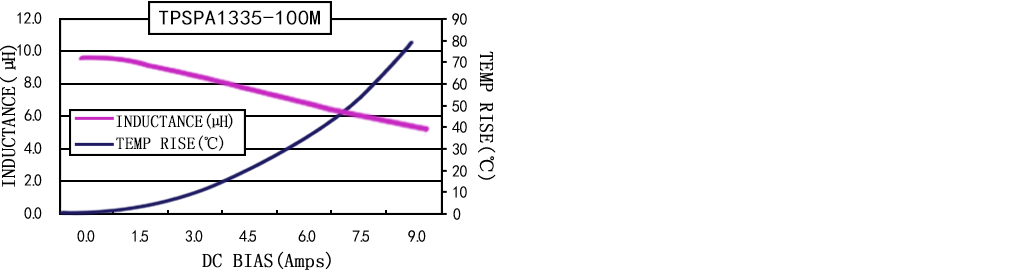

| 电流特性 TPSPA1335-∗∗∗M 系列 | |
|
| SMT 大电流功率型 (TPSPA1350) 电性表 | ||||
| 产品料号 | 电感值 (µH) @ (0A) ±20% |
直流阻抗 (mΩ) @25°C | 额定电流 Idc (A) | 饱和电流 Isat (A) |
| (Max) | ||||
| TPSPA1350-R22M | 0.22 | 0.9 | 43.0 | 60.0 |
| TPSPA1350-R33M | 0.33 | 1.1 | 41.0 | 80.0 |
| TPSPA1350-R36M | 0.36 | 1.1 | 41.0 | 60.0 |
| TPSPA1350-R47M | 0.47 | 1.3 | 39.0 | 52.0 |
| TPSPA1350-R56M | 0.56 | 1.5 | 36.0 | 50.0 |
| TPSPA1350-R68M | 0.68 | 1.5 | 32.0 | 40.0 |
| TPSPA1350-R82M | 0.82 | 1.67 | 30.0 | 38.0 |
| TPSPA1350-1R0M | 1.00 | 2.2 | 26.0 | 35.0 |
| TPSPA1350-1R5M | 1.50 | 3.2 | 23.0 | 32.0 |
| TPSPA1350-1R8M | 1.80 | 3.2 | 23.0 | 27.0 |
| TPSPA1350-2R2M | 2.20 | 5.0 | 15.0 | 26.0 |
| TPSPA1350-3R3M | 3.30 | 9.0 | 13.0 | 22.0 |
| TPSPA1350-4R7M | 4.70 | 11.0 | 12.0 | 17.0 |
| TPSPA1350-5R6M | 5.60 | 15.0 | 11.0 | 16.0 |
| TPSPA1350-6R8M | 6.80 | 18.0 | 10.0 | 14.0 |
| TPSPA1350-8R2M | 8.20 | 20.0 | 9.0 | 13.0 |
| TPSPA1350-100M | 10.00 | 23.0 | 8.0 | 12.0 |
| TPSPA1350-150M | 15.00 | 32.0 | 5.0 | 10.0 |
| TPSPA1350-220M | 22.00 | 52.0 | 4.5 | 7.0 |
| TPSPA1350-270M | 27.00 | 66.0 | 4.0 | 6.3 |
| TPSPA1350-330M | 33.00 | 84.0 | 3.5 | 6.0 |
| TPSPA1350-470M | 47.00 | 120.0 | 3.0 | 5.0 |
| TPSPA1350-680M | 68.00 | 135.0 | 2.5 | 4.5 |
注:
- 测试频率 @ 100KHZ / 1.0V .
- Idc (Irms): 从 25°C 环境温度升高至 40°C 的电流.
- IsatDC: 电感从起始电流 = 0 至下降 30% 的直流电流.

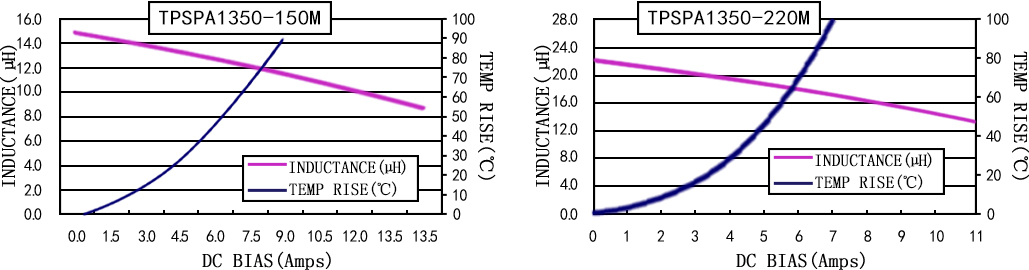

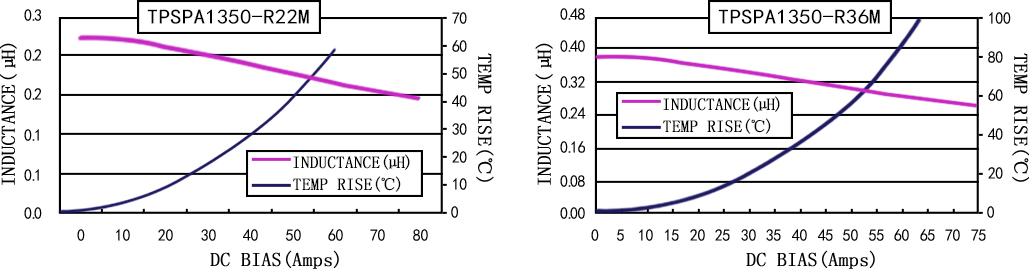

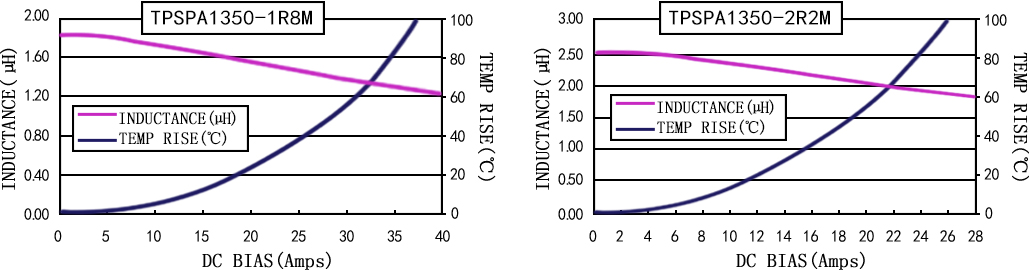

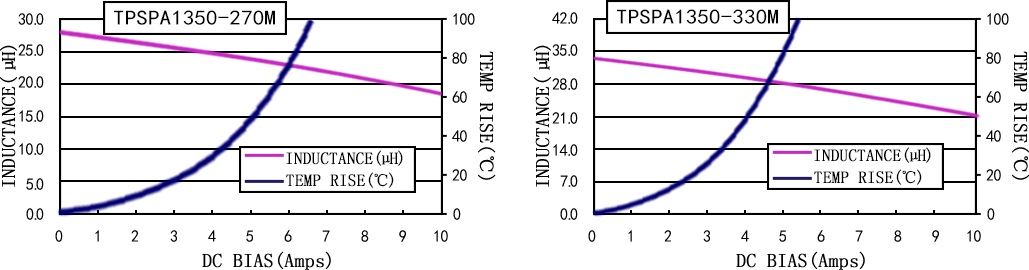

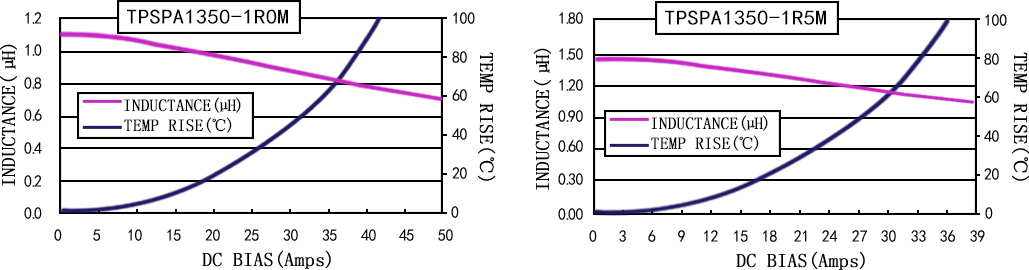

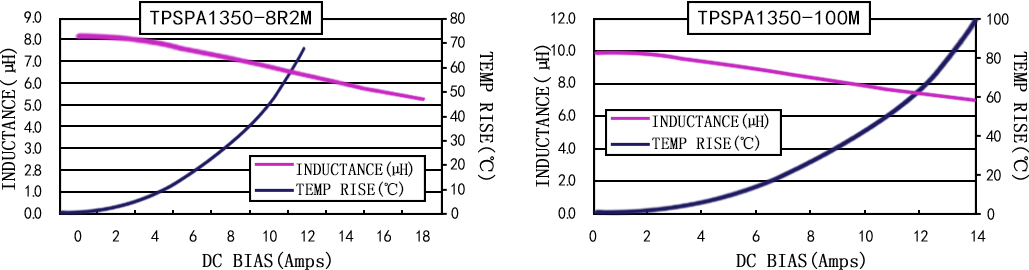

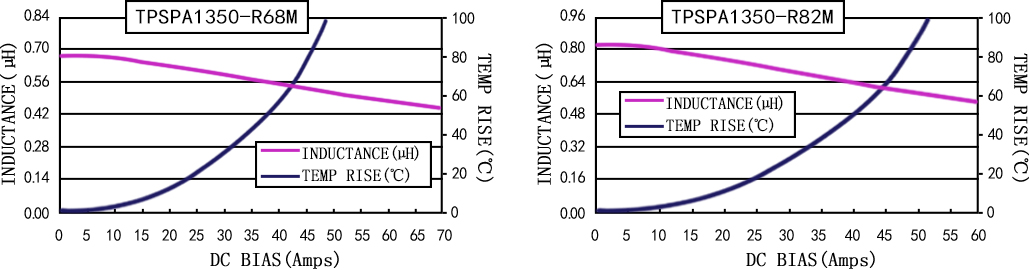

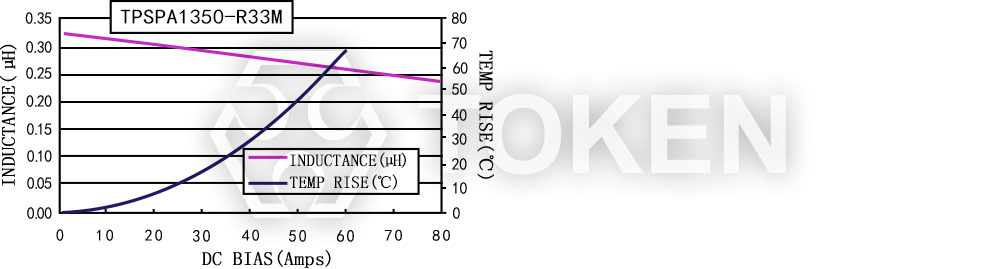

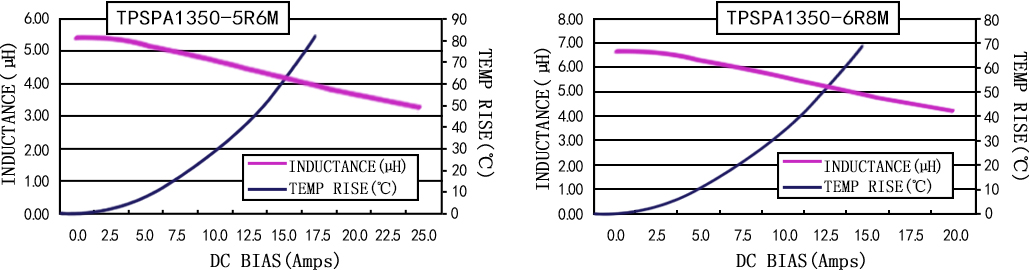

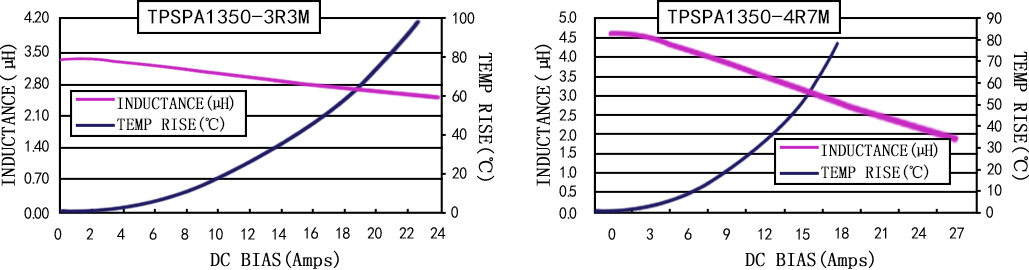

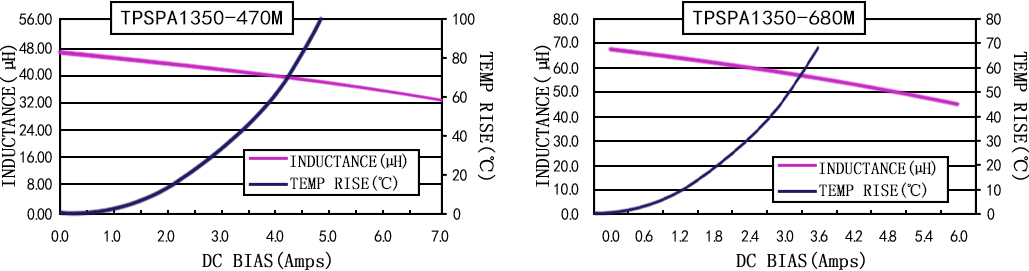

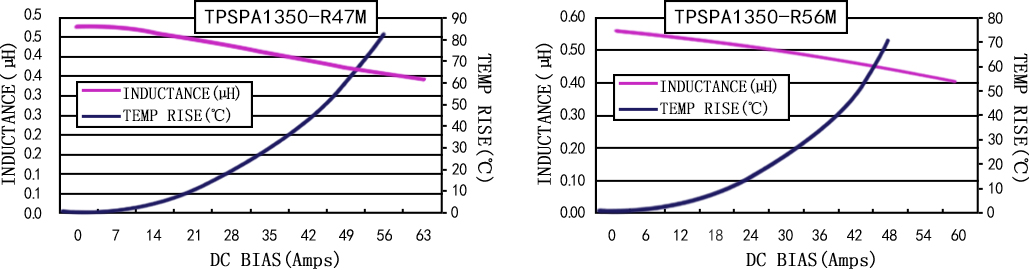

| 电流特性 TPSPA1350-∗∗∗M 系列 | |
|
| SMT 大电流功率型 (TPSPA1360) 电性表 | ||||
| 产品料号 | 电感值 (µH) @ (0A) ±20% |
直流阻抗 (mΩ) @25°C | 额定电流 Idc (A) | 饱和电流 Isat (A) |
| (Max) | ||||
| TPSPA1360-1R0M | 1.00 | 1.7 | 30.0 | 35.0 |
| TPSPA1360-4R7M | 4.70 | 7.0 | 13.0 | 20.0 |
| TPSPA1360-6R8M | 6.80 | 13.8 | 12.0 | 15.0 |
| TPSPA1360-8R2M | 8.20 | 16.0 | 11.0 | 14.0 |
| TPSPA1360-100M | 10.00 | 20.7 | 10.0 | 13.0 |
| TPSPA1360-120M | 12.00 | 23.0 | 7.0 | 11.0 |
| TPSPA1360-150M | 15.00 | 29.0 | 6.0 | 9.0 |
| TPSPA1360-180M | 18.00 | 35.0 | 5.0 | 8.0 |
| TPSPA1360-220M | 22.00 | 39.5 | 5.0 | 7.5 |
| TPSPA1360-270M | 27.00 | 42.0 | 4.5 | 7.0 |
| TPSPA1360-330M | 33.00 | 70.0 | 4.0 | 6.0 |
| TPSPA1360-470M | 47.00 | 88.0 | 3.5 | 5.2 |
| TPSPA1360-680M | 68.00 | 125.0 | 3.3 | 5.0 |
| TPSPA1360-820M | 82.00 | 140.0 | 3.0 | 4.0 |
| TPSPA1360-101M | 100.00 | 150.0 | 2.5 | 3.5 |
| TPSPA1360-121M | 120.00 | 235.0 | 2.3 | 3.2 |
| TPSPA1360-151M | 150.00 | 350.0 | 2.0 | 2.7 |
注:
- 测试频率 @ 100KHZ / 1.0V .
- Idc (Irms): 从 25°C 环境温度升高至 40°C 的电流.
- IsatDC: 电感从起始电流 = 0 至下降 30% 的直流电流.

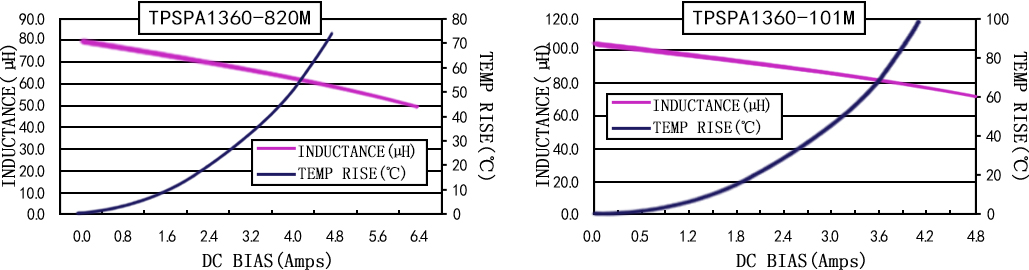

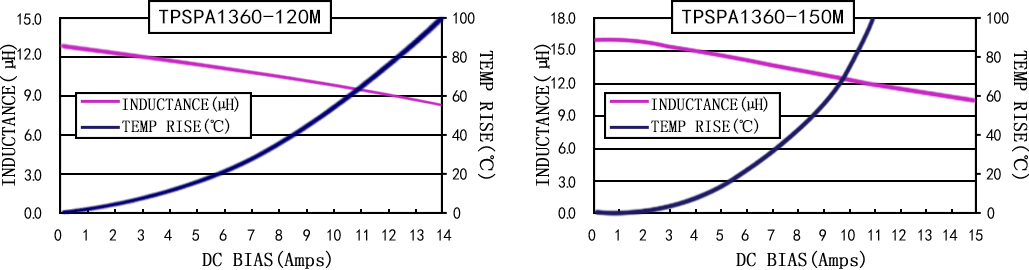

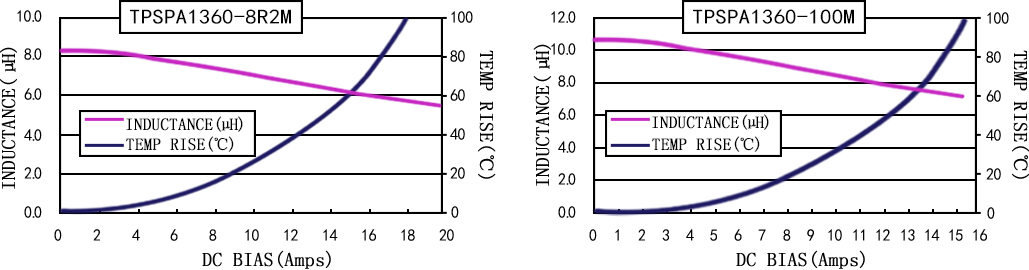

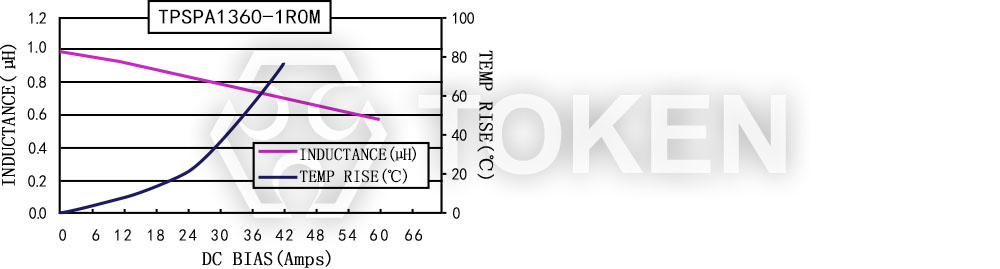

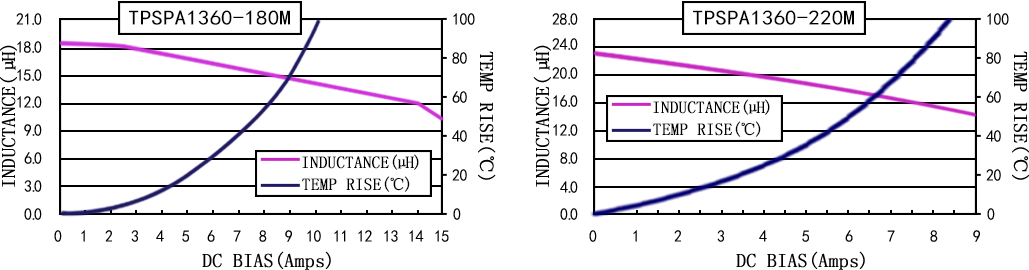

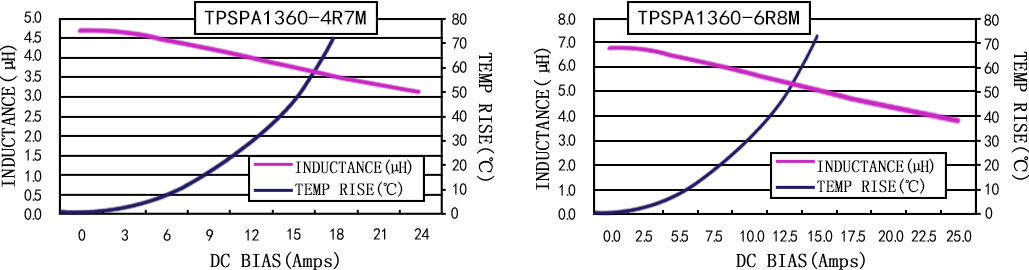

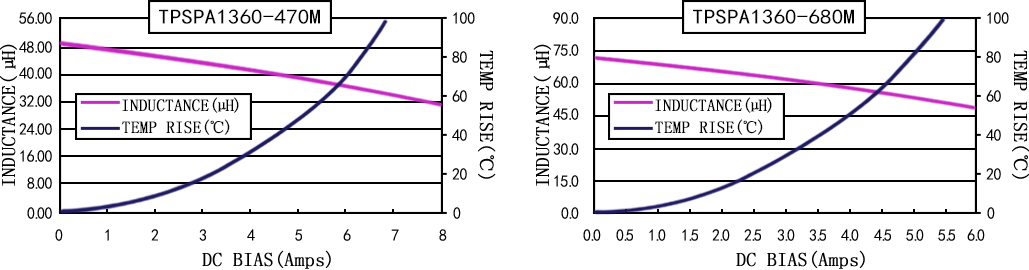

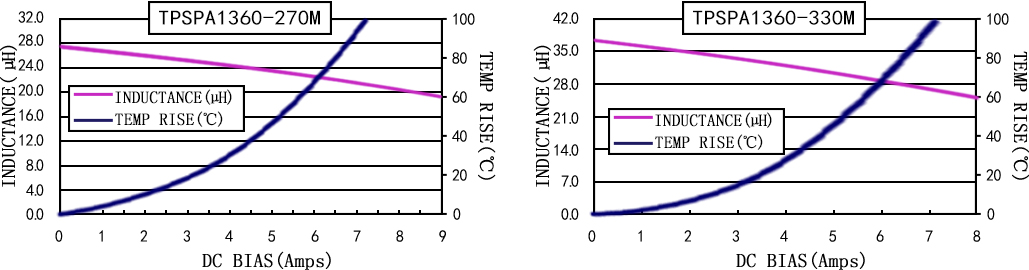

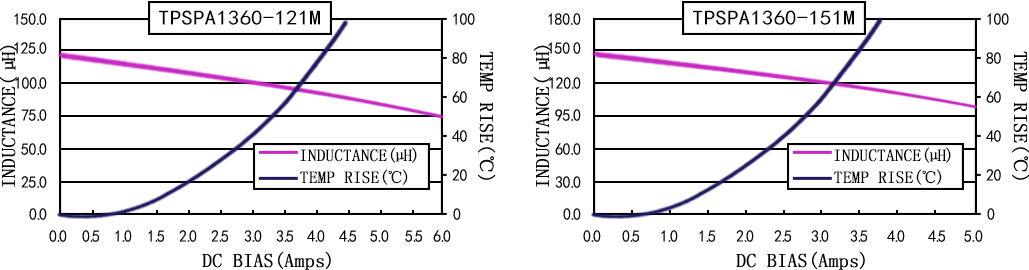

| 电流特性 TPSPA1360-∗∗∗M 系列 | |
|
| SMT 大电流功率型 (TPSPA1365) 电性表 | ||||
| 产品料号 | 电感值 (µH) @ (0A) ±20% |
直流阻抗 (mΩ) @25°C | 额定电流 Idc (A) | 饱和电流 Isat (A) |
| (Max) | ||||
| TPSPA1365-R50M | 0.50 | 1.0 | 39.0 | 55.0 |
| TPSPA1365-1R0M | 1.00 | 1.67 | 30.0 | 35.0 |
| TPSPA1365-1R5M | 1.50 | 2.5 | 24.0 | 30.0 |
| TPSPA1365-1R8M | 1.80 | 2.5 | 24.0 | 28.0 |
| TPSPA1365-2R2M | 2.20 | 3.0 | 23.0 | 28.0 |
| TPSPA1365-4R7M | 4.70 | 7.0 | 13.0 | 18.0 |
| TPSPA1365-100M | 10.00 | 19.0 | 10.0 | 13.0 |
| TPSPA1365-220M | 22.00 | 36.0 | 5.0 | 7.5 |
| TPSPA1365-330M | 33.00 | 64.0 | 4.5 | 8.0 |
| TPSPA1365-470M | 47.00 | 82.0 | 4.0 | 6.0 |
注:
- 测试频率 @ 100KHZ / 1.0V .
- Idc (Irms): 从 25°C 环境温度升高至 40°C 的电流.
- IsatDC: 电感从起始电流 = 0 至下降 30% 的直流电流.

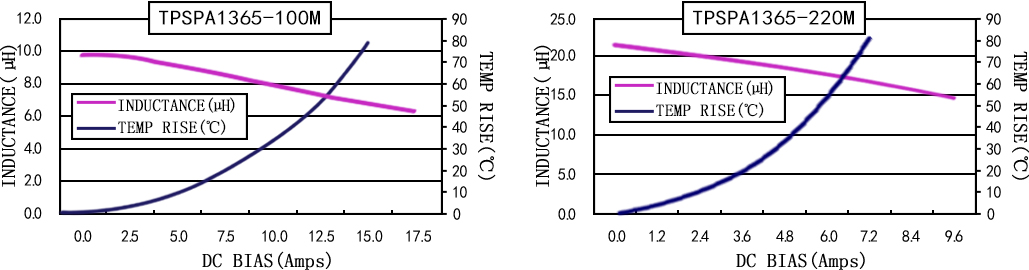

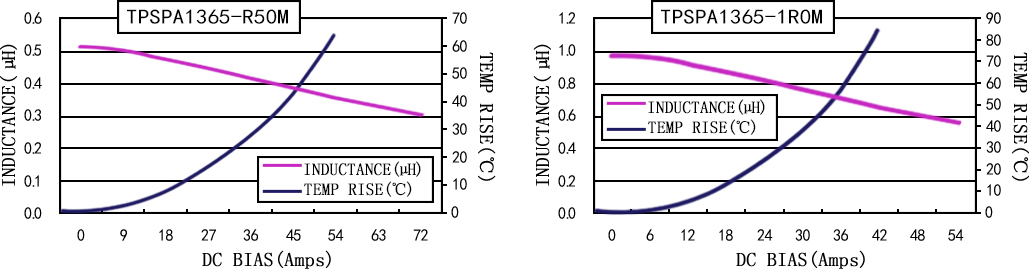

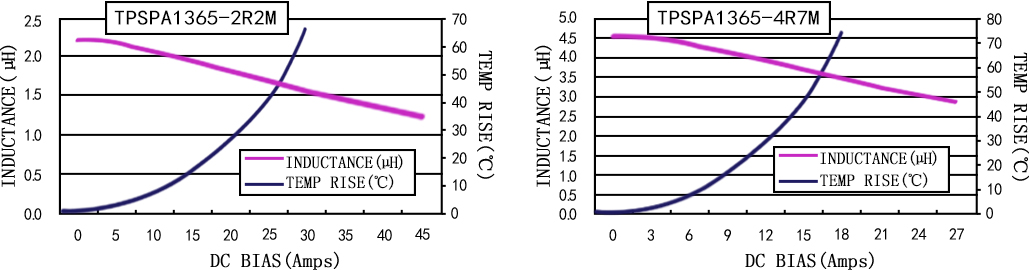

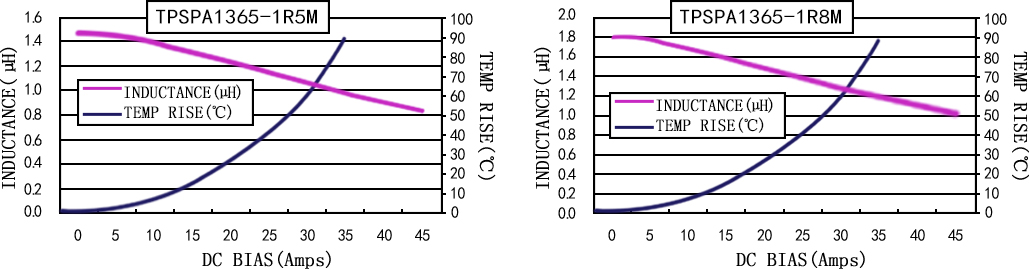

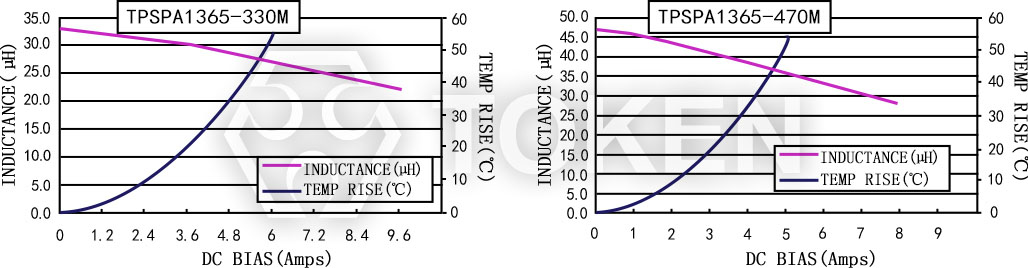

| 电流特性 TPSPA1365-∗∗∗M 系列 | |
|
| SMT 大电流功率型 (TPSPA1770) 电性表 | ||||
| 产品料号 | 电感值 (µH) @ (0A) ±20% |
直流阻抗 (mΩ) @25°C | 额定电流 Idc (A) | 饱和电流 Isat (A) |
| (Max) | ||||
| TPSPA1770-1R5M | 1.50 | 2.15 | 40.0 | 40.0 |
| TPSPA1770-2R2M | 2.20 | 2.5 | 37.0 | 34.0 |
| TPSPA1770-4R7M | 4.70 | 4.72 | 27.0 | 24.0 |
| TPSPA1770-6R8M | 6.80 | 7.55 | 20.0 | 22.0 |
| TPSPA1770-8R2M | 8.20 | 8.7 | 16.0 | 20.0 |
| TPSPA1770-100M | 10.00 | 10.0 | 14.0 | 18.0 |
| TPSPA1770-150M | 15.00 | 15.5 | 12.0 | 13.0 |
| TPSPA1770-200M | 20.00 | 21.9 | 9.7 | 12.0 |
| TPSPA1770-220M | 22.00 | 23.0 | 9.5 | 11.0 |
| TPSPA1770-330M | 33.00 | 37.0 | 9.0 | 10.0 |
| TPSPA1770-470M | 47.00 | 47.0 | 6.8 | 7.5 |
| TPSPA1770-680M | 68.00 | 85.0 | 5.2 | 6.5 |
注:
- 测试频率 @ 100KHZ / 1.0V .
- Idc (Irms): 从 25°C 环境温度升高至 40°C 的电流.
- IsatDC: 电感从起始电流 = 0 至下降 30% 的直流电流.

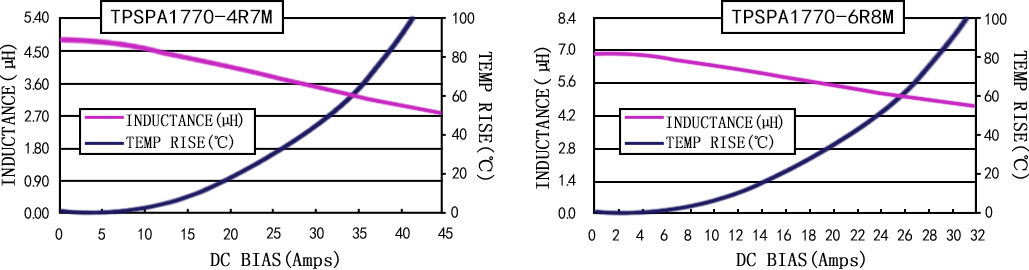

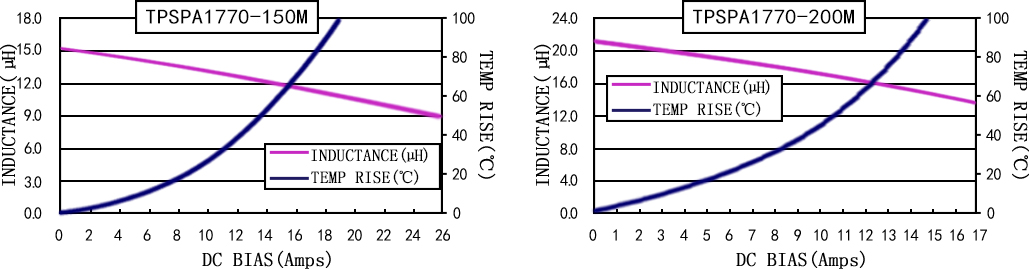

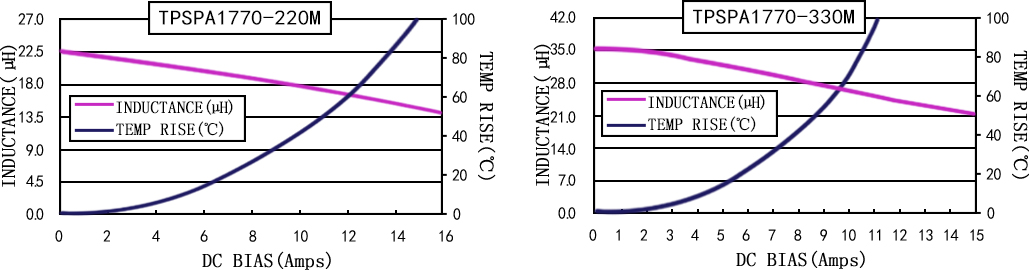

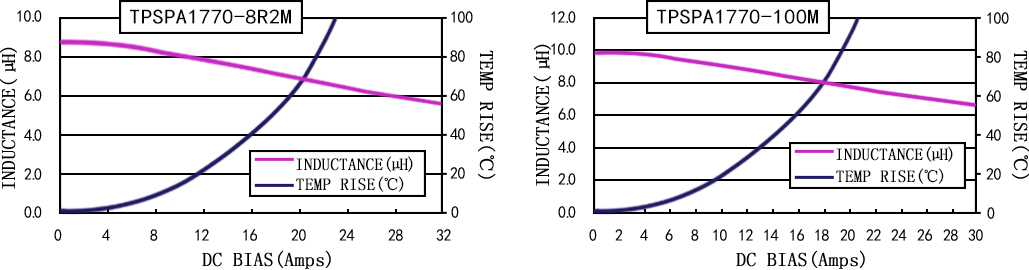

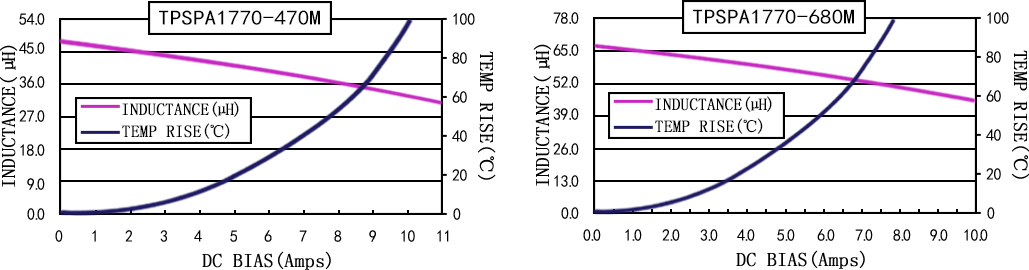

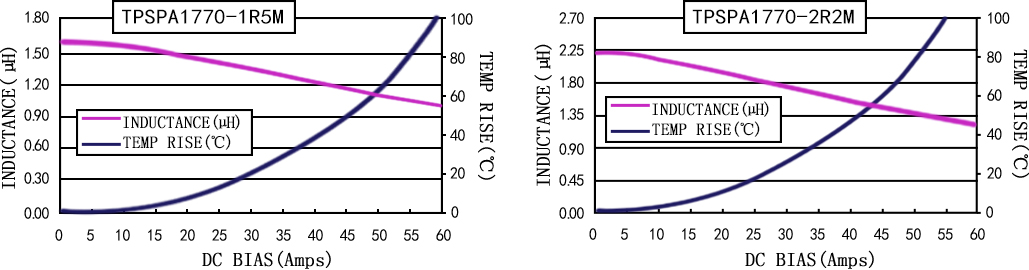

| 电流特性 TPSPA1770-∗∗∗M 系列 | |
|
| SMT 大电流功率型 (TPSPA) 料号标识 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TPSPA | 0420 | - | R10 | M | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
