Visible Light Sensor RoHS Compliant (PT-IC-AC) Plate Edge

Visible Light Sensor RoHS Compliant (PT-IC-AC-3-PE-550)

Direct providing optimized light sensing solutions to enhance system efficiency and ease-of-design.

(PT-IC-AC) visible light sensor is a silicon NPN epitaxial planar phototransistor in a T-1 package. It is sensitive to visible light much like the human eye and has peak sensitivity at 520nm ~ 580nm.

The spectral response of the integrated light sensor with a very low dark current that are optimized for sensing low level light signals. So it ignores light such as infrared which emits energy but does not aid vision. This eliminates the need for an Infrared filter required with competitor light sensors.

The (PT-IC-AC) Plate Edge IR visible light detector using high quality chip packaging and processing super-plated infrared filter membrane on chip surface, so this sensor can fully filter infrared interference. It is no need to add the casing and extra filter and effective filtering out the effect of light reflection due to infrared emission on security products.

By selecting the accuracy of chips, under strict management of production process, (PT-IC-AC) visible light sensors finished batch consistency uniform. The consistency is 3 to 5 times higher on comparison of similar photosensitive devices. The precision can be controlled as narrow as 10%. Fully meet the customer requirements for starting the LUX value. Direct taking the advantage of temperature compensation internal process on the chip, (PT-IC-AC) features one times higher temperature resistance than other similar products while working on high temperature environment.

Download complete specification Visible Light Sensor RoHS Compliant (PT-IC-AC) Plate Edge PDF.

Features :

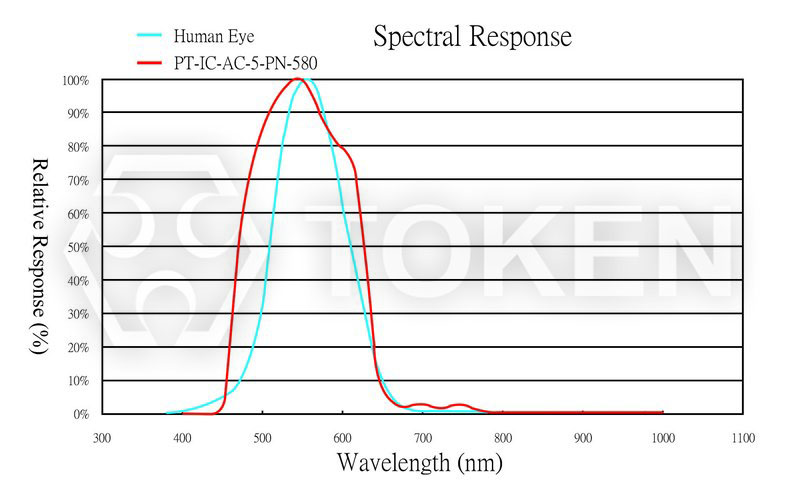

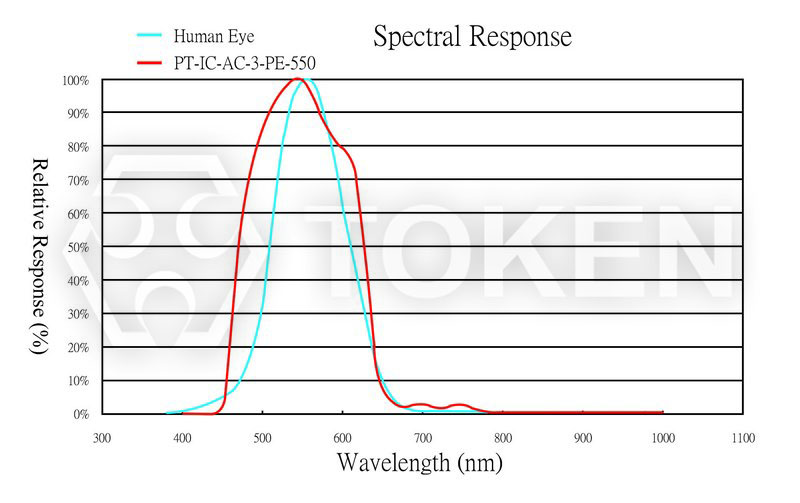

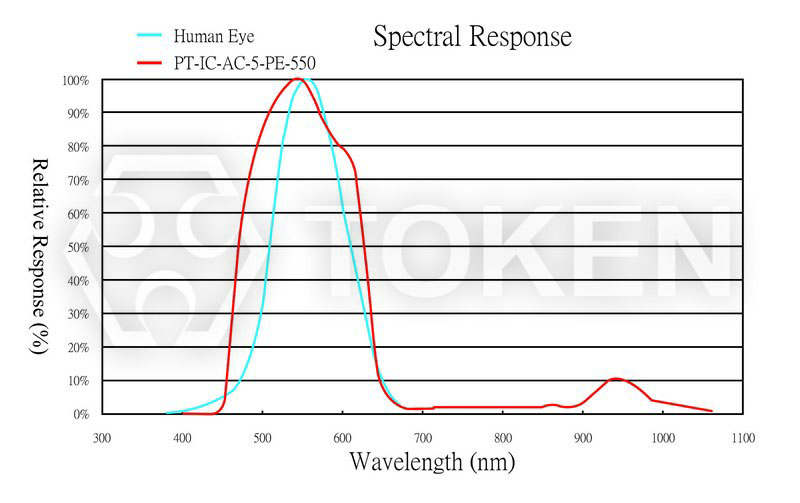

  1. Simulate the human eye, peak wavelength 550nm.
  2. Built-in infrared filter, can be anti-infrared interference.
  3. Good batch consistency, completely solve the infrared light start too early.
  4. Fast response, stable performance, aging at +85°C/ 65% humidity for 1000 Hr.
  5. The starting point does not drift. Nice appearance.

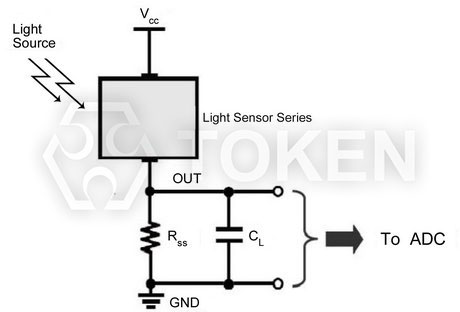

Applications :
  1. Replace the traditional CDS photoresistor.
  2. Cadmium and lead free with RoHS compliant.
  3. Dedicated to infrared monitoring products.
  4. When control the infrared light, it is no need to add extra casing and filter on low illumination.
Customization :
  1. For the convenience of installation in all kinds of products in any position, different sizes are available upon request.
  2. Direct offers various option of the bright current/dark current (bright resistance/dark resistance) to costume the most products.

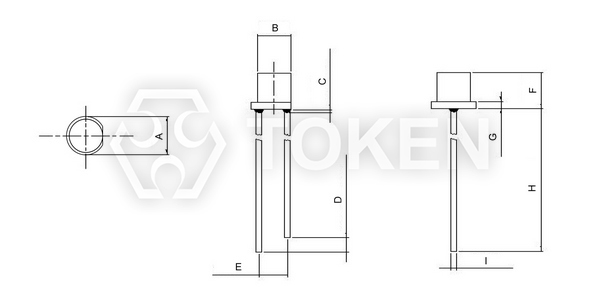

Dimensions & Configurations (Unit: mm) (PT-IC-AC-PE-550) Plate Edge
Visible Light Sensor RoHS Compliant (PT-IC-AC-PE-550) Dimensions
Visible Light Sensor RoHS Compliant (PT-IC-AC-PE-550) Dimensions
Visible Light Sensor RoHS Compliant (PT-IC-AC-PE-550)
Visible Light Sensor RoHS Compliant (PT-IC-AC-PE-550)
Part NO. A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm)
PT-IC-AC-3-PE-550 4.05 ± 0.20 3.00 ± 0.20 1.50 Max. 1.50 ± 0.5 2.54 ± 0.20 3.85 ± 0.20 0.75 ± 0.20 25.4 Min. 0.50 ± 0.20
PT-IC-AC-5-PE-550 5.80 ± 0.20 5.00 ± 0.20 1.50 Max. 1.50 ± 0.50 2.54 ± 0.20 5.30 ± 0.20 1.00 ± 0.20 25.4 Min. 0.50 ± 0.50
Remark:
  • The epoxy resin highest: 1.5mm max.
  • Product images, plastic color of apperence, and all other information is for reference only, goods in-kind prevail.
  • Short Lead—Collector     Long Lead—Emitter.

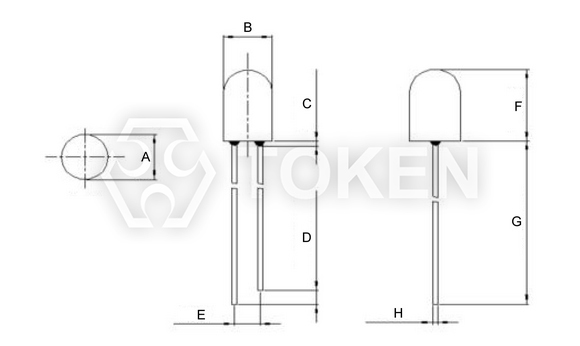

Dimensions & Configurations (Unit: mm) (PT-IC-AC-5-BN-520) Bullet None
Visible Light Sensor RoHS Compliant (PT-IC-AC-5-BN-520) Dimensions
Visible Light Sensor RoHS Compliant (PT-IC-AC-5-BN-520) Dimensions
Visible Light Sensor RoHS Compliant (PT-IC-AC-5-BN-520)
Visible Light Sensor RoHS Compliant (PT-IC-AC-5-BN-520)
Part NO. A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm)
PT-IC-AC-5-BN-520 5.00 ± 0.20 5.00 ± 0.20 1.50 Max. 2.00 ± 0.5 2.54 ± 0.20 7.00 ± 0.20 14.00 Min. 0.50 ± 0.20
Remark:
  • The epoxy resin highest: 1.5mm max.
  • Product images, plastic color of apperence, and all other information is for reference only, goods in-kind prevail.
  • Short Lead—Collector     Long Lead—Emitter.

Dimensions & Configurations (Unit: mm) (PT-IC-AC-5-PN-580) Plate None

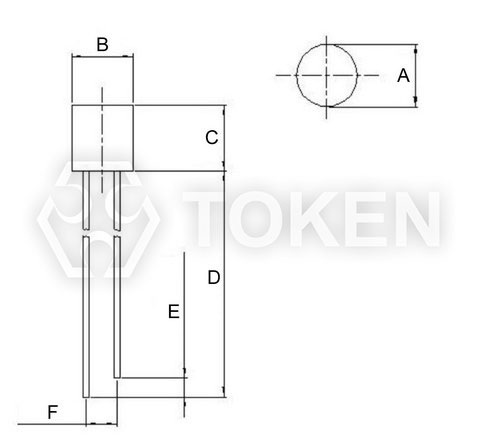

Visible Light Sensor RoHS Compliant (PT-IC-AC-5-PN-580) Dimensions
Visible Light Sensor RoHS Compliant (PT-IC-AC-5-PN-580) Dimensions
Visible Light Sensor RoHS Compliant (PT-IC-AC-5-PN-580)
Visible Light Sensor RoHS Compliant (PT-IC-AC-5-PN-580)
Part NO. A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
PT-IC-AC-5-PN-580 5.00 ± 0.20 5.00 ± 0.20 5.30 ± 0.20 14.0 Min. 2.00 ± 0.50 2.54 ± 0.20
Remark:
  • The epoxy resin highest: 1.5mm max.
  • Product images, plastic color of apperence, and all other information is for reference only, goods in-kind prevail.
  • Short Lead—Collector     Long Lead—Emitter.
Electro-Optical Characteristics (Ta=25°C) (PT-IC-AC-3-PE-550) Plate Edge
Parameter Symbol Condition Min. Typ. Max. Unit
Peak Wavelength λp \ - 550 - nm
Spectral Response Range λ \ 400 - - nm
Operating Voltage Vcc \ - 5 - V

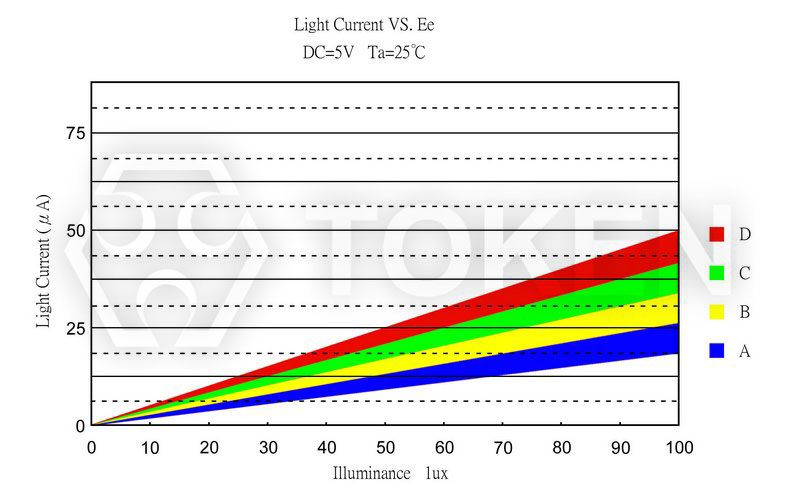

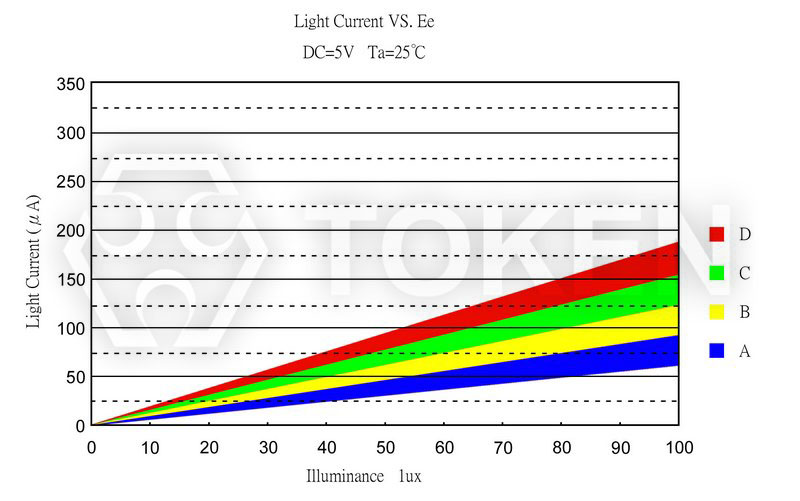

Photo Current IL(1) Vcc=5V
Ev=10Lux
7 13 18 μA
IL(2) Vcc=5V
Ev=30Lux
21 39 54 μA
IL(3) Vcc=5V
Ev=100Lux
70 130 180 μA

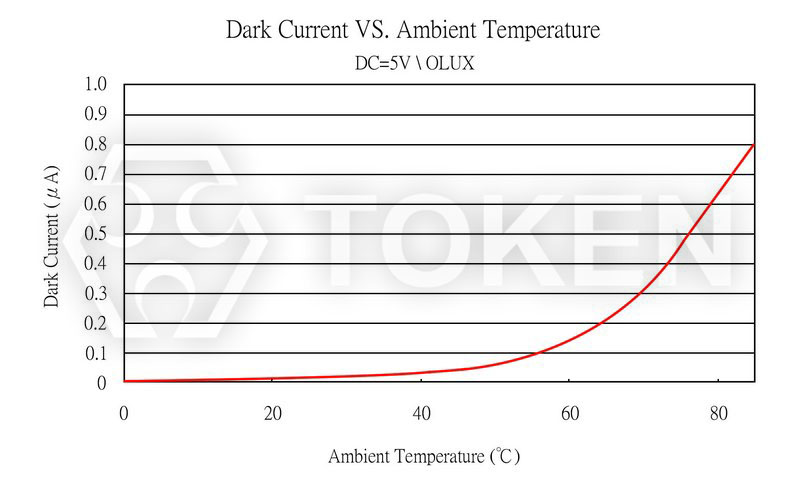

Collector Dark Current Id Vcc=5V/85°C
Ev=0Lux
- - 0.8 μA
Rise Time tr Vcc=5V
Ev=30Lux
RL=1000Ω
4.5 ms
Fall Time tf 4.5

Electro-Optical Characteristics (Ta=25°C) (PT-IC-AC-5-PE-550) Plate Edge
Parameter Symbol Condition Min. Typ. Max. Unit
Peak Wavelength λp \ - 550 - nm
Spectral Response Range λ \ 400 - - nm
Operating Voltage Vcc \ - 5 - V
Photo Current IL(1) Vcc=5V
Ev=10Lux
7 13 18 μA
IL(2) Vcc=5V
Ev=30Lux
20 39 54 μA
IL(3) Vcc=5V
Ev=100Lux
70 130 180 μA
Collector Dark Current Id Vcc=5V/85°C
Ev=0Lux
- - 0.8 μA
Rise Time tr Vcc=5V
Ev=30Lux
RL=1000Ω
4.5 ms
Fall Time tf 4.5

Absolute maximum ratings (Ta=25°C) (PT-IC-AC-3-PE-550) & (PT-IC-AC-5-PE-550) Plate Edge

Absolute maximum ratings (Ta=25°C) (PT-IC-AC-3-PE-550) & (PT-IC-AC-5-PE-550) Plate Edge
Parameter Symbol Value Unit
Operating Voltage Vcc Min. Max. V
1 10 V
Power Dissipation Pc 70 mW
Operating Temperature Range Topr -25 ~ +85 °C
Storage Temperature Tstg -40 ~ +100 °C
Electro-Optical Characteristics (Ta=25°C) (PT-IC-AC-5-BN-520) Bullet None
Parameter Symbol Condition Min. Typ. Max. Unit
Peak Wavelength λp \ - 520 - nm
Spectral Response Bandwidth λ \ 400 - 700 nm
Operating Voltage Vcc \ - 5 - V

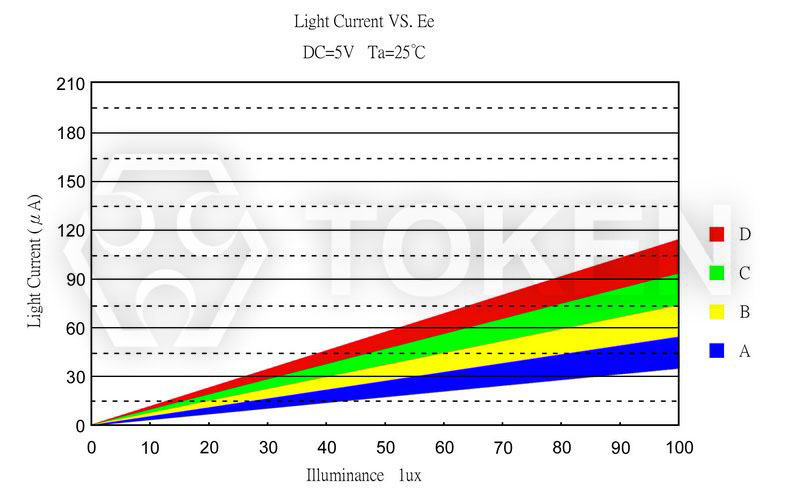

Photo Current IL(1) Vcc=5V
Ev=10Lux
4 8 12 μA
IL(2) Vcc=5V
Ev=30Lux
12 24 36 μA
IL(3) Vcc=5V
Ev=100Lux
40 80 120 μA
Collector Dark Current Id Vcc=5V/85°C
Ev=0Lux
- - 0.8 μA
IR Receiving Current IL(4) Vce=5V/850nm IR LED
Ee=1mW/cm2
- - 0.05 μA
Rise Time tr Vcc=5V
RL=1000Ω
4.5 ms
Fall Time tf 4.5

Absolute maximum ratings (Ta=25°C) (PT-IC-AC-5-BN-520) Bullet None
Parameter Symbol Value Unit
Collector-Emitter Breakdown Voltage VCEO 60 V
Emitter-Base Breakdown Voltage VECO 7 V
Power Dissipation PC 50 mW
Operating Temperature Range Topr -25 ~ +85 °C
Storage Temperature Tstg -40 ~ +100 °C
Electro-Optical Characteristics (Ta=25°C) (PT-IC-AC-5-PN-580) Plate None
Parameter Symbol Condition Min. Typ. Max. Unit
Peak Wavelength λp \ - 580 - nm
Spectral Response Bandwidth λ \ 400 - 700 nm
Operating Voltage Vcc \ - 5 - V
Photo Current IL(1) Vcc=5V
Ev=10Lux
1.5 3.5 5.5 μA
IL(2) Vcc=5V
Ev=30Lux
4.5 10.5 16.5 μA
IL(3) Vcc=5V
Ev=100Lux
15 35 55 μA
Collector Dark Current ID Vcc=5V/85°C
Ev=0Lux
- - 0.8 μA
IR Receiving Current IL(4) Vcc=5V/850nm ir LED
Ee=1mW/cm2
- - 0.05 μA
Rise Time tr Vcc=5V
RL=1000Ω
4.5 ms
Fall Time tf 4.5

Absolute maximum ratings (Ta=25°C) (PT-IC-AC-5-PN-580) Plate None
Parameter Symbol Value Unit
Operating Voltage Vcc Min. Max. V
1 10 V
Operating Temperature Range Topr -25 ~ +85 °C
Storage Temperature Tstg -40 ~ +100 °C
Soldering Temperature Tsol 260 °C
