DeMint oval-shaped ceramic-core resistors feature a low profile to permit installation in spaces with height restrictions.
They are also equipped with integral mounting brackets so they can be fastened to a chassis and stacked in locations with limited surface area. When properly fastened, the mounting brackets add a heat sinking benefit resulting in a smaller size per watt. Durable ZR flat resistors are fully welded and coated with lead free non-flammable resin.
ZR resistors are suitable for educational modeling applications, load testing, industrial machinery, electric power distribution, instruments, automation control installations, etc.
The ZR Series is RoHS compliant and lead free. For non-standard technical requirements and custom special applications, please contact us.
Downloads Complete Specification in PDF Flat Wirewound Stackable Power Resistors (ZR).

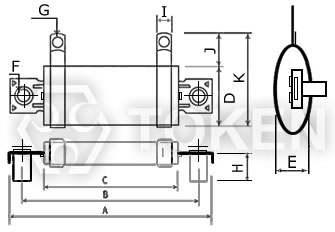

Dimensions Set-Type (ZDR 40W ~ 300W) | |||||||||||||
|
|||||||||||||
Wattage Rating |
Dimensions(Unit: mm) | Resistance Range (Ω) |
|||||||||||
A | B | C | D | E | F | G | H | I | J | K | |||
40W | 83 | 70 | 50 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 1~1KΩ | |
55W | 123 | 110 | 90 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 1.5~2KΩ | |
70W | 153 | 140 | 120 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 2~3KΩ | |
95W | 183 | 170 | 150 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 2.5~4KΩ | |
100W | 193 | 180 | 160 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 3~5KΩ | |
120W | 218 | 205 | 185 | 28 | 11 | 5.2 | 4.1 | 13 | 9 | 12 | 42 | 3.5~6KΩ | |
150W | 218 | 205 | 185 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 4~7KΩ | |
200W | 243 | 230 | 210 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 4.5~8KΩ | |
250W | 287 | 274 | 254 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 5~9KΩ | |
300W | 333 | 320 | 300 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 5.5~10KΩ |

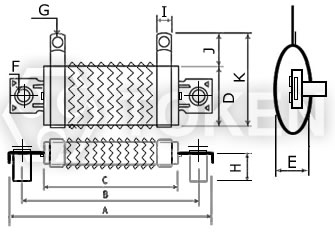

Dimensions Wave Type (ZQR 60W ~ 450W) | |||||||||||||
|
|||||||||||||
Wattage Rating |
Dimensions(Unit: mm) | Resistance Range (Ω) |
|||||||||||
A | B | C | D | E | F | G | H | I | J | K | |||
60W | 83 | 70 | 50 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 1~4Ω | |
80W | 123 | 110 | 90 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 1.5~5Ω | |
100W | 153 | 140 | 120 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 2~7Ω | |
140W | 183 | 170 | 150 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 2.5~9Ω | |
150W | 193 | 180 | 160 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 3~10Ω | |
180W | 218 | 205 | 185 | 28 | 11 | 5.2 | 4.1 | 13 | 9 | 12 | 42 | 3.5~12Ω | |
225W | 218 | 205 | 185 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 4~15Ω | |
300W | 243 | 230 | 210 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 4.5~20Ω | |
375W | 287 | 274 | 254 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 5~25Ω | |
450W | 333 | 320 | 300 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 5.5~30Ω |

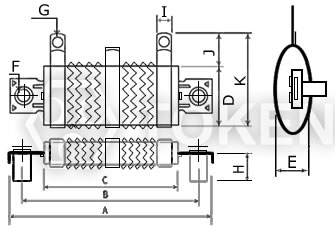

Dimensions Set-Type Non-Inductive (ZDN 40W ~ 300W) | |||||||||||||
|
|||||||||||||
Wattage Rating |
Dimensions(Unit: mm) | Resistance Range(Ω) |
|||||||||||
A | B | C | D | E | F | G | H | I | J | K | |||
40W | 83 | 70 | 50 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 1~1KΩ | |
55W | 123 | 110 | 90 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 1.5~2KΩ | |
70W | 153 | 140 | 120 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 2~3KΩ | |
95W | 183 | 170 | 150 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 2.5~4KΩ | |
100W | 193 | 180 | 160 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 3~5KΩ | |
120W | 218 | 205 | 185 | 28 | 11 | 5.2 | 4.1 | 13 | 9 | 12 | 42 | 3.5~6KΩ | |
150W | 218 | 205 | 185 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 4~7KΩ | |
200W | 243 | 230 | 210 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 4.5~8KΩ | |
250W | 287 | 274 | 254 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 5~9KΩ | |
300W | 333 | 320 | 300 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 5.5~10KΩ |
Dimensions Wave Type Non-Inductive (ZQN 60W ~ 450W) | |||||||||||||
|
|||||||||||||
Wattage Rating |
Dimensions(Unit: mm) | Resistance Range(Ω) |
|||||||||||
A | B | C | D | E | F | G | H | I | J | K | |||
60W | 83 | 70 | 50 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 1~4Ω | |
80W | 123 | 110 | 90 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 1.5~5Ω | |
100W | 153 | 140 | 120 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 2~7Ω | |
140W | 183 | 170 | 150 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 2.5~9Ω | |
150W | 193 | 180 | 160 | 28 | 11 | 5.2 | 4.1 | 13 | 6.5 | 12 | 42 | 3~10Ω | |
180W | 218 | 205 | 185 | 28 | 11 | 5.2 | 4.1 | 13 | 9 | 12 | 42 | 3.5~12Ω | |
225W | 218 | 205 | 185 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 4~15Ω | |
300W | 243 | 230 | 210 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 4.5~20Ω | |
375W | 287 | 274 | 254 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 5~25Ω | |
450W | 333 | 320 | 300 | 35 | 11 | 5.2 | 5.2 | 13 | 9 | 13 | 48 | 5.5~30Ω |
Order Codes (ZR) | |||||||||||||||||||||||||||||||||
ZDR | 250W | 250R | J | ||||||||||||||||||||||||||||||
|
|
|
|
