Environmental characteristics - (HI83)
Test Items Condition Spec.
Resistance Temp. Coeff. -55°C ~ 125°C ±200 ~ ±300 ppm/°C
Overload 1.5 times of rated voltage, 15 min (do not exceed max. voltage) ΔR ≤ ±( 1%R + 0.05Ω )
Load Life 96 hours at rated power ΔR ≤ ±( 1%R + 0.1%Ω )

Derating Curve

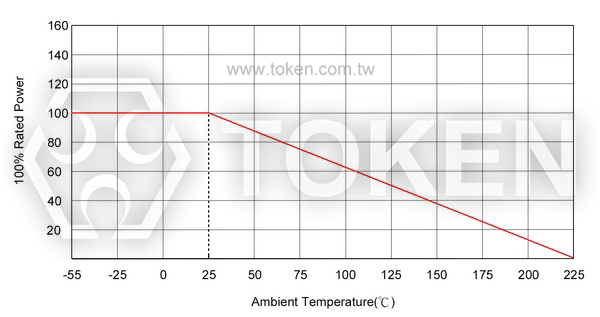

Dividers Derating curve (HI83)

Advance Technique of Non-Inductive & Serpentine Pattern (HI83)

 High Voltage Resistors (RI80) Serpentine Pattern

Non-Inductive Performance:

  1. HI83 Non-Inductive Design which uses a serpentine resistive pattern that offers for zigzagging lines to carry current in opposite directions, thereby achieving maximum neutralization of flux fields over the entire length of the resistor.

  2. This efficient non-inductive construction without derating of any performance advantages is ideal for applications where high frequency is required.

Serpentine Pattern Screen Printing Design:

  1. Type High Voltage HI83 Precision Resistors combine DeMint's Non-Inductive serpentine pattern, high thru-put screen printed silicone coating.

  2. The alignment of the gap in the serpentine resistor pattern with the gap in the coating pattern provides a complete encapsulation of the resistor element.

  3. The cap and lead assemblies are pressed onto the resistor core, finishing the resistor and providing rugged terminal attachment.

High Voltage Divider Application Notes (HI83)

  • Due to the high voltage that may occur between the terminals and any adjacent metal parts,
    the voltage divider should be installed at a sufficient distance from other conductors.

  • For some ultra-high voltage applications, it is necessary to immerse the component in oil or SF6 gas
    or place it in a void-free silicone compound to reduce surface tracking or corona.
    The printed protection is right for these applications.

  • The planar voltage divider consists of high value R1 and low value R2.
    The voltage division ratio of the divider is specified by Ratio R2: (R1 + R2).

Example :
  • HI83-20 for a voltage ratio of 1:1000, with R1 = 99.9 megohms and R2 = 100 kilohms (total R1 + R2 = 100 megohms) at 50ppm/°C absolute and 25ppm/°C tracking TCR, 1% absolute and 0.5% ratio tolerance.

Order Codes (HI83)
HI83 20 C2C3 100M 100K FD
Part Number
HI83
Size
04 1/4W
02 1/2W
10 1W
20 2W
30 3W
50 5W
TCR (ppm/°C)
C1C2 100ppm absolute and 50ppm tracking
C1C3 100ppm absolute and 25ppm tracking
C2C3 50ppm absolute and 25ppm tracking
R1 + R2 (Ω)
100M 99MΩ + 1MΩ
100M 99.9MΩ + 100KΩ
150M 148.5MΩ + 1.5MΩ
R2 (Ω)
1M 1MΩ
100K 100KΩ
1M5 1.5MΩ
Resistance Tolerance (%)
JF 5% absolute and 1% ratio
FD 1% absolute and 0.5% ratio
FC 1% absolute and 0.25% ratio
