貼片超薄型功率電感器 高飽和電流電感器 (TPSH)
像行業中的許多組件一樣，大電流功率電感受到小型化電子設備趨勢的影響，電路板上組件密度增加的需求。德銘特電子引進了外形尺寸較小的大電流電感器，(TPSH) 系列專為設計人員提供了，使用更大部件的大電流解決方案，而不會超過 PC 板兩側 1.1 mm 的外形厚度。
小型化電池供電設備也需要更緊湊的電路板設計，因此更小且更有效的電感器設計因應而生。德銘特電子 (TPSH) 低直流阻抗-超薄大電流功率電感系列，提供從 1.0 μH to 1000.0 μH 的電感範圍，從 0.009Ω to 19.110Ω 低直流阻抗 DCR 範圍。
德銘特電子 (TPSH) 採用閉磁路構造設計，具有體積小、厚度薄、容易表面貼裝。功能特性具有高功率、高磁飽和性、高品質、高能量存儲、耐大電流、低電阻、低漏磁特點。同時具有良好的焊錫性及耐熱性。産品包裝符合 EIA-481 標準，適用于 SMT 自動貼片。
平底表面設計的 (TPSH) 系列，可確保穩固的安裝，具有優異的端面強度，良好的焊錫性，及耐熱度。此系列電感有電磁屏蔽設計，因此具有低磁漏，低直流電阻，耐大電流等特點，而廣泛應用于高精度的工業設備中，OA 儀器、筆記型電腦、小型通信設備、錄像機、數碼相機。軸包裝，易用自動化裝配等。
德銘特可以生產設計超出這些規格參數的電感器，亦可根據要求提供定制。(TPSH) 產品符合 RoHS 標準，無鉛焊接技術及 100% 無鉛，是電訊、消費和工業電子應用是理想的選擇。提供更有競爭力的價格和快速交貨服務。聯繫我們的銷售部門以瞭解更多信息。
下載 PDF 版本: 貼片超薄型功率電感器 高飽和電流電感器 (TPSH)。
特性 :
- 高功率，高飽和電流。
- 適用於表面貼裝。
- 磁屏蔽結構，良好的可焊性。
用途 :
- 錄相機、OA 儀器、液晶電視、筆記型電腦。
- 數碼相機、小型通信設備、DC-DC轉換器。

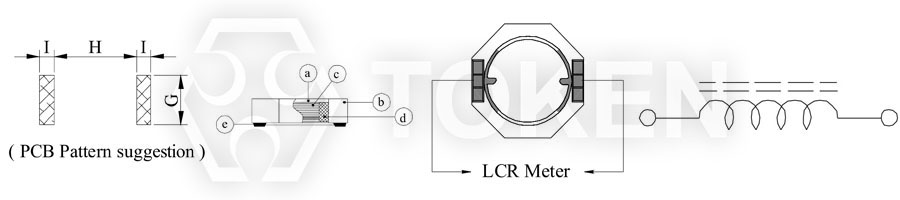

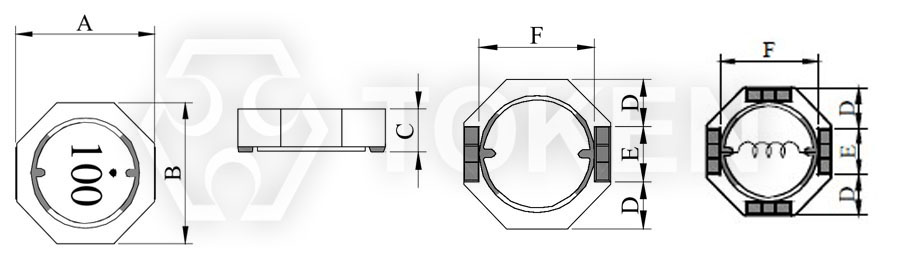

| 高飽磁功率型 (TPSH) 結構圖及規格尺寸 | ||||||||||
|
||||||||||
|
||||||||||
| 型號 | A ± 0.3 | B ± 0.3 | C ± 0.3 | D | E | F | G | H | I | |
| TPSH6011 | 6.20 | 6.50 | 1.10 | 2.15 | 2.20 | 4.90 | 2.40 | 4.90 | 1.10 | |
| TPSH6011 | 6.20 | 6.50 | 1.10 | 2.15 | 2.20 | 4.90 | 2.40 | 4.90 | 1.10 | |
| TPSH6013 | 6.20 | 6.50 | 1.40 | 2.15 | 2.20 | 4.90 | 2.40 | 4.90 | 1.10 | |
| TPSH6018 | 6.20 | 6.50 | 1.80 | 2.15 | 2.20 | 4.90 | 2.40 | 4.90 | 1.10 | |
| TPSH6025 | 6.20 | 6.50 | 2.50 | 2.15 | 2.20 | 4.90 | 2.40 | 4.90 | 1.10 | |
| TPSH8028 | 6.20 | 6.50 | 2.50 | 2.15 | 2.20 | 4.90 | 2.40 | 4.90 | 1.10 | |
| TPSH8030 | 8.00 | 8.00 | 2.80 | 2.50 | 2.80 | 6.00 | 3.20 | 5.80 | 2.00 | |
| TPSH8040 | 8.00 | 8.00 | 3.80 | 2.40 | 3.20 | 6.40 | 3.40 | 6.20 | 1.40 | |
| TPSH8043 | 6.20 | 6.50 | 2.50 | 2.15 | 2.20 | 4.90 | 2.40 | 4.90 | 1.10 | |
| TPSH8045 | 8.00 | 8.00 | 4.30 | 2.50 | 3.00 | 6.00 | 3.20 | 5.80 | 1.40 | |
| TPSH8058 | 8.00 | 8.00 | 5.80 | 2.40 | 3.20 | 6.40 | 3.40 | 6.20 | 1.40 | |
| TPSH1028 | 10.0 | 10.0 | 2.80 | 3.40 | 3.20 | 7.40 | 4.00 | 7.20 | 1.80 | |
| TPSH1030 | 10.0 | 10.0 | 2.80 | 3.00 | 4.00 | 8.20 | 4.20 | 8.20 | 1.40 | |
| TPSH1038 | 10.0 | 10.0 | 3.80 | 3.40 | 3.20 | 7.40 | 4.00 | 7.20 | 1.80 | |
| TPSH1040 | 10.0 | 10.0 | 3.80 | 3.00 | 4.00 | 8.20 | 4.20 | 8.20 | 1.40 | |
| TPSH1050 | 10.0 | 10.0 | 4.80 | 3.00 | 4.00 | 8.20 | 4.20 | 8.20 | 1.40 | |
| TPSH1065 | 10.0 | 10.0 | 6.60 | 3.00 | 4.00 | 8.20 | 4.20 | 8.20 | 1.40 | |
注: 可依客戶特殊需求設計。
| 高飽磁功率型 (TPSH6011) 特性規格 | |||||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
測試頻率 | 直流阻抗 (mΩ) | 自諧頻率 (MHz) TYP. |
有效電流 (mA) TYP. |
飽和電流 (mA) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH6011-1R4 | 1.4 ± 30% | 8 | 100K | 7.96M | 30 | 40 | 140 | 2600 | 1800 |
| TPSH6011-2R7 | 2.7 ± 30% | 8 | 100K | 7.96M | 48 | 62 | 100 | 2200 | 1450 |
| TPSH6011-4R7 | 4.7 ± 30% | 8 | 100K | 7.96M | 66 | 86 | 70 | 1800 | 1100 |
| TPSH6011-6R8 | 6.8 ± 30% | 7 | 100K | 7.96M | 105 | 136 | 55 | 1400 | 900 |
| TPSH6011-100 | 10.0 ± 30% | 12 | 100K | 2.52M | 170 | 220 | 45 | 1100 | 720 |
| TPSH6011-150 | 15.0 ± 30% | 10 | 100K | 2.52M | 240 | 320 | 32 | 950 | 620 |
| TPSH6011-220 | 22.0 ± 30% | 10 | 100K | 2.52M | 300 | 390 | 26 | 800 | 480 |
| TPSH6011-330 | 33.0 ± 30% | 10 | 100K | 2.52M | 430 | 560 | 22 | 680 | 380 |
| TPSH6011-470 | 47.0 ± 30% | 10 | 100K | 2.52M | 650 | 850 | 20 | 550 | 320 |
| TPSH6011-680 | 68.0 ± 30% | 12 | 100K | 2.52M | 920 | 1200 | 18 | 460 | 280 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH6013) 特性規格 | |||||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
測試頻率 | 直流阻抗 (mΩ) | 自諧頻率 (MHz) TYP. |
有效電流 (mA) TYP. |
飽和電流 (mA) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH6013-1R0 | 1.0 ± 30% | 12 | 100K | 7.96M | 28 | 36 | 100 | 3200 | 2900 |
| TPSH6013-1R5 | 1.5 ± 30% | 10 | 100K | 7.96M | 32 | 40 | 90 | 3000 | 2400 |
| TPSH6013-2R2 | 2.2 ± 30% | 10 | 100K | 7.96M | 40 | 50 | 80 | 2500 | 2100 |
| TPSH6013-3R3 | 3.3 ± 30% | 10 | 100K | 7.96M | 45 | 60 | 70 | 2350 | 1750 |
| TPSH6013-4R2 | 4.2 ± 30% | 10 | 100K | 7.96M | 58 | 75 | 55 | 2100 | 1500 |
| TPSH6013-6R4 | 6.4 ± 30% | 10 | 100K | 7.96M | 85 | 110 | 45 | 1700 | 1300 |
| TPSH6013-100 | 10.0 ± 30% | 14 | 100K | 2.52M | 132 | 156 | 35 | 1400 | 1100 |
| TPSH6013-150 | 15.0 ± 30% | 12 | 100K | 2.52M | 180 | 235 | 26 | 1100 | 800 |
| TPSH6013-220 | 22.0 ± 30% | 12 | 100K | 2.52M | 260 | 325 | 22 | 950 | 720 |
| TPSH6013-330 | 33.0 ± 30% | 10 | 100K | 2.52M | 400 | 500 | 18 | 780 | 580 |
| TPSH6013-470 | 47.0 ± 30% | 10 | 100K | 2.52M | 540 | 675 | 14 | 660 | 500 |
| TPSH6013-680 | 68.0 ± 30% | 10 | 100K | 2.52M | 720 | 900 | 10 | 600 | 400 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH6018) 特性規格 | |||||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
測試頻率 | 直流阻抗 (mΩ) | 自諧頻率 (MHz) TYP. |
有效電流 (mA) TYP. |
飽和電流 (mA) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH6018-1R2 | 1.2 ± 30% | 8 | 100K | 7.96M | 19 | 25 | 130 | 3600 | 2800 |
| TPSH6018-1R8 | 1.8 ± 30% | 8 | 100K | 7.96M | 22 | 28 | 90 | 3000 | 2300 |
| TPSH6018-3R3 | 3.3 ± 30% | 8 | 100K | 7.96M | 28 | 39 | 60 | 2500 | 1700 |
| TPSH6018-4R7 | 4.7 ± 30% | 8 | 100K | 7.96M | 32 | 42 | 50 | 2200 | 1400 |
| TPSH6018-6R8 | 6.8 ± 30% | 8 | 100K | 7.96M | 46 | 60 | 40 | 1900 | 1200 |
| TPSH6018-100 | 10.0 ± 30% | 12 | 100K | 2.52M | 68 | 88 | 30 | 1700 | 1000 |
| TPSH6018-150 | 15.0 ± 30% | 12 | 100K | 2.52M | 100 | 130 | 24 | 1500 | 800 |
| TPSH6018-220 | 22.0 ± 30% | 14 | 100K | 2.52M | 145 | 190 | 18 | 1200 | 650 |
| TPSH6018-330 | 33.0 ± 30% | 10 | 100K | 2.52M | 195 | 255 | 16 | 1000 | 580 |
| TPSH6018-470 | 47.0 ± 30% | 12 | 100K | 2.52M | 315 | 410 | 14 | 800 | 460 |
| TPSH6018-680 | 68.0 ± 30% | 12 | 100K | 2.52M | 455 | 600 | 12 | 620 | 360 |
| TPSH6018-101 | 100.0 ± 30% | 20 | 100K | 2.52M | 550 | 715 | 9 | 550 | 340 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH6025) 特性規格 | |||||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
測試頻率 | 直流阻抗 (mΩ) | 自諧頻率 (MHz) TYP. |
有效電流 (mA) TYP. |
飽和電流 (mA) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH6025-2R2 | 2.2 ± 30% | 8 | 100K | 7.96M | 18.5 | 24 | 65 | 3400 | 2350 |
| TPSH6025-3R3 | 3.3 ± 30% | 8 | 100K | 7.96M | 21.0 | 27 | 50 | 3200 | 2000 |
| TPSH6025-4R7 | 4.7 ± 30% | 8 | 100K | 7.96M | 27.0 | 35 | 42 | 2700 | 1550 |
| TPSH6025-6R8 | 6.8 ± 30% | 8 | 100K | 7.96M | 32.0 | 42 | 36 | 2400 | 1300 |
| TPSH6025-8R2 | 8.2 ± 30% | 8 | 100K | 7.96M | 40.0 | 52 | 30 | 2200 | 1250 |
| TPSH6025-100 | 10.0 ± 30% | 12 | 100K | 2.52M | 44.0 | 57 | 25 | 2000 | 1050 |
| TPSH6025-150 | 15.0 ± 30% | 12 | 100K | 2.52M | 66.0 | 86 | 22 | 1800 | 920 |
| TPSH6025-220 | 22.0 ± 30% | 12 | 100K | 2.52M | 100 | 130 | 18 | 1600 | 700 |
| TPSH6025-330 | 33.0 ± 30% | 12 | 100K | 2.52M | 140 | 12 | 65 | 1200 | 640 |
| TPSH6025-470 | 47.0 ± 30% | 12 | 100K | 2.52M | 190 | 250 | 10 | 1000 | 480 |
| TPSH6025-680 | 68.0 ± 30% | 10 | 100K | 2.52M | 280 | 500 | 7 | 700 | 350 |
| TPSH6025-101 | 100.0 ± 30% | 24 | 100K | 796K | 385 | 500 | 7 | 700 | 370 |
| TPSH6025-221 | 220.0 ± 30% | 20 | 100K | 796K | 950 | 1250 | 4 | 420 | 240 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH8028) 特性規格 | |||||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
測試頻率 | 直流阻抗 (mΩ) | 自諧頻率 (MHz) TYP. |
有效電流 (A) TYP. |
飽和電流 (A) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH8028-3R3 | 3.3 ± 30% | 12 | 100K | 7.96M | 60.0 | 17.5 | 23.0 | 3.60 | 3.50 |
| TPSH8028-4R7 | 4.7 ± 30% | 15 | 100K | 7.96M | 50.0 | 20.0 | 26.0 | 3.70 | 3.20 |
| TPSH8028-6R8 | 6.8 ± 30% | 13 | 100K | 7.96M | 40.0 | 34.0 | 45.0 | 2.80 | 2.50 |
| TPSH8028-100 | 10.0 ± 30% | 22 | 100K | 2.52M | 25.0 | 45.0 | 85.0 | 2.00 | 1.70 |
| TPSH8028-150 | 15.0 ± 30% | 20 | 100K | 2.52M | 20.0 | 66.0 | 130.0 | 1.60 | 1.50 |
| TPSH8028-220 | 22 ± 30% | 22 | 100K | 2.52M | 15.0 | 147.0 | 185.0 | 1.30 | 1.10 |
| TPSH8028-470 | 47.0 ± 30% | 14 | 100K | 2.52M | 12.0 | 177.0 | 230.0 | 1.20 | 1.00 |
| TPSH8028-680 | 68 ± 30% | 23 | 100K | 2.52M | 9.0 | 317.0 | 390.0 | 0.85 | 0.80 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH8030) 特性規格 | |||||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
測試頻率 | 直流阻抗 (mΩ) | 自諧頻率 (MHz) TYP. |
有效電流 (A) TYP. |
飽和電流 (A) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH8030-3R3 | 3.3 ± 30% | 12 | 100K | 7.96M | 55.0 | 15.6 | 22.0 | 5.00 | 4.60 |
| TPSH8030-4R7 | 4.7 ± 30% | 10 | 100K | 7.96M | 42.0 | 22.6 | 30.0 | 4.60 | 3.80 |
| TPSH8030-6R8 | 6.8 ± 30% | 10 | 100K | 7.96M | 30.0 | 34.5 | 46.0 | 3.60 | 3.20 |
| TPSH8030-100 | 10.0 ± 30% | 18 | 100K | 2.52M | 25.0 | 47.3 | 60.0 | 3.00 | 2.60 |
| TPSH8030-150 | 15.0 ± 30% | 18 | 100K | 2.52M | 20.0 | 75.0 | 100.0 | 2.20 | 2.00 |
| TPSH8030-220 | 22.0 ± 30% | 18 | 100K | 2.52M | 16.0 | 105.0 | 130.0 | 2.00 | 1.75 |
| TPSH8030-330 | 33.0 ± 30% | 16 | 100K | 2.52M | 12.0 | 205.0 | 260.0 | 1.45 | 1.25 |
| TPSH8030-470 | 47.0 ± 30% | 16 | 100K | 2.52M | 12.0 | 205.6 | 260.0 | 1.45 | 1.25 |
| TPSH8030-680 | 68.0 ± 30% | 16 | 100K | 2.52M | 9.0 | 25.6 | 315.0 | 1.25 | 0.96 |
| TPSH8030-101 | 100.0 ± 30% | 24 | 100K | 0.796M | 7.0 | 415.0 | 520.0 | 0.85 | 0.75 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH8040) 特性規格 | |||||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
測試頻率 | 直流阻抗 (mΩ) | 自諧頻率 (MHz) TYP. |
有效電流 (A) TYP. |
飽和電流 (A) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH8040-3R3 | 3.3 ± 30% | 12 | 100K | 7.96M | 40.0 | 13.8 | 18.0 | 6.00 | 5.00 |
| TPSH8040-4R2 | 4.2 ± 30% | 12 | 100K | 7.96M | 32.0 | 16.5 | 22.0 | 5.30 | 4.60 |
| TPSH8040-6R2 | 6.2 ± 30% | 10 | 100K | 7.96M | 28.0 | 25.0 | 32.0 | 4.20 | 4.00 |
| TPSH8040-100 | 10.0 ± 30% | 22 | 100K | 2.52M | 20.0 | 33.0 | 42.0 | 3.70 | 2.90 |
| TPSH8040-150 | 15.0 ± 30% | 20 | 100K | 2.52M | 18.0 | 55.0 | 70.0 | 2.80 | 2.50 |
| TPSH8040-220 | 22.0 ± 30% | 22 | 100K | 2.52M | 15.0 | 88 | 11.0 | 2.20 | 2.05 |
| TPSH8040-330 | 33.0 ± 30% | 22 | 100K | 2.52M | 12.0 | 115.0 | 150.0 | 1.90 | 1.75 |
| TPSH8040-470 | 47.0 ± 30% | 20 | 100K | 2.52M | 10.0 | 150.0 | 190.0 | 1.55 | 1.45 |
| TPSH8040-680 | 68.0 ± 30% | 18 | 100K | 2.52M | 8.0 | 205.0 | 260.0 | 1.35 | 1.10 |
| TPSH8040-101 | 100.0 ± 30% | 25 | 100K | 0.796M | 6.0 | 325.0 | 410.0 | 1.05 | 0.95 |
| TPSH8040-151 | 150.0 ± 30% | 18 | 100K | 0.796M | 5.0 | 445.0 | 560.0 | 0.90 | 0.77 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH8043) 特性規格 | |||||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
測試頻率 | 直流阻抗 (mΩ) | 自諧頻率 (MHz) TYP. |
有效電流 (A) TYP. |
飽和電流 (A) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH8043-1R0 | 1.0 ± 30% | 15 | 100K | 7.96M | 70.0 | 8.1 | 10.0 | 6.60 | 7.50 |
| TPSH8043-2R2 | 2.2 ± 30% | 15 | 100K | 7.96M | 65.0 | 11.2 | 15.0 | 5.40 | 5.20 |
| TPSH8043-3R3 | 3.3 ± 30% | 12 | 100K | 7.96M | 54.0 | 12.5 | 17.0 | 5.10 | 4.50 |
| TPSH8043-3R9 | 3.9 ± 30% | 15 | 100K | 7.96M | 42.0 | 14.6 | 19.0 | 4.80 | 4.00 |
| TPSH8043-4R7 | 4.7 ± 30% | 13 | 100K | 7.96M | 36.0 | 17.0 | 22.0 | 4.60 | 3.60 |
| TPSH8043-100 | 10.0 ± 30% | 27 | 100K | 2.52M | 20.0 | 30.0 | 40.0 | 3.50 | 2.70 |
| TPSH8043-150 | 15.0 ± 30% | 26 | 100K | 2.52M | 15.0 | 46.0 | 60.0 | 2.70 | 2.00 |
| TPSH8043-220 | 22.0 ± 30% | 24 | 100K | 2.52M | 12.0 | 72.5 | 95.0 | 2.20 | 1.70 |
| TPSH8043-330 | 33.0 ± 30% | 21 | 100K | 2.52M | 11.0 | 100.0 | 130.0 | 1.70 | 1.40 |
| TPSH8043-470 | 47.0 ± 30% | 21 | 100K | 2.52M | 9.0 | 120.0 | 150.0 | 1.50 | 1.20 |
| TPSH8043-680 | 68.0 ± 30% | 20 | 100K | 2.52M | 7.0 | 192.0 | 250.0 | 1.20 | 1.00 |
| TPSH8043-101 | 100 ± 30% | 50 | 100K | 0.796M | 6.0 | 287.0 | 370.0 | 1.00 | 0.80 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH8045) 特性規格 | |||||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
測試頻率 | 直流阻抗 (mΩ) | 自諧頻率 (MHz) TYP. |
有效電流 (A) TYP. |
飽和電流 (A) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH8045-3R5 | 3.5 ± 30% | 12 | 100K | 7.96M | 45.0 | 18.8 | 25.0 | 5.00 | 5.00 |
| TPSH8045-4R7 | 4.7 ± 30% | 10 | 100K | 7.96M | 30.0 | 22.0 | 27.5 | 4.60 | 4.40 |
| TPSH8045-6R2 | 6.2 ± 30% | 10 | 100K | 7.96M | 23.0 | 28.5 | 36.0 | 4.20 | 3.80 |
| TPSH8045-100 | 10.0 ± 30% | 16 | 100K | 2.52M | 18.0 | 35.8 | 48.0 | 3.50 | 3.30 |
| TPSH8045-220 | 22.0 ± 30% | 18 | 100K | 2.52M | 12.0 | 94.0 | 122.0 | 2.25 | 2.15 |
| TPSH8045-330 | 33.0 ± 30% | 14 | 100K | 2.52M | 8.0 | 118.0 | 150.0 | 2.00 | 1.80 |
| TPSH8045-470 | 47.0 ± 30% | 12 | 100K | 2.52M | 6.0 | 215.0 | 270.0 | 1.45 | 1.40 |
| TPSH8045-680 | 68.0 ± 30% | 8 | 100K | 2.52M | 4.0 | 320.0 | 400.0 | 1.25 | 1.20 |
| TPSH8045-101 | 100.0 ± 30% | 20 | 100K | 0.70M | 3.0 | 400.0 | 500.0 | 1.00 | 0.92 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH8058) 特性規格 | |||||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
測試頻率 | 直流阻抗 (mΩ) | 自諧頻率 (MHz) TYP. |
有效電流 (A) TYP. |
飽和電流 (A) TYP. |
||
| L | Q | TYP. | MAX. | ||||||
| TPSH8058-3R9 | 3.9 ± 30% | 8 | 100K | 7.96M | 45.0 | 12.0 | 16.0 | 6.50 | 4.50 |
| TPSH8058-5R2 | 5.2 ± 30% | 8 | 100K | 7.96M | 35.0 | 14.0 | 17.5 | 5.80 | 3.90 |
| TPSH8058-6R8 | 6.8 ± 30% | 8 | 100K | 7.96M | 30.0 | 16.0 | 20.0 | 5.50 | 4.00 |
| TPSH8058-100 | 10.0 ± 30% | 20 | 100K | 2.52M | 14.0 | 42.0 | 52.0 | 3.40 | 1.80 |
| TPSH8058-220 | 22.0 ± 30% | 20 | 100K | 2.52M | 14.0 | 42.0 | 52.0 | 3.40 | 1.80 |
| TPSH8058-330 | 33.0 ± 30% | 16 | 100K | 2.52M | 10.0 | 58.0 | 72.0 | 2.70 | 1.60 |
| TPSH8058-470 | 47.0 ± 30% | 12 | 100K | 2.52M | 7.0 | 80.0 | 10.0 | 2.30 | 1.50 |
| TPSH8058-680 | 68.0 ± 30% | 16 | 100K | 2.52M | 6.0 | 100.0 | 130.0 | 2.00 | 1.20 |
| TPSH8058-101 | 100.0 ± 30% | 22 | 100K | 0.796M | 5.0 | 124.0 | 160.0 | 1.70 | 0.90 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH1028) 特性規格 | |||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
自諧頻率 (MHz) TYP. |
直流阻抗 (mΩ) | 有效電流 (A) TYP. |
飽和電流 (A) TYP. |
|
| TYP. | MAX. | ||||||
| TPSH1028-1R0 | 1.0 ± 30% | 14 | 100 | 4.9 | 6.5 | 7.00 | 8.00 |
| TPSH1028-1R5 | 1.5 ± 30% | 12 | 80 | 7.3 | 10.0 | 6.50 | 6.50 |
| TPSH1028-2R2 | 2.2 ± 30% | 12 | 65 | 11.0 | 15.0 | 5.30 | 4.80 |
| TPSH1028-3R3 | 3.3 ± 30% | 14 | 55 | 15.0 | 20.0 | 4.60 | 4.30 |
| TPSH1028-4R7 | 4.7 ± 30% | 12 | 40 | 16.5 | 3.0 | 4.50 | 3.80 |
| TPSH1028-6R8 | 6.8 ± 30% | 12 | 30 | 25.0 | 33.0 | 3.50 | 3.00 |
| TPSH1028-8R2 | 8.2 ± 30% | 12 | 28 | 28.5 | 37.0 | 3.30 | 2.70 |
| TPSH1028-100 | 10.0 ± 30% | 20 | 25 | 40.0 | 53.0 | 2.80 | 2.40 |
| TPSH1028-150 | 15.0 ± 30% | 26 | 22 | 69.0 | 90.0 | 2.00 | 2.00 |
| TPSH1028-220 | 22.0 ± 30% | 26 | 16 | 104.0 | 135.0 | 1.60 | 1.40 |
| TPSH1028-330 | 33.0 ± 30% | 24 | 12 | 139.0 | 180.0 | 1.25 | 1.20 |
| TPSH1028-470 | 47.0 ± 30% | 20 | 11 | 167.0 | 230.0 | 1.30 | 1.10 |
| TPSH1028-560 | 56.0 ± 30% | 22 | 10 | 208.0 | 270.0 | 1.10 | 1.00 |
| TPSH1028-680 | 68.0 ± 30% | 20 | 9 | 232.0 | 300.0 | 1.00 | 0.90 |
| TPSH1028-820 | 82.0 ± 30% | 20 | 8 | 323.0 | 420.0 | 0.90 | 0.85 |
| TPSH1028-101 | 100.0 ± 30% | 20 | 7 | 365.0 | 470.0 | 0.85 | 0.80 |
| TPSH1028-121 | 120.0 ± 30% | 18 | 6 | 428.0 | 560.0 | 0.65 | 0.70 |
| TPSH1028-151 | 150.0 ± 30% | 18 | 5 | 518.0 | 680.0 | 0.70 | 0.65 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH1030) 特性規格 | |||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
自諧頻率 (MHz) TYP. |
直流阻抗 (mΩ) | 有效電流 (A) TYP. |
飽和電流 (A) TYP. |
|
| TYP. | MAX. | ||||||
| TPSH1030-4R7 | 4.7 ± 30% | 14 | 36 | 25.0 | 32.5 | 4.20 | 4.40 |
| TPSH1030-6R2 | 6.2 ± 30% | 12 | 30 | 32.0 | 42.0 | 3.80 | 3.90 |
| TPSH1030-100 | 10.0 ± 30% | 16 | 26 | 44.0 | 58.0 | 3.00 | 3.10 |
| TPSH1030-150 | 15.0 ± 30% | 16 | 22 | 73.0 | 95.0 | 2.60 | 2.55 |
| TPSH1030-220 | 22.0 ± 30% | 16 | 18 | 110.0 | 145.0 | 2.00 | 2.10 |
| TPSH1030-330 | 33.0 ± 30% | 12 | 14 | 150.0 | 195.0 | 1.70 | 1.74 |
| TPSH1030-470 | 47.0 ± 30% | 14 | 12 | 210.0 | 270.0 | 1.40 | 1.35 |
| TPSH1030-680 | 68.0 ± 30% | 14 | 10 | 285.0 | 370.0 | 1.20 | 1.22 |
| TPSH1030-101 | 100.0 ± 30% | 14 | 8.5 | 395.0 | 520.0 | 1.10 | 1.02 |
| TPSH1030-151 | 150.0 ± 30% | 12 | 5.5 | 640.0 | 840.0 | 0.85 | 0.84 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH1038) 特性規格 | |||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
自諧頻率 (MHz) TYP. |
直流阻抗 (mΩ) | 有效電流 (A) TYP. |
飽和電流 (A) TYP. |
|
| TYP. | MAX. | ||||||
| TPSH1038-1R5 | 1.5 ± 30% | 14 | 65 | 5.2 | 7.5 | 7.20 | 7.00 |
| TPSH1038-2R2 | 2.2 ± 30% | 12 | 55 | 7.7 | 10.5 | 6.80 | 6.50 |
| TPSH1038-3R5 | 3.5 ± 30% | 14 | 35 | 11.5 | 15.0 | 5.50 | 5.50 |
| TPSH1038-5R0 | 5.0 ± 30% | 12 | 30 | 14.5 | 22.0 | 4.60 | 4.80 |
| TPSH1038-6R2 | 6.2 ± 30% | 12 | 25 | 16.5 | 24.0 | 4.00 | 4.20 |
| TPSH1038-100 | 10.0 ± 30% | 24 | 20 | 25.0 | 35.0 | 3.80 | 3.60 |
| TPSH1038-150 | 15.0 ± 30% | 24 | 16 | 37.0 | 50.0 | 2.80 | 2.70 |
| TPSH1038-220 | 22.0 ± 30% | 20 | 12 | 55.8 | 75.0 | 2.20 | 2.30 |
| TPSH1038-330 | 33.0 ± 30% | 22 | 10 | 86.0 | 112.0 | 1.80 | 1.80 |
| TPSH1038-470 | 47.0 ± 30% | 22 | 8 | 121.0 | 160.0 | 1.65 | 1.60 |
| TPSH1038-680 | 68.0 ± 30% | 24 | 6 | 220.0 | 300.0 | 1.30 | 1.10 |
| TPSH1038-101 | 100.0 ± 30% | 24 | 6 | 220.0 | 300.0 | 1.30 | 1.10 |
| TPSH1038-151 | 150.0 ± 30% | 20 | 5 | 358.0 | 476.0 | 0.90 | 0.80 |
| TPSH1038-221 | 220.0 ± 30% | 22 | 4 | 565.0 | 740.0 | 0.65 | 0.65 |
| TPSH1038-331 | 330.0 ± 30% | 20 | 3 | 773.0 | 1000.0 | 0.55 | 0.52 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH1040) 特性規格 | |||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
自諧頻率 (MHz) TYP. |
直流阻抗 (mΩ) | 有效電流 (A) TYP. |
飽和電流 (A) TYP. |
|
| TYP. | MAX. | ||||||
| TPSH1040-5R0 | 5.0 ± 30% | 12 | 28.0 | 17.5 | 23.0 | 5.20 | 4.70 |
| TPSH1040-6R2 | 6.2 ± 30% | 12 | 24.0 | 21.5 | 28.0 | 4.70 | 4.30 |
| TPSH1040-100 | 10.0 ± 30% | 16 | 22.0 | 32.0 | 42.0 | 4.40 | 3.80 |
| TPSH1040-150 | 15.0 ± 30% | 18 | 16.0 | 60.0 | 78.0 | 2.90 | 2.80 |
| TPSH1040-220 | 22.0 ± 30% | 16 | 12.0 | 75.0 | 98.0 | 2.55 | 2.48 |
| TPSH1040-330 | 33.0 ± 30% | 16 | 10.0 | 110.0 | 140.0 | 2.05 | 2.00 |
| TPSH1040-470 | 47.0 ± 30% | 16 | 8.0 | 170.0 | 22.0 | 1.62 | 1.56 |
| TPSH1040-680 | 68.0 ± 30% | 16 | 7.0 | 245.0 | 320.0 | 1.45 | 1.40 |
| TPSH1040-101 | 100.0 ± 30% | 14 | 6.0 | 320.0 | 415.0 | 1.18 | 1.14 |
| TPSH1040-221 | 220.0 ± 30% | 14 | 4.0 | 760.0 | 950.0 | 0.78 | 0.72 |
| TPSH1040-331 | 330.0 ± 30% | 14 | 2.5 | 1080.0 | 1350.0 | 0.62 | 0.60 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH1050) 特性規格 | |||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
自諧頻率 (MHz) TYP. |
直流阻抗 (mΩ) | 有效電流 (A) TYP. |
飽和電流 (A) TYP. |
|
| TYP. | MAX. | ||||||
| TPSH1050-4R7 | 4.7 ± 30% | 13 | 34.0 | 14.5 | 19.0 | 5.20 | 5.10 |
| TPSH1050-100 | 10.0 ± 30% | 16 | 20.0 | 26.0 | 34.0 | 4.40 | 3.80 |
| TPSH1050-220 | 22.0 ± 30% | 16 | 10.0 | 58.0 | 76.0 | 2.90 | 2.70 |
| TPSH1050-330 | 33.0 ± 30% | 14 | 8.5 | 70.0 | 90.0 | 2.70 | 2.10 |
| TPSH1050-470 | 47.0 ± 30% | 14 | 7.0 | 100.0 | 130.0 | 2.10 | 1.80 |
| TPSH1050-680 | 68.0 ± 30% | 14 | 6.5 | 144.0 | 186.0 | 1.75 | 1.45 |
| TPSH1050-101 | 100.0 ± 30% | 16 | 5.0 | 198.0 | 260.0 | 1.50 | 1.25 |
| TPSH1050-151 | 150.0 ± 30% | 16 | 4.0 | 330.0 | 430.0 | 1.15 | 1.05 |
| TPSH1050-221 | 220.0 ± 30% | 14 | 3.5 | 470.0 | 610.0 | 0.95 | 0.88 |
| TPSH1050-331 | 330.0 ± 30% | 11 | 2.5 | 690.0 | 900.0 | 0.84 | 0.70 |
| TPSH1050-471 | 470.0 ± 30% | 11 | 1.9 | 1050.0 | 1350.0 | 0.65 | 0.55 |
| TPSH1050-681 | 680.0 ± 30% | 11 | 1.6 | 1350.0 | 1760.0 | 0.56 | 0.48 |
| TPSH1050-102 | 1000.0 ± 30% | 30 | 1.4 | 2120.0 | 2760.0 | 0.47 | 0.40 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH1065) 特性規格 | |||||||
| 產品料號 | 電感值 (µH) |
Q Ref. |
自諧頻率 (MHz) TYP. |
直流阻抗 (mΩ) | 有效電流 (A) TYP. |
飽和電流 (A) TYP. |
|
| TYP. | MAX. | ||||||
| TPSH1065-4R2 | 4.2 ± 30% | 14 | 45 | 18.0 | 23.0 | 5.60 | 7.00 |
| TPSH1065-6R5 | 6.5 ± 30% | 13 | 28 | 28.0 | 35.0 | 5.00 | 7.00 |
| TPSH1065-100 | 10.0 ± 30% | 14 | 20 | 33.0 | 41.0 | 4.90 | 4.00 |
| TPSH1065-220 | 22.0 ± 30% | 16 | 12 | 58.0 | 73.0 | 3.80 | 2.80 |
| TPSH1065-330 | 33.0 ± 30% | 10 | 7 | 93.0 | 120.0 | 2.70 | 2.40 |
| TPSH1065-470 | 47.0 ± 30% | 10 | 6 | 165.0 | 210.0 | 2.10 | 2.10 |
| TPSH1065-680 | 68.0 ± 30% | 8 | 5 | 195.0 | 250.0 | 1.85 | 1.75 |
| TPSH1065-101 | 100.0 ± 30% | 13 | 4 | 234.0 | 290.0 | 1.80 | 1.40 |
註:
- 頻率測量 L: 100KHz/0.25v .
- IDC: 當電感量比其額定值低 35% 時的電流 . 温度上升 40°C Δt = 40°C (ta = 20°C) .
| 高飽磁功率型 (TPSH) 料號標識 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| TPSH6011 | - | 1R0 | M | |||||||||||||||||||||||||||||||||||||||||||||||
 | | | ||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||
