HDMI Common Mode Filters & Chokes (TCPWCH-2012HD)

HDMI port has been widely used in all kinds of A/V equipments with the development of HD & full HD video technology. HDMI provides ultra high transfer rate and supports hot plug and play technology. According to the latest HDMI1.4 specification, HDMI provide a max transfer rate of 4.8Gbps, which could well address the need of full HD video transmission.

DeMint has introduced the (TCPWCH-2012HD) series of low-profile choke coils. Designed for use as noise-control components adaptable to high-speed differential transmission systems, these series feature a wide variation of impedance values and the ability to match transmission-line impedance with component image impedance.

Different applications have different standards designed to govern the quality of signal waveforms. Components that will be used on such transmission lines need to have a certain level of waveform quality when they are inserted. In addition, as noise-suppression components, they need to provide noise-control effects. With the commonmode choke coils (TCPWCH-2012HD), insertion loss of HDMI waveform specifications can be satisfied without having any significant impact on initial signal waveforms, proving the capability to support high-speed signals.

All (TCPWCH) series comes a wide variety of options to meet your needs with halogen free and RoHS Directive. DeMint is able to customize and manufacture your request, with comprehensive application engineering and design support available for customers worldwide.

Download Complete Datasheet HDMI Common Mode Filters & Chokes (TCPWCH-2012HD) PDF.

HDMI Common Mode Choke Coils on The Selection :
  1. Select the optimum impedance matching components in accordance with the frequencies at which noise is a problem, the cost and space.
  2. In the case that the chip common mode choke coil is used with ESD protection device with large capacitance, signal quality may result to fail to meet regulation.
  3. In the case that there are impedance mismatch to HDMI signal line, signal quality may become worse.
  4. Some items are under confirmation of waveform compatibility. Please contact us for latest information.
Features & Applications :
  1. Suppress noise for the high-speed differential signal lines.
  2. Low profile wound Chip constructure with standard 0805 size.
  3. Best EMI suppression effect, least impact of HDMI signal wave form.
Configurations & Dimensions (TCPWCH-2012HD)
HDMI Common Mode Filters & Chokes (TCPWCH-2012HD) Structure diagram
HDMI Common Mode Filters & Chokes (TCPWCH-2012HD) Structure diagram
HDMI Common Mode Filters & Chokes (TCPWCH-2012HD) Structure diagram Unit: mm (Inch)
SIZE CODE A B C D1
TYP
D2
TYP
F
TYP
G
TYP
H
TYP
I
TYP
TCPWCH-2012HD
(0805)
2.00±0.20(
0.079±0.008)
1.2±0.20
(0.047±0.008)
1.2±0.20
(0.047±0.008)
0.45
(0.018)
0.40
(0.016)
0.40
(0.016)
1.20
(0.047)
0.80
(0.031)
2.60
(0.102)
Electrical Characteristics (TCPWCH-2012HD)
Part Number Impedance (Ω) Tolerance
±%
Test Frequency
(MHz)
DC Resistance (Ω)
Max.
Rated Current (mA)
Max.
TCPWCH-2012HD-400TR 40 25% 100 0.25 400
TCPWCH-2012HD-670TR 67 25% 100 0.25 400
TCPWCH-2012HD-900TR 90 25% 100 0.30 400
TCPWCH-2012HD-121TR 120 25% 100 0.30 370

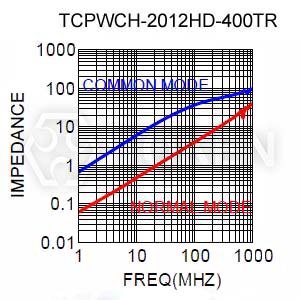

Electrical Characteristics Graph TCPWCH-2012HD-400TR
1.TDR Impedance Curve (For HDMI) 2.Insertion Loss Curve (For HDMI)

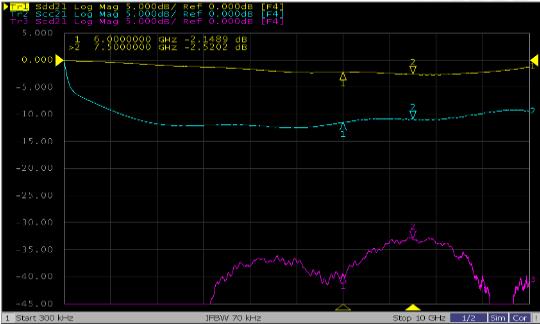

TCPWCH-2012HDMI-400T TCPWCH-2012HDMI-400T

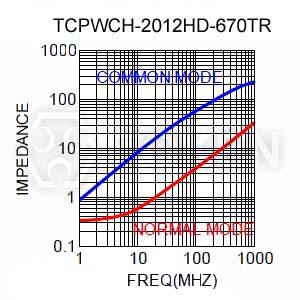

Electrical Characteristics Graph TCPWCH-2012HD-670TR
1.TDR Impedance Curve (For HDMI) 2.Insertion Loss Curve (For HDMI)

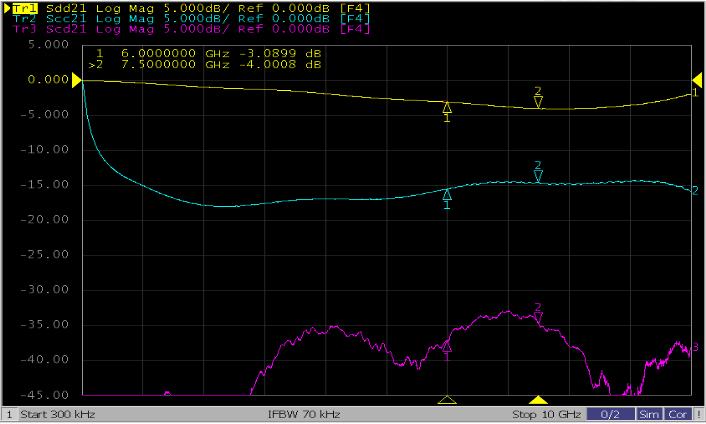

TCPWCH-2012HDMI-670T TCPWCH-2012HDMI-670T

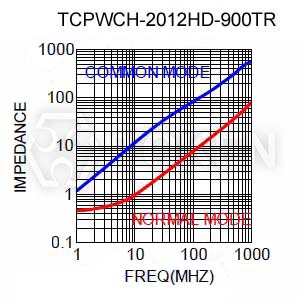

Electrical Characteristics Graph TCPWCH-2012HD-900TR
1.TDR Impedance Curve (For HDMI) 2.Insertion Loss Curve (For HDMI)

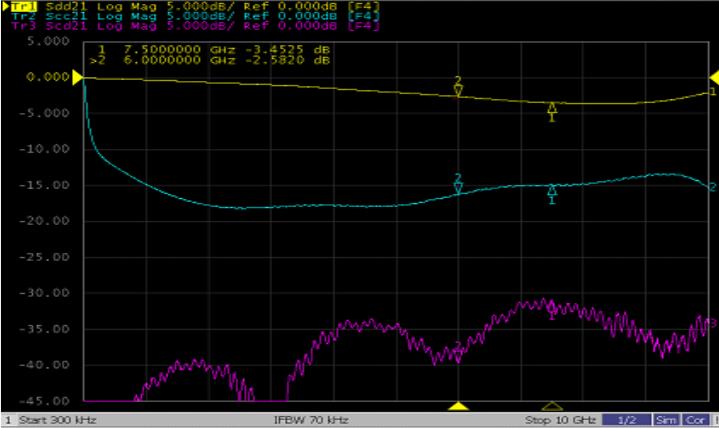

TCPWCH-2012HDMI-900T TCPWCH-2012HDMI-900T

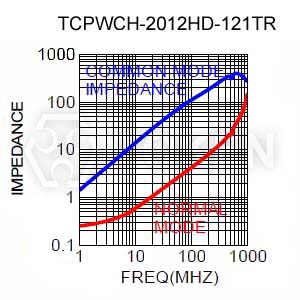

Electrical Characteristics Graph TCPWCH-2012HD-121TR
1.TDR Impedance Curve (For HDMI) 2.Insertion Loss Curve (For HDMI)

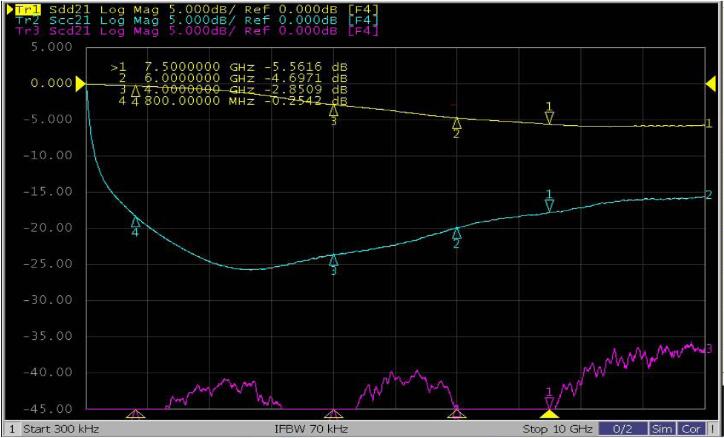

TCPWCH-2012HDMI-121T TCPWCH-2012HDMI-121T
Order Codes (TCPWC)
TCPWC H - 2012 HD - 400 TR

Part Number
TCPWC
Shielding Type
H Shielding

Dimensions (mm)
2012 2.00×1.20×1.20 EIA0805
Purpose
HD HDMI

Impedance (Ω)
400 40Ω
670 67Ω
900 90Ω
121 120Ω
Package
P Bulk
TR Taping Reel
