Common Mode Choke Coils for Automotive TCPWCH-4532AU
SMD common mode choke coils (TCPWCH-4532AU) series is primarily designed for automotive networking applications. such as automotive ethernet, FlexRay, and CAN-Bus. Of course, ethernet is already the firmly established networking protocol for computers, peripherals, communication devices, and multimedia.
The attenuation of the noise is higher, the performance of the common-mode choke is better. DeMint taking advantage of the latest winding technology, (TCPWCH-4532AU) consists ferrite core and a pair lines enabling the most effective in noise suppression designs. Feature high common-mode impedance at noise band and low differential-mode impedance at signal band. Low differential-mode impedance with high coupling factor, there is almost no distortion on high speed signal.
This automotive common mode chokes construction provides for a more lean and cost saving approach then comparable larger, heavier, wire-wound toroidal inductors. Wide inductance selection, and low-resistance coils can be customed designs and tighter tolerances are available on request.
(TCPWCH-4532AU) conforms to the RoHS compliant and Lead-free. DeMint will also produce devices outside these specifications to meet customer requirements, with comprehensive design application engineering support for customers worldwide.
Download Complete Datasheet Common Mode Choke Coils for Automotive (TCPWCH-4532AU) PDF.
- For Automotive wire wound common mode choke coil Effective for EMI suppression of common mode noise emission.
- Compatible with Automotive required operating temperature –40°C to +125°C.
- Compatible with RoHS Directive and AEC-Q200.
- Preventive measure against high speed signal radiation emission such as CAN-Bus.
- Modem, Fax, ISDNs… etc.
| Configurations & Dimensions (TCPWCH-4532AU) | |||||||||||
|
|||||||||||
| SIZE CODE | A | B | C | D1 TYP |
D2 TYP |
F TYP |
G TYP |
H TYP |
I TYP |
||
| TCPWCH-4532 (1812) |
4.50±0.2 (0.177±0.008) |
3.2±0.2 (0.126±0.008) |
2.8±0.2 (0.110±0.008) |
1.00 (0.039) |
1.00 (0.039) |
0.40 (0.016) |
3.60 (0.141) |
2.10 (0.082) |
4.90 (0.192) |
||
| Electrical Characteristics (TCPWCH-4532AU) | ||||||
| Part Number | Inductance (µH) 100KHz/100mV |
Impedance (Ω) @ 10MHz |
DC Resistance (Ω) Max. | Rated Current (mA) Max. | Rated Voltage (V) DC | Insulation Resistance (MΩ) Min. |
| TCPWCH-4532AU-110YTR | 11(+50/30%) | 600 | 0.6 | 250 | 50 | 10 |
| TCPWCH-4532AU-220YTR | 22(+50/30%) | 1200 | 1.0 | 200 | 50 | 10 |
| TCPWCH-4532AU-510YTR | 51(+50/30%) | 2800 | 1.0 | 200 | 50 | 10 |
| TCPWCH-4532AU-101YTR | 100(+50/30%) | 5800 | 2.0 | 150 | 50 | 10 |

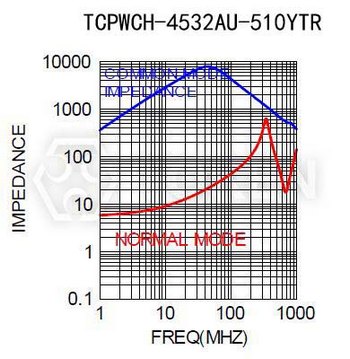

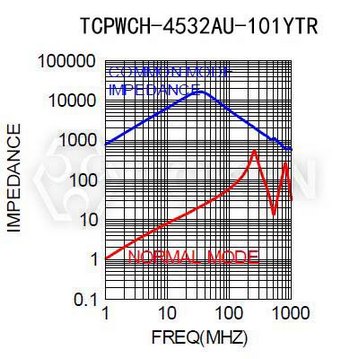

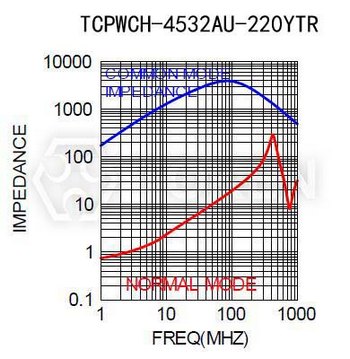

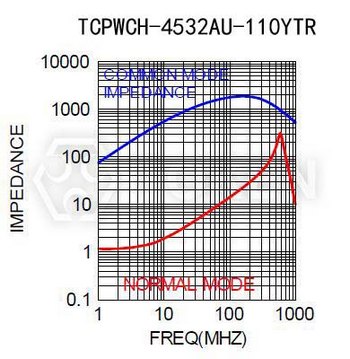

| Impedance VS Frequency (TCPWCH-4532AU) |
  |
  |
| Order Codes (TCPWC) | |||||||||||||||||||||||||||||||||||||||||||||
| TCPWC | H | - | 4532 | AU | - | 110 | Y | TR | |||||||||||||||||||||||||||||||||||||
 | | | | | | | |||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
