Parallel Precision Resistor Network Voltage Divider (UPRND)
DeMint's (UPRND) high precision voltage divider networks sharpen the edge of application accuracy.
The Precision Thin-Film Network technology provides a significant reduction of the resistive component's sensitivity to ambient temperature variations (TCR).
Designers can now guarantee a high degree of stability and accuracy in fixed-resistor applications using solutions based on DeMint's revolutionary Network technology.
This technology allows customer orientated products, designed to satisfy challenging and specific technical requirements.
Precision Network Resistors UPRND Series meets Lead (Pb)-free and RoHS compliant. Known for providing design engineers with a comprehensive range of industrial-qualified resistive devices,
DeMint Electronics has further expanded its precision product capabilities in Serial UPRNS and Parallel UPRND Series.
Providing design engineers with an economical power resistor with high quality performance,
DeMint Electronics offers low cost industrial grade Parallel UPRND and Serial UPRNS Networks.
DeMint's UPRND/UPRNS Series are assembled by EE/RE 1/10 series to form a stable, high precision thin-film networks.
Characteristic of UPRND Series meet extreme low temperature coefficient.
Parallel UPRND Series equate IRC, EBG Precision Devices with fast delivery and more competitive price.
For non-standard technical requirements and special applications, please contact us.
Download complete PDF Parallel Precision Resistor Network Voltage Divider (UPRND).
Features :
- UPRND: Parallel dip type; UPRNS: Serial dip type.
- Any value available within resistance range.
- Lead (Pb)-free and RoHS compliant.
- Precision tolerance tight to A2(±0.02%).
- Metal film precision networks, excellent stability and reliability.
- Superior TCR narrowed to Absolute C7(±5 ppm/°C), Relative C10(±2 ppm/°C).
Applications :
- Industrial, Precision Bypass, Divider.
- Medical, Test and Measurement Equipment.
- Electron Beam (EB) Applications Scanning.
- Recording Equipment, Electron Microscopes.
- Military, airborne, High precision instrumentation.
- Precision Amplifiers, Audio (High End Stereo Equipment).
|
Dimensions & Technical Characteristics (UPRND)
|
 Parallel Voltage Divider (UPRND) Dimensions |
|
| UPRND A(mm)±0.5 |
5.08 |
11.8 |
| Number of Resistors # |
2 |
4 |
| Dimensions(Unit: mm) |
A |
5.08±0.5 ~ 11.8±0.5 |
| B |
9.0±0.5 |
| C |
0.6±0.05 |
| D |
2.54±0.05 |
| E |
11.5±0.5 |
| F |
3.0±0.5 |
| Rated Wattage of one element unit at 70°C (W) |
0.1 |
| Maximum Working Voltage (V) |
200 |
| Nominal Resistance Range of component element unit (Ω) |
10 ~ 1M |
| Absolute
Tolerance (%) |
A2(±0.02), A5(±0.05), B(±0.1),
C(±0.25), D(±0.5), F(±1.0) |
| Relative
Tolerance (%) |
T(±0.01), A2(±0.02), A5(±0.05), B(±0.1) |
| Absolute Temperature Coefficient (ppm/°C) |
C7(±5), C6(±10), C5(±15), C3(±25), C2(±50) |
| Relative Temperature Coefficient (ppm/°C) |
C10(±2), C9(±3), C7(±5), C6(±10), C5(±15) |
| Working Temperature (°C) |
-10 ~ +70 |
Remark:
1. Absolute value means all factors (Tolerance and Temperature Coefficient) of network component element units are independent.
2. Relative value means the maximum difference factor among component element units of Network Resistor.
|

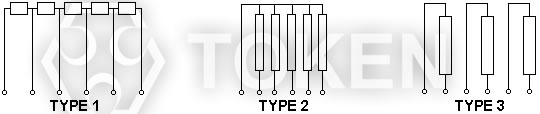

Parallel Resistor Networks (UPRND)
Serial Resistor Networks (UPRNS)
