  4. Dielectric Patch Antenna (DA)
Dielectric Patch Antenna (DA)

Dielectric Patch Antenna (DA)

DeMint (DA) Dielectric Patch Antenna Technology Makes The List. Dielectric antenna is fed using coaxial ceramic media. By a coaxial extension of the inner conductor to form an oscillator, used to excitation of electromagnetic waves, the sleeve of the role of the media, except clamping bar, the more important is the reflection of electromagnetic waves, thus ensuring the incentives from the coaxial line inner conductor of electromagnetic waves to the free end of dielectric rod transmission.

DeMint use of low-loss dielectric antennas, high-frequency dielectric material, strict process control, apply to the Global Positioning System (GPS), radio broadcast system of small antenna elements.

DeMint Electronics manufacturing dielectric patch antenna with rectangular microstrip antenna design and offset one point feeding method for Global Positioning System GPS, media filters, multi-layer filters, cavity filters, band-pass filter, military filters, high-frequency filters and so on, in line with RoHS standards.

(DA) series of microwave antenna, which provides clients a custom design and deliver smaller tolerances. Dielectric antenna application specific design, but also for the frequency requirements, including different inductance values and Q specifications adjusted.

DeMint will also produce devices outside these specifications to meet specific customer requirements,
please contact our sales for more information. Download (DA) Datasheet PDF (347KB).

Features :
  1. Small patch dimensions.
  2. Using high quality factor.
  3. Stabilized temperature coefficient.
  4. Provide highly stabilized performance.
Applications :
  1. Global Positioning Systems (GPS)
  2. GPS Hold, Car Navigation System, GPS PDA.
  3. W-LAN.
Typical Specifications (DA)
Part Number Size
(mm)		 Center Frequency
(MHz)		 Band width
(MHz)		 Gain
(dBi)		 Ground Plane
(mm)		 Application
DA1575S25T4A 25*25*4 1575 ≥10 4.5 35*35 GPS
DA1575S25T4B 25*25*4 1575 ≥10 4.5 70*70
DA1575S25T2B 25*25*2 1575 ≥10 4.5 70*70
DA1580S25T4A 25*25*4 1580 ≥15 4.5 35*35
DA1580S25T4B 25*25*4 1580 ≥15 4.5 70*70
DA1580S25T2B 25*25*2 1580 ≥15 4.5 70*70
DA1580S18T4 18*18*4 1580 ≥10 3.0 50*50
DA1580S18T2 18*18*2 1580 ≥10 3.0 50*50
DA1580S13T4 13*13*4 1580 ≥5 0.0 50*50
DA2450S13T4 13*13*4 2450 ≥5 0.0 50*50
DA2450S13T2 13*13*2 2450 ≥5 0.0 50*50
DA1575S36T4 36*36*4 1575 ≥30 5.0 80*80
DA2450D16 Φ16 2450 45 2.1 50*70 W-LAN
DA1616S25(Tx) 25*25*4 1616 ≥10 4.0 70*70 Beidou Satellite Position System
DA2492S25(Rx) 25*25*4 2492 ≥10 4.0 70*70
Note : Customer's specification, custom design, or ODM are welcomed on request.

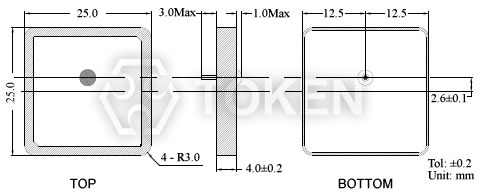

Dimensions (DA)
(DA) Dimension
(DA) Dimension
(DA) Dimensions II
(DA) Dimensions II

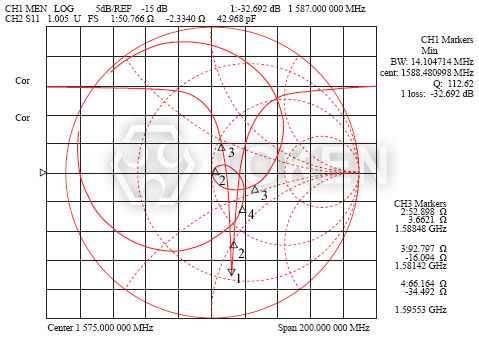

Typical Characteristic (DA)
(DA) Typical Characteristic
(DA) Typical Characteristic
Order Codes (DA)
DA 1580 S 18 T2
Dielectric Patch Antenna
Center Frequency
Structure
Dimensions
Thickness
