Alloy Current Sensing Resistors (FLU)

Alloy Sampling Shunt Current Sensing Resistors (FLU)

Open Air Precision Low Ohmic Resistors (LRA) Feature Longer Thermal Path.

DeMint's current sense LRA open air resistors are expected to gain wide acceptance in the worldwide market as a result of increased thermal management capabilities.

The LRA series is designed for applications requiring the transfer of heat away from circuits and solder joints. Available in 0.5W, 1W, and 1.5W rating, the resistor is being specified for current sensing, feedback, current detective, supper low inductance, as well as surge and pulse applications.

The hot spot on the LRA open-air resistor is approximately 0.2 degrees higher than on a typical metal strip chip resistor. This results in an increased thermal path for the LRA, reducing heat transfer into the solder joints and circuits.

The flameproof LRA low resistance value resistors are constructed of a wire resistive element with welded copper leads to prevent solder wicking, which can change the device's resistance value in the circuit by as much as 30%. Because of this, the device is ideal for thermally harsh environments, including automotive and aerospace applications, as well as enclosed, poorly ventilated circuits in applications such as laptop computers.

The LRA Open Air Series feature a reduced pitch, or spacing between the leads on the circuit board (with a corresponding increase in the board mounted profile), when compared to the standard DeMint LRB Series devices.

The LRA resistors are rated for 1W or 1.5W at 70°C, with resistance values from 0.1Ω to 0.003Ω and tolerances down to ±1%. Operating temperature range is -50°C to 300°C. The LRA Series is available in bulk packaging in 200 increments.

DeMint will also produce devices outside these specifications to meet customer requirements. A lead-free RoHS-compliant version is available, as is a non-inductive version for high frequency applications. Contact us with your specific needs.

Download PDF Specification : Alloy Sampling Shunt Current Sensing Resistors (FLU).

Features :
  1. Tolerance ±1%,±2% and ±5%.
  2. Low resistance 0.1mΩ to 10mΩ.
  3. Rated Power 1W ~ 7W with low inductance.
  4. Sustain high temperature.
Applications :
  1. Power Electronic.Home Appliance.
  2. Current Sensing.Communication System.
  3. Automotive electronics.Drive technology.
FLU - Dimensions (Unit:mm)

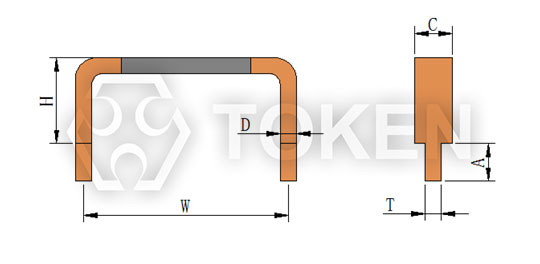

Alloy Current Sensing Resistors (FLU) Dimensions
Alloy Current Sensing Resistors (FLU) Dimensions
Resistance (mΩ) W (mm) C (mm) D (mm) H (mm) A (mm) T (mm)
0.1∼10 5∼30 10∼35 0.3∼3 5∼30 4±0.2 1.0±0.2
1.5±0.2
FLU - Surface Temperature Curve
(FLU) Surface Temperature Curve
(FLU) Surface Temperature Curve

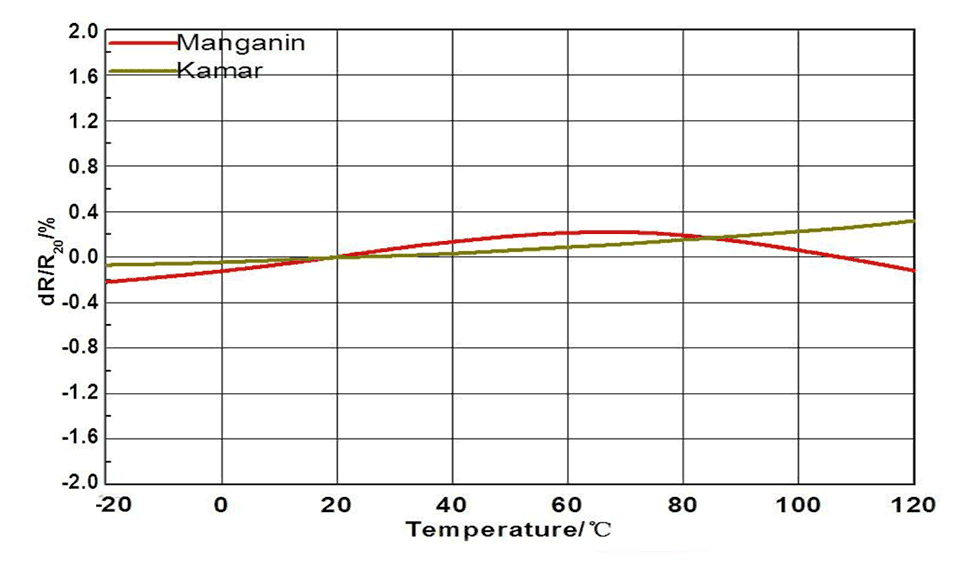

FLU - TCR Derating Curve
(FLU) TCR Derating Curve
(FLU) TCR Derating Curve
FLU - Environmental Characteristics
Items Methods Requirement
Temperature Cycling MIL-STD-202
1000 Cycles (-55°C to +125°C). Measurement at 24±2 hours after.
±0.5%
High Temperature MIL-STD-202
1000hrs. @T=125°. Unpowered. Measurement at 24±2 hours after.
±0.5%
Moisture Resistance MIL-STD-202
t=24 hrs/cycle.
Note:Steps 7a & 7b not required. Measurement at 24±2 hours after.
±0.5%
Biased Humidity MIL-STD-202
1000hrs 85°C/85% RH.
Note: Specified conditions: 10% of operating power. Measurement at 24±2 hours after.
±0.5%
Operational Life MIL-STD-202
Condition D Steady State TA=125°C at rated power. Measurement at 24±2 hours after.
±0.5%
Solderability J-STD-002C
245°C±5°C, 5s+0.5s/-0.
95% Coverage Minimum.
Vibration MIL-STD-202
5g's for 20 min, 12 cycles each of 3 orientations.
Note: Use 8"X5" PCB. 031" thick 7" secure points on one long side and secure points at corners of opposite sides which parts mounted within 2 from any secure point. Test from 10-2000 Hz. Measurement at 24±2 hours after test conclusion.
±0.5%
Resistance to Soldering Heat MIL-STD-202
260°C±5°C, 10s±1s. Measurement at 24±2 hours after test conclusion.
±0.5%
Short Time Overload MIL-STD-202
5 × Rated power for 5s. Measurement at 24±2 hours after test conclusion.
±0.5%
Thermal Shock MIL-STD-202
-55°C/+125°C, 300 Cycles, Maximum transfer time 20s Dwell.
±1%
FLU - Derating Curve
Rated power VS Ambient temperature (Derating Cruve)
Rated power VS Ambient temperature (Derating Cruve)

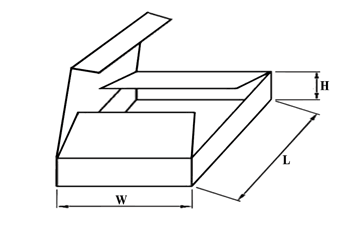

FLU - Internal Package

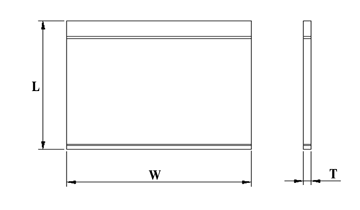

Internal Package (FLU)
Internal Package (FLU)
Type L/mm W/mm T/mm
P1 130 130 0.2
P2 160 160 0.2
P3 210 150 0.1

FLU - External Package
External Package (FLU)
External Package (FLU)
Type L/mm W/mm H/mm
B1 170 120 50
B2 240 180 115
B3 230 170 200
B4 250 250 250
B5 300 300 300
FLU - Order Code
FLU 5 0m10 F
Type
FLU
Pitch (W)
5 5mm
15 15mm
30 30mm
Value (Ω)
0m10 0.00010Ω
0m50 0.00050Ω
R005 0.00500Ω
R010 0.01000Ω
Tolerance (%)
F ±1%
G ±2%
J ±5%
